matches 94 models Default Newest

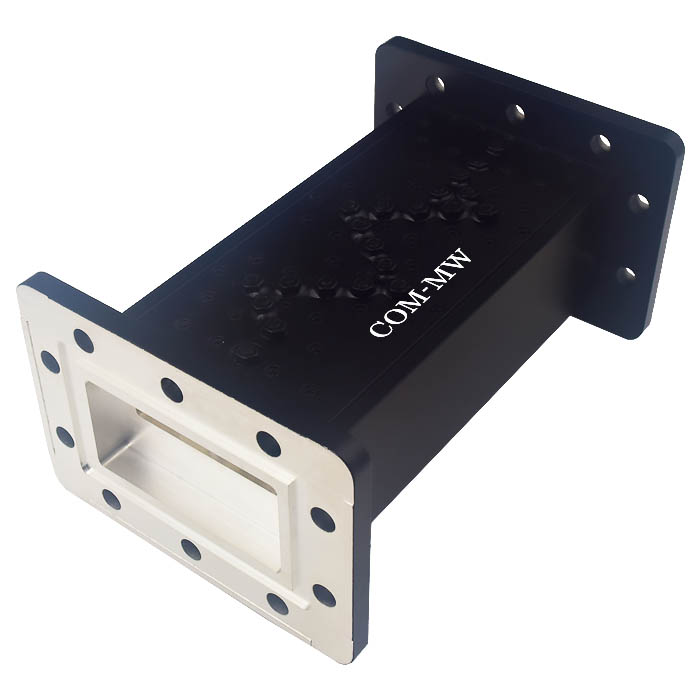

ZBF8-W3950-500-3362 Filter

Filter ZBF8-W3950-500-3362

Passband3.7~4.2GHz, DC-3.5GHz≥70dB, 3.5-3.55GHz≥60dB, Waveguide
View Details →

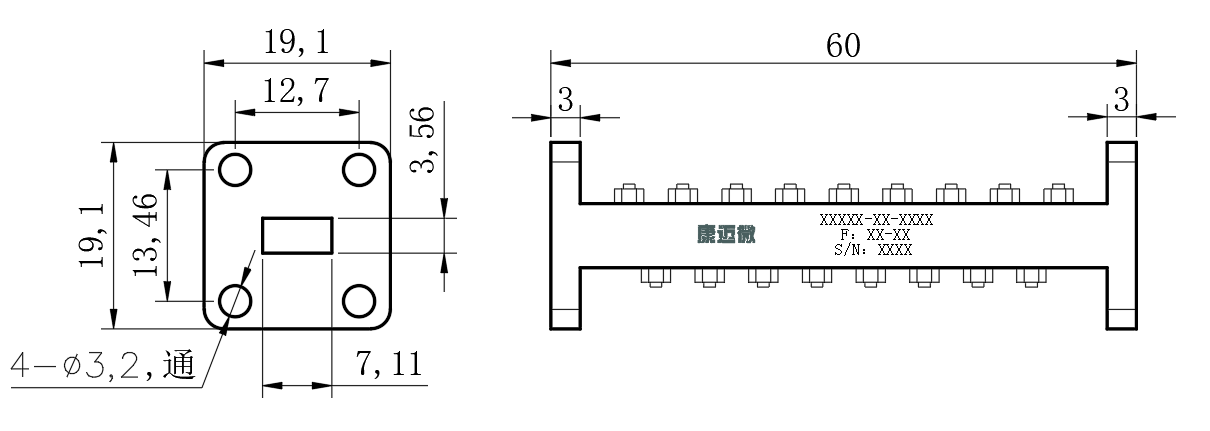

ZBF8-W38-4.2G-3240 Filter

Filter ZBF8-W38-4.2G-3240

Passband35.9~40.1GHz, DC-34GHz≥70dB, 42-46GHz≥40dB, Waveguide
View Details →
ZBF8-W34.5-3.2G-3239 Filter

Filter ZBF8-W34.5-3.2G-3239

Passband32.9~36.1GHz, DC-30GHz≥70dB, 39-43GHz≥50dB, Waveguide
View Details →

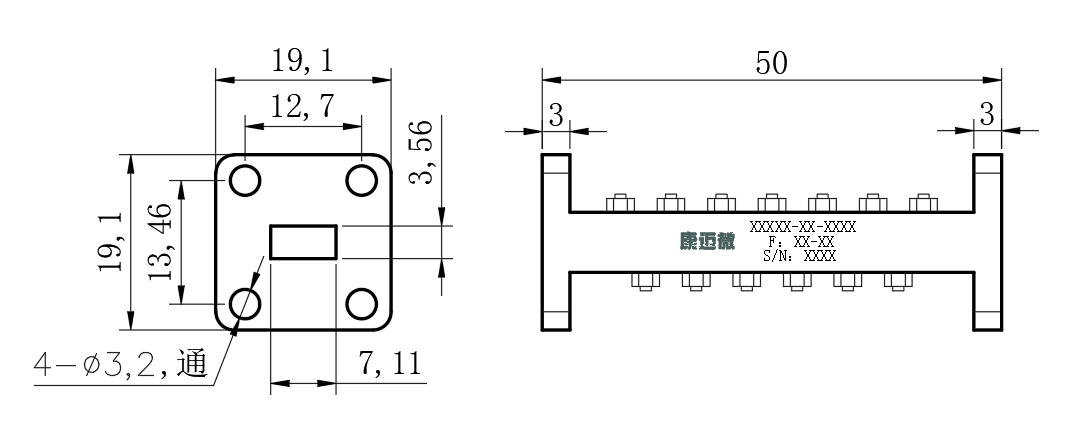

ZBF8-W31.5-3.2G-3238 Filter

Filter ZBF8-W31.5-3.2G-3238

Passband29.9~33.1GHz, DC-27GHz≥40dB, 36-40GHz≥70dB, Waveguide
View Details →

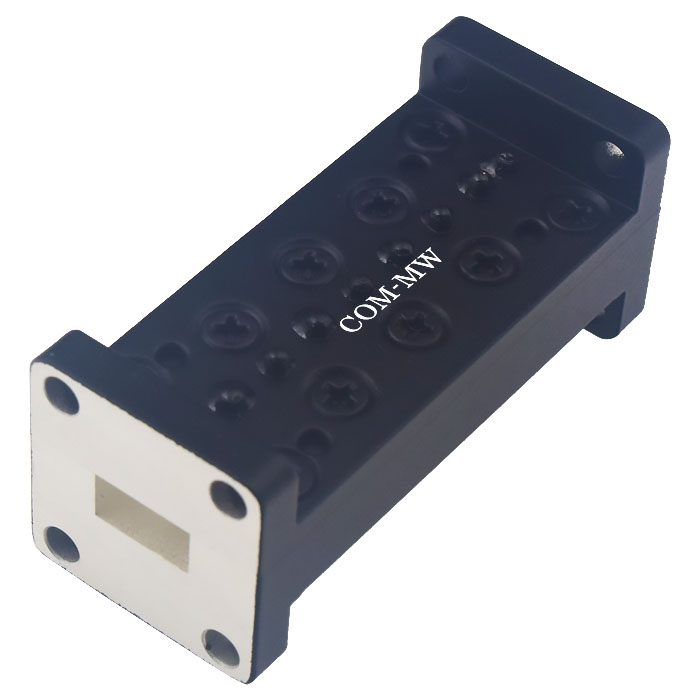

ZBF8-W30-2G-2731 Filter

Filter ZBF8-W30-2G-2731

Passband29~31GHz, DC-27GHz≥60dB, 33GHz≥60dB, Waveguide
View Details →
ZBF8-W30-2G-2345 Filter

Filter ZBF8-W30-2G-2345

Passband29~31GHz, DC-27GHz≥60dB, 33GHz≥60dB, Waveguide
View Details →

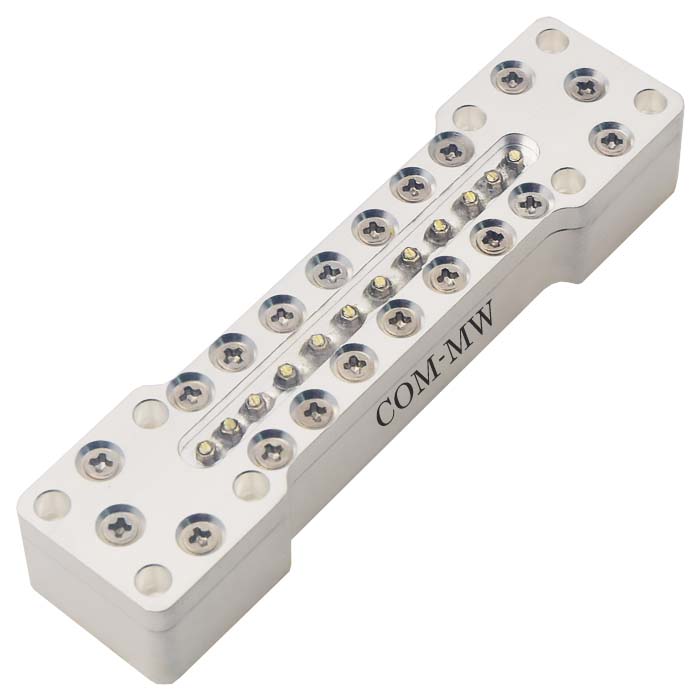

ZBF8-W29.5-4G-2578 Filter

Filter ZBF8-W29.5-4G-2578

Passband27.5~31.5GHz, 26-26.75GHz≥20dB, 34-35GHz≥30dB, Waveguide
View Details →

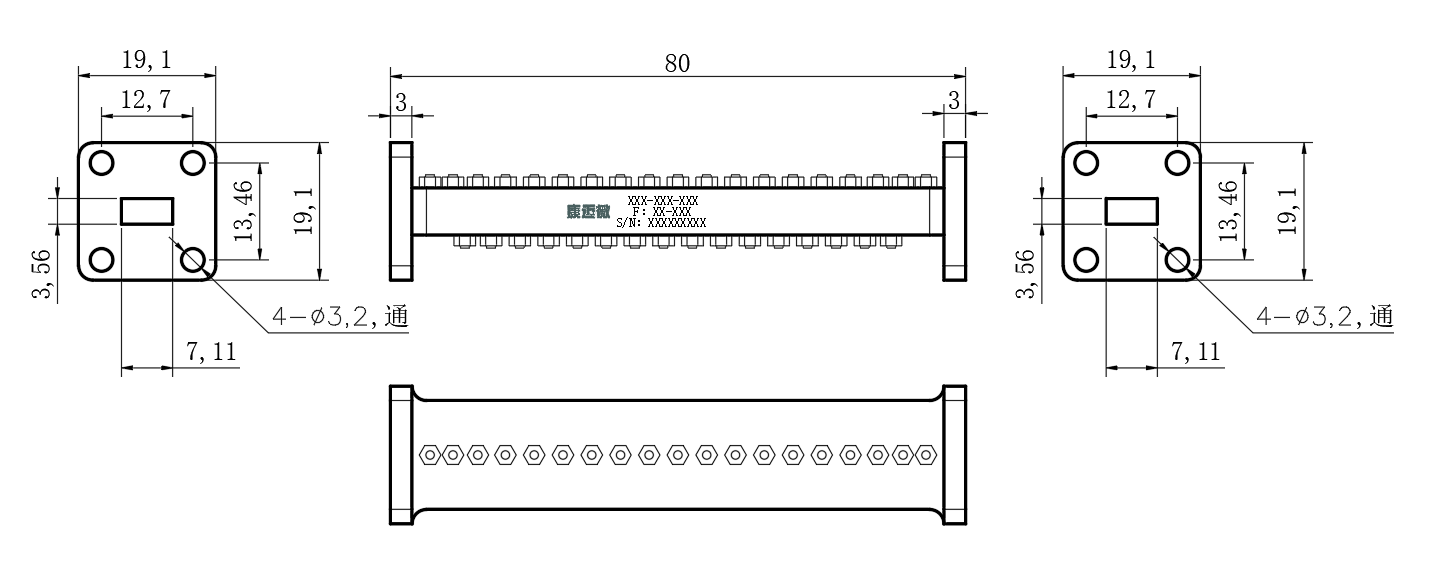

ZBF8-W29.25-3.5G-2619 Filter

Filter ZBF8-W29.25-3.5G-2619

View Details →

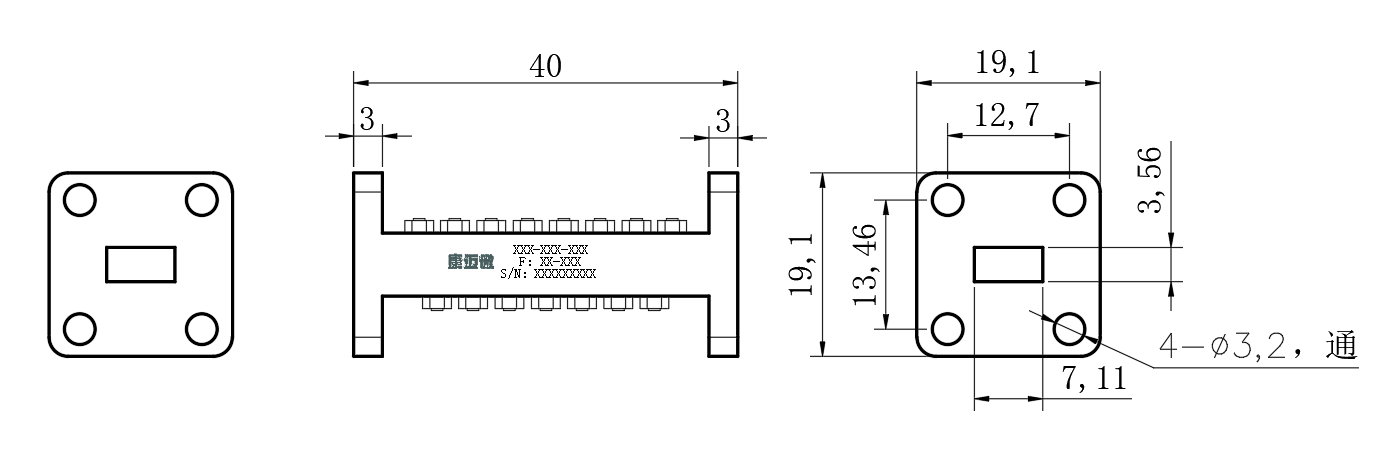

ZBF8-W28.9-5.8G-2696 Filter

Filter ZBF8-W28.9-5.8G-2696

View Details →
ZBF8-W28.5-3.2G-3237 Filter

Filter ZBF8-W28.5-3.2G-3237

Passband26.9~30.1GHz, DC-24GHz≥30dB, 33-37GHz≥70dB, Waveguide
View Details →

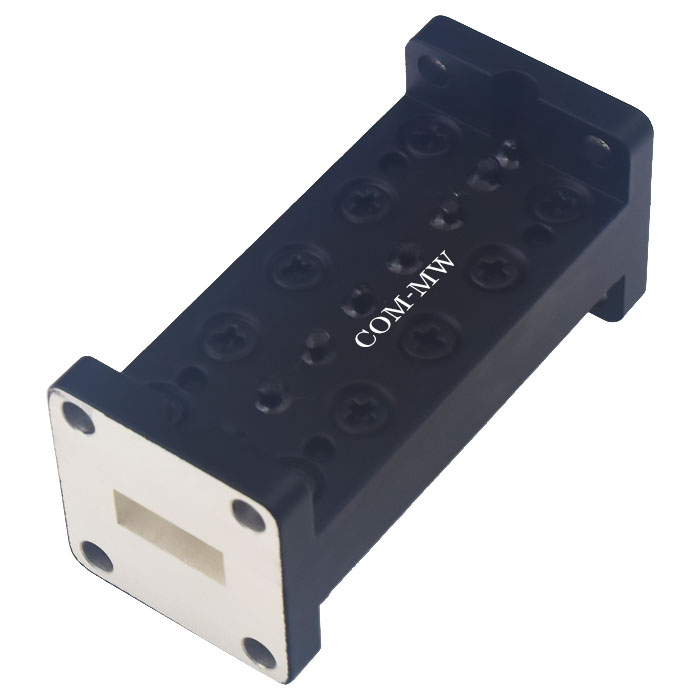

ZBF8-W18.45-1.5G-3141 Filter

Filter ZBF8-W18.45-1.5G-3141

Passband17.7~19.2GHz, DC-15.7GHz≥60dBc, 21.2GHz≥60dBc, Waveguide
View Details →
ZBF8-W14.1-1.2G-2068 Filter

Filter ZBF8-W14.1-1.2G-2068

Passband13.5~14.7GHz, 11.4-12.75GHz≥50dBc, dB, Waveguide
View Details →

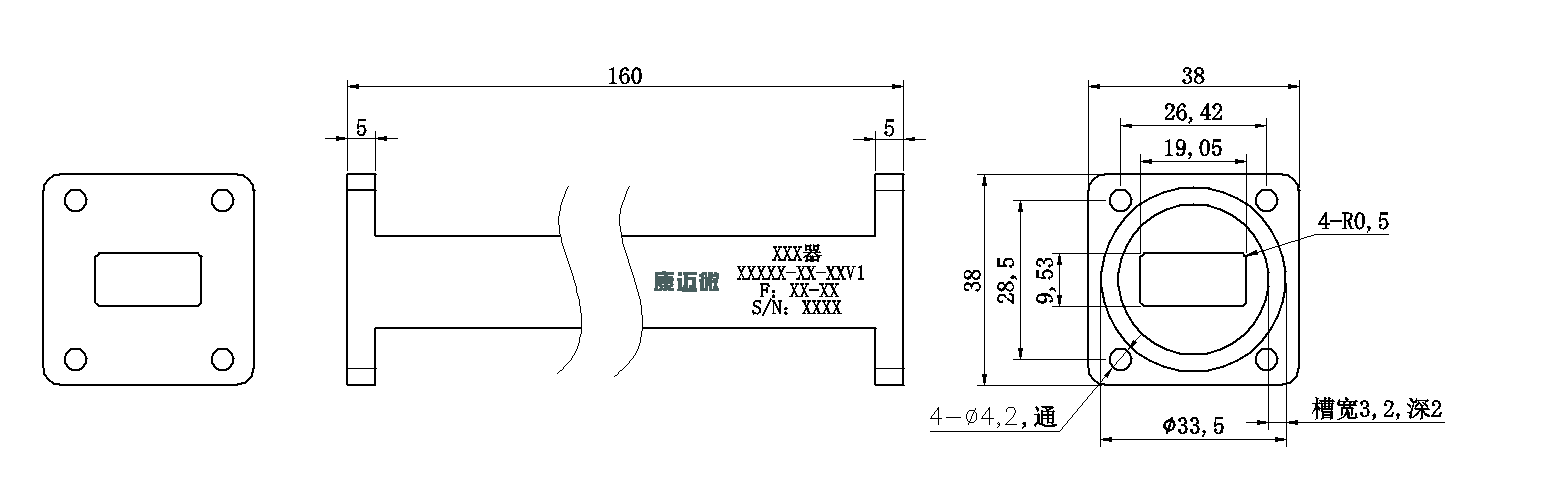

ZBF8-W13.78-2.05G-2448 Filter

Filter ZBF8-W13.78-2.05G-2448

Passband12.75~14.8GHz, 10.95-12.1GHz≥70dB, dB, Waveguide
View Details →
ZBF8-W11.86-1.77G-1986 Filter

Filter ZBF8-W11.86-1.77G-1986

View Details →
ZBF8-W11.73-2.05G-3153 Filter

Filter ZBF8-W11.73-2.05G-3153

Passband10.7~12.75GHz, 13-14.5GHz≥60dB, dB, Waveguide
View Details →
ZBF8-W11.52-1.15G-2346 Filter

Filter ZBF8-W11.52-1.15G-2346

Passband10.95~12.1GHz, 12.75-14.8GHz≥70dBc, Waveguide
View Details →

Filter ZBF8-C7.2-0.2G-2722

Passband7.1~7.3GHz, DC-5.5GHz≥40dB, 7.7-7.9GHz≥40dB, SMA
View Details →
ZBF8-C48.6-2.8G-2088 Filter

Filter ZBF8-C48.6-2.8G-2088

Passband47.2~50GHz, 41.6GHz≥70dB, 52GHz≥45dB, Waveguide
View Details →
ZBF8-C39.75-5.5G-2117 Filter

Filter ZBF8-C39.75-5.5G-2117

Passband37~42.5GHz, 36GHz≥35dB, 35GHz≥45dB, Waveguide
View Details →
ZBF8-C35-0.08G-3395 Filter

Filter ZBF8-C35-0.08G-3395

Passband34.96~35.04GHz, DC-34.8GHz≥25dB, 35.2-40GHz≥25dB, Waveguide
View Details →
ZBF8-3MC38.9-2.8G-2110 Filter

Filter ZBF8-3MC38.9-2.8G-2110

37.5~38.5GHz, 38.5~39.5GHz, 40.2~40.3GHz, Waveguide
View Details →
ZBF3-W30.5-1G-3543 Filter

Filter ZBF3-W30.5-1G-3543

Passband30~31GHz, DC-29.05GHz≥85dB, 32-42GHz≥55dB, Waveguide
View Details →
ZBF25-W9.4-0.4G-305 Filter

Filter ZBF25-W9.4-0.4G-305

Passband9.2~9.6GHz, DC-9GHz≥75dBc, 10-12GHz≥80dBc, Waveguide
View Details →
ZBF25-W8-2G-223 Filter

Filter ZBF25-W8-2G-223

Passband7~9GHz, DC-6.25GHz≥40dB, 9.75-14GHz≥40dB, Waveguide
View Details →
