ZBSF6-C2515-2675-4185 Filter

Filter ZBSF6-C2515-2675-4185

Stopband F2515~2675MHz, ≥50dB, PassbandDC~2505MHz, 2685~6000MHz, SMA
View Details →
ZBSF6-C2515-2575-3617 Filter

Filter ZBSF6-C2515-2575-3617

View Details →
ZBSF6-C2500-2620-4678 Filter

Filter ZBSF6-C2500-2620-4678

Stopband F2500~2620MHz, ≥50dB, PassbandDC~2490MHz, 2630~6000MHz, SMA
View Details →
ZBSF6-C2500-2570-412 Filter

Filter ZBSF6-C2500-2570-412

Stopband F2500~2570MHz, ≥50dB, PassbandDC~2485MHz, 2585~4000MHz, SMA
View Details →
ZBSF6-C2500-2570-3488 Filter

Filter ZBSF6-C2500-2570-3488

Stopband F2500~2570MHz, ≥50dB, PassbandDC~2490MHz, 2580~6000MHz, SMA
View Details →

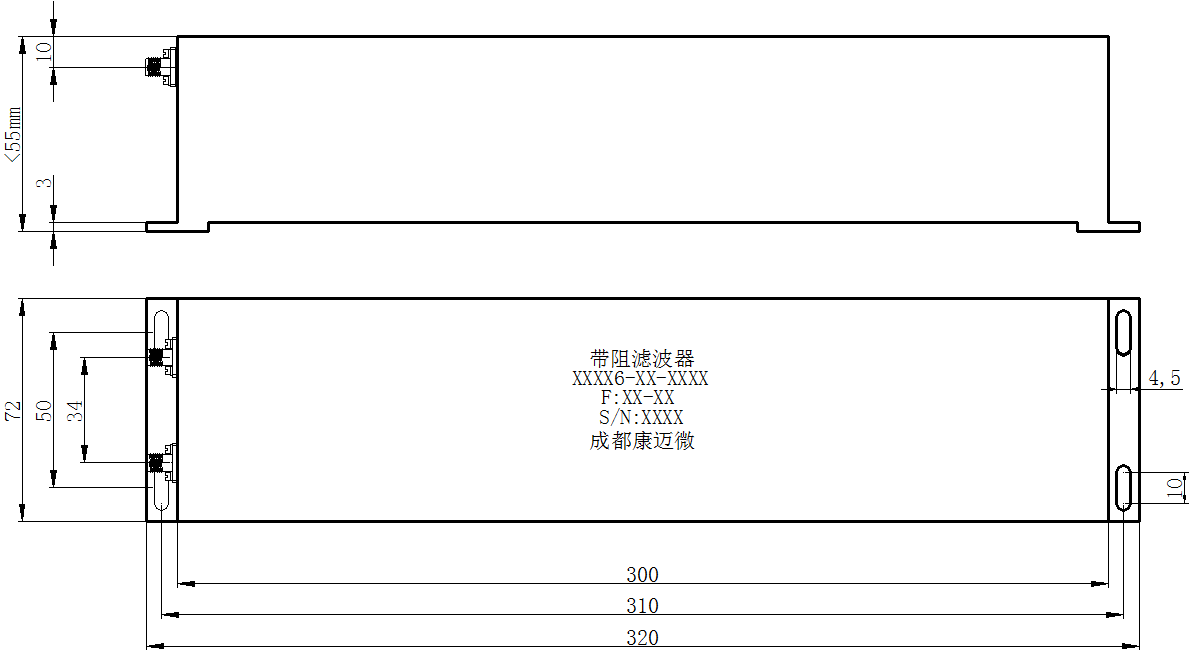

ZBSF6-C2500-2570-3043 Filter

Filter ZBSF6-C2500-2570-3043

Stopband F2500~2570MHz, ≥40dB, PassbandDC~2490MHz, 2580~6000MHz, SMA
View Details →
ZBSF6-C2496-2690-3045 Filter

Filter ZBSF6-C2496-2690-3045

Stopband F2496~2690MHz, ≥40dB, PassbandDC~2486MHz, 2700~6000MHz, SMA
View Details →
ZBSF6-C2496-2690-3034 Filter

Filter ZBSF6-C2496-2690-3034

Stopband F2496~2690MHz, ≥60dB, PassbandDC~2486MHz, 2700~6000MHz, SMA
View Details →
ZBSF6-C2496-2690-1850 Filter

Filter ZBSF6-C2496-2690-1850

Stopband F2496~2690MHz, ≥50dB, PassbandDC~2456MHz, 2730~4000MHz, SMA
View Details →
ZBSF6-C2496-2690-1695 Filter

Filter ZBSF6-C2496-2690-1695

Stopband F2496~2690MHz, ≥50dB, PassbandDC~2486MHz, 2700~4000MHz, SMA
View Details →
ZBSF6-C2496-2690-1018 Filter

Filter ZBSF6-C2496-2690-1018

Stopband F2496~2690MHz, ≥50dB, PassbandDC~2466MHz, 2720~4500MHz, SMA
View Details →
ZBSF6-C2483.5-2690-1036 Notch filter

Notch filter ZBSF6-C2483.5-2690-1036

Stopband F2483.5~2690MHz, ≥50dB, PassbandDC~2433.5MHz, 2740~4000MHz, SMA
View Details →
ZBSF6-C2483.5-2500-5400 Filter

Filter ZBSF6-C2483.5-2500-5400

Stopband F2483.5~2500MHz, ≥50dB, PassbandDC~2477.5MHz, 2506~6000MHz, SMA
View Details →
ZBSF6-C2470-2490-4059 Filter

Filter ZBSF6-C2470-2490-4059

Stopband F2470~2490MHz, ≥55dB, PassbandDC~2450MHz, 2510~4200MHz, SMA
View Details →
ZBSF6-C2462-2482-4053 Filter

Filter ZBSF6-C2462-2482-4053

Stopband F2462~2482MHz, ≥55dB, PassbandDC~2442MHz, 2502~4200MHz, SMA
View Details →
ZBSF6-C2452-2492-4054 Filter

Filter ZBSF6-C2452-2492-4054

Stopband F2452~2492MHz, ≥50dB, PassbandDC~2432MHz, 2512~4200MHz, SMA
View Details →
ZBSF6-C2442-2482-4055 Filter

Filter ZBSF6-C2442-2482-4055

Stopband F2442~2482MHz, ≥50dB, PassbandDC~2422MHz, 2502~4200MHz, SMA
View Details →
ZBSF6-C2431-2451-4060 Filter

Filter ZBSF6-C2431-2451-4060

Stopband F2431~2451MHz, ≥55dB, PassbandDC~2411MHz, 2471~4200MHz, SMA
View Details →
ZBSF6-C2427-2447-4051 Filter

Filter ZBSF6-C2427-2447-4051

Stopband F2427~2447MHz, ≥55dB, PassbandDC~2407MHz, 2467~4200MHz, SMA
View Details →
ZBSF6-C2410-2490-5326 Filter

Filter ZBSF6-C2410-2490-5326

Stopband F2410~2490MHz, ≥40dB, PassbandDC~2400MHz, 2500~4000MHz, SMA
View Details →
ZBSF6-C2405-2470-3049 Filter

Filter ZBSF6-C2405-2470-3049

Stopband F2405~2470MHz, ≥40dB, PassbandDC~2390MHz, 2483.5~6000MHz, SMA
View Details →
ZBSF6-C2402-2482-3203 Filter

Filter ZBSF6-C2402-2482-3203

Stopband F2402~2480MHz, ≥50dB, PassbandDC~2397MHz, 2485~4000MHz, SMA
View Details →
ZBSF6-C2402-2480-5872 Filter

Filter ZBSF6-C2402-2480-5872

Stop band adjustable frequency2402~2480MHz, ≥60dB, PassbandDC~F3MHz, F4~4000MHz, MHz, SMA
View Details →
ZBSF6-C2402-2480-5261 Filter

Filter ZBSF6-C2402-2480-5261

Stopband F2402~2480MHz, ≥60dB, PassbandDC~2392MHz, 2490~6000MHz, SMA
View Details →
