matches 6410 models Default Newest
ZBSF6-C4685-4715-3759 Filter

Filter ZBSF6-C4685-4715-3759

View Details →
ZBSF6-C4650-4750-697 Notch filter

Notch filter ZBSF6-C4650-4750-697

Stopband F4650~4750MHz, ≥40dB, PassbandDC~4545.01MHz, 4855.01~7000MHz, SMA
View Details →
ZBSF6-C462.5-467.5-2900 Filter

Filter ZBSF6-C462.5-467.5-2900

Stopband F462.5~467.5MHz, ≥30dB, PassbandDC~460MHz, 470~1200MHz, SMA
View Details →
ZBSF6-C4600-5000-5817 Filter

Filter ZBSF6-C4600-5000-5817

Stopband F4600~5000MHz, ≥50dB, PassbandDC~4560MHz, 5040~8000MHz, SMA
View Details →
ZBSF6-C4600-4900-3421 Filter

Filter ZBSF6-C4600-4900-3421

Stopband F4600~4900MHz, ≥55dB, PassbandDC~4550MHz, 4950~10000MHz, SMA
View Details →
ZBSF6-C452.5-457.5-3221 Filter

Filter ZBSF6-C452.5-457.5-3221

Stopband F452.5~457.5MHz, ≥30dB, PassbandDC~450MHz, 460~1200MHz, SMA
View Details →
ZBSF6-C452.5-457.5-2899 Filter

Filter ZBSF6-C452.5-457.5-2899

Stopband F452.5~457.5MHz, ≥40dB, PassbandDC~447.5MHz, 462.5~1200MHz, SMA
View Details →
ZBSF6-C452-458-5957 Filter

Filter ZBSF6-C452-458-5957

Stopband F452~458MHz, ≥40dB, PassbandDC~442MHz, 468~1000MHz, SMA
View Details →
ZBSF6-C451-456-5375 Filter

Filter ZBSF6-C451-456-5375

Stopband F451~456MHz, ≥40dB, PassbandDC~446MHz, 461~1000MHz, SMA
View Details →
ZBSF6-C4500-4800-5901 Filter

Filter ZBSF6-C4500-4800-5901

Stopband F4500~4800MHz, ≥60dB, PassbandDC~4460MHz, 4840~8000MHz, SMA
View Details →
ZBSF6-C450-529-5933 Filter

Filter ZBSF6-C450-529-5933

Stopband F450~527MHz, ≥50dB, PassbandDC~420MHz, 560~2000MHz, SMA
View Details →
ZBSF6-C450-455-5288 Filter

Filter ZBSF6-C450-455-5288

Stopband F450~455MHz, ≥60dB, PassbandDC~421MHz, 460~1000MHz, SMA
View Details →
ZBSF6-C4418-4982-5734 Filter

Filter ZBSF6-C4418-4982-5734

Stopband F4418~4982MHz, ≥50dB, PassbandDC~4358MHz, 5042~6500MHz, SMA
View Details →
ZBSF6-C4400-5000-5896 Filter

Filter ZBSF6-C4400-5000-5896

Stopband F4400~5000MHz, ≥50dB, PassbandDC~4250MHz, 5150~8750MHz, SMA
View Details →
ZBSF6-C4400-5000-4378 Filter

Filter ZBSF6-C4400-5000-4378

Stopband F4400~5000MHz, ≥50dB, PassbandDC~4360MHz, 5040~7000MHz, SMA
View Details →
ZBSF6-C4400-5000-3437 Filter

Filter ZBSF6-C4400-5000-3437

Stopband F4400~5000MHz, ≥50dB, PassbandDC~4250MHz, 5150~6000MHz, SMA
View Details →
ZBSF6-C4400-5000-3422 Filter

Filter ZBSF6-C4400-5000-3422

Stopband F4400~5000MHz, ≥40dB, PassbandDC~4370MHz, 5030~6500MHz, SMA
View Details →
ZBSF6-C4400-5000-3258 Filter

Filter ZBSF6-C4400-5000-3258

Stopband F4400~5000MHz, ≥50dB, PassbandDC~4340MHz, 5060~6500MHz, SMA
View Details →
ZBSF6-C4400-5000-3123 Filter

Filter ZBSF6-C4400-5000-3123

Stopband F4400~5000MHz, ≥70dB, PassbandDC~4340MHz, 5060~6500MHz, SMA
View Details →

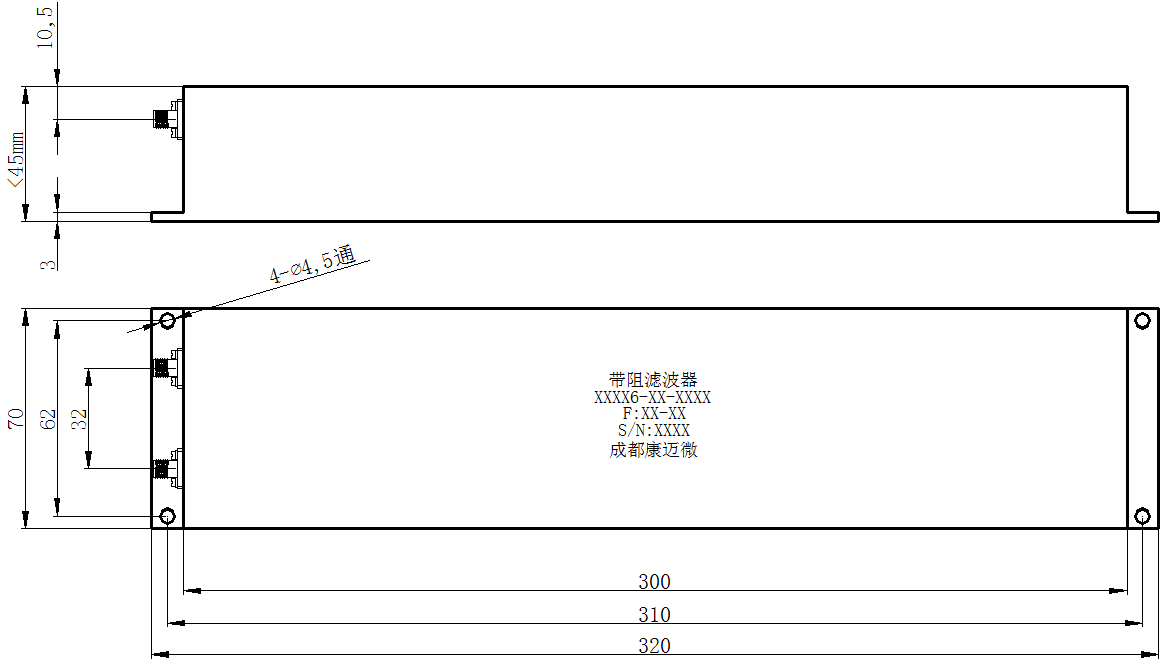

ZBSF6-C4400-5000-3033 Filter

Filter ZBSF6-C4400-5000-3033

Stopband F4400~5000MHz, ≥60dB, PassbandDC~4350MHz, 5050~6500MHz, SMA
View Details →

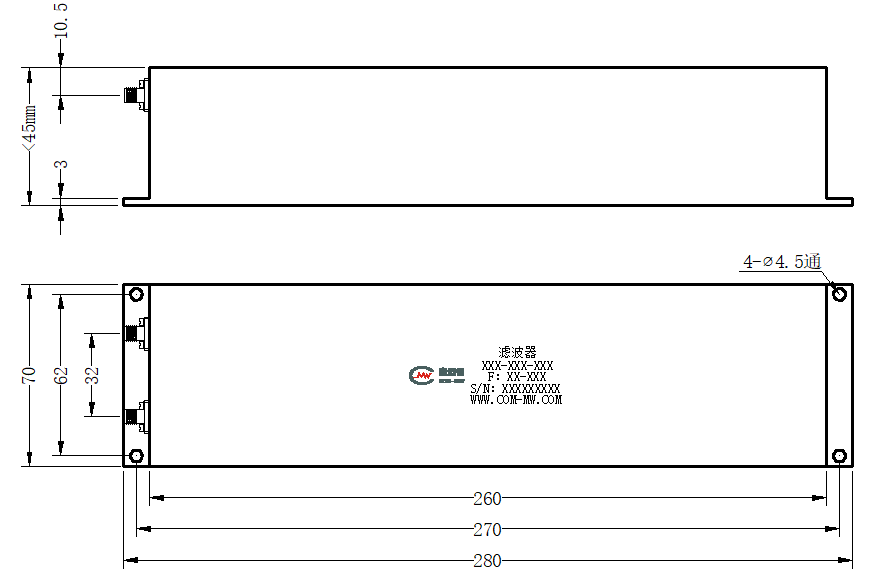

ZBSF6-C4400-5000-2959 Filter

Filter ZBSF6-C4400-5000-2959

Stopband F4400~5000MHz, ≥50dB, PassbandDC~4340MHz, 5060~6500MHz, SMA
View Details →
ZBSF6-C4400-5000-2234 Filter

Filter ZBSF6-C4400-5000-2234

Stopband F4400~5000MHz, ≥60dB, PassbandDC~4370MHz, 5030~6500MHz, SMA
View Details →
ZBSF6-C4400-5000-1256 Filter

Filter ZBSF6-C4400-5000-1256

Stopband F4400~5000MHz, ≥50dB, PassbandDC~4300MHz, 5100~8000MHz, SMA
View Details →
ZBSF6-C4400-4800-313 Filter

Filter ZBSF6-C4400-4800-313

Stopband F4400~4800MHz, ≥50dB, PassbandDC~4360MHz, 4840~7000MHz, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
