Connector：N× Feature：Bandpass× Clear all
matches 265 models Default Newest
ZBF13-C1105-290-3637 Filter

Filter ZBF13-C1105-290-3637

Center Frequency1105MHz, Passband960~1250MHz, DC-860MHz≥65dBc, 1350-2000MHz≥65dBc, N
In Stock View Details →
ZBF2-C2250-100-2356 Filter

Filter ZBF2-C2250-100-2356

Passband2200~2300MHz, 2100MHz≥15dB, 1850MHz≥45dB, N
In Stock View Details →
K6-2515-2675-10N60100-002 Notch filter

Notch filter K6-2515-2675-10N60100-002

Stopband F2515~2675MHz, ≥60dB, PassbandDC~2505MHz, 2685~6000MHz, N
In Stock View Details →
ZBF16-C2290-10-491 Filter

Filter ZBF16-C2290-10-491

Passband2285~2295MHz, DC~2265MHz≥50dBc, 2315~5000MHz≥50dBc, N
In Stock View Details →
ZBF16-C2270-10-490 Filter

Filter ZBF16-C2270-10-490

Passband2265~2275MHz, DC~2245MHz≥50dBc, 2295~5000MHz≥50dBc, N
In Stock View Details →

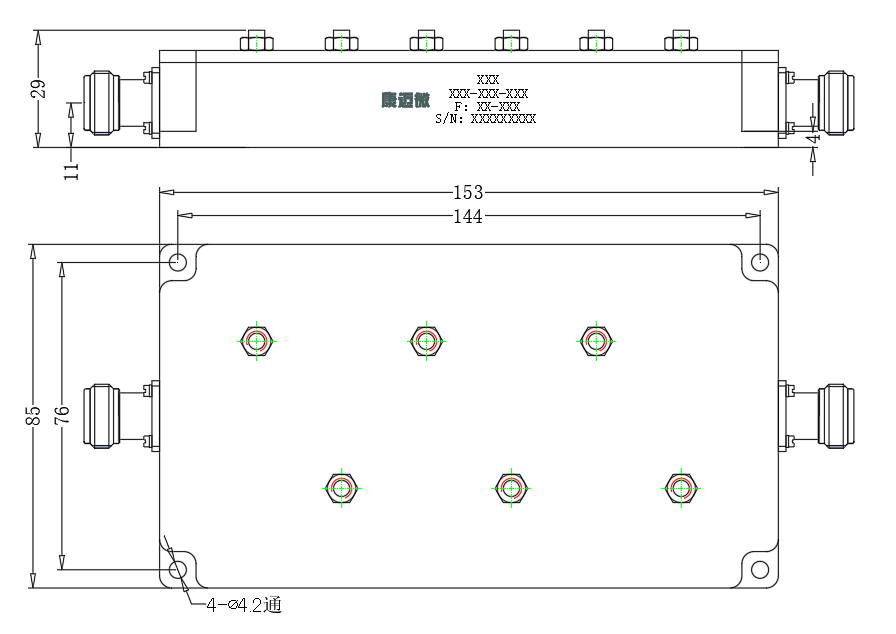

ZBF16-C2225-10-489 Filter

Filter ZBF16-C2225-10-489

Passband2220~2230MHz, DC~2200MHz≥50dBc, 2250~5000MHz≥50dBc, N
In Stock View Details →
ZBF16-C2204-10-488 Filter

Filter ZBF16-C2204-10-488

Passband2199~2209MHz, DC~2179MHz≥50dBc, 2229~5000MHz≥50dBc, N
In Stock View Details →
ZBF16-C2180-10-487 Filter

Filter ZBF16-C2180-10-487

Passband2175~2185MHz, DC~2155MHz≥50dBc, 2205~5000MHz≥50dBc, N
In Stock View Details →
ZBF16-C2160-10-486 Filter

Filter ZBF16-C2160-10-486

Passband2155~2165MHz, DC~2135MHz≥50dBc, 2185~5000MHz≥50dBc, N
In Stock View Details →

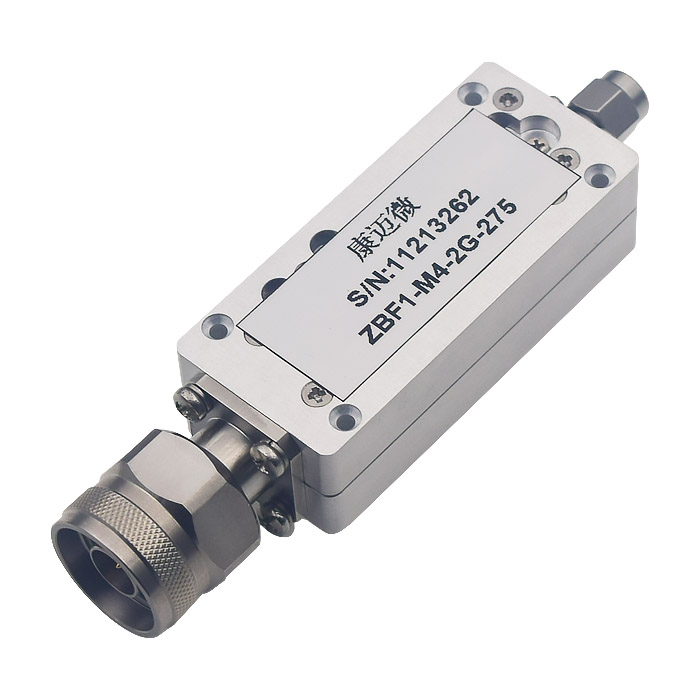

ZBF1-M4-2G-275 Filter

Filter ZBF1-M4-2G-275

Passband3~5GHz, DC-2.7GHz≥40dB, 5.5-17GHz≥40dB, N
In Stock View Details →
ZBF-L3.5-30-C442 Filter

Filter ZBF-L3.5-30-C442

Passband3.5~30MHz, DC-0.8MHz≥53dB, 100MHz≥20dB, N
In Stock View Details →

Filter ZTZBF13-C370-20-738

Passband360~380MHz, DC-320MHz≥70dBc, 500-1000MHz≥50dBc, N
In Stock View Details →
ZBF2-C5150-300-2208 Filter

Filter ZBF2-C5150-300-2208

Passband5000~5300MHz, DC-4.3GHz≥40dBc, 6.7-11GHz≥50dBc, N
In Stock View Details →
ZBF13-L160-28-3204 Filter

Filter ZBF13-L160-28-3204

Passband146~174MHz, DC-120MHz≥20dB, 200-1000MHz≥20dB, N
In Stock View Details →
ZBF-L32-84-L5904 Filter

Filter ZBF-L32-84-L5904

Passband32~84MHz, DC-28MHz≥40dB, 88-150MHz≥40dB, N
In Stock View Details →

Filter ZTZBF13-C310-20-739

Passband300~320MHz, DC-200MHz≥70dB, 360-500MHz≥70dB, N
View Details →

Filter ZTZBF13-C305-30-737

Passband290~320MHz, DC-270MHz≥70dB, 0.45-1.0GHz≥50dB, N
View Details →

Filter ZTZBF13-C255-30-736

Passband240~270MHz, DC-200MHz≥50dB, 290-320MHz≥70dB, N
View Details →

Component ZS8-C1950-2550-2724

View Details →
ZLPF25-C0-2350-930 Filter

Filter ZLPF25-C0-2350-930

Center Frequency2350MHz, DC-2330MHz≥50dB, 2370-4000MHz≥50dB, N
View Details →
ZLPF25-C0-2315-931 Filter

Filter ZLPF25-C0-2315-931

Center Frequency2315MHz, DC-2295MHz≥50dB, 2335-4000MHz≥50dB, N
View Details →
ZLPF25-C0-2250-929 Filter

Filter ZLPF25-C0-2250-929

Center Frequency2250MHz, DC-2230MHz≥50dB, 2270-4000MHz≥50dB, N
View Details →

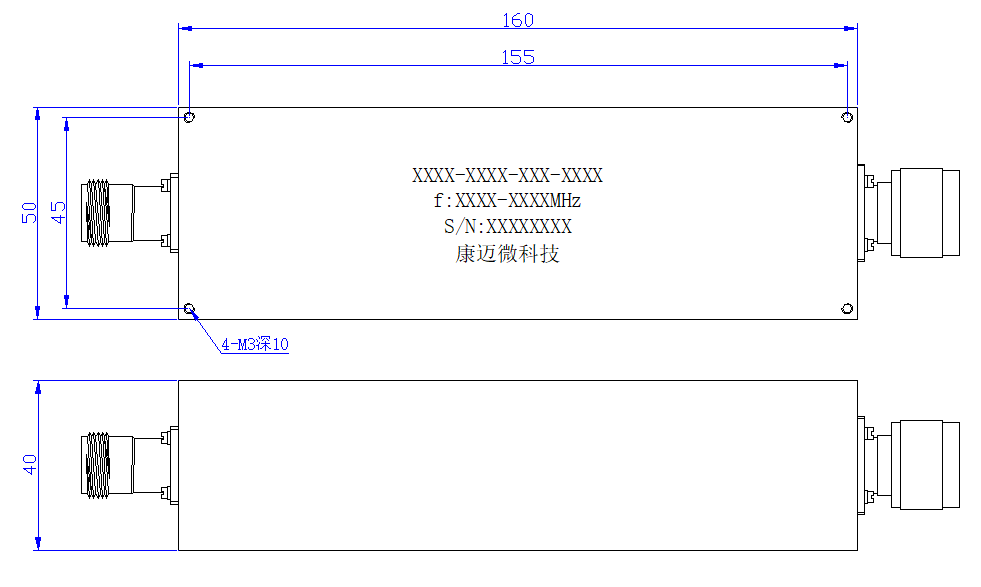

ZHPF5-C1600-2500-1474 Filter

Filter ZHPF5-C1600-2500-1474

Passband1600~2500MHz, DC-100MHz≥50dB, 100-1400MHz≥40dB, N
View Details →

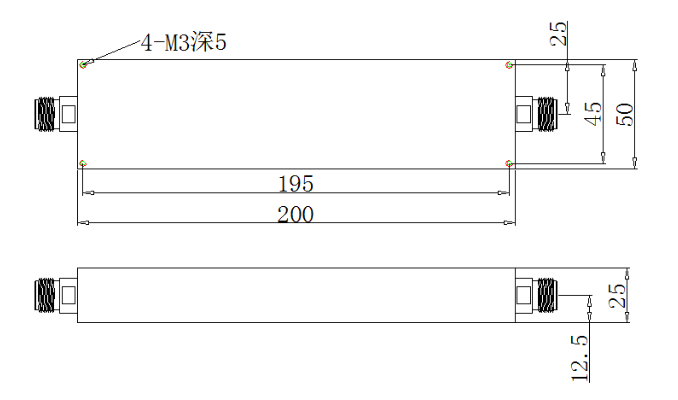

ZHPF-M1790-3G-Q005 Highpass filter

Highpass filter ZHPF-M1790-3G-Q005

Passband1790~3000MHz, DC-1575.42MHz≥90dB, dB, N
View Details →
