matches 3894 models Default Newest
ZBF2-L431-162-2096 Filter

Filter ZBF2-L431-162-2096

Passband350~512MHz, DC-300MHz≥65dB, 0.57-1GHz≥65dB, Pin
View Details →

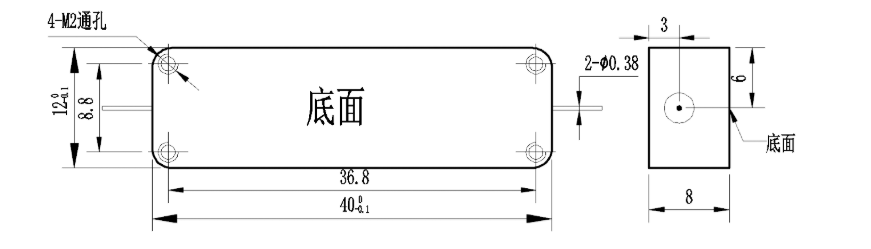

ZBF2-L4000-4000-2455 Filter

Filter ZBF2-L4000-4000-2455

Passband2~6GHz, 10-1400MHz≥40dBc, 7-8GHz≥40dBc, Pin
View Details →
ZBF2-L400-240-1771 Filter

Filter ZBF2-L400-240-1771

Passband280~520MHz, DC-160MHz≥60dBc, 640-1500MHz≥60dBc, Pin
View Details →
ZBF2-L4.9-2.4G-1678 Filter

Filter ZBF2-L4.9-2.4G-1678

Passband3.7~6.1GHz, DC-2.4GHz≥55dB, 7.4-18GHz≥55dB, Pin
View Details →
ZBF2-L395-210-2236 Filter

Filter ZBF2-L395-210-2236

Passband280~500MHz, DC-190MHz≥35dBc, 560-1600MHz≥33dBc, Pin
View Details →
ZBF2-L380-160-2190 Filter

Filter ZBF2-L380-160-2190

Passband300~460MHz, DC-230MHz≥25dBc, 600-2000MHz≥40dBc, Pin
View Details →
ZBF2-L375.2-190-1721 Filter

Filter ZBF2-L375.2-190-1721

Passband280.2~470.2MHz, DC-200MHz≥45dBc, 560-1600MHz≥45dBc, Pin
View Details →
ZBF2-L372.5-295-2115 Filter

Filter ZBF2-L372.5-295-2115

Passband225~520MHz, 1-30MHz≥35dB, 800-960MHz≥35dB, Pin
View Details →
ZBF2-L372.5-295-1733 Filter

Filter ZBF2-L372.5-295-1733

Passband225~520MHz, DC-130MHz≥60dBc, 0.7-1.5GHz≥60dBc, Pin
View Details →
ZBF2-L370-50-1569 Filter

Filter ZBF2-L370-50-1569

Passband345~395MHz, DC-270MHz≥65dBc, 470-1000MHz≥65dBc, Pin
View Details →
ZBF2-L3650-750-1665 Filter

Filter ZBF2-L3650-750-1665

Passband3275~4025MHz, DC-2GHz≥50dBc, 4.95-6GHz≥50dBc, Pin
View Details →

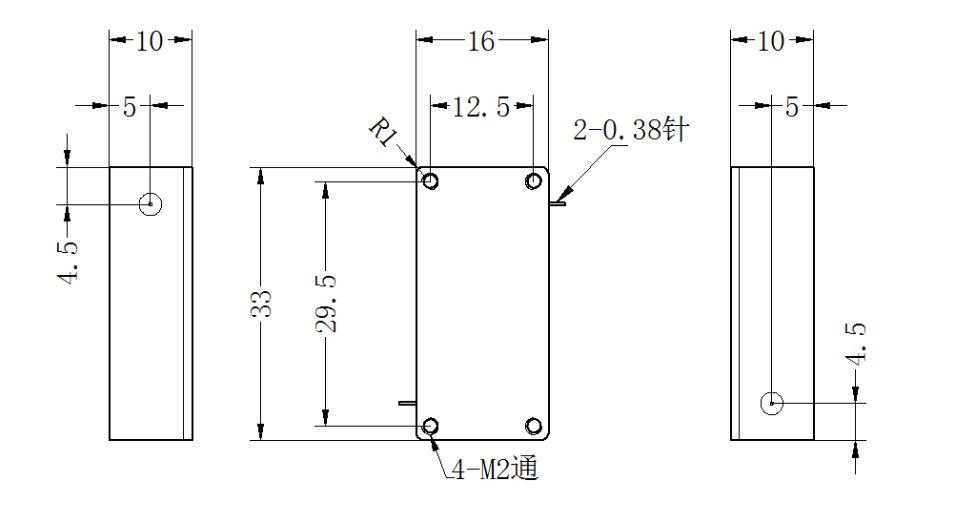

ZBF2-L3600-400-1887 Filter

Filter ZBF2-L3600-400-1887

Passband3400~3800MHz, DC-2.5GHz≥45dBc, 5-8GHz≥45dBc, Pin
View Details →
ZBF2-L340-360-1812 Filter

Filter ZBF2-L340-360-1812

Passband160~520MHz, DC-108MHz≥55dBc, 700-1600MHz≥55dBc, Pin
View Details →
ZBF2-L3242.5-150-2031 Filter

Filter ZBF2-L3242.5-150-2031

Passband3167.5~3317.5MHz, DC-2GHz≥50dBc, 6.39-8GHz≥50dBc, Pin
View Details →

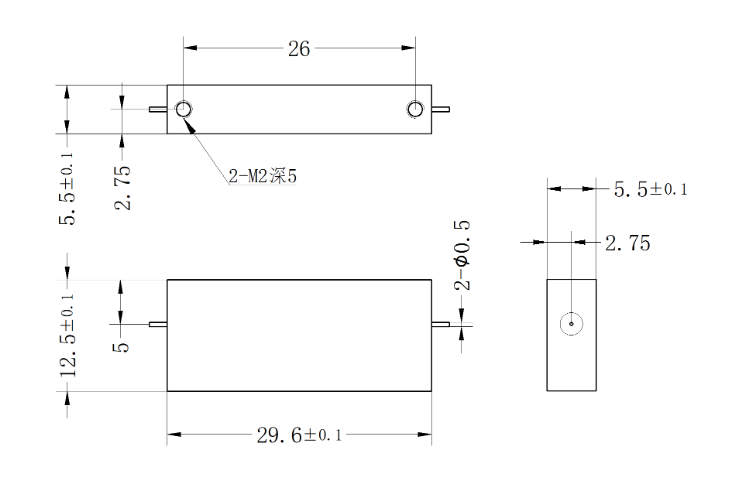

ZBF2-L3200-1600-2436 Filter

Filter ZBF2-L3200-1600-2436

Passband2400~4000MHz, DC-1.8GHz≥45dBc, 4.6-6GHz≥45dBc, Pin
View Details →
ZBF2-L317.5-185-2095 Filter

Filter ZBF2-L317.5-185-2095

Passband225~410MHz, DC-175MHz≥65dBc, 0.46-1GHz≥65dBc, Pin
View Details →
ZBF2-L312.5-190-2202 Filter

Filter ZBF2-L312.5-190-2202

Passband217.5~407.5MHz, DC-140MHz≥50dBc, 500-2325MHz≥50dBc, Pin
View Details →

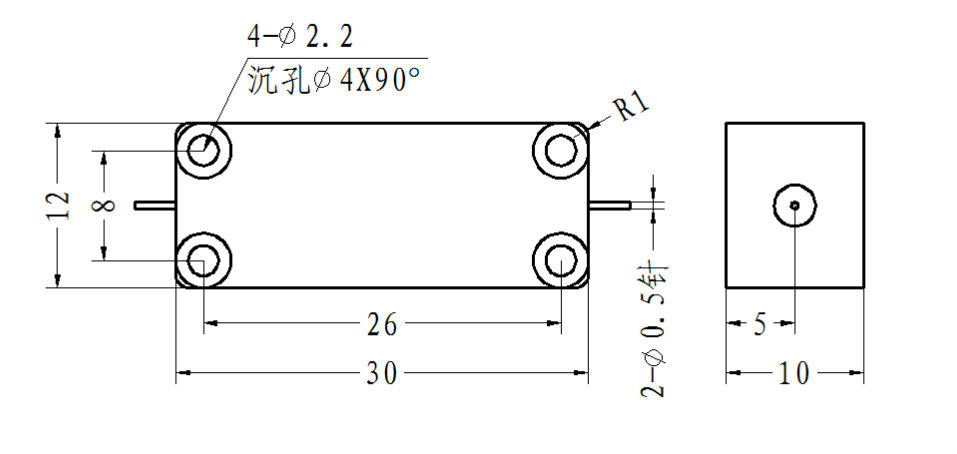

ZBF2-L312.5-175-2150 Filter

Filter ZBF2-L312.5-175-2150

Passband225~400MHz, DC-180MHz≥30dBc, 450-1000MHz≥30dBc, Pin
View Details →
ZBF2-L310-420-1734 Filter

Filter ZBF2-L310-420-1734

Passband100~520MHz, DC-60MHz≥60dBc, 710-1500MHz≥60dBc, Pin
View Details →
ZBF2-L304-392-2159 Filter

Filter ZBF2-L304-392-2159

Passband108~500MHz, DC-88MHz≥40dBc, 590-1500MHz≥40dBc, Pin
View Details →
ZBF2-L300-200-1949 Filter

Filter ZBF2-L300-200-1949

Passband195~405MHz, DC-110MHz≥50dBc, 540-3000MHz≥50dBc, Pin
View Details →
ZBF2-L3.85-1.9G-1677 Filter

Filter ZBF2-L3.85-1.9G-1677

Passband2.9~4.8GHz, DC-1.9GHz≥55dB, 5.8-15GHz≥55dB, Pin
View Details →
ZBF2-L3.23-1.55G-1676 Filter

Filter ZBF2-L3.23-1.55G-1676

Passband2.45~4GHz, DC-1.5GHz≥55dB, 4.9-12GHz≥55dB, Pin
View Details →
ZBF2-L3.2-0.4G-2222 Filter

Filter ZBF2-L3.2-0.4G-2222

Passband3~3.4GHz, 3.8-6.8GHz≥25dBc, DC-2.2GHz≥30dB, Pin
View Details →
