Filters
Filters 1
F High MHz
0.3 - 830 703 835 - 2450 1021 2460 - 5990 723 6000 - 11980 720 12000 - 50000 727
–
Connector
Other 92 SMD 2353 SMA 6410 N 1262 2.92 281 2.4 39 Microstrip pad 1142 Microstrip needle 3894 Waveguide 94 1.85 18 SMP 47 SSMA 1 TNC 16 BMA 1
Power Handling
0.01 - 3 2084 3.98 - 25 1712 30 - 63.1 50 65 - 200 41 240 - 500 6
–
Ways 路
0.4 - 2 21 3 - 4 30 5 - 6 9
–
Maximum loss of side frequency dB
0.3 - 1.4 483 1.5 - 2.8 2036 3 - 5 1250 5.2 - 19.8 92 20 - 34 13
–
Rejection dB
0.6 - 30 220 31 - 44.999 757 45 - 58 1194 59 - 72 1363 73 - 665 354
–
F Low MHz
0 - 745 980 750 - 2465 1012 2480 - 5850 643 5860 - 11730 708 11750 - 48200 551
–
Feature
Bandpass 3536 low pass 160 Highpass 55 Notch 54
Center frequency MHz
0.3 - 930 751 937.5 - 2951 953 2970 - 6890 663 6910 - 13500 683 13550 - 92500 492
–
IL on center frequency dB
0.2 - 1.2 2075 1.4 - 3.2 1272 3.3 - 7 163 7.5 - 24 20 25 - 720 8
–
Insertion loss dB
0.3 - 0.7 5 1 - 1.5 7 2 - 4 5 5 - 5.5 2
–
Filter type
LC 1940 Cavity&waveguide 1745 stripline 89 Dielectric 14 SAW 16 Crystal 6
Connector：Microstrip needle× Clear all
matches 3894 models Default Newest

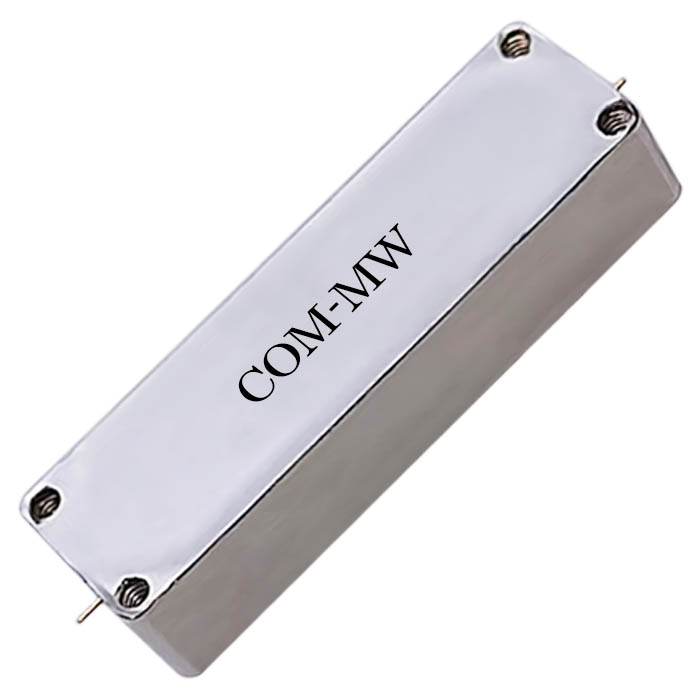

ZBF2-L70-40-1555 Filter

Filter ZBF2-L70-40-1555

Passband50~90MHz, DC-30MHz≥55dBc, 118-400MHz≥45dBc, Pin
View Details →

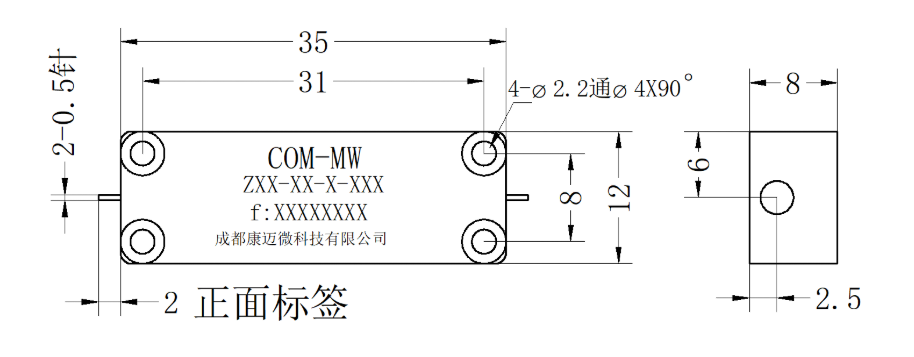

ZBF2-L70-40-1317 Filter

Filter ZBF2-L70-40-1317

Passband50~90MHz, DC-20MHz≥30dBc, 120-400MHz≥30dBc, Pin
View Details →
ZBF2-L70-40-1024 Filter

Filter ZBF2-L70-40-1024

Passband50~90MHz, DC-40MHz≥45dBc, 100-150MHz≥45dBc, Pin
View Details →
ZBF2-L70-4-2412 Filter

Filter ZBF2-L70-4-2412

Passband68~72MHz, DC-60MHz≥45dBc, 80-200MHz≥45dBc, Pin
View Details →
ZBF2-L70-36-2415 Filter

Filter ZBF2-L70-36-2415

Passband52~88MHz, DC-35MHz≥45dBc, 105-400MHz≥45dBc, Pin
View Details →
ZBF2-L70-36-2092 Filter

Filter ZBF2-L70-36-2092

Passband52~88MHz, DC-18MHz≥50dBc, 120-500MHz≥50dBc, Pin
View Details →
ZBF2-L70-36-1988 Filter

Filter ZBF2-L70-36-1988

Passband52~88MHz, DC-43MHz≥60dBc, 97-300MHz≥60dBc, Pin
View Details →
ZBF2-L70-30-045 Filter

Filter ZBF2-L70-30-045

Passband59~81MHz, DC-40MHz≥45dBc, 100-500MHz≥45dBc, Pin
View Details →
ZBF2-L70-20-2414 Filter

Filter ZBF2-L70-20-2414

Passband60~80MHz, DC-45MHz≥45dBc, 95-300MHz≥45dBc, Pin
View Details →
ZBF2-L70-20-2091 Filter

Filter ZBF2-L70-20-2091

Passband60~80MHz, DC-30MHz≥50dBc, 120-500MHz≥50dBc, Pin
View Details →
ZBF2-L70-20-045 Filter

Filter ZBF2-L70-20-045

Passband59~81MHz, DC-40MHz≥dB, 100-500MHz≥dB, Pin
View Details →
ZBF2-L690-340-1951 Filter

Filter ZBF2-L690-340-1951

Passband515~865MHz, DC-360MHz≥50dBc, 1-3GHz≥50dBc, Pin
View Details →

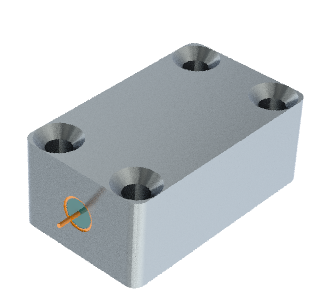

ZBF2-L650-300-560 Filter

Filter ZBF2-L650-300-560

Passband500~800MHz, DC-300MHz≥40dBc, 1000MHz≥40dBc, Pin
View Details →
ZBF2-L645-310-2237 Filter

Filter ZBF2-L645-310-2237

Passband480~800MHz, DC-390MHz≥35dBc, 0.96-1.6GHz≥33dBc, Pin
View Details →
ZBF2-L59-58-1947 Filter

Filter ZBF2-L59-58-1947

Passband25~93MHz, DC-20MHz≥30dBc, 140-3000MHz≥50dBc, Pin
View Details →
ZBF2-L56.25-15.3-955 Filter

Filter ZBF2-L56.25-15.3-955

Passband48.6~63.9MHz, @f0±11.25MHz≥18dBc, @f0±15MHz≥40dBc, Pin
View Details →
ZBF2-L550-500-2189 Filter

Filter ZBF2-L550-500-2189

Passband300~800MHz, DC-120MHz≥40dBc, 1.1-3GHz≥40dBc, Pin
View Details →
ZBF2-L550-40-2294 Filter

Filter ZBF2-L550-40-2294

Passband530~570MHz, 480MHz≥30dBc, DC-470MHz≥40dBc, Pin
View Details →
ZBF2-L530-240-2191 Filter

Filter ZBF2-L530-240-2191

Passband410~650MHz, DC-325MHz≥25dBc, 0.82-2GHz≥40dBc, Pin
View Details →
ZBF2-L510-780-2316 Filter

Filter ZBF2-L510-780-2316

Passband120~900MHz, DC-72MHz≥65dBc, 1.1-5GHz≥50dBc, Pin
View Details →

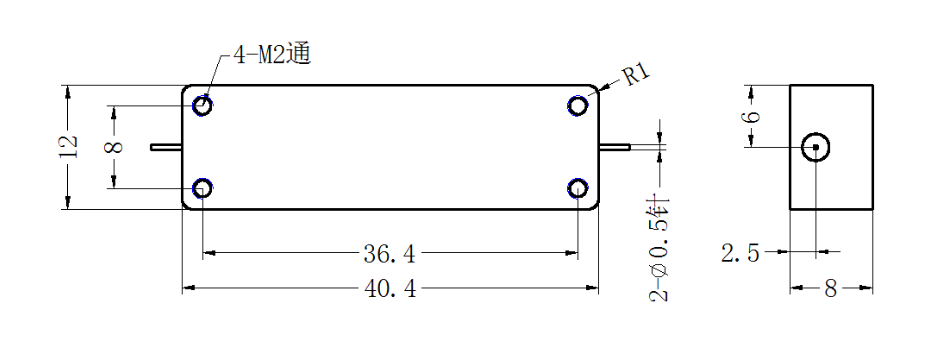

ZBF2-L500-600-2238 Filter

Filter ZBF2-L500-600-2238

Passband200~800MHz, 100-110MHz≥30dBc, DC-100MHz≥35dBc, Pin
View Details →
ZBF2-L460-120-1950 Filter

Filter ZBF2-L460-120-1950

Passband395~525MHz, DC-320MHz≥50dBc, 600-3000MHz≥50dBc, Pin
View Details →

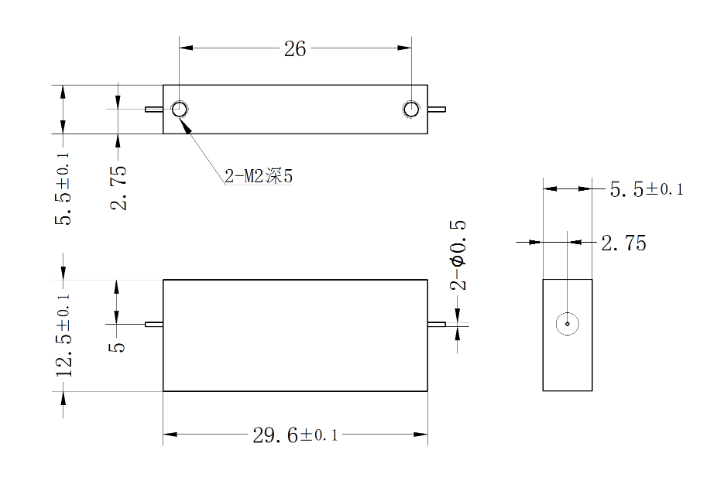

ZBF2-L4500-3000-2408 Filter

Filter ZBF2-L4500-3000-2408

Passband3~6GHz, DC-2.5GHz≥30dBc, 6.5-7GHz≥10dBc, Pin
View Details →
ZBF2-L4350-3300-2456 Filter

Filter ZBF2-L4350-3300-2456

Passband2700~6000MHz, DC-2300MHz≥40dBc, 7000-8000MHz≥40dBc, Pin
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
