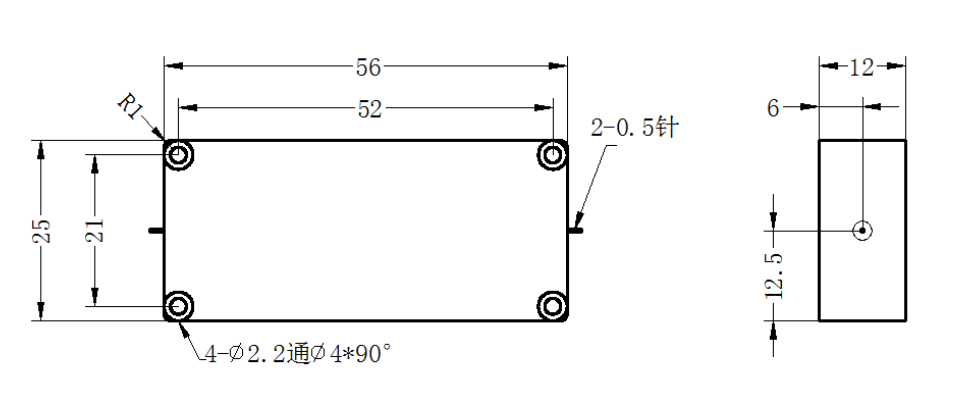

ZBF2-C3300-600-1562 Filter

Filter ZBF2-C3300-600-1562

Passband3000~3600MHz, DC-2.1GHz≥70dB, 4.8-11.2GHz≥70dB, Pin
View Details →
ZBF2-C33.2-0G-1640 Filter

Filter ZBF2-C33.2-0G-1640

Passband33.2GHz, DC-24.9GHz≥70dBc, 41.5GHz≥50dBc, Pin
View Details →
ZBF2-C30-8G-1943 Filter

Filter ZBF2-C30-8G-1943

Passband26~34GHz, DC-25GHz≥35dBc, 35-43.5GHz≥35dBc, Pin
View Details →

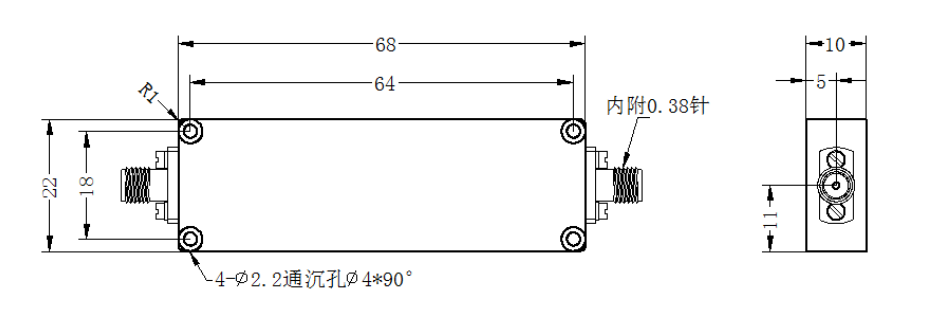

ZBF2-C3.75-1.7-2087 Filter

Filter ZBF2-C3.75-1.7-2087

Passband2900~4600MHz, DC-2.3GHz≥60dBc, 5.2-8GHz≥60dBc, Pin
View Details →

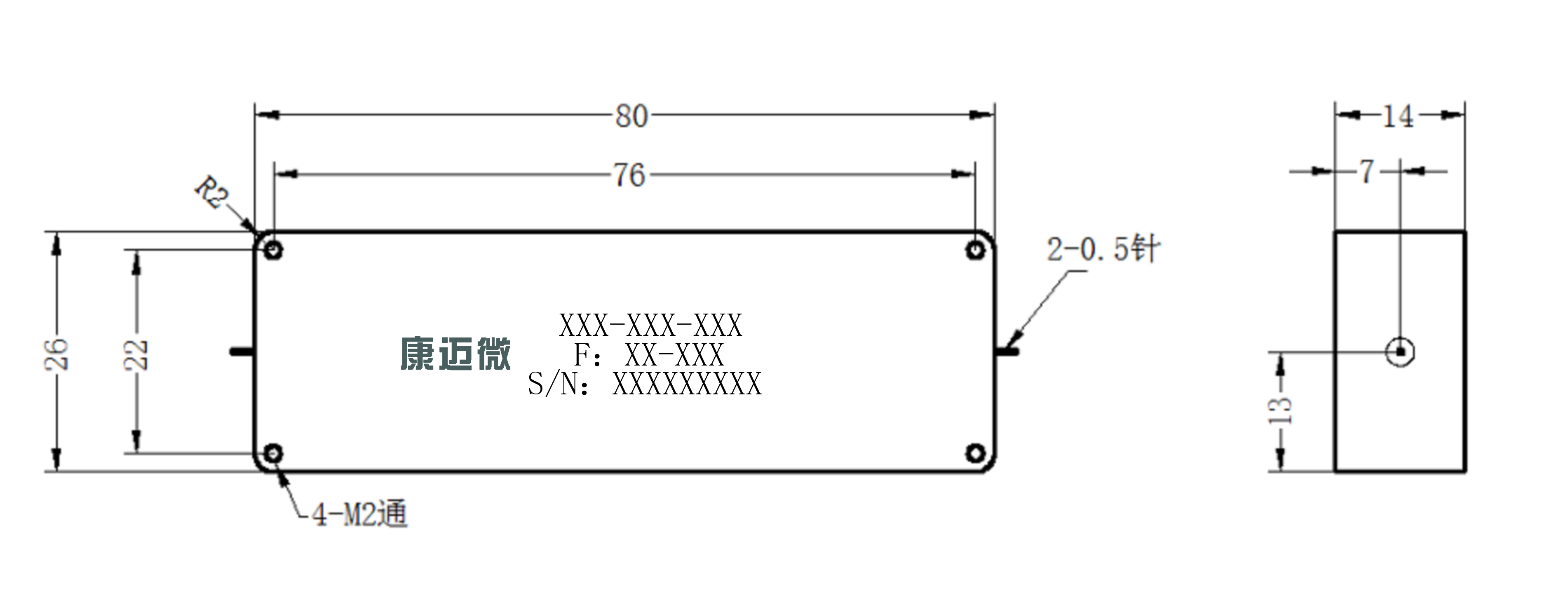

ZBF2-C2950-500-1442 Filter

Filter ZBF2-C2950-500-1442

Passband2700~3200MHz, DC-2480MHz≥60dB, 3.4-6.5GHz≥65dB, Pin
View Details →
ZBF2-C29.75-2.5G-1998 Filter

Filter ZBF2-C29.75-2.5G-1998

Passband28.5~31GHz, DC-26.5GHz≥60dBc, 33-40GHz≥60dBc, Pin
View Details →
ZBF2-C26.5-1G-2049 Filter

Filter ZBF2-C26.5-1G-2049

Passband26~27GHz, DC-20GHz≥70dBc, 20-24.3GHz≥60dBc, Pin
View Details →
ZBF2-C26.38-2.45G-2070 Filter

Filter ZBF2-C26.38-2.45G-2070

Passband25.15~27.6GHz, DC-22.85GHz≥50dBc, 29.1-40GHz≥40dBc, Pin
View Details →
ZBF2-C26.25-6.7G-1728 Filter

Filter ZBF2-C26.25-6.7G-1728

Passband22.9~29.6GHz, DC-20GHz≥50dBc, 32.5-40GHz≥50dBc, Pin
View Details →

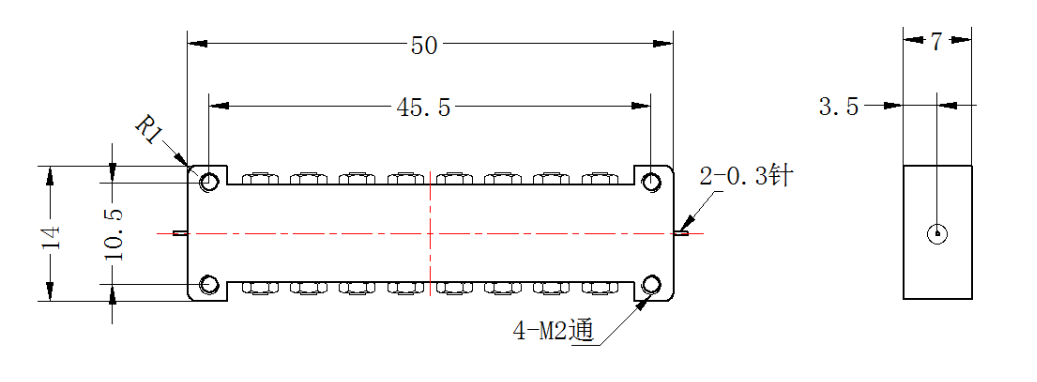

ZBF2-C26-8G-1942 Filter

Filter ZBF2-C26-8G-1942

Passband22~30GHz, DC-21.1GHz≥30dBc, 30.9-43.5GHz≥30dBc, Pin
View Details →

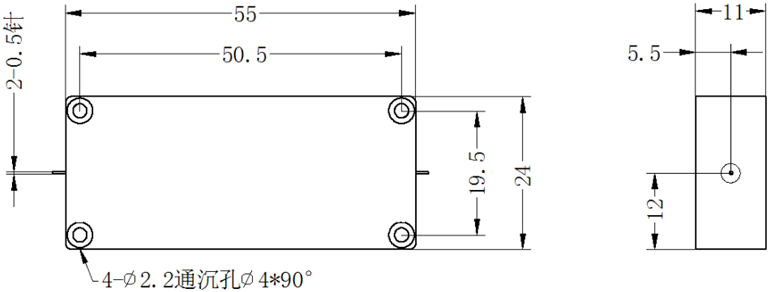

ZBF2-C2450-100-572 Filter

Filter ZBF2-C2450-100-572

Passband2400~2500MHz, DC-2200MHz≥50dB, 2540-4000MHz≥50dB, Pin
View Details →
ZBF2-C23.05-1.2G-2069 Filter

Filter ZBF2-C23.05-1.2G-2069

Passband22.45~23.65GHz, DC-20.1GHz≥50dBc, 25.15-40GHz≥40dBc, Pin
View Details →
ZBF2-C22.1-0.6G-1777 Filter

Filter ZBF2-C22.1-0.6G-1777

Passband21.8~22.4GHz, DC-20.3GHz≥40dBc, 23.6-42GHz≥40dBc, Pin
View Details →

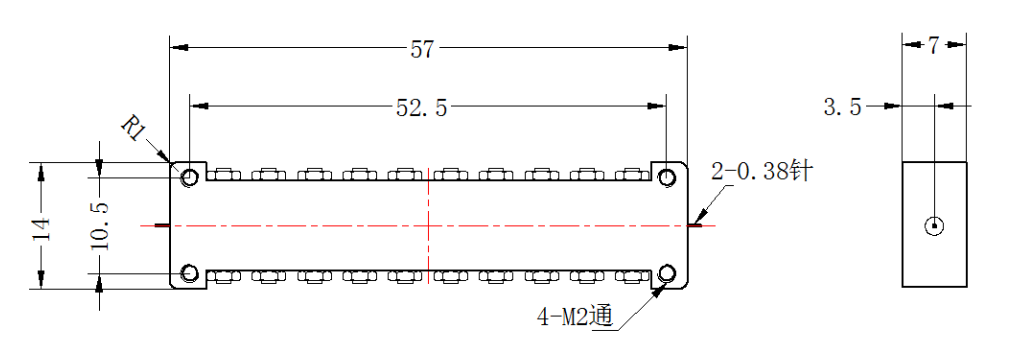

ZBF2-C22-8G-1938 Filter

Filter ZBF2-C22-8G-1938

Passband18~26GHz, DC-17GHz≥30dBc, 26.9-43.5GHz≥30dBc, Pin
View Details →

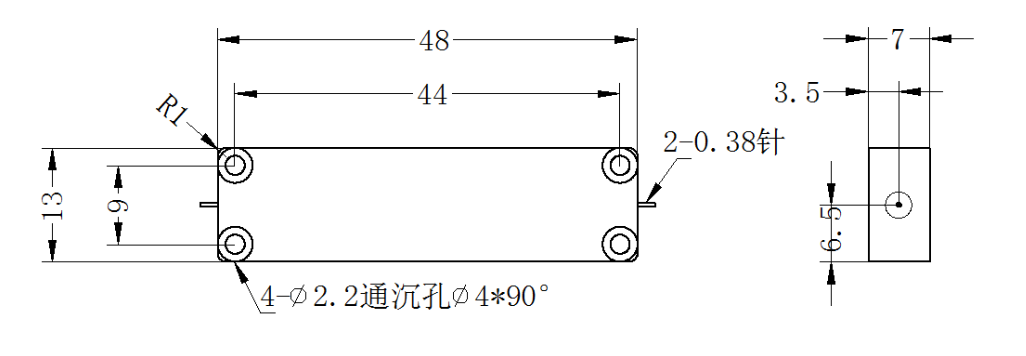

ZBF2-C22-1G-2026 Filter

Filter ZBF2-C22-1G-2026

Passband21.5~22.5GHz, DC-20.2GHz≥65dBc, 22.8-40GHz≥30dBc, Pin
View Details →

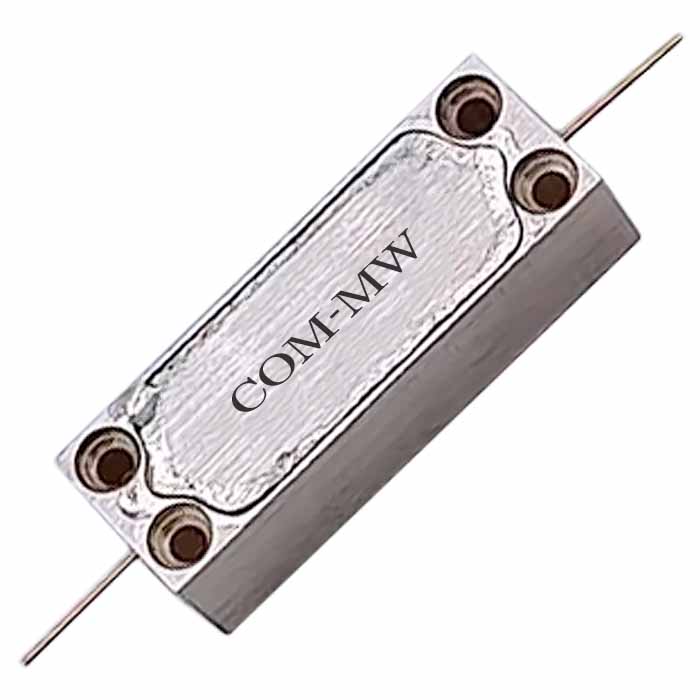

ZBF2-C22-0.6G-1586 Filter

Filter ZBF2-C22-0.6G-1586

Passband21.7~22.3GHz, DC-20.2GHz≥40dBc, 23.5-42GHz≥40dBc, Pin
View Details →
ZBF2-C22-0.36G-2027 Filter

Filter ZBF2-C22-0.36G-2027

Passband21.82~22.18GHz, DC-20.2GHz≥60dBc, 23.4-40GHz≥50dBc, Pin
View Details →
ZBF2-C21.5-4G-2498 Filter

Filter ZBF2-C21.5-4G-2498

Passband19~23.5GHz, DC-12GHz≥65dBc, 28.5-46GHz≥65dBc, Pin
View Details →
ZBF2-C20.75-6.7G-1727 Filter

Filter ZBF2-C20.75-6.7G-1727

Passband17.4~24.1GHz, DC-13.75GHz≥60dBc, 27.75-40GHz≥60dBc, Pin
View Details →
ZBF2-C1995-30-2287 Filter

Filter ZBF2-C1995-30-2287

Passband1980~2010MHz, DC-1500MHz≥40dB, 2170-2200MHz≥37dB, Pin
View Details →
ZBF2-C19.9-2.6G-1993 Filter

Filter ZBF2-C19.9-2.6G-1993

Passband18.6~21.2GHz, DC-17.6GHz≥50dBc, 22.2-30GHz≥50dBc, Pin
View Details →
ZBF2-C19.7-3G-2398 Filter

Filter ZBF2-C19.7-3G-2398

Passband18.2~21.2GHz, 22.55-23.15GHz≥40dB, 29-31GHz≥40dB, Pin
View Details →
ZBF2-C19-6G-1935 Filter

Filter ZBF2-C19-6G-1935

Passband16~22GHz, DC-14GHz≥50dBc, 23.5-35GHz≥50dBc, Pin
View Details →

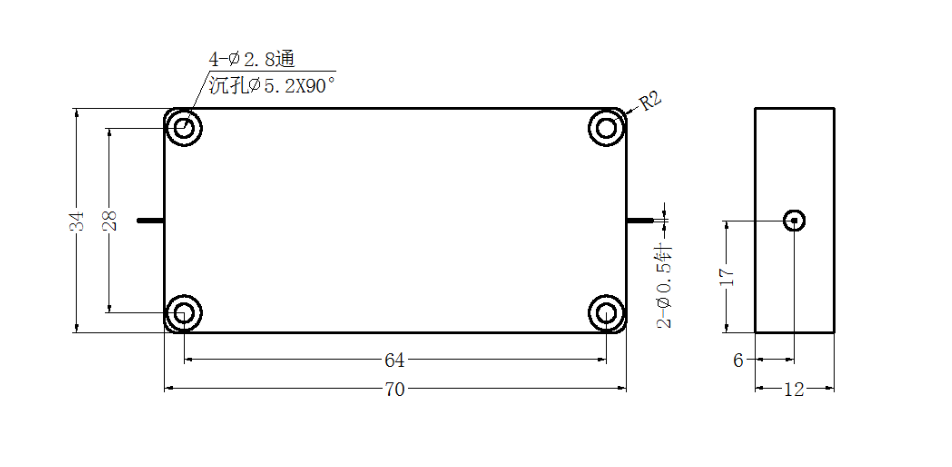

ZBF2-C1800-200-2305 Filter

Filter ZBF2-C1800-200-2305

Passband1.7~1.9GHz, DC-1.6GHz≥50dBc, 2-4GHz≥50dBc, Pin
View Details →
