ZBSF2-L500-1660-1497 Filter

Filter ZBSF2-L500-1660-1497

Stopband F870~960MHz, ≥30dBc, Passband500~780MHz, 1030~1660MHz, Pin
In Stock View Details →
ZBSF6-M3400-3600-5084 Filter

Filter ZBSF6-M3400-3600-5084

Stopband F3400~3600MHz, ≥35dBc, Passband3650~8500MHz, ~MHz, Pin
View Details →
ZBSF6-C3025-3075-3295 Filter

Filter ZBSF6-C3025-3075-3295

Stopband F3025~3075MHz, ≥30dBc, Passband2000~2850MHz, 3250~4000MHz, Pin
View Details →
ZBSF6-C1500-2000-4887 Filter

Filter ZBSF6-C1500-2000-4887

Stopband F1500~2000MHz, ≥70dB, PassbandDC~1400MHz, 2100~4000MHz, SMA
View Details →
ZBSF5-M13.75-14.5G-2463 Filter

Filter ZBSF5-M13.75-14.5G-2463

Stopband F13.75~14.5GHz, Stopband Rej.≥40dB, Passband8~13.35GHz, 14.9~18GHz
View Details →
ZBSF5-L4800-4900-3533 Filter

Filter ZBSF5-L4800-4900-3533

Stopband F4800~4900MHz, ≥30dB, Passband1000~4700MHz, 5000~6000MHz, Pin
View Details →
ZBSF5-L450-550-1957 Filter

Filter ZBSF5-L450-550-1957

Stopband F450~550MHz, ≥20dB, Passband410~428MHz, 620~626MHz, Pin
View Details →
ZBSF5-L3400-3600-3534 Filter

Filter ZBSF5-L3400-3600-3534

Stopband F3400~3600MHz, ≥30dB, Passband1000~3200MHz, 3800~6000MHz, Pin
View Details →
ZBSF5-L2515-2675-3532 Filter

Filter ZBSF5-L2515-2675-3532

Stopband F2515~2675MHz, ≥30dB, Passband1000~2355MHz, 2835~6000MHz, Pin
View Details →
ZBSF5-L2300-2390-3531 Filter

Filter ZBSF5-L2300-2390-3531

Stopband F2300~2390MHz, ≥30dB, Passband1000~2210MHz, 2480~6000MHz, Pin
View Details →
ZBSF5-L1755-1890-3530 Filter

Filter ZBSF5-L1755-1890-3530

Stopband F1755~1890MHz, ≥30dB, Passband1000~1620MHz, 2025~6000MHz, Pin
View Details →
ZBSF3-ML950-960-2380 Filter

Filter ZBSF3-ML950-960-2380

Stopband F950~960MHz, ≥15dB, PassbandDC-~900MHz, 1000~2150MHz, Pin
View Details →
ZBSF3-M10.3-10.3G-3666 Filter

Filter ZBSF3-M10.3-10.3G-3666

Stopband F10.3GHz, ≥20dB, PassbandDC-~10GHz, ~MHz, Pin
View Details →

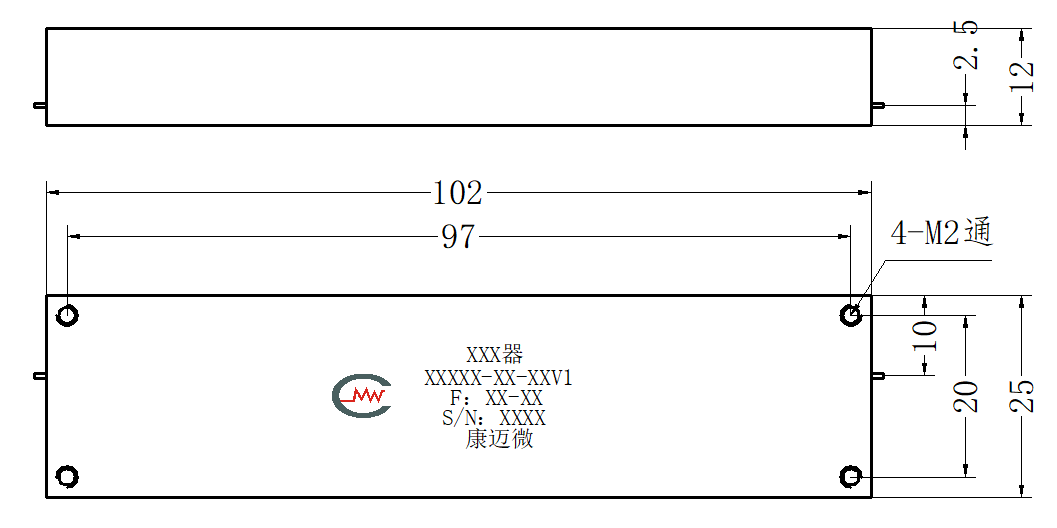

ZBSF3-2ML750-2000-3641 Filter

Filter ZBSF3-2ML750-2000-3641

Stopband F1750~900MHz, Stopband F21800~2000MHz, ≥30dB, PassbandDC~600MHz, 1030~1600MHz, 2200~3000MHz, Pin
View Details →
ZBSF3-2L98-892-2139 Filter

Filter ZBSF3-2L98-892-2139

Stopband F195MHz, Stopband F2892.5MHz, ≥15dB, ≥25dB, PassbandDC~90MHz, 100~825MHz, 960~1350MHz, Pin
View Details →
ZBSF2-M6300-6600-1289 Filter

Filter ZBSF2-M6300-6600-1289

Stopband F6300~6600MHz, ≥20dB, Passband2000~6000MHz, 7000~18000MHz, Pin
View Details →
ZBSF2-M1.9-2.1G-2221 Filter

Filter ZBSF2-M1.9-2.1G-2221

Stopband F1.9~2.1GHz, ≥23dB, Passband1.35~1.8GHz, 2.2~2.7GHz, Pin
View Details →

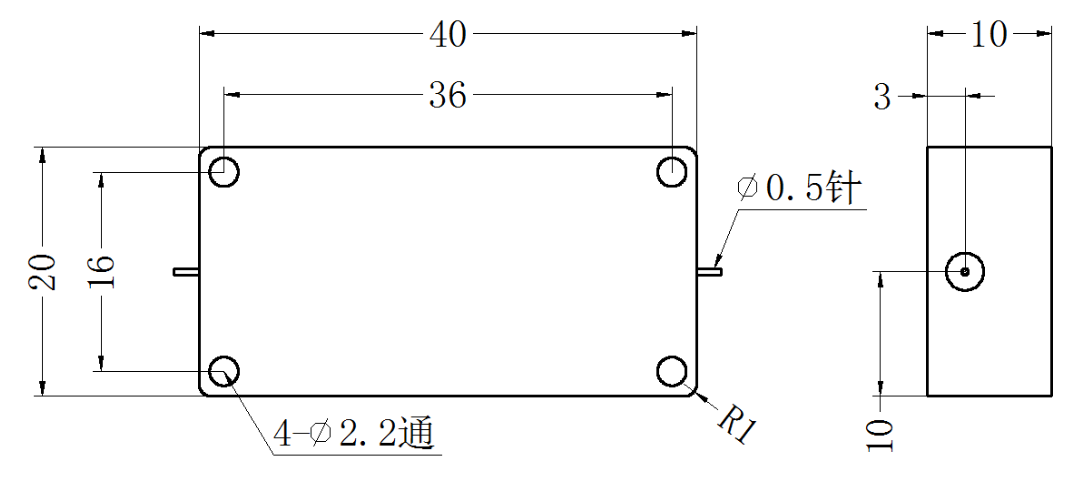

ZBSF2-L880-960-2041 Filter

Filter ZBSF2-L880-960-2041

Stopband F30~450MHz, Stopband F880~960MHz, 880-960MHz30dBc, 400-450MHz30dBc, 30-200MHz60dBc, Passband500~780MHz, 1030~3000MHz, Pin
View Details →
ZBSF2-L88-108-2042 Filter

Filter ZBSF2-L88-108-2042

Stopband F88~108MHz, Stopband F550~3000MHz, 88-108MHz30dBc, 550-600MHz30dBc, 1-3GHz60dBc, Passband30~75MHz, 125~500MHz, Pin
View Details →
ZBSF2-L860-960-2196 Filter

Filter ZBSF2-L860-960-2196

Stopband F860~960MHz, ≥30dBc, Passband600~800MHz, 1018~1100MHz, Pin
View Details →
ZBSF2-L860-955-2907 Filter

Filter ZBSF2-L860-955-2907

Stopband F860~955MHz, ≥35dBc, Passband30~800MHz, 1020~2400MHz,
View Details →
ZBSF15-L770-2000-593 Filter

Filter ZBSF15-L770-2000-593

Stopband F870~960MHz, ≥35dBc, PassbandDC~770MHz, 1060~2000MHz, Pin
View Details →
ZBSF15-L770-2000-484 Filter

Filter ZBSF15-L770-2000-484

Stopband F870~960MHz, ≥35dBc, PassbandDC~770MHz, 1060~2000MHz, Pin
View Details →
ZBSF15-L500-3500-555 Filter

Filter ZBSF15-L500-3500-555

Stopband F2900~3000MHz, ≥35dBc, Passband500~2600MHz, 3300~3500MHz, 500~2700MHz, 3200~3500MHz,
View Details →
