matches 90 models Default Newest

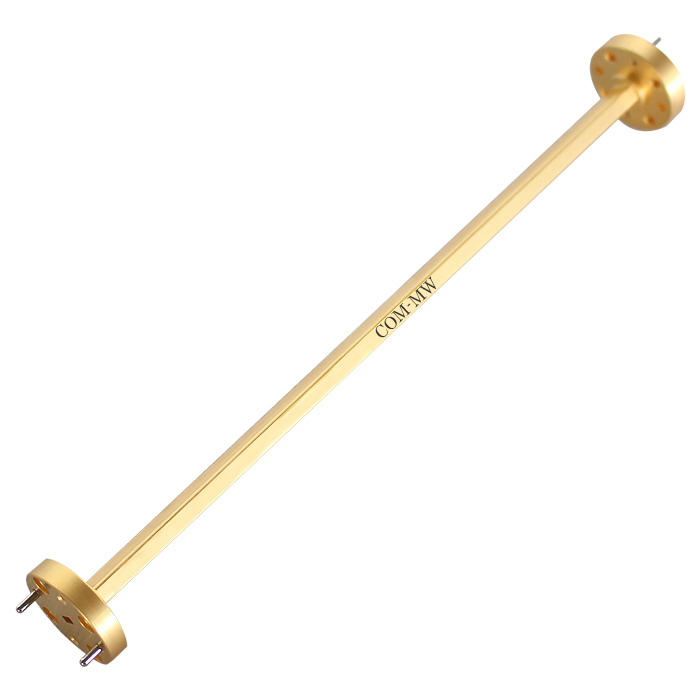

DWG7-BJ740S-150 Waveguide Connection

Waveguide Connection DWG7-BJ740S-150

Frequency60.5~91.9GHz, Power CapacityW, Rect waveguider, BJ740, BJ740
View Details →
DWG7-BJ70S230-1634 Waveguide Connection

Waveguide Connection DWG7-BJ70S230-1634

View Details →

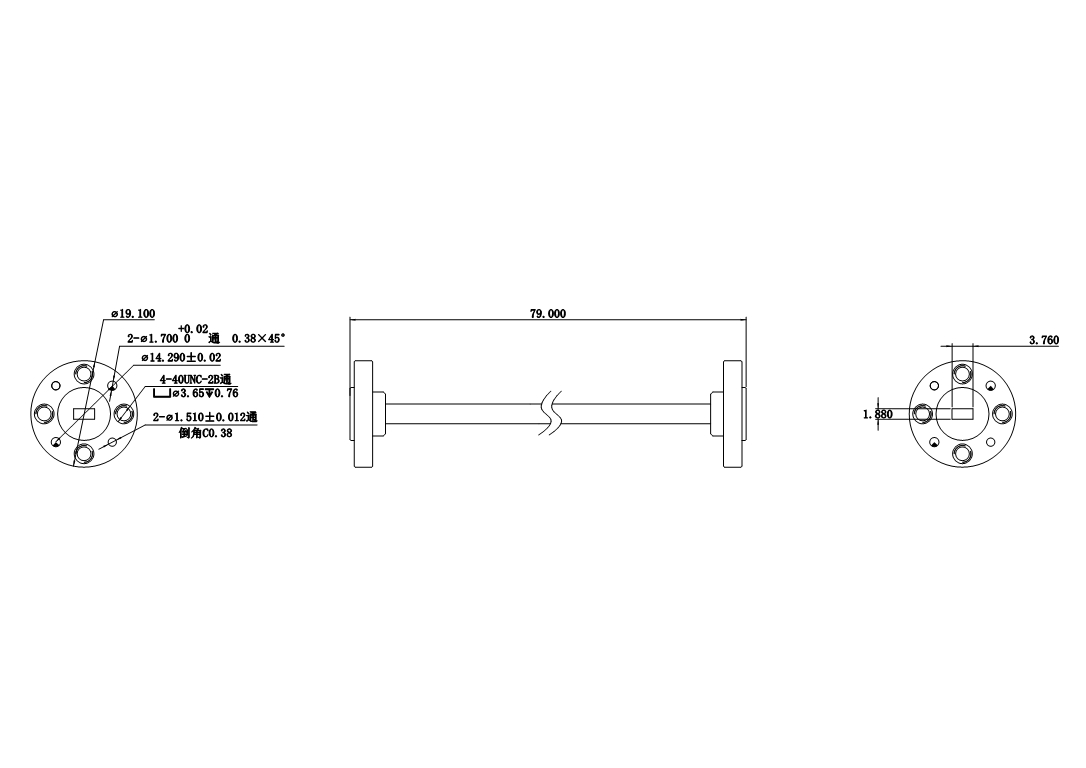

DWG7-BJ620S79-2010 Waveguide Connection

Waveguide Connection DWG7-BJ620S79-2010

Frequency49.8~75.8GHz, Power CapacityW, Rect waveguider, BJ620, BJ620
View Details →

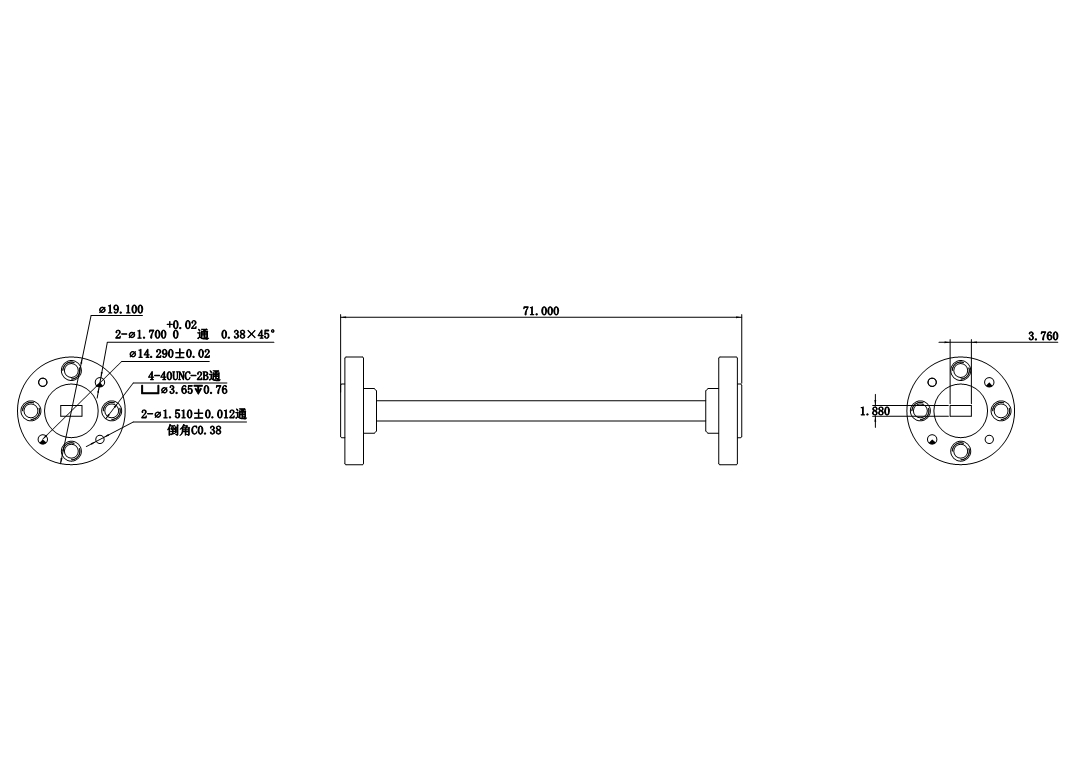

DWG7-BJ620S71-2009 Waveguide Connection

Waveguide Connection DWG7-BJ620S71-2009

Frequency49.8~75.8GHz, Power CapacityW, Rect waveguider, BJ620, BJ620
View Details →

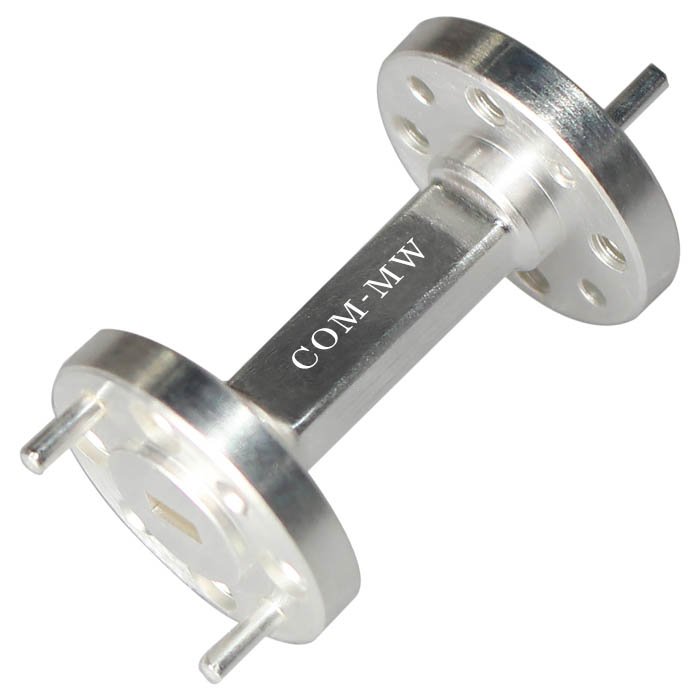

DWG7-BJ620S30-2605 Waveguide Connection

Waveguide Connection DWG7-BJ620S30-2605

Frequency49.8~75.8GHz, Power Capacity35W, Rect waveguider, BJ620, BJ620
View Details →
DWG7-BJ620S26-2008 Waveguide Connection

Waveguide Connection DWG7-BJ620S26-2008

Frequency49.8~75.8GHz, Power CapacityW, Rect waveguider, BJ620, BJ620
View Details →

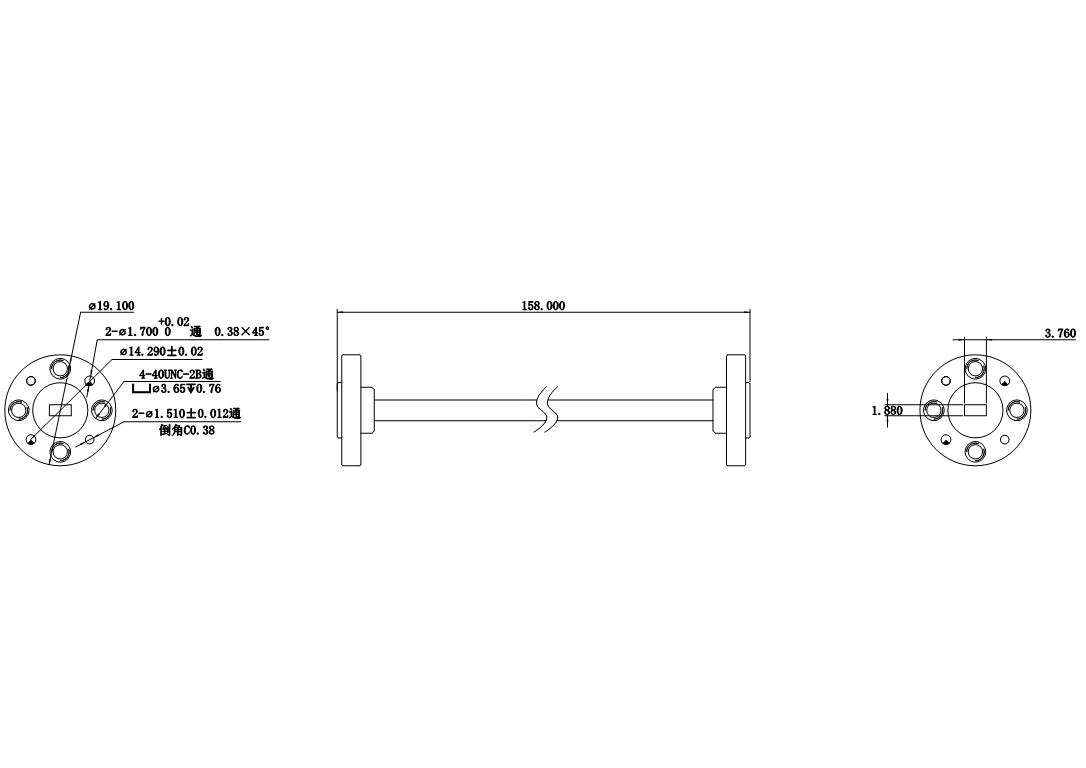

DWG7-BJ620S158-2012 Waveguide Connection

Waveguide Connection DWG7-BJ620S158-2012

Frequency49.8~75.8GHz, Power CapacityW, Rect waveguider, BJ620, BJ620
View Details →

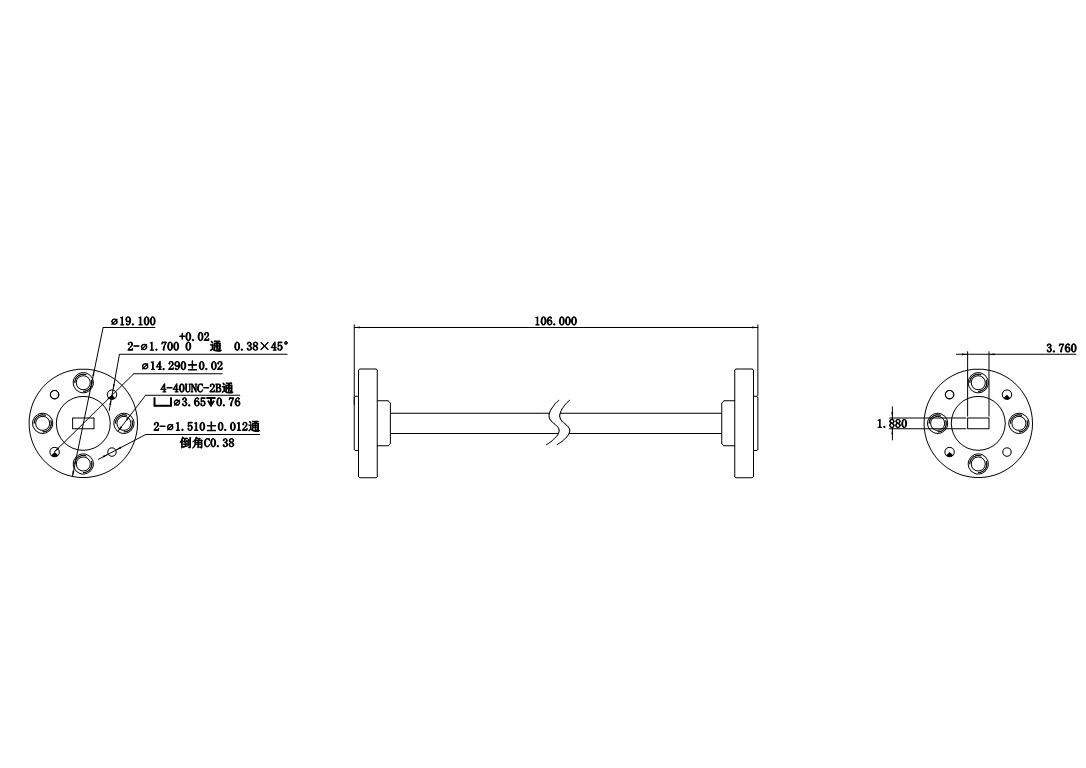

DWG7-BJ620S106-2011 Waveguide Connection

Waveguide Connection DWG7-BJ620S106-2011

Frequency49.8~75.8GHz, Power CapacityW, Rect waveguider, BJ620, BJ620
View Details →

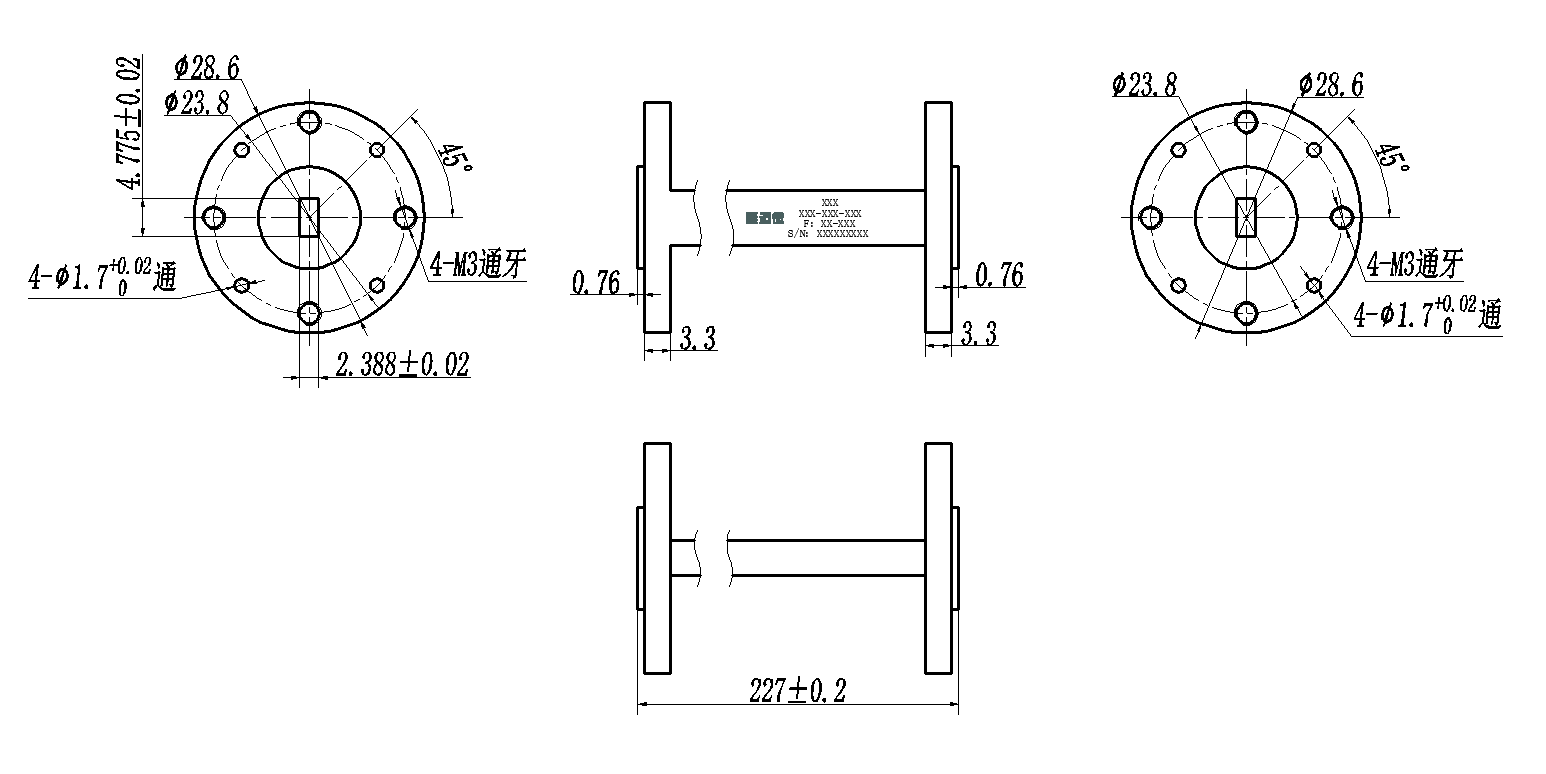

DWG7-BJ500S227-1554 Waveguide Connection

Waveguide Connection DWG7-BJ500S227-1554

Frequency39.2~59.6GHz, Power Capacity20W, Rect waveguider, BJ500, BJ500
View Details →

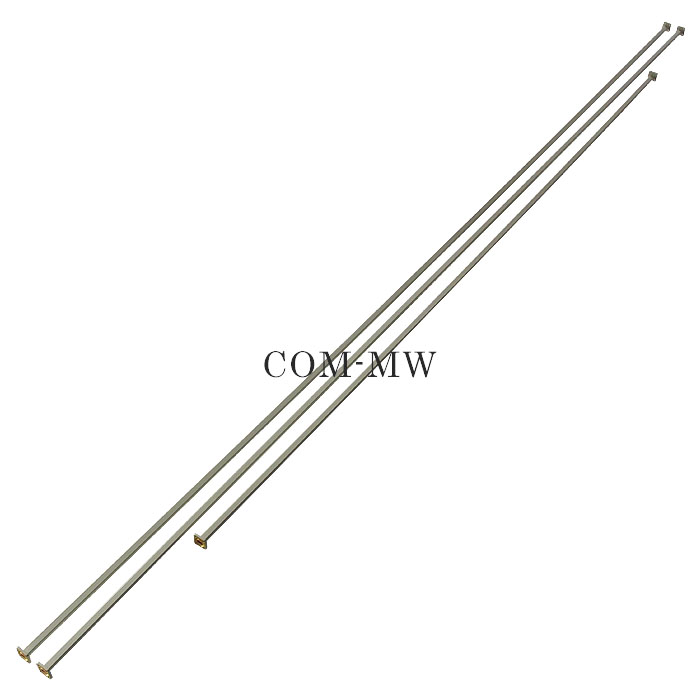

DWG7-BJ320S5500-1812 Waveguide Connection

Waveguide Connection DWG7-BJ320S5500-1812

Frequency26.3~40GHz, Power Capacity100W, Rect waveguider, BJ320, BJ320
View Details →

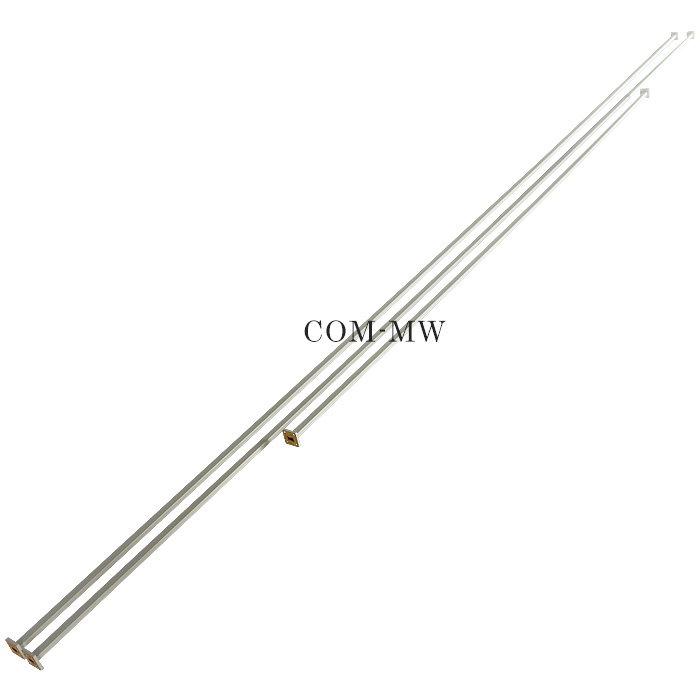

DWG7-BJ320S5200-1813 Waveguide Connection

Waveguide Connection DWG7-BJ320S5200-1813

Frequency26.3~40GHz, Power Capacity100W, Rect waveguider, BJ320, BJ320
View Details →

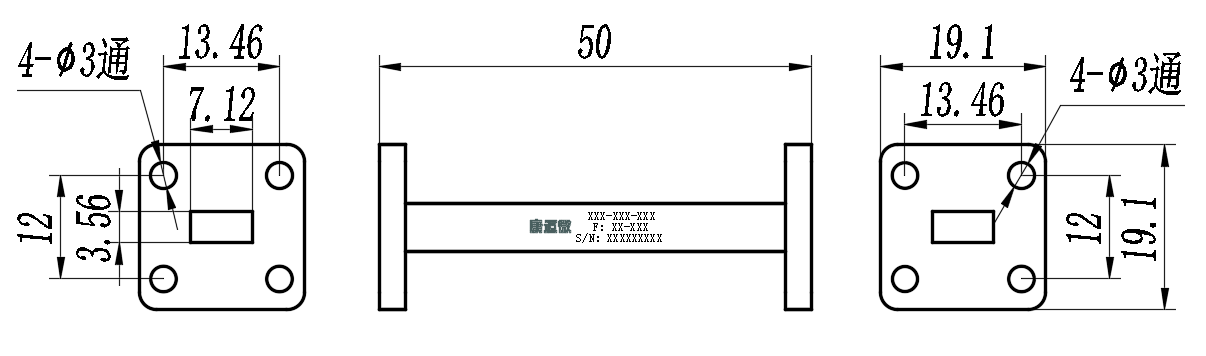

DWG7-BJ320S50-2325 Waveguide Connection

Waveguide Connection DWG7-BJ320S50-2325

Frequency26.5~40GHz, Power Capacity50W, Rect waveguider, BJ320, BJ320
View Details →

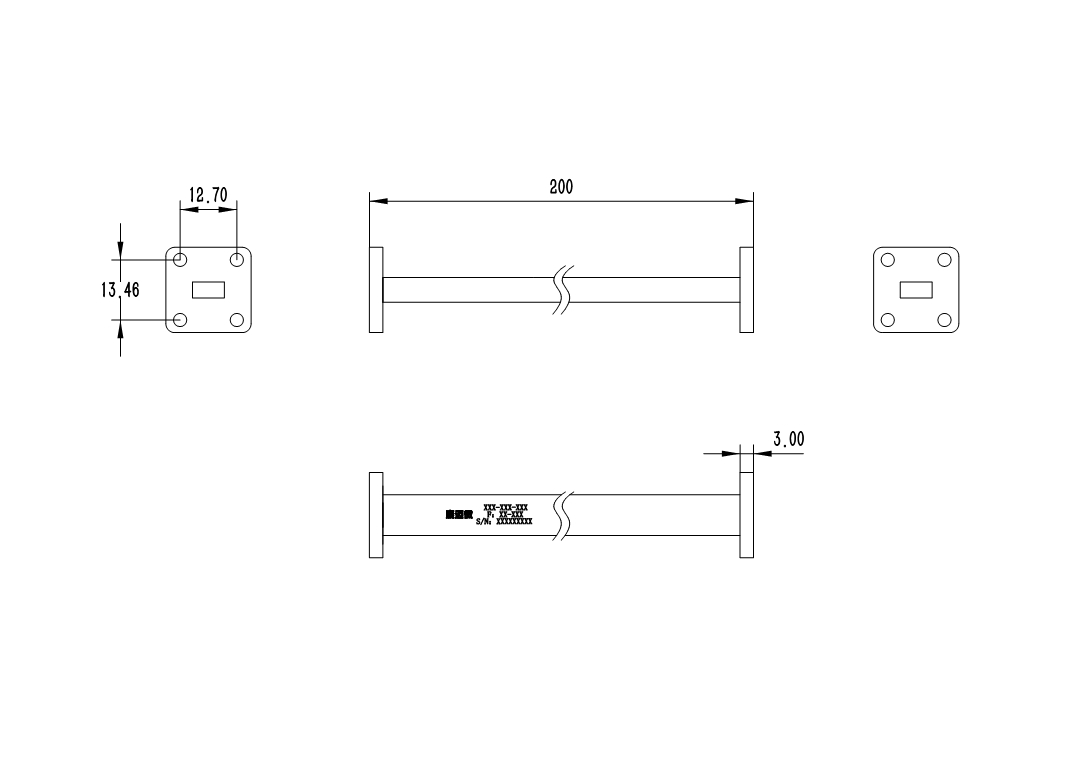

DWG7-BJ320S200-2256 Waveguide Connection

Waveguide Connection DWG7-BJ320S200-2256

Frequency26.3~40GHz, Power Capacity20W, Rect waveguider, BJ320, BJ320
View Details →

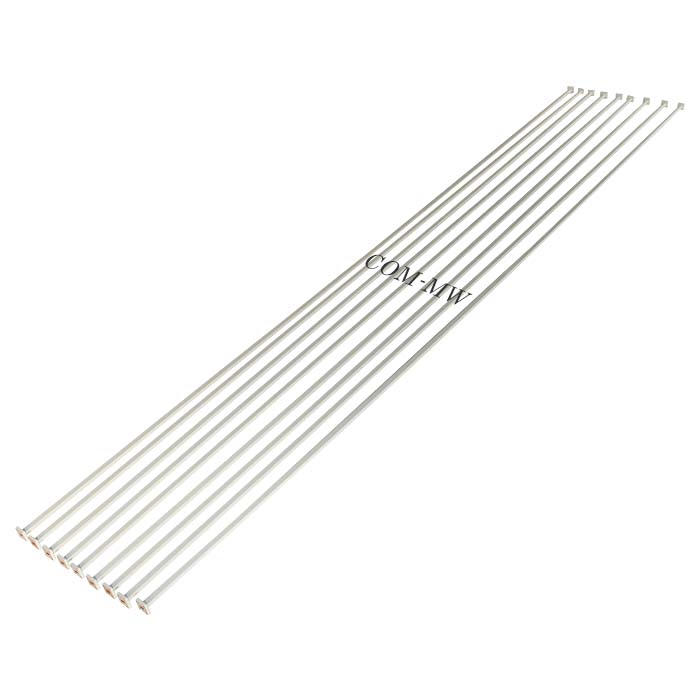

DWG7-BJ320S18000-2541 Waveguide Connection

Waveguide Connection DWG7-BJ320S18000-2541

Frequency26.3~40GHz, Power Capacity25W, Rect waveguider, 2.92, 2.92
View Details →

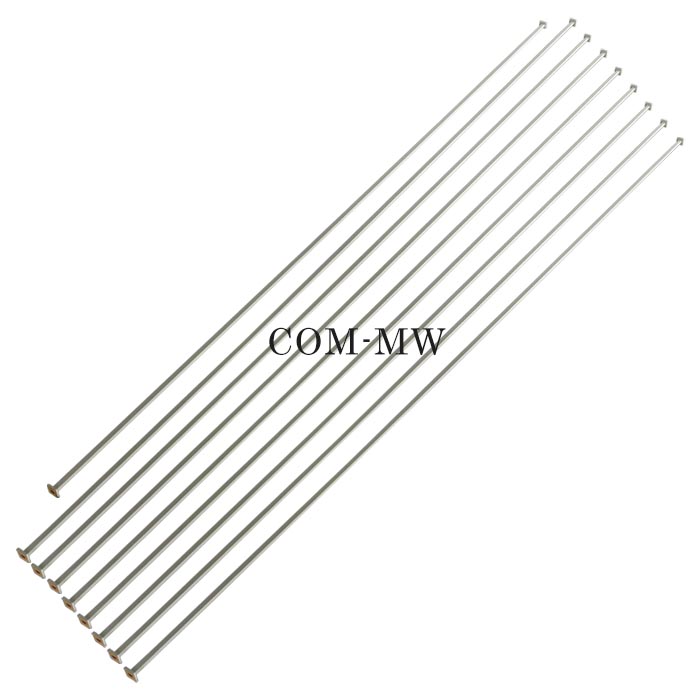

DWG7-BJ320S17800-1811 Waveguide Connection

Waveguide Connection DWG7-BJ320S17800-1811

Frequency26.3~40GHz, Power Capacity100W, Rect waveguider, BJ320, BJ320
View Details →

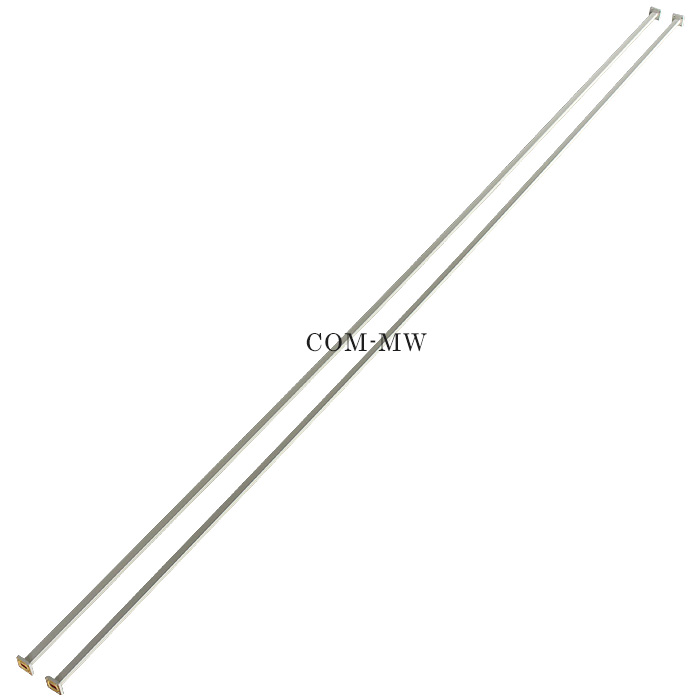

DWG7-BJ320S1500-1810 Waveguide Connection

Waveguide Connection DWG7-BJ320S1500-1810

Frequency26.3~40GHz, Power Capacity100W, Rect waveguider, BJ320, BJ320
View Details →

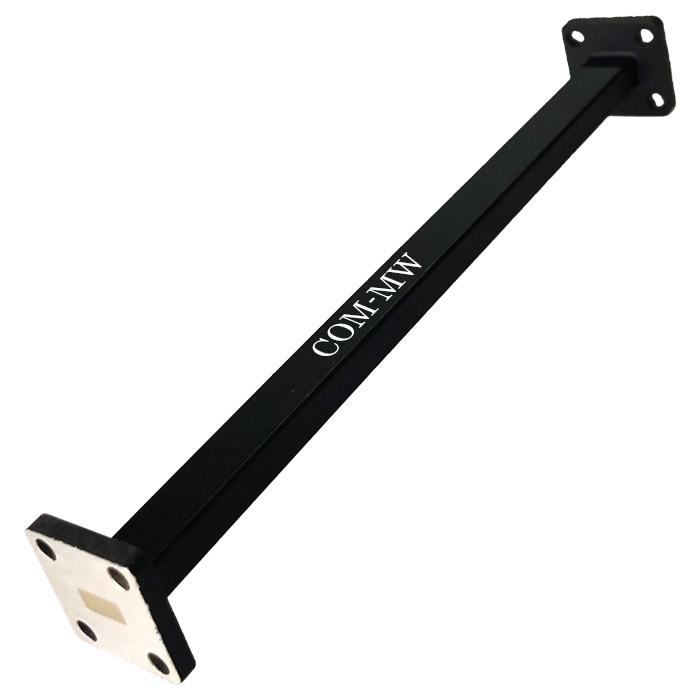

DWG7-BJ320S143-2002 Waveguide Connection

Waveguide Connection DWG7-BJ320S143-2002

Frequency26.3~40GHz, Power Capacity20W, Rect waveguider, BJ320, BJ320
View Details →

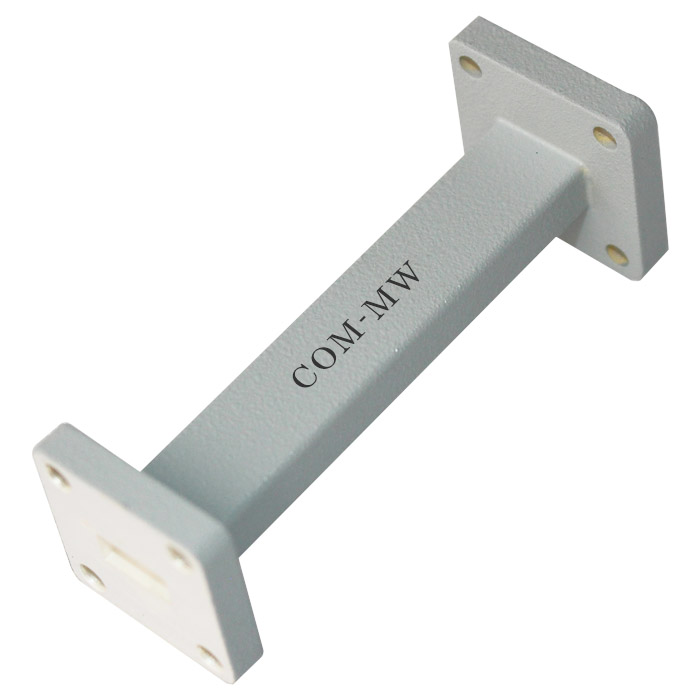

DWG7-BJ260S62.5-2597 Waveguide Connection

Waveguide Connection DWG7-BJ260S62.5-2597

Frequency21.7~33GHz, Power Capacity50W, Rect waveguider, BJ260, BJ260
View Details →

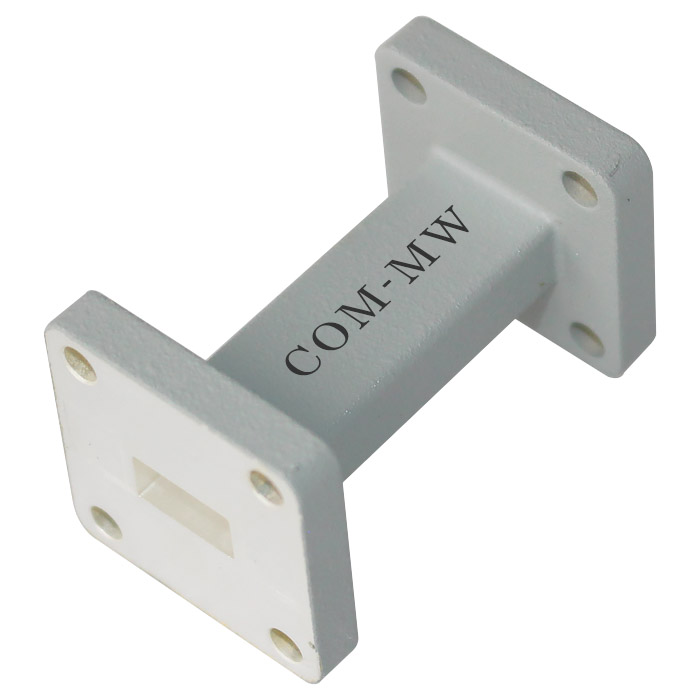

DWG7-BJ260S36-2599 Waveguide Connection

Waveguide Connection DWG7-BJ260S36-2599

Frequency21.7~33GHz, Power Capacity50W, Rect waveguider, BJ260, BJ260
View Details →

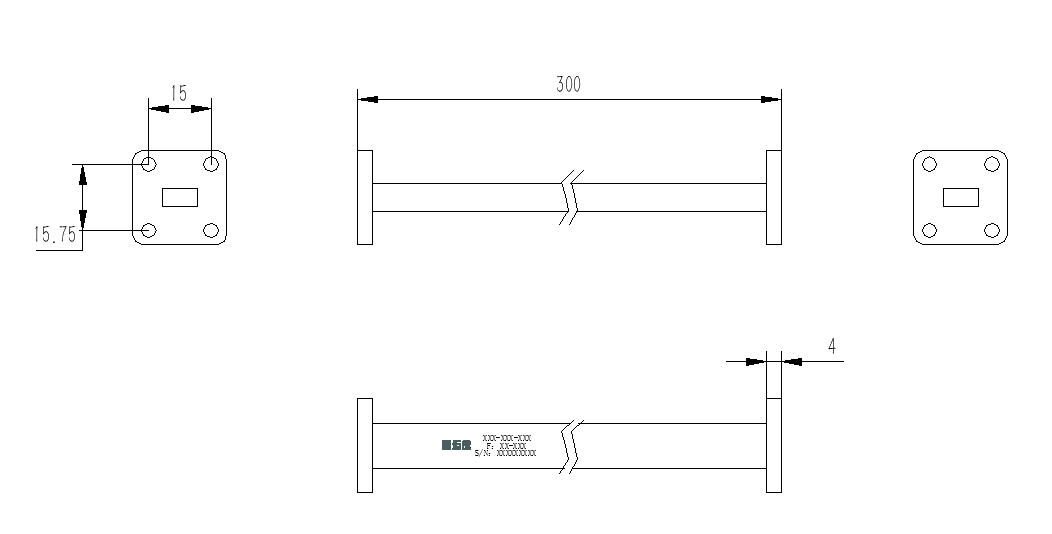

DWG7-BJ260S300-2293 Waveguide Connection

Waveguide Connection DWG7-BJ260S300-2293

Frequency21.7~33GHz, Power Capacity50W, Rect waveguider, BJ260, BJ260
View Details →

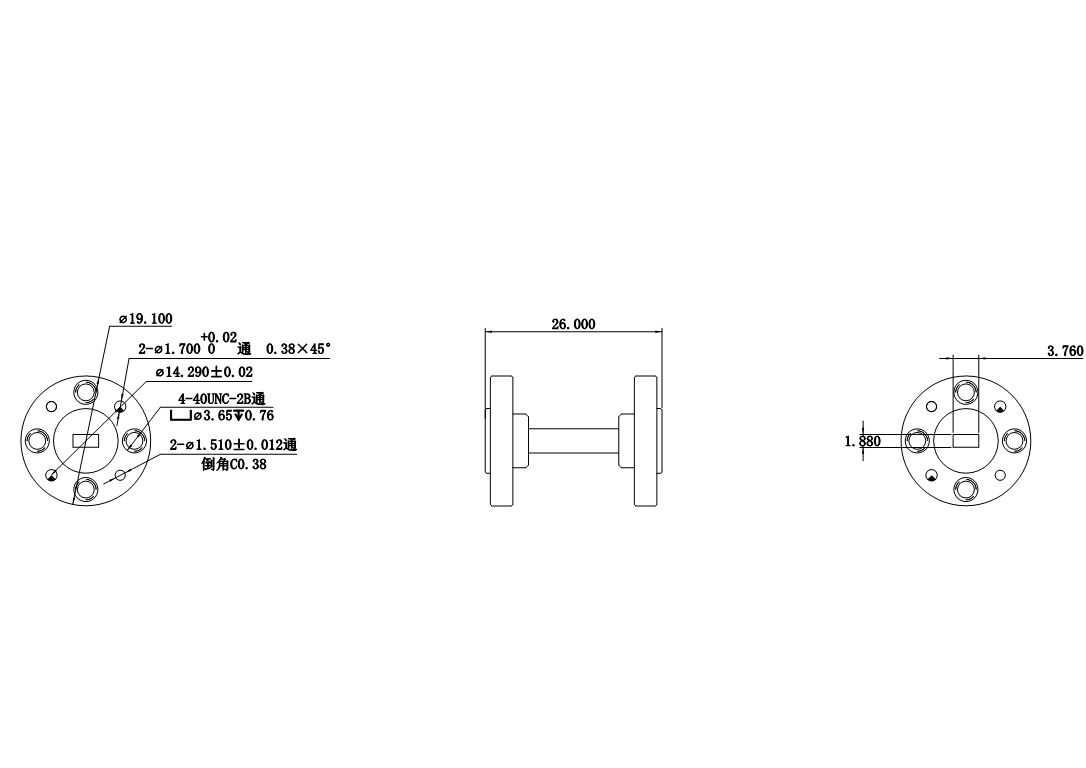

DWG7-BJ260S26-2007 Waveguide Connection

Waveguide Connection DWG7-BJ260S26-2007

Frequency49.8~75.8GHz, Power Capacity20W, Rect waveguider, BJ620, BJ620
View Details →

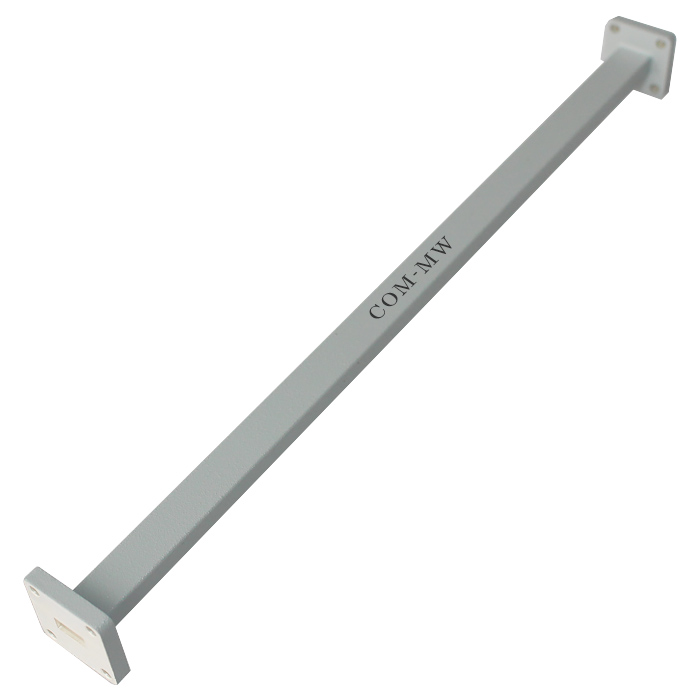

DWG7-BJ260S245-2598 Waveguide Connection

Waveguide Connection DWG7-BJ260S245-2598

Frequency21.7~33GHz, Power Capacity50W, Rect waveguider, BJ260, BJ260
View Details →

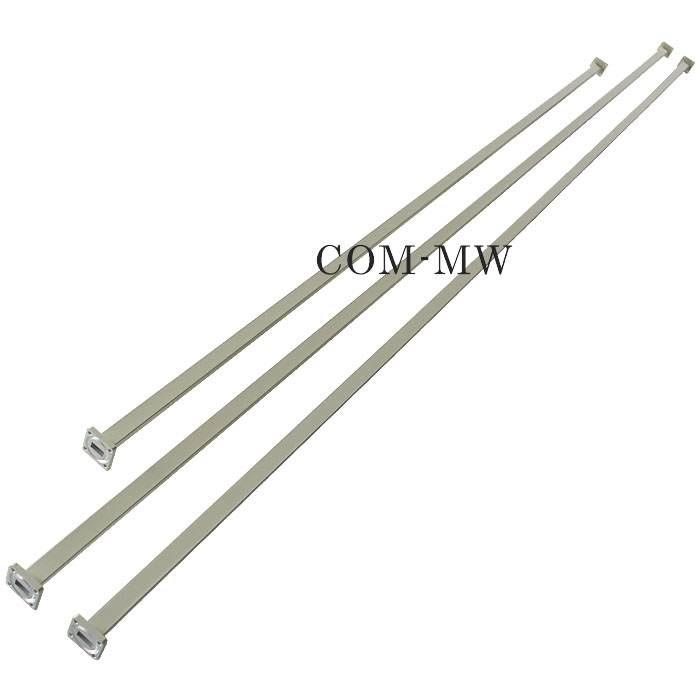

DWG7-BJ140S5500-1808 Waveguide Connection

Waveguide Connection DWG7-BJ140S5500-1808

Frequency11.9~18GHz, Power Capacity100W, Rect waveguider, BJ140, BJ140
View Details →

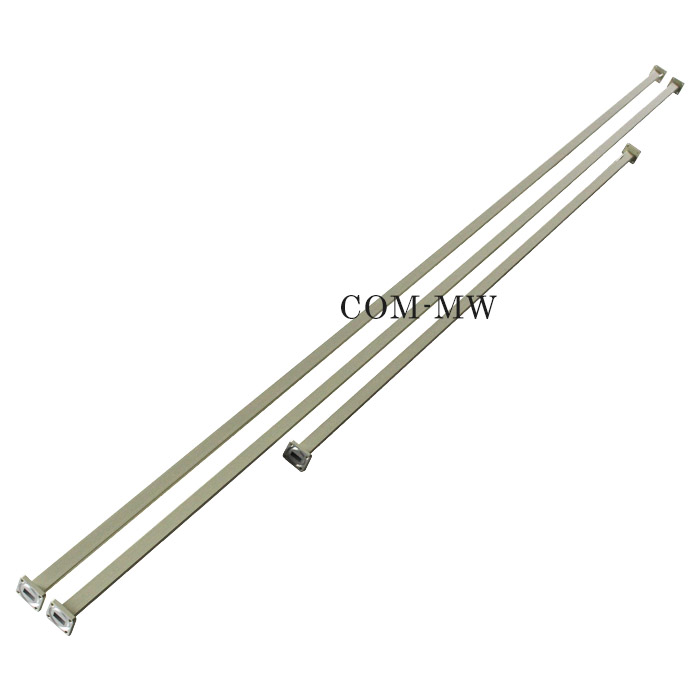

DWG7-BJ140S5200-1809 Waveguide Connection

Waveguide Connection DWG7-BJ140S5200-1809

Frequency11.9~18GHz, Power Capacity100W, Rect waveguider, BJ140, BJ140
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
