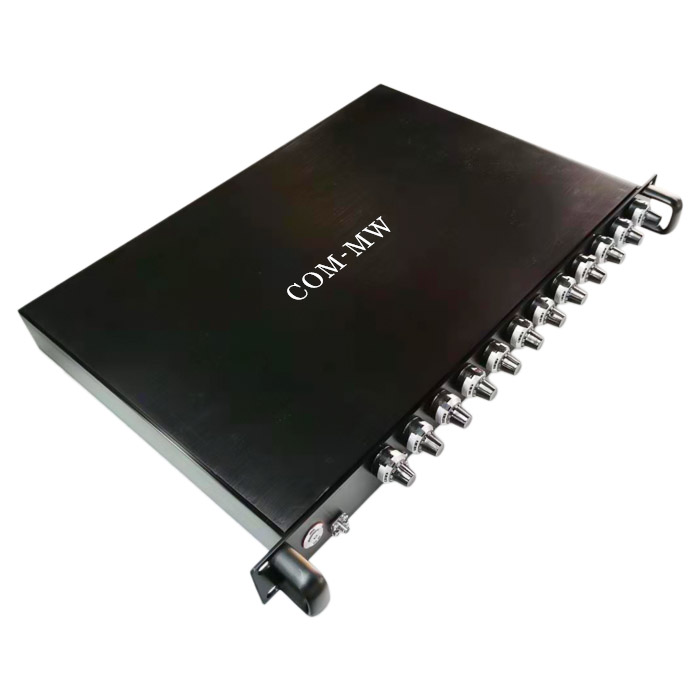

1~8000MHz, Attenuation range0~95dB, step0.25dB, 0.2W, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 1 | ~ | 8000 | MHz |
| Attenuation range | 0 | ~ | 95 | dB |
| IL | 10.5 | dB | ||
| VSWR | 1.6 | |||
| Isolation between 8 channels | 100 | dB | ||
| Attenuation accuracy root mean square | 3 | dB |
| step | 0.25dB |
| Power Capacity | 0.2W Design assurance |
| Impedance | 50Ω |
| Connector | SMA-K |
| Number of channels | 8 independent controls |
| Control port | RJ-45；USB；DB9 |
| Surface | Black |
| Working voltage | +220V |
| Operation Temp. | +0~+55℃ Design assurance |

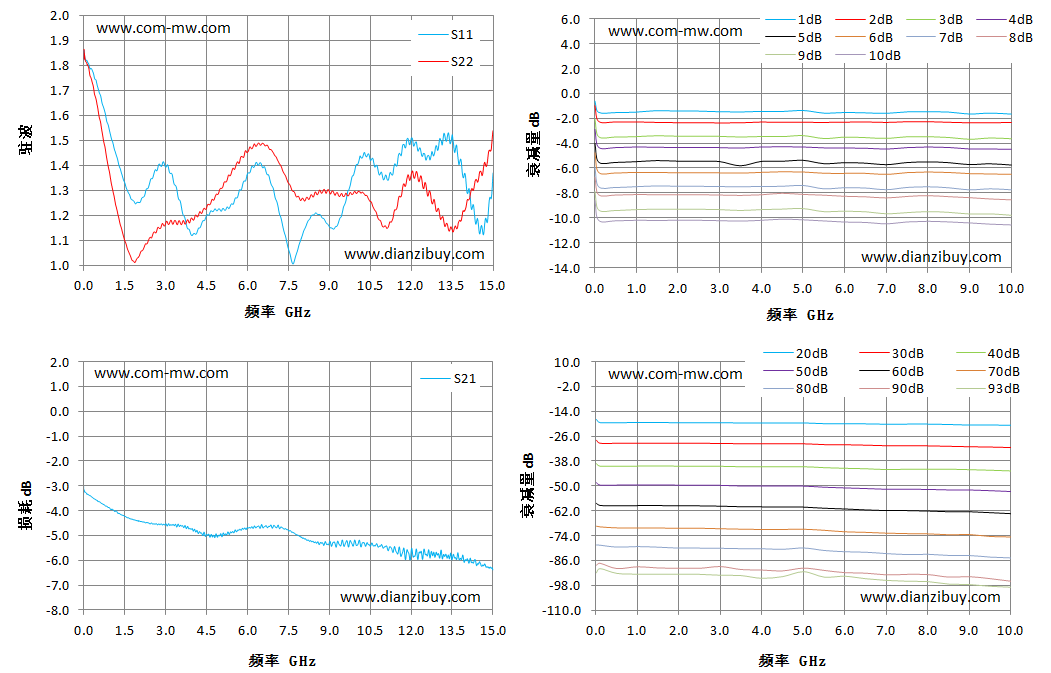

| Frequency (G) | Attenuation | Attenuation | Attenuation | Attenuation | Attenuation | Attenuation | Attenuation | Attenuation |
|---|---|---|---|---|---|---|---|---|
| 0.01 | 0.61 | 0.98 | 2.88 | 6.73 | 8.6 | 27.9 | 69.37 | 88.27 |
| 1 | 1.5 | 2.29 | 4.3 | 8.12 | 10.19 | 29.35 | 70.25 | 89.02 |
| 2 | 1.42 | 2.35 | 4.35 | 8.13 | 10.19 | 29.4 | 70.4 | 89.7 |
| 3 | 1.47 | 2.37 | 4.35 | 8.16 | 10.22 | 29.46 | 70.64 | 88.9 |
| 4 | 1.44 | 2.3 | 4.3 | 8.14 | 10.19 | 29.65 | 71 | 90.6 |
| 5 | 1.37 | 2.32 | 4.3 | 8.11 | 10.15 | 29.62 | 70.9 | 89.66 |
| 6 | 1.53 | 2.31 | 4.39 | 8.26 | 10.33 | 30.1 | 72.14 | 91.87 |
| 7 | 1.6 | 2.33 | 4.47 | 8.39 | 10.47 | 30.56 | 72.79 | 92.92 |
| 8 | 1.47 | 2.27 | 4.3 | 8.21 | 10.27 | 30.64 | 73.12 | 92.8 |
| 9 | 1.65 | 2.36 | 4.46 | 8.37 | 10.4 | 31.06 | 73.47 | 93.8 |
| 10 | 1.66 | 2.34 | 4.49 | 8.55 | 10.56 | 31.45 | 74.6 | 96 |
| root-mean-square | 0.53 | 0.48 | 0.54 | 0.5 | 0.56 | 1 | 2.18 | 2.43 |
1. Clean the surface of the product, do not soak the product in a cleaning solution; 2. This product belongs to electrostatic sensitive devices. Pay attention to anti-static measures during installation or storage; 3. If the overall temperature is greater than 125 ℃, please consult with us before placing an order.
