Frequency800~6000MHz, Gain4dBi@800-2700MHz, Gain7dBi@2700-6000MHz, Gain within ± 45 ° of H-planedBi@2400-2500MHz, Gain within ± 45 ° of H-planedBi@5700-5900MHz, Vertical polarization, N-K, 低空无人机干扰、无人机反制、定向干扰系统。
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

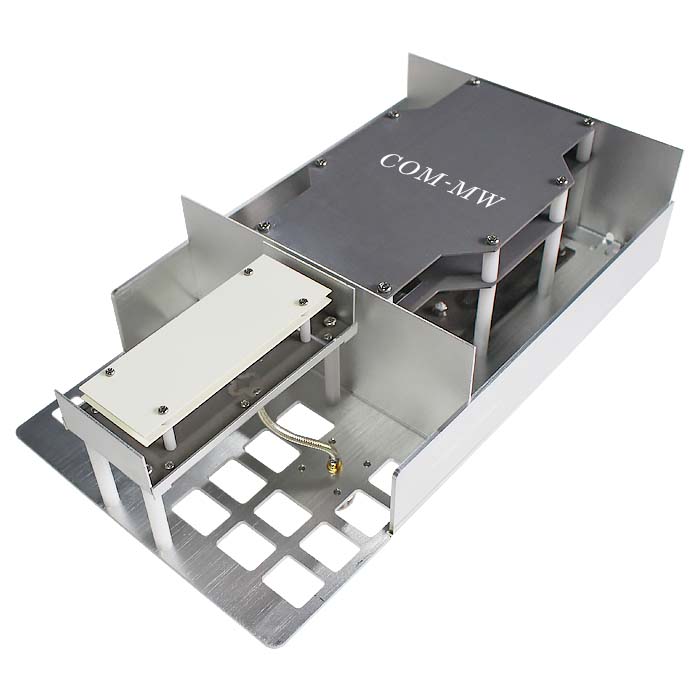

无人机定向干扰天线具有重量轻、厚度薄、增益高、干扰距离远等特点，该天线是反无人机系统中的关键组件，主要用于发射特定频段的无线电信号，干扰无人机的控制链路、导航信号（如GPS/北斗）或图像传输，从而迫使目标无人机失控、悬停、返航或降落。这类天线通常部署在机场、重要设施、大型活动等敏感区域，以保障低空空域安全。
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 800 | ~ | 6000 | MHz |
| Gain | 4 | 8 | dBi@800-2700MHz | |
| Gain | 7 | 9 | dBi@2700-6000MHz | |
| Gain within ± 45 ° of H-plane | 4 | dBi@2400-2500MHz | ||
| Gain within ± 45 ° of H-plane | 6 | dBi@5700-5900MHz | ||

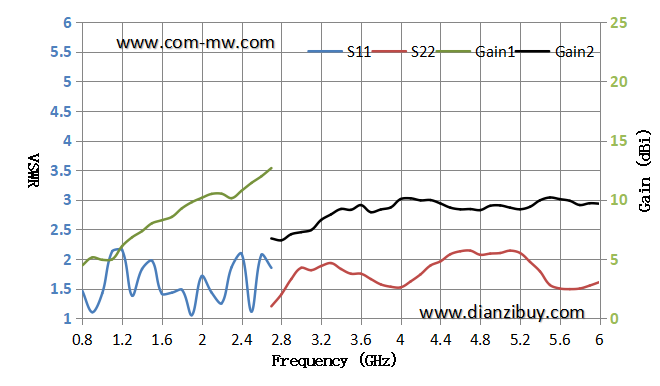

| VSWR | 2 | |||

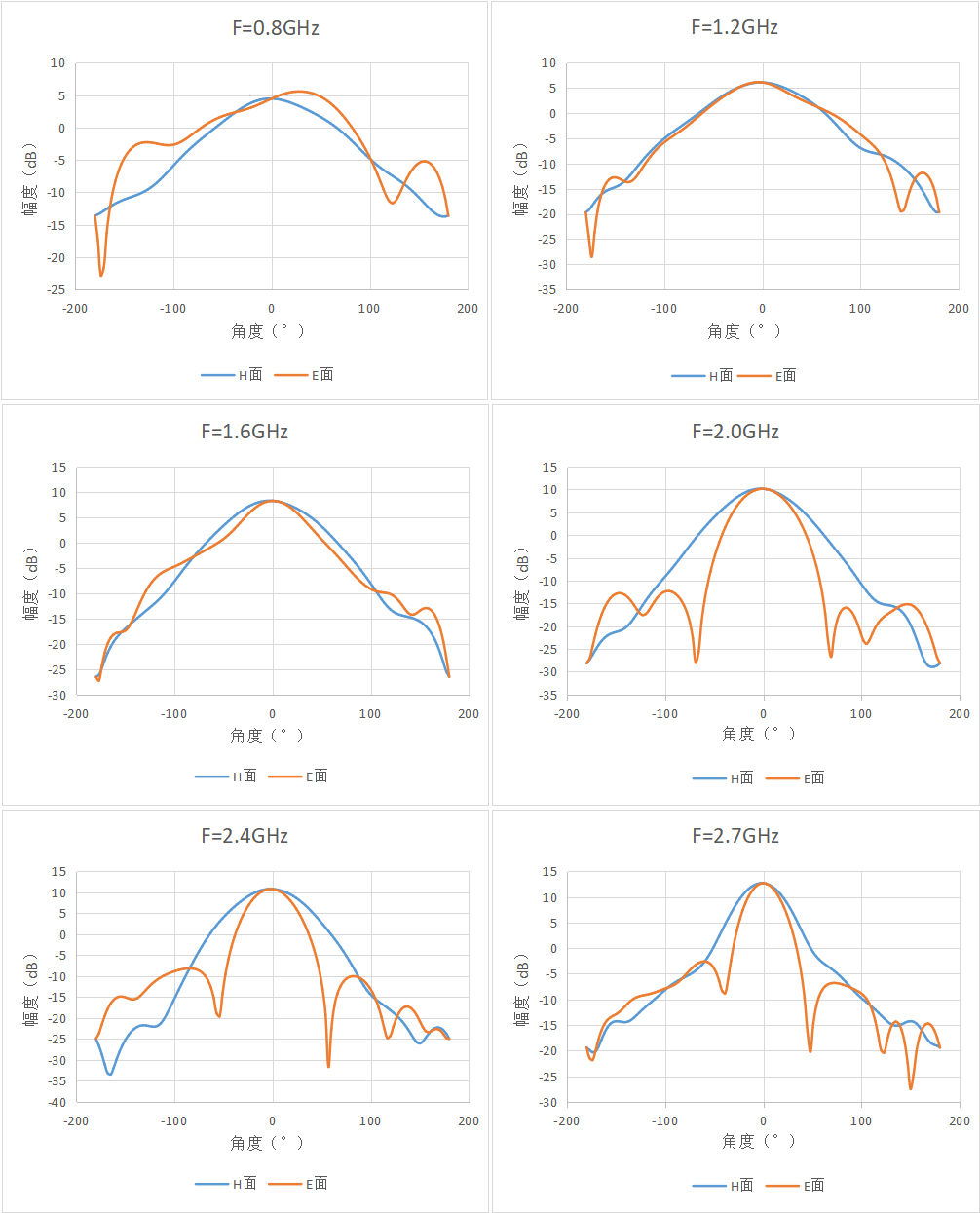

| 3dB beam width (H-plane * E-plane) | 60*30 | °@800-2700MHz | ||

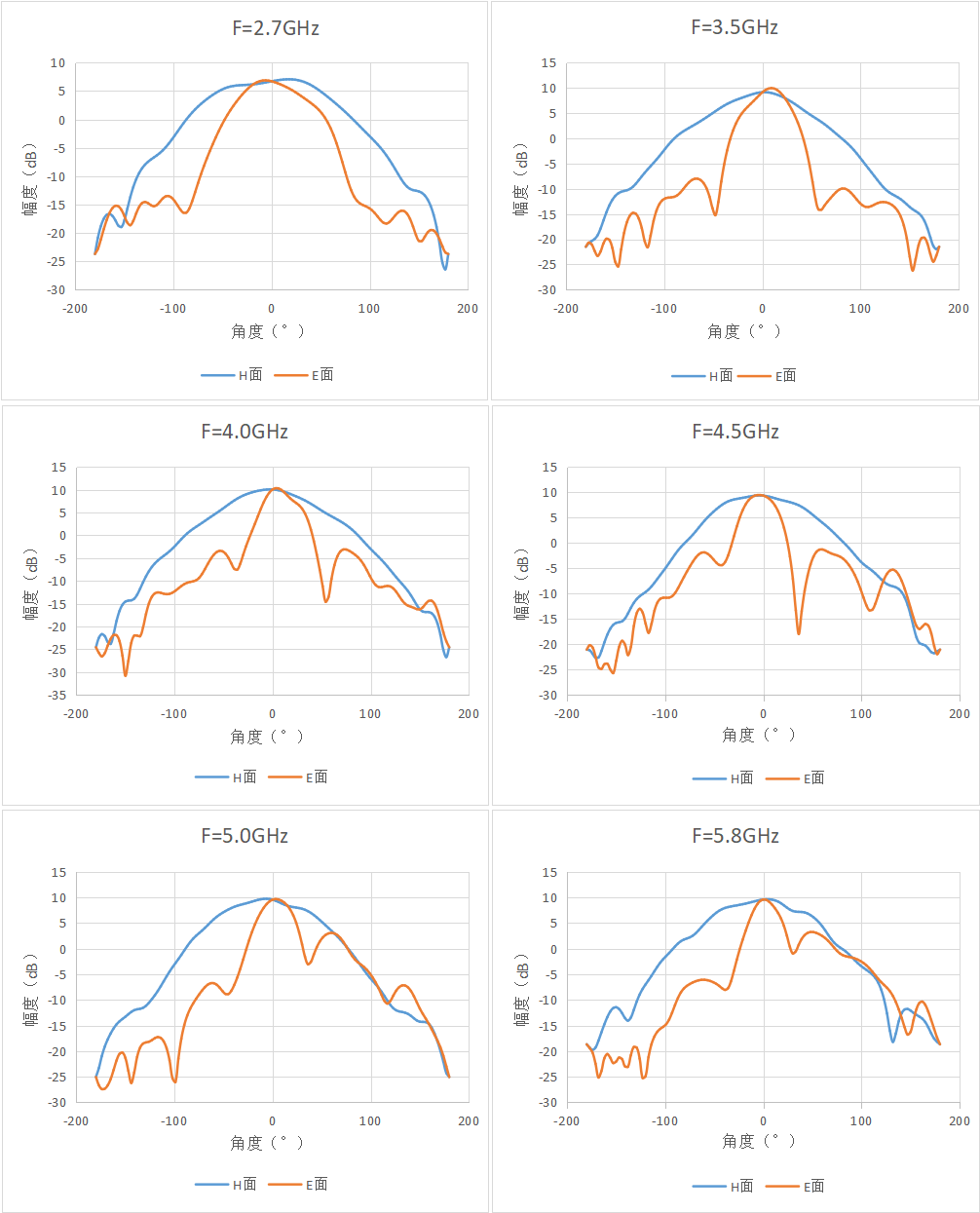

| 3dB beam width (H-plane * E-plane) | 70*20 | °@2700-6000MHz | ||
| F/B ratio | 15 | dB |
| Polarization | Vertical polarization |
|---|---|
| Power Capacity | 100W Design assurance |
| Connector | N-K |

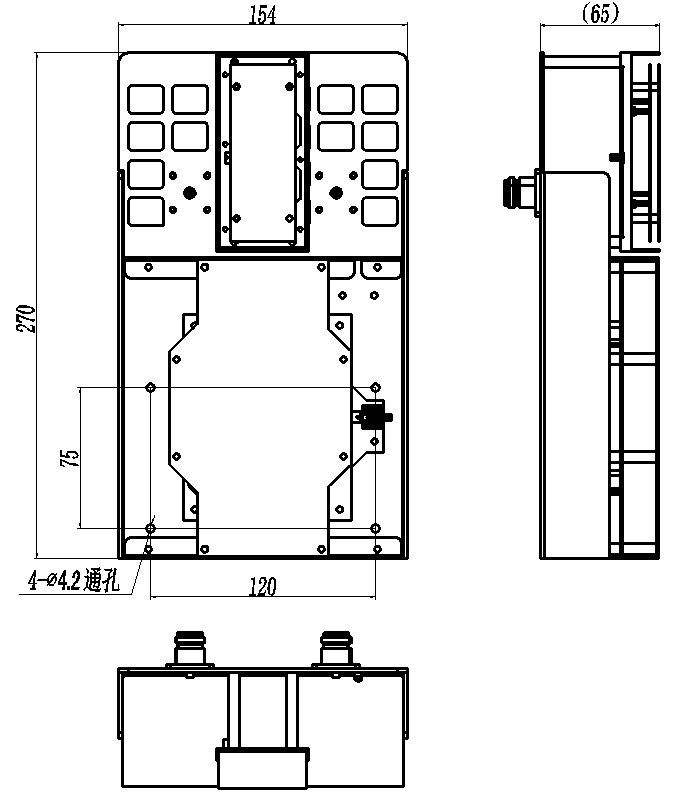

| Outline size | 155*270*65mm |
| Estimated weight | 700g |
| Surface | Sandblasting Nature Color Conductive Oxidation |
| Operation Temp. | -25~+55℃ Design assurance |
| Storage Temp. | -40~+75℃ Design assurance |
| 用途 | 低空无人机干扰、无人机反制、定向干扰系统。 |
Avoid collisions during installation.
It is strictly prohibited to disassemble antenna accessories, as it may cause poor antenna performance.
The installation position of the antenna should be free of any obstacles.
Outdoor use should be equipped with lightning protection facilities.
May contain electronic components, please do not dispose of them randomly.
