Frequency0.4~6GHz, Gain 15dBi@400-1000MHZ, Gain 28dBi@0.8-2.1GHZ, Gain 310dBi@1.8-3.2GHZ, Gain 411dBi@5.1-5.9GHZ, Gain 513dBi@3-6GHZ, Gain 67dBi@1.1-1.7GHZ, Vertical polarization, Right-handed circular polarization, N-K, 低空无人机干扰、无人机反制、定向干扰系统。
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 0.4 | ~ | 6 | GHz |
| Gain 1 | 5 | dBi@400-1000MHZ | ||
| Gain 2 | 8 | dBi@0.8-2.1GHZ | ||
| Gain 3 | 10 | dBi@1.8-3.2GHZ | ||
| Gain 4 | 11 | dBi@5.1-5.9GHZ | ||
| Gain 5 | 13 | dBi@3-6GHZ | ||
| Gain 6 | 7 | dBi@1.1-1.7GHZ | ||
| VSWR | 2 | |||
| 3dB beamwidth 1 | 20 | °@400-3000MHZ； | ||
| 3dB beam width 2 | 10 | °@3-6GHZ； | ||
| 3dB beam width 3 | 45 | °@1.1-1.7GHZ； |
| Polarization mode 1 | Vertical polarization @ 400-6000MHz |
|---|---|
| Polarization mode 2 | Right-handed circular polarization @ 1.1-1.7GHz |
| Power Capacity | 200W @400-3000MHZ |
| Power Capacity | 100W @3-6GHZ |
| Power Capacity | 50W@1.1-1.7GHz Design assurance |
| Connector | N-K |

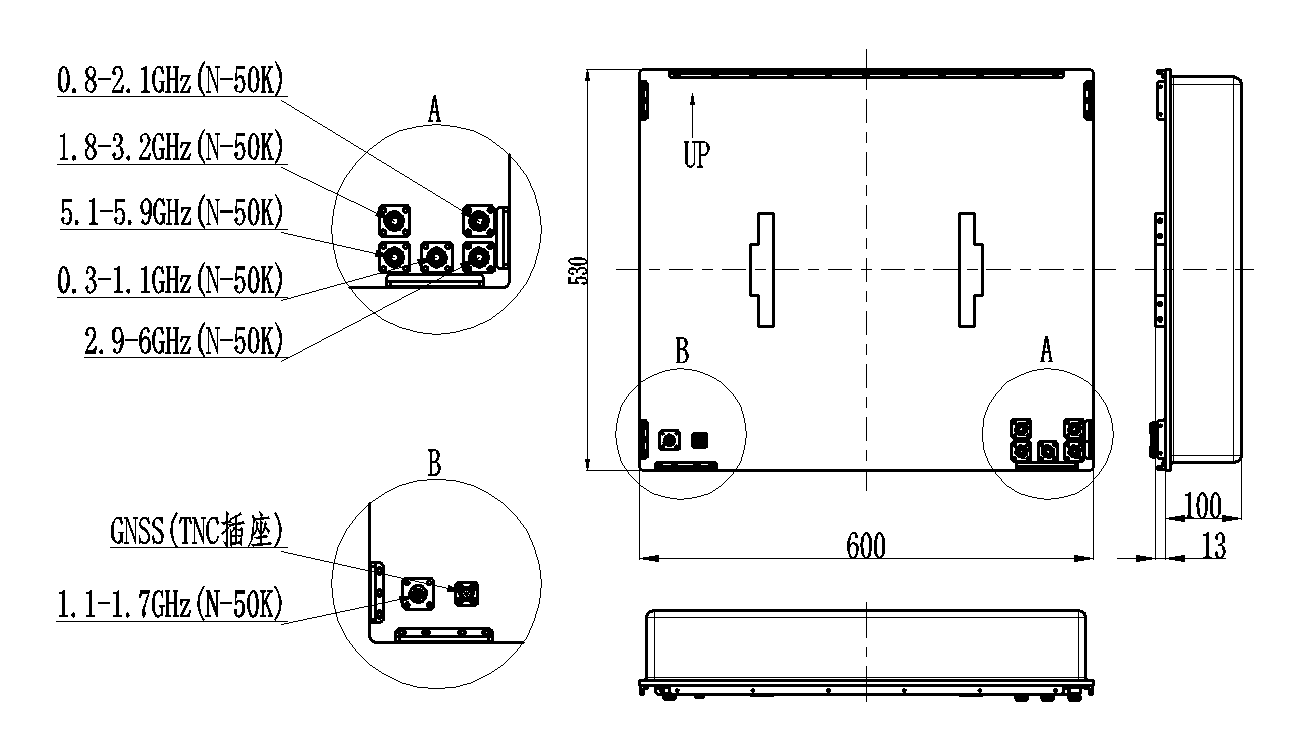

| Outline size | 600*530*113mm |
| Estimated weight | 8.0Kg |

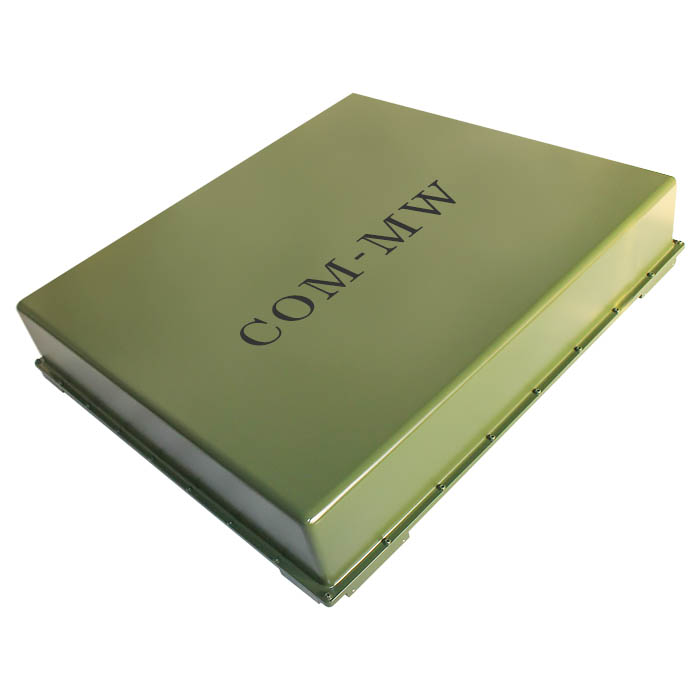

| Surface | Green |
| Operation Temp. | -25~+55℃ Design assurance |
| Storage Temp. | -45~+75℃ Design assurance |
| 用途 | 低空无人机干扰、无人机反制、定向干扰系统。 |
Avoid collisions during installation.
It is strictly prohibited to disassemble antenna accessories, as it may cause poor antenna performance.
The installation position of the antenna should be free of any obstacles.
Outdoor use should be equipped with lightning protection facilities.
May contain electronic components, please do not dispose of them randomly.
