Frequency300~6000MHz, Gain 16dBi@300-1000MHZ, Gain 210dBi@1-3GHZ, Gain 312dBi@3-6GHZ, Vertical polarization, N-K, 低空无人机干扰、无人机反制、定向干扰系统。
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 300 | ~ | 6000 | MHz |
| Gain 1 | 6 | dBi@300-1000MHZ | ||
| Gain 2 | 10 | dBi@1-3GHZ | ||
| Gain 3 | 12 | dBi@3-6GHZ | ||
| VSWR | 2..5 | @433MHz\845MHz\915MHz\1400MHz\1550~1600MHz\2400MHz\5800MHz | ||
| 3dB Beamwidth | 20 | °@300-3000MHZ | ||
| 3dB Beamwidth | 10 | °@3-6GHZ |
| Polarization | Vertical polarization @ 300-6000MHz |
|---|---|
| Power Capacity | 150W design guarantee @ 300-3000MHz |
| Power Capacity | 80W@3-6GHz Design assurance |
| Connector | N-K |

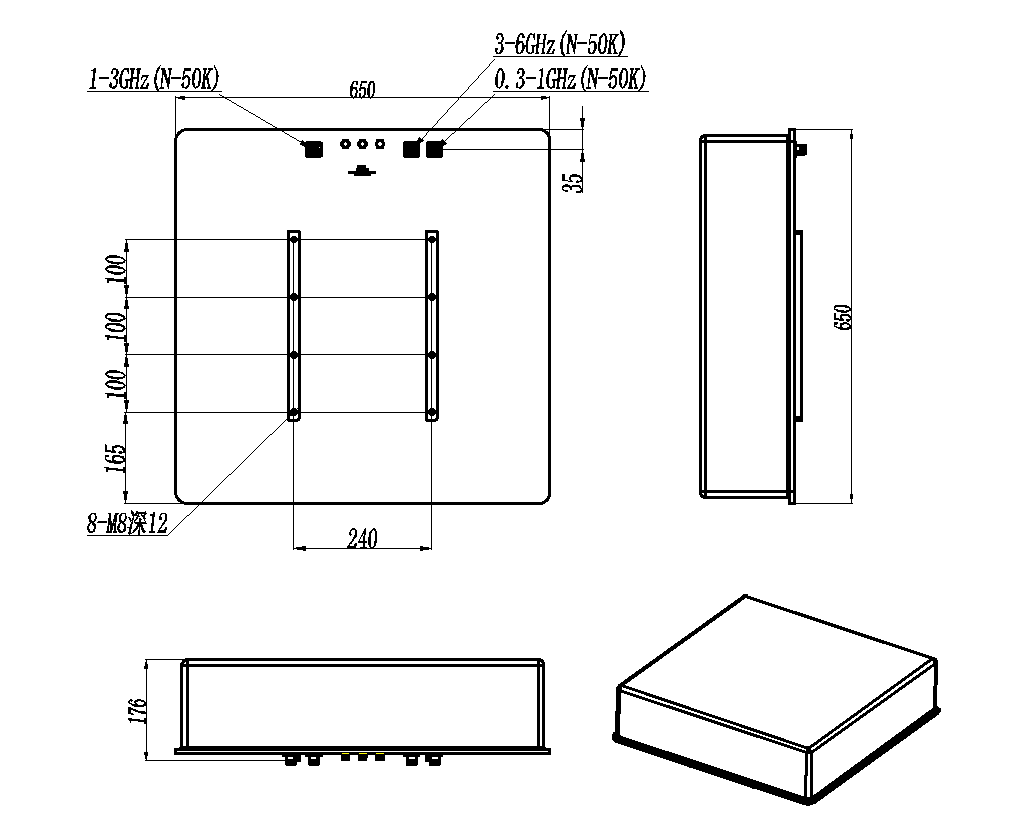

| Outline size | 650*650*176mm |
| Estimated weight | 9.4Kg |
| Surface | Green |
| Operation Temp. | -40~+60℃ Design assurance |
| 用途 | 低空无人机干扰、无人机反制、定向干扰系统。 |
Avoid collisions during installation.
It is strictly prohibited to disassemble antenna accessories, as it may cause poor antenna performance.
The installation position of the antenna should be free of any obstacles.
Outdoor use should be equipped with lightning protection facilities.
May contain electronic components, please do not dispose of them randomly.
