Frequency200~8000MHz, Vertical polarization, Right-handed circular polarization, N-K, 低空无人机干扰、无人机反制、定向干扰系统。
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 200 | ~ | 8000 | MHz |
| 3 | 5 | dBi@915MHZ≥12dBi | ||
| 5 | 8 | dBi@2.4GHZ≥14dBi | ||
| 5 | 8 | dBi@5.8GHZ≥14dBi | ||
| 8 | 10 | dBi@5.8GHZ≥12dBi | ||
| 5 | 7 | dBi@1.1-1.7GHZ | ||
| VSWR | 2.5 | @重点频率≤2.0 | ||

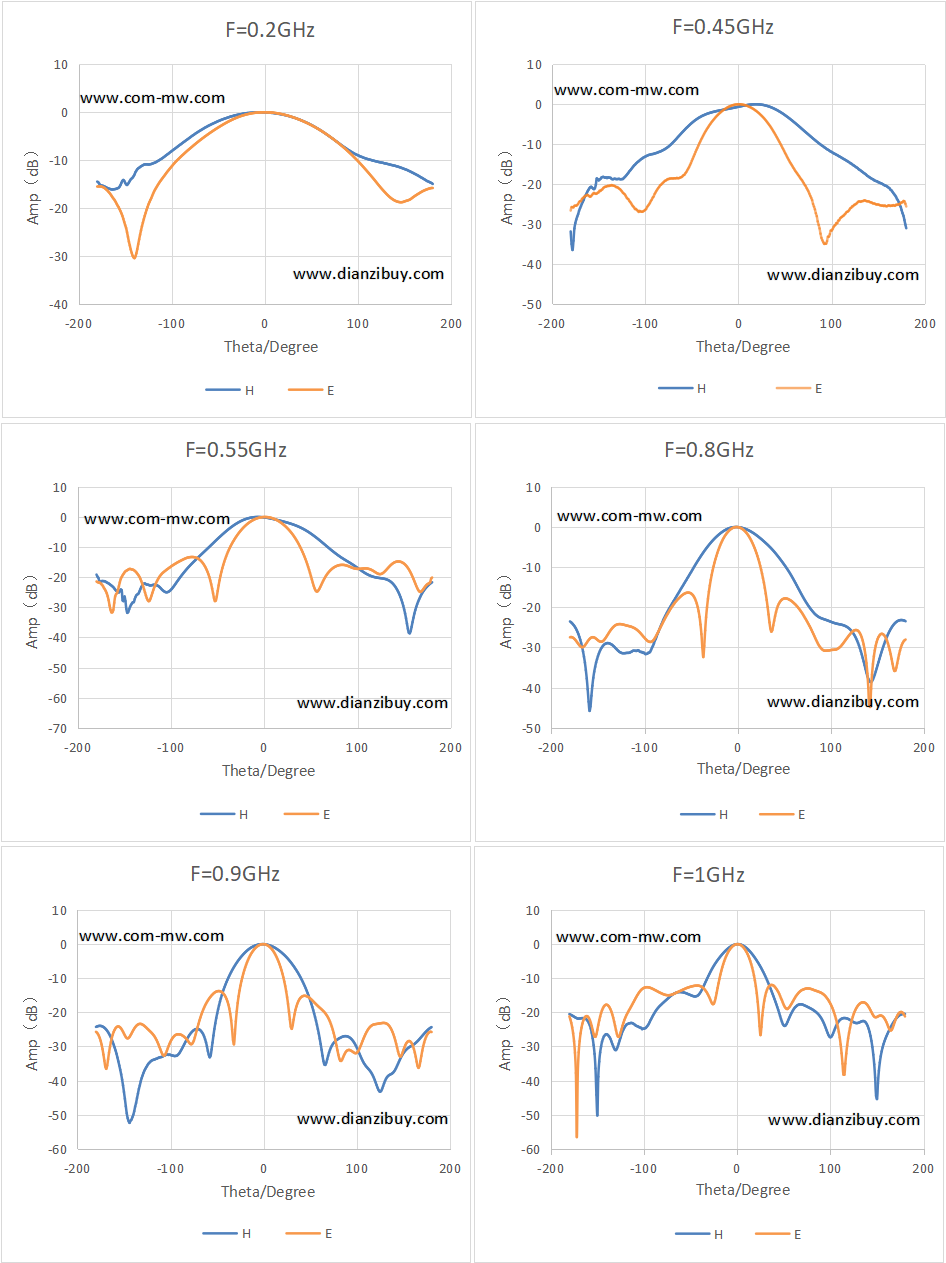

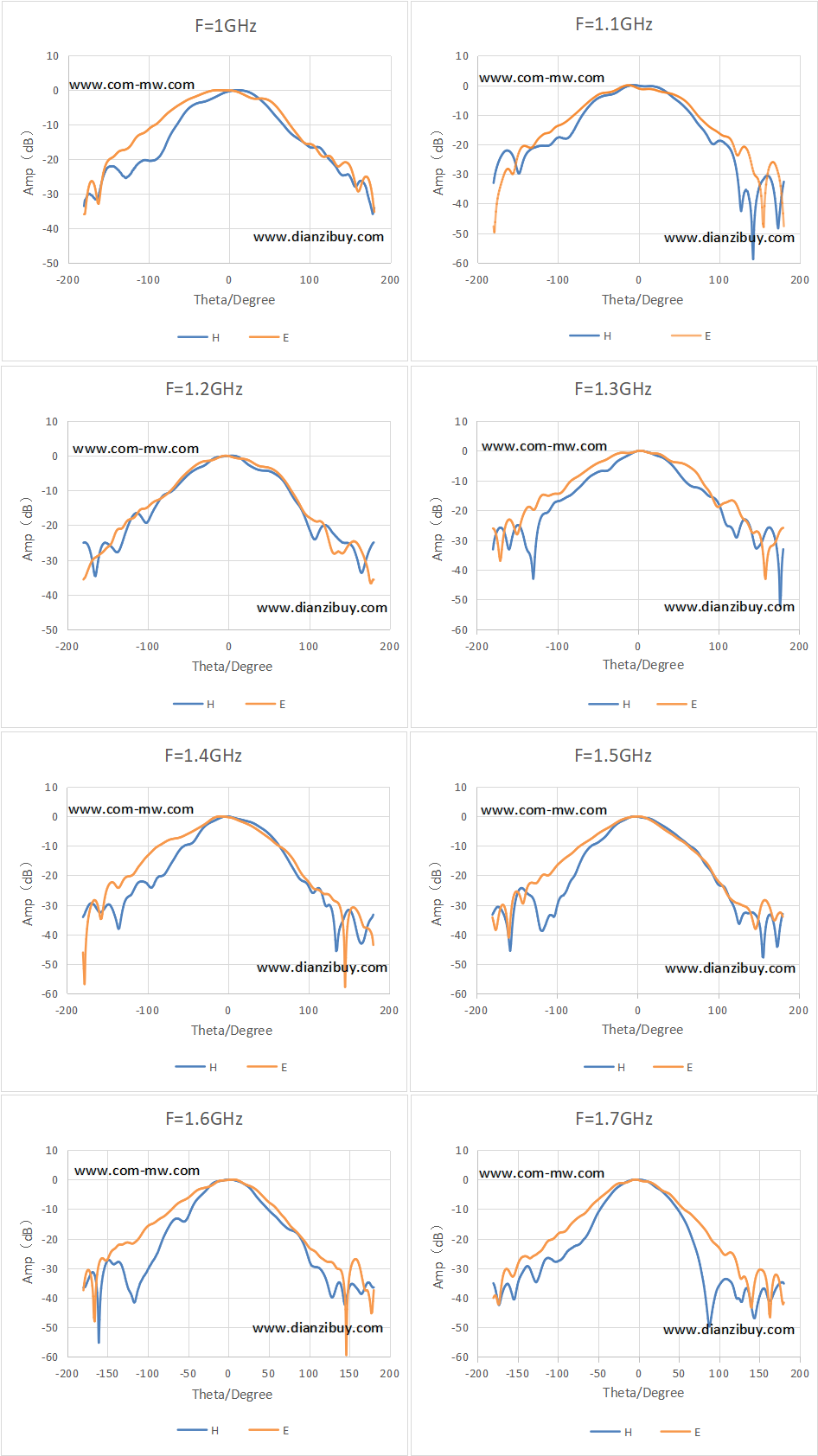

| Beam width | 20*20 | ° | ||
| Port isolation | 25 | dB |
| Polarization | Vertical polarization @ 200-8000MHz |
|---|---|
| Polarization | Right-handed circular polarization @ 1.1-1.7GHz |
| Power Capacity | 150W Design assurance |
| Connector | N-K |

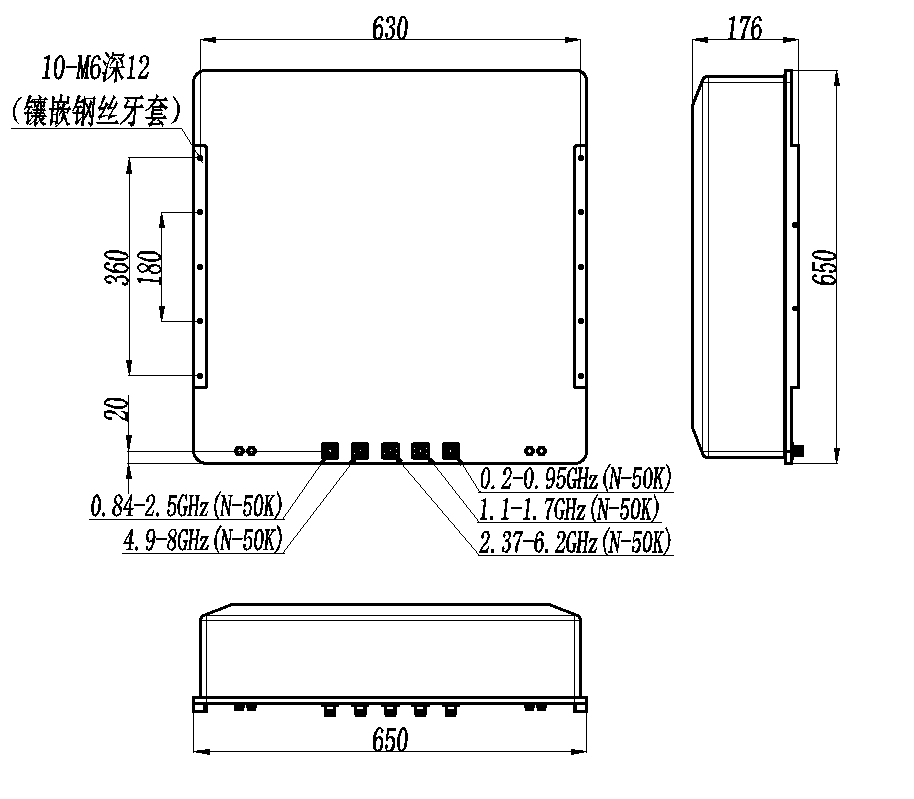

| Outline size | 650*650*176mm |
| Estimated weight | 12Kg |
| Surface | |
| Operation Temp. | -25~+55℃ Design assurance |
| Storage Temp. | -30~+60℃ Design assurance |
| Quality Grade | Industrial grade |
| Waterproof grade | IP66 |
| 低空无人机干扰、无人机反制、定向干扰系统。 |
Avoid collisions during installation.
It is strictly prohibited to disassemble antenna accessories, as it may cause poor antenna performance.
The installation position of the antenna should be free of any obstacles.
Outdoor use should be equipped with lightning protection facilities.
May contain electronic components, please do not dispose of them randomly.
