Frequency1.7~5.9GHz, Gain11dBi, Vertical polarization, SMA, 低空无人机干扰、无人机反制、定向干扰系统。
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

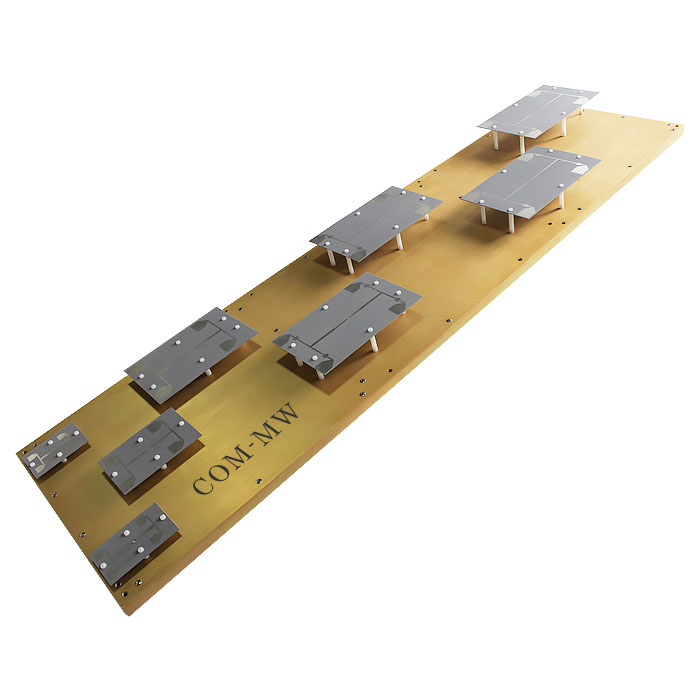

The microstrip antenna is on a thin dielectric substrate, one side is attached with a thin metal layer as a grounding plate, and the other side is made into a metal patch of a certain shape by a photolithography method, and the patch is fed by a microstrip line or a coaxial probe Composition of the antenna. Microstrip antennas have the characteristics of simple structure, high precision, light weight, etc., and are widely used in GPS antennas, conformal antennas and airborne antennas.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 1.7 | ~ | 5.9 | GHz |
| Gain | 11 | dBi | ||

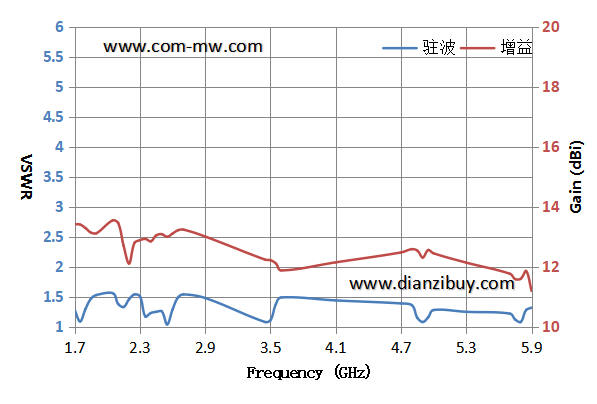

| VSWR | 1.8 | |||

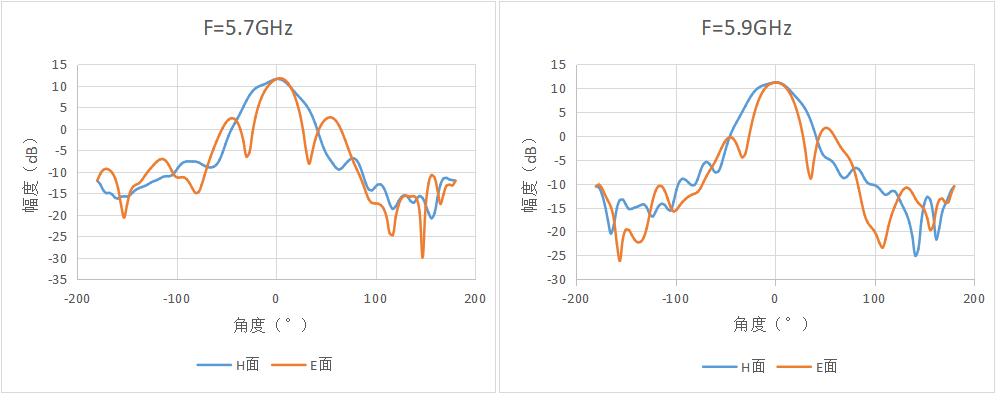

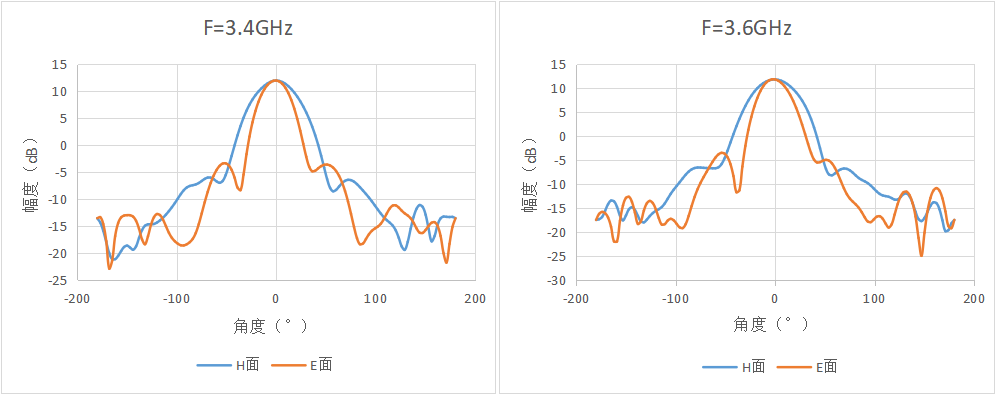

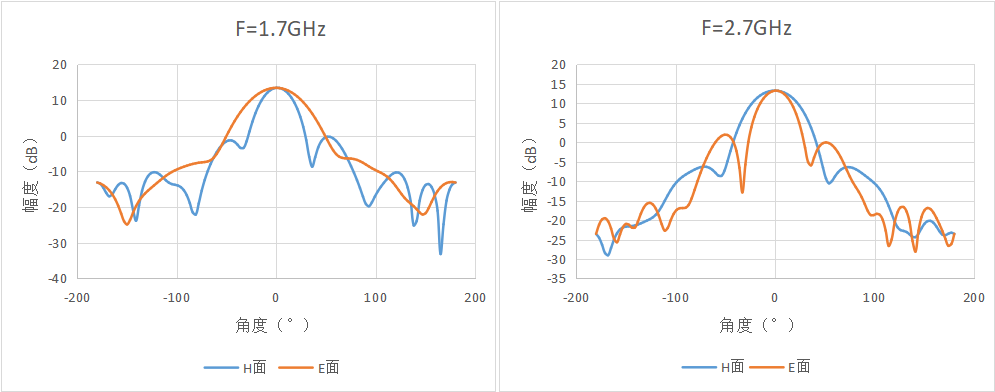

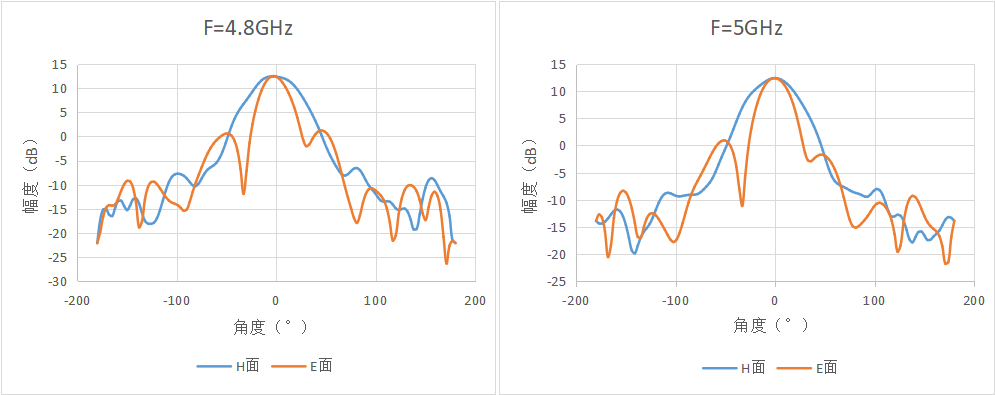

| 3dB Beamwidth | 43*28 | ° | ||
| power | 50 | W |
| Polarization | Vertical polarization |
|---|---|
| Connector | SMA-K |

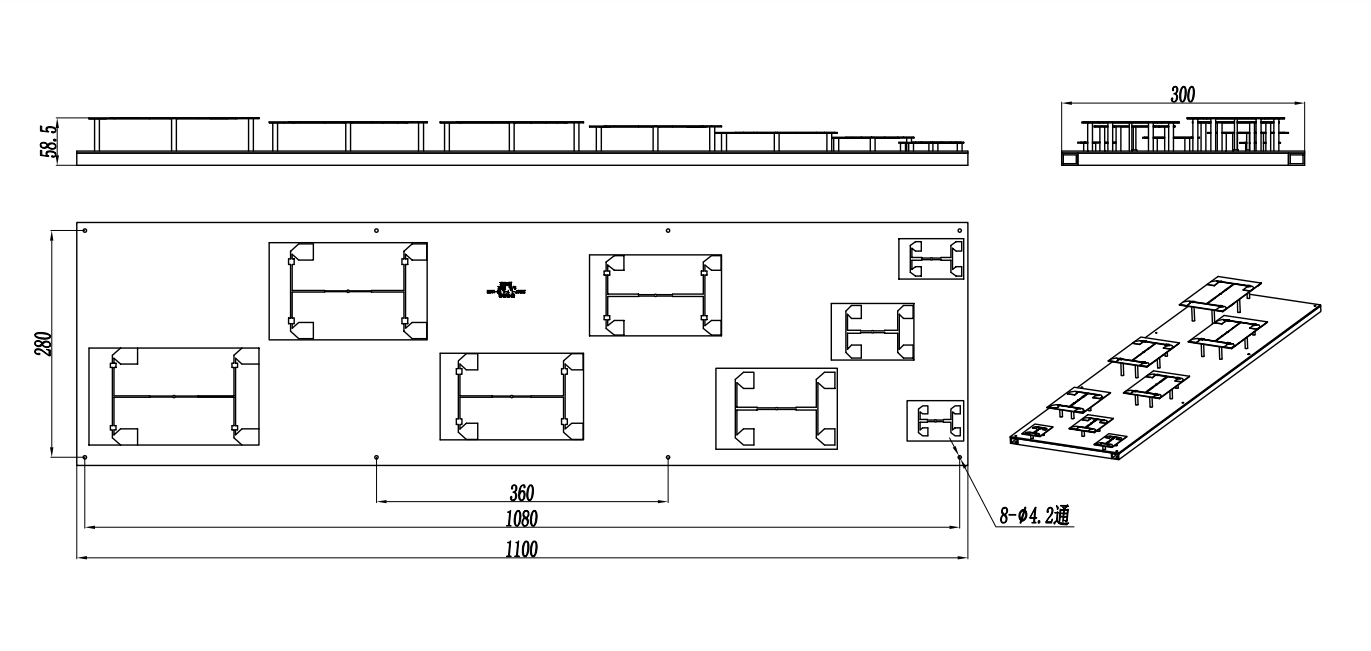

| Outline size | 1200*300*60mm |
| Estimated weight | 3.8Kg |
| Surface | Color conductive oxidation |
| Operation Temp. | -25~+55℃ Design assurance |
| Other | 低空无人机干扰、无人机反制、定向干扰系统。 |
1. Non professionals are not allowed to disassemble.
/
