Frequency1.55~1.65GHz, Gain12dBi, Vertical polarization, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
The microstrip antenna is on a thin dielectric substrate, one side is attached with a thin metal layer as a grounding plate, and the other side is made into a metal patch of a certain shape by a photolithography method, and the patch is fed by a microstrip line or a coaxial probe Composition of the antenna. Microstrip antennas have the characteristics of simple structure, high precision, light weight, etc., and are widely used in GPS antennas, conformal antennas and airborne antennas.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 1.55 | ~ | 1.65 | GHz |
| Gain | 12 | dBi | ||
| VSWR | 1.8 | |||
| 3dB Beamwidth | 20*20 | ° | ||
| power | 20 | W |
| Polarization | Vertical polarization |
|---|---|
| Connector | SMA-K |

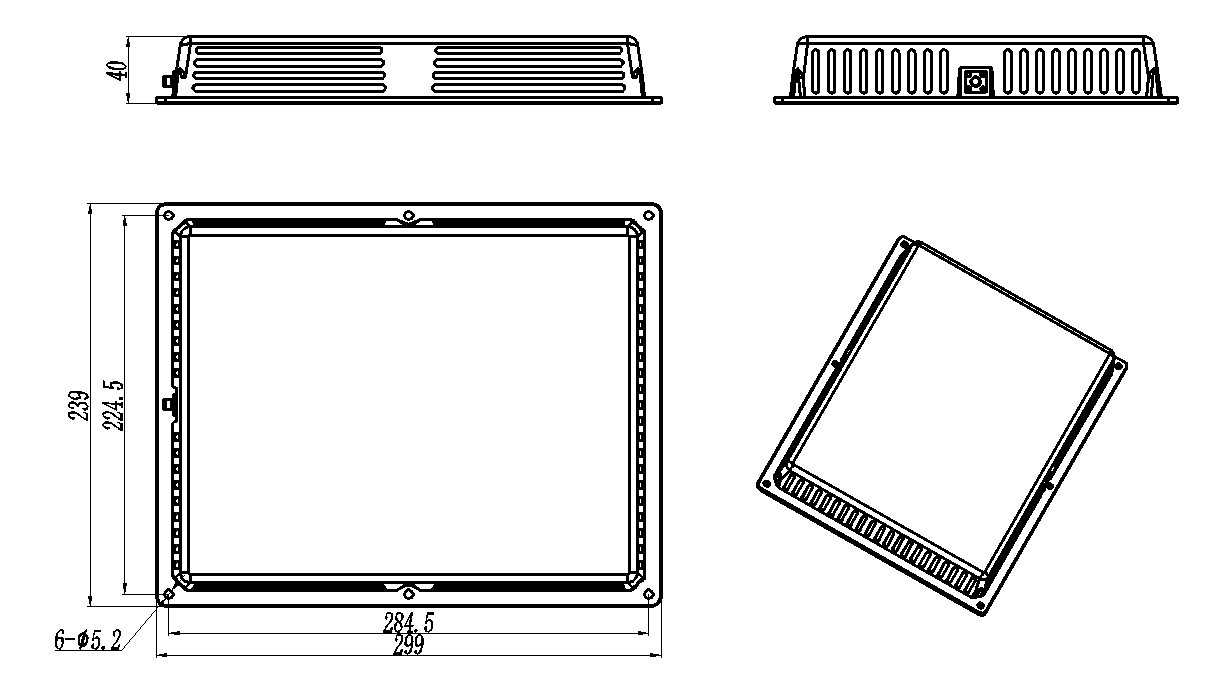

| Outline size | 240*300*40mm |
| Estimated weight | 1.5Kg |
| Surface | Green |
| Operation Temp. | -25~+45℃ Design assurance |
Private disassembly by unprofessional personnel may worsen or even broken the antenna.
Make sure no obstacle or high electromagnetic radiation appears near the antenna.
It is strictly prohibited to install and use antenna in the thunderstorm outside, and the lightning protection facilities are necessary.
Please do not discard the antenna casually since it contains electronic components.
