Frequency0.3~1.7GHz, 300-750MHz gain2dBi@365-375MHz≥2dBi，428-438MHz≥2dBi，545-550MHz≥3dBi, 750-1500MHz gain3dBi@902-928MHz≥4dBi，1375-1425MHz≥5dBi, 1100-1700MHz gain7dBi, Right-handed circular polarization, Left-hand circular polarization, N-F or K
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
The Microstrip antenna has the characteristics of light weight, small size, etc. It can achieve a higher gain microstrip array antenna through multi element array.

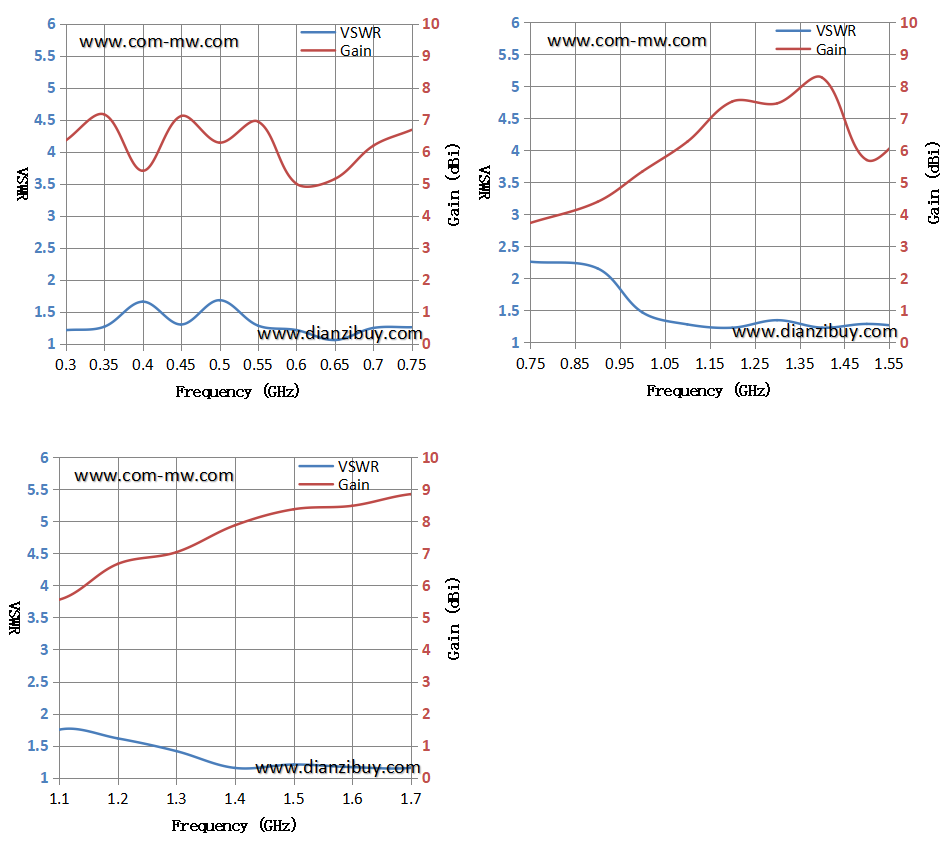

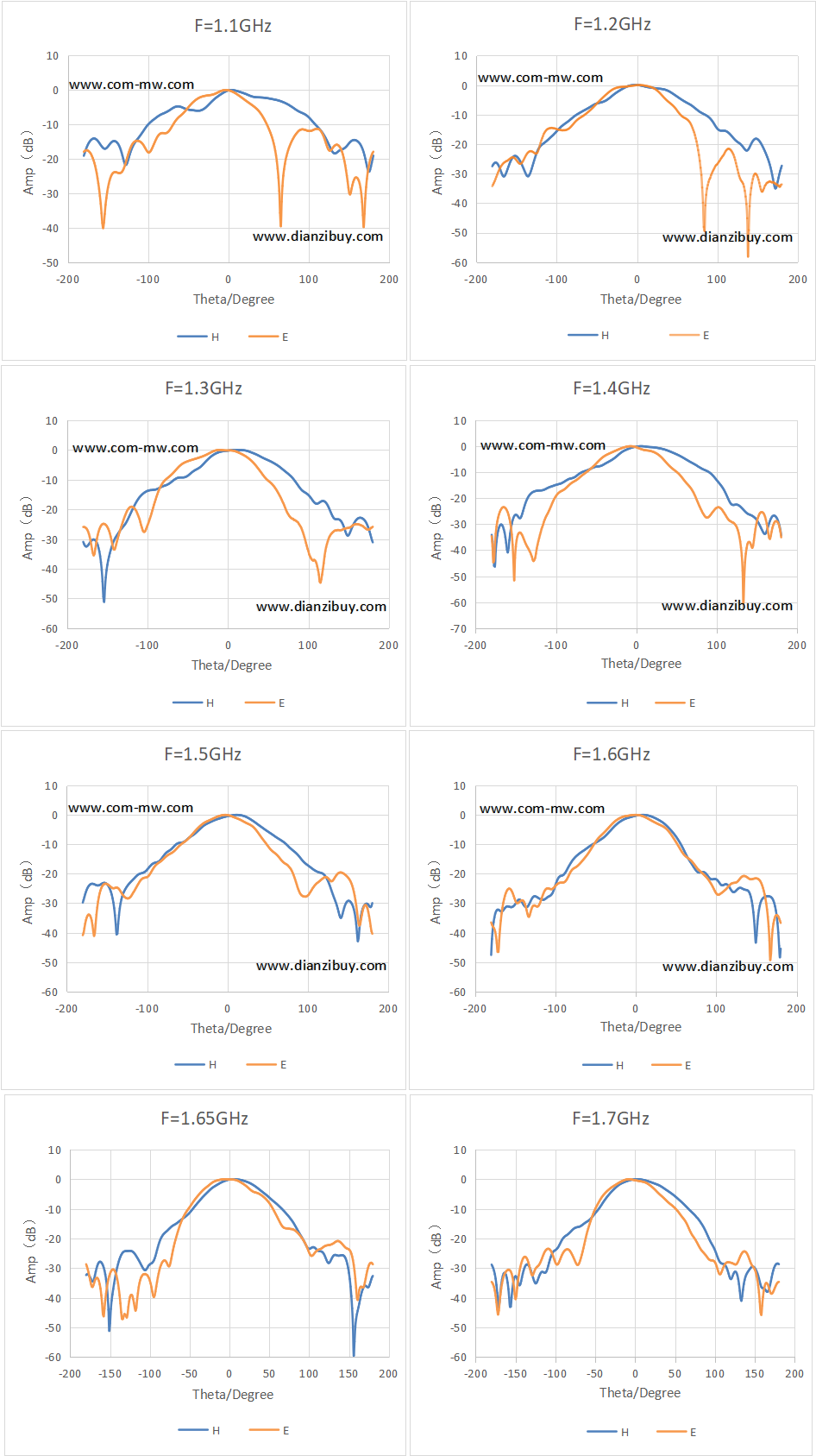

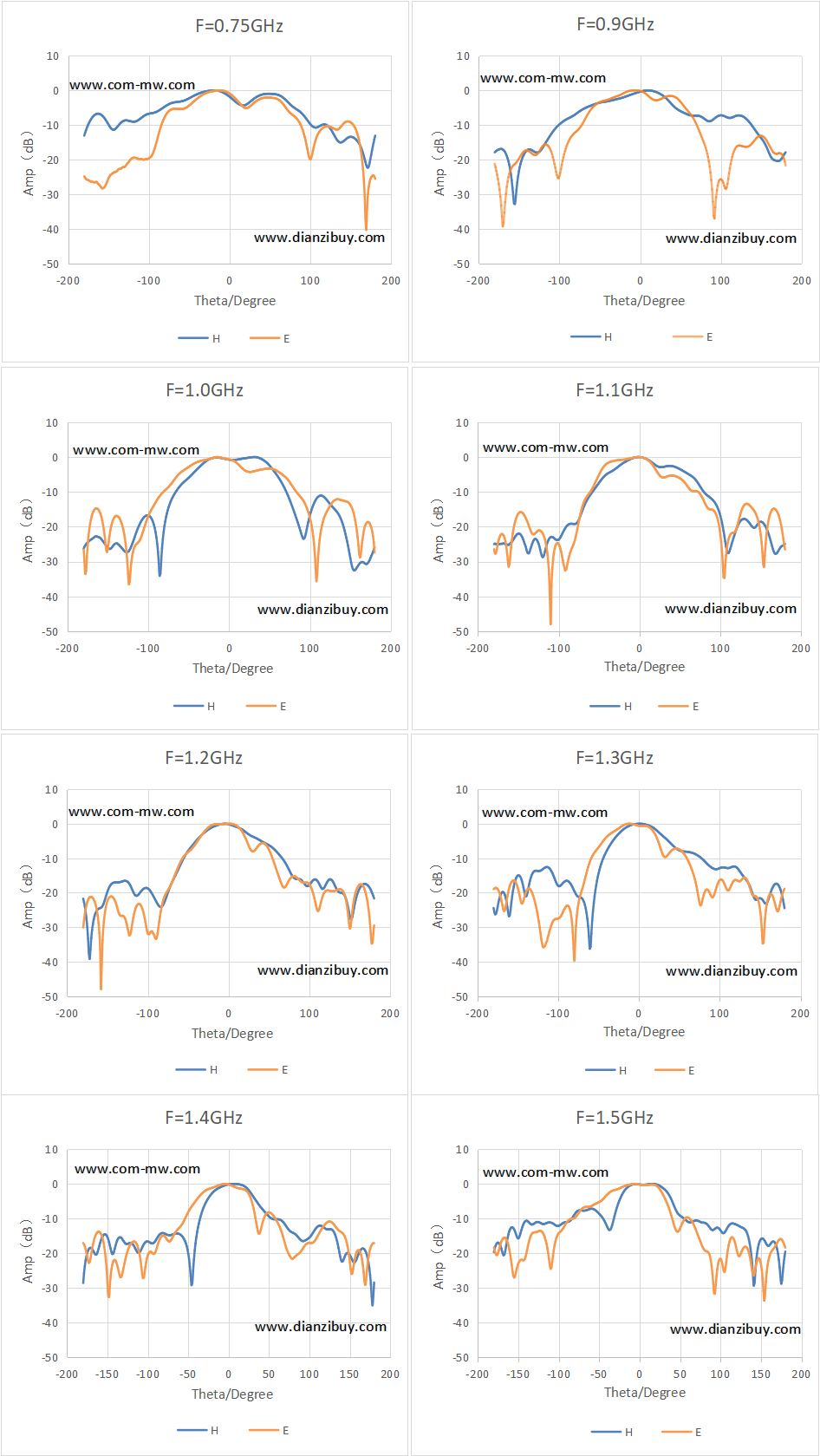

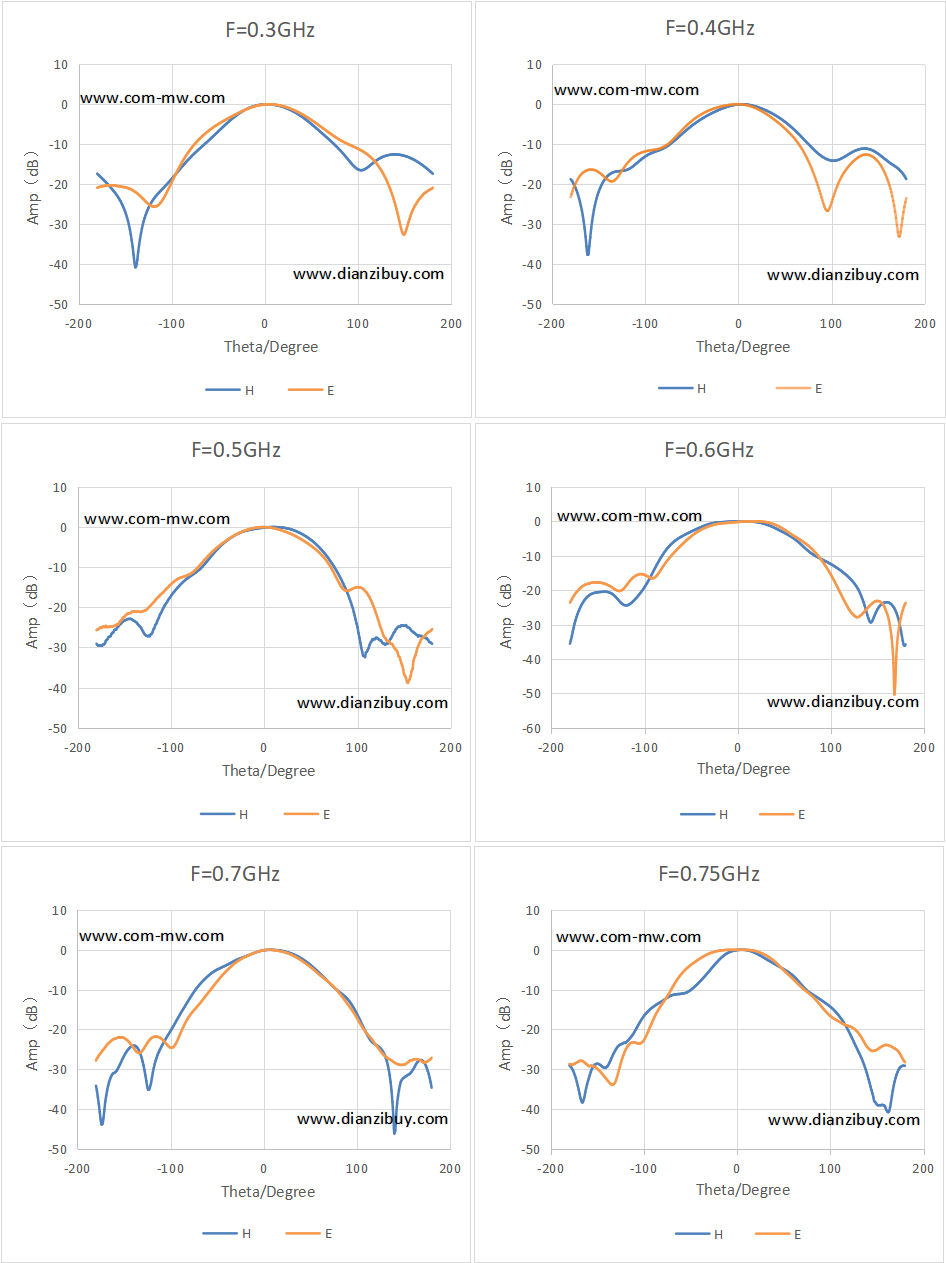

| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 0.3 | ~ | 1.7 | GHz |
| 300-750MHz gain | 2 | dBi@365-375MHz≥2dBi，428-438MHz≥2dBi，545-550MHz≥3dBi | ||
| 750-1500MHz gain | 3 | dBi@902-928MHz≥4dBi，1375-1425MHz≥5dBi | ||
| 1100-1700MHz gain | 7 | dBi | ||
| VSWR | 2.5 | |||
| 3dB beamwidth in azimuth plane | 80 | ° | ||
| 3dB beamwidth in elevation plane | 60 | ° |
| Polarization | Right-handed circular polarization @ 1.1-1.7GHz |
| Polarization | Left-handed circular polarization @ 0.3-1.5GHz |
| Power Capacity | 70W Design assurance |
| Connector | N-F or K |

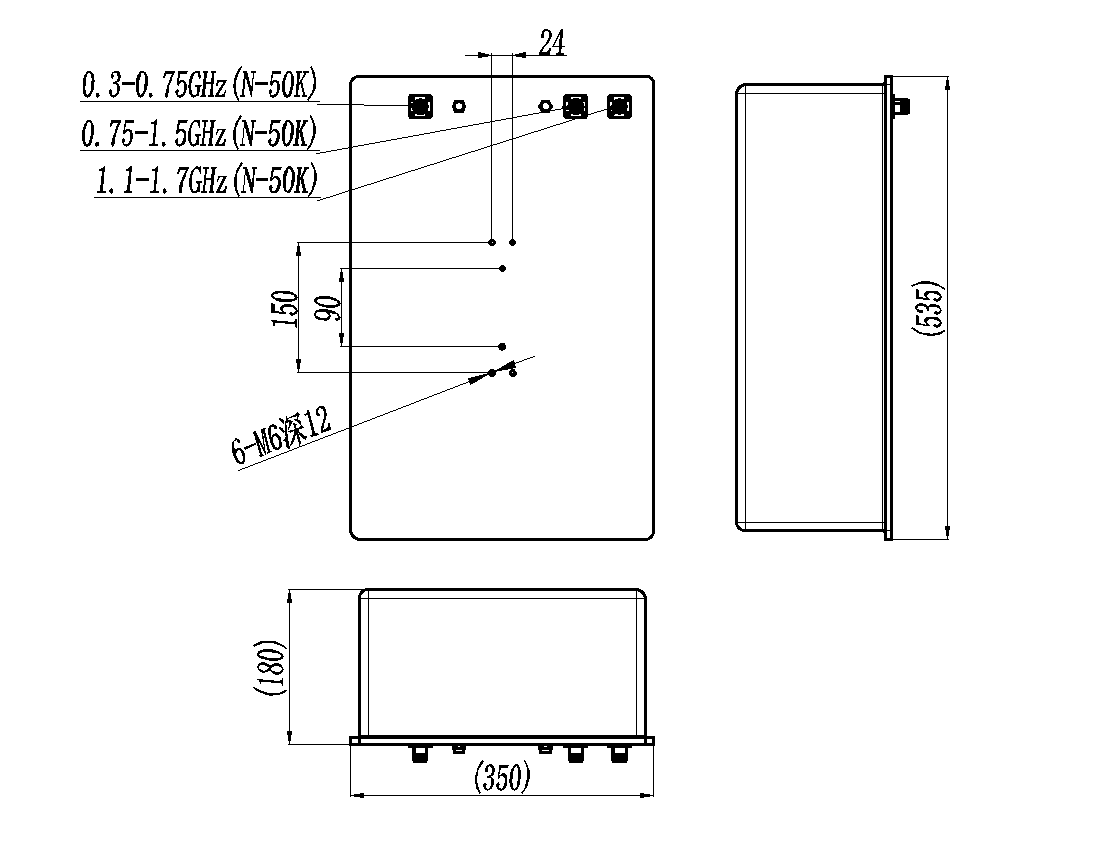

| Outline size | 350*535*180mm |
| Estimated weight | 6Kg |
| Surface | camouflage |
| Operation Temp. | -30~+65℃ Design assurance |
| Storage Temp. | -35~+70℃ Design assurance |
