Frequency1.5~6GHz, 1.5-2.7GHz gain8dBi@2400-2500MHz≥10dBi, 2.7-6GHz gain9dBi@5200-5300MHz≥10dBi ，5700-5900MHz≥11dBi, , N-F or K
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
The Microstrip antenna has the characteristics of light weight, small size, etc. It can achieve a higher gain microstrip array antenna through multi element array.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 1.5 | ~ | 6 | GHz |
| 1.5-2.7GHz gain | 8 | dBi@2400-2500MHz≥10dBi | ||
| 2.7-6GHz gain | 9 | dBi@5200-5300MHz≥10dBi ，5700-5900MHz≥11dBi | ||

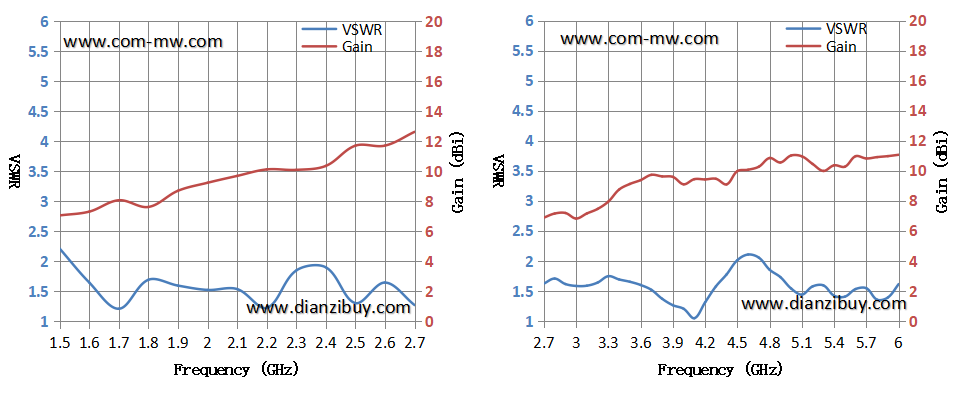

| VSWR | 2.5 | |||

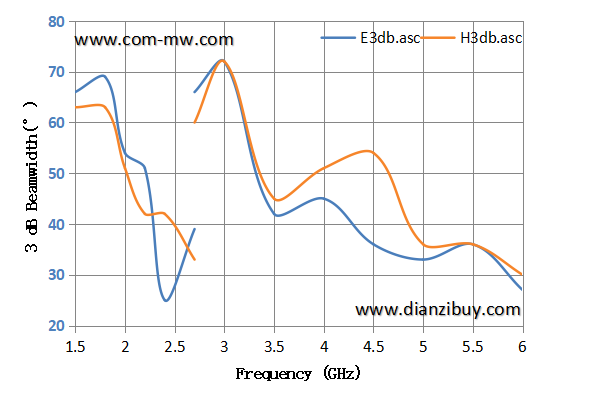

| 3dB Beamwidth | 30-60 | ° |
| Polarization | 45 ° oblique polarization |
| Power Capacity | 200W Design assurance |
| Power Capacity | 100W Design assurance |
| Connector | N-F or K |

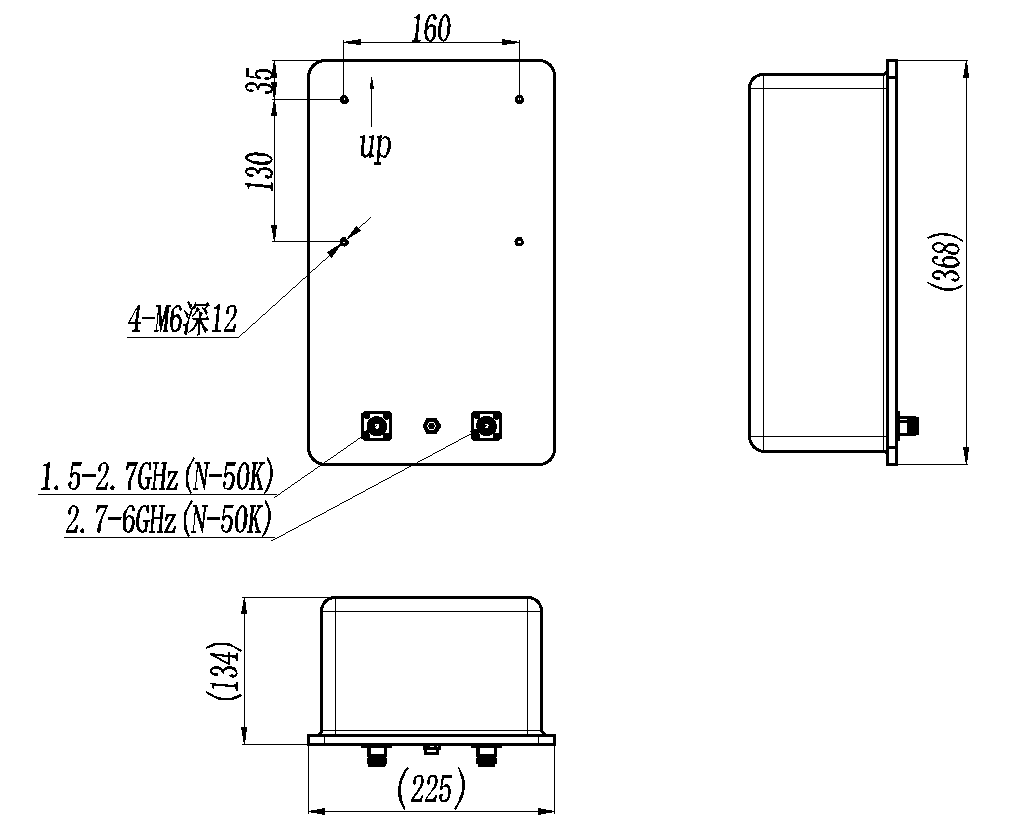

| Outline size | 368*225*134mm |
| Estimated weight | 3Kg |

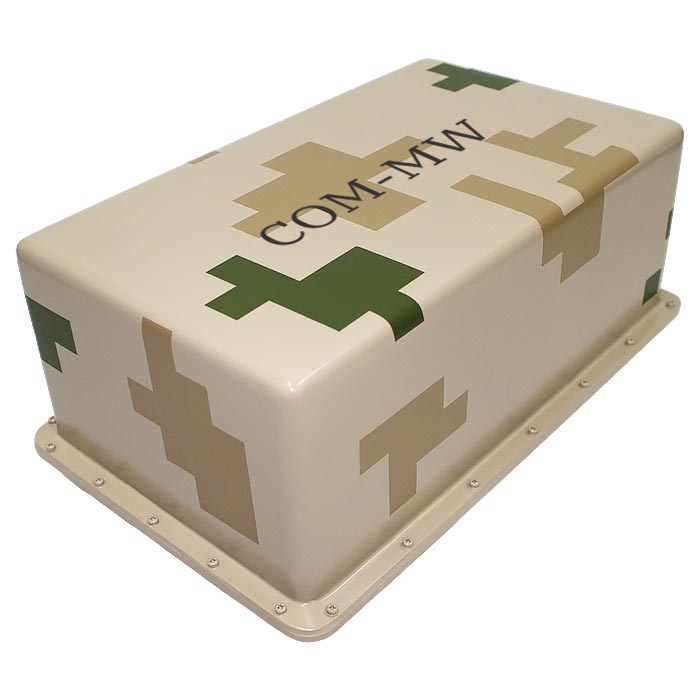

| Surface | camouflage |
| Operation Temp. | -30~+65℃ Design assurance |
| Storage Temp. | -35~+70℃ Design assurance |
Avoid collisions during installation.
It is strictly prohibited to disassemble antenna accessories, as it may cause poor antenna performance.
The installation position of the antenna should be free of any obstacles.
Outdoor use should be equipped with lightning protection facilities.
May contain electronic components, please do not dispose of them randomly.
