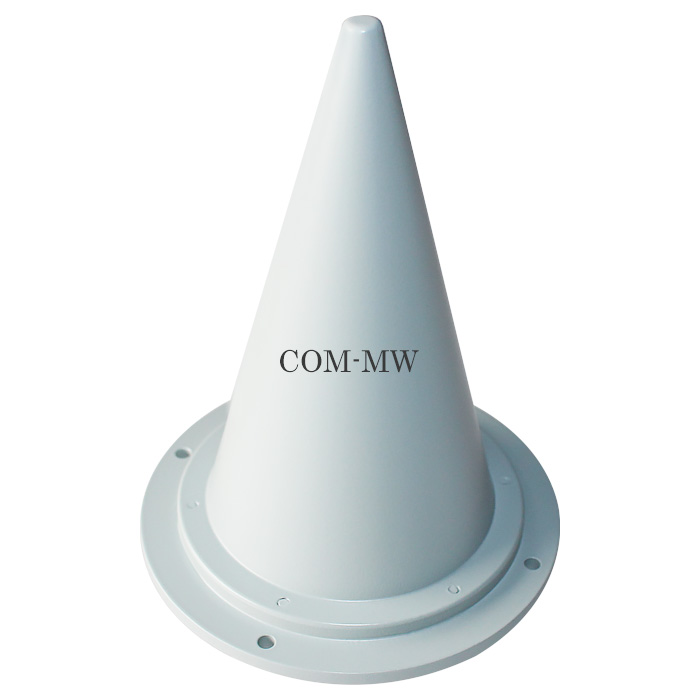

Frequency1~12GHz, Gain4dBi, Right-handed circular polarization, 20W, SMA-K
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 1 | ~ | 12 | GHz |
| Gain | 4@1-2GHZ | 4 | dBi | |
| VSWR | 2 | |||
| AR | 3 | 2@1-2GHZ | dB |
| Polarization | Right-handed circular polarization |
|---|---|
| Power Capacity | 20W Design assurance |
| Connector | SMA-K |
| Outline size | 200*200*260mm |
| Estimated weight | 1.5Kg |
| Surface | Grey |
| Operation Temp. | -25~+55℃ Design assurance |
Private disassembly by unprofessional personnel may worsen or even broken the antenna.
Make sure no obstacle or high electromagnetic radiation appears near the antenna.
It is strictly prohibited to install and use antenna in the thunderstorm outside, and the lightning protection facilities are necessary.
Please do not discard the antenna casually since it contains electronic components.
