Frequency300~8000MHz, Gain (2-3.4GHz)13dBi@2.4GHz≥13dBi, Gain (5-8GHz)18dBi@5.2GHz≥16dBi、5.8GHz≥17dBi、6.2GHz≥19dBi, Dual linear polarization, N-F or K, 200W, Full frequency low altitude unmanned aerial vehicle interference, unmanned aerial vehicle countermeasure, and directional interference system.
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

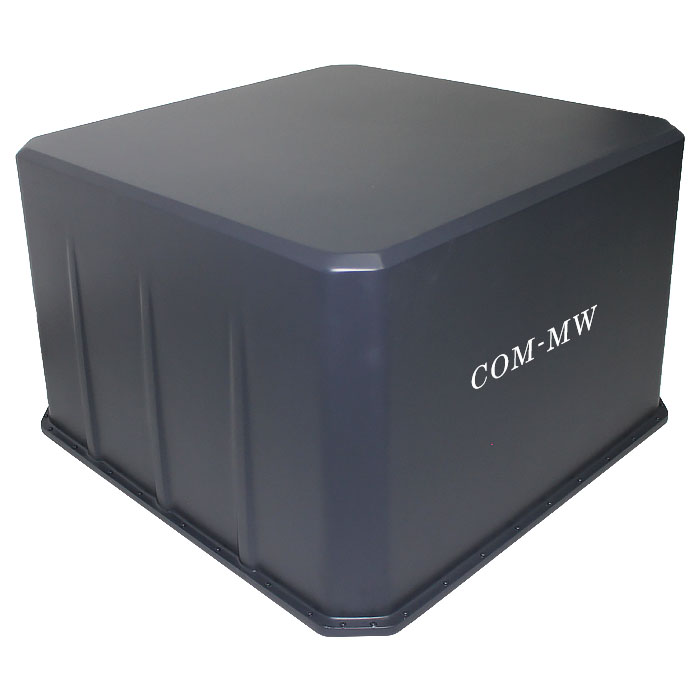

The directional jamming antenna system for drones features wide frequency coverage, high gain, and long jamming range. This antenna is a crucial component in anti-drone systems, primarily used to emit radio signals in specific frequency bands, disrupting the control link, navigation signals (such as GPS/Beidou), or image transmission of drones, thereby forcing the target drone to lose control, hover, return, or land. Such antennas are typically deployed in sensitive areas such as airports, important facilities, and large-scale events to ensure the safety of low-altitude airspace.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 300 | ~ | 8000 | MHz |

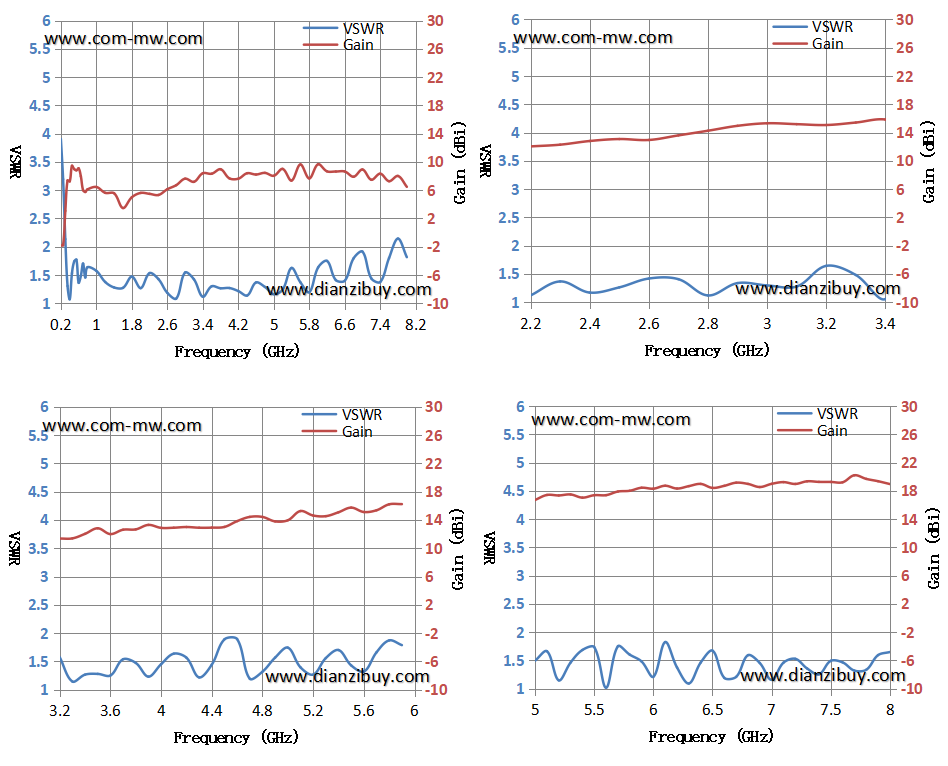

| Gain (0.3-8GHz) | 6 | dBi@400MHz≥3.5dBi、433MHz≥4.5dBi，1200MHz≥6dBi，1500MHz≥6dBi | ||
| Gain (2-3.4GHz) | 13 | dBi@2.4GHz≥13dBi | ||
| Gain (3.4-5.6GHz) | 13 | dBi@4.8GHz≥14dBi、5.2GHz≥15dBi | ||
| Gain (5-8GHz) | 18 | dBi@5.2GHz≥16dBi、5.8GHz≥17dBi、6.2GHz≥19dBi | ||
| VSWR | 1.8 | |||
| 3dB Beamwidth | 60 | ° | ||
| 3dB Beamwidth | 40 | ° | ||
| 3dB Beamwidth | 25 | ° | ||
| 3dB Beamwidth | 20 | ° | ||
| Port isolation | 30 | dB |
| Polarization | Dual linear polarization |
|---|---|
| Connector | N-F or K |
| Power Capacity | 200W Design assurance |

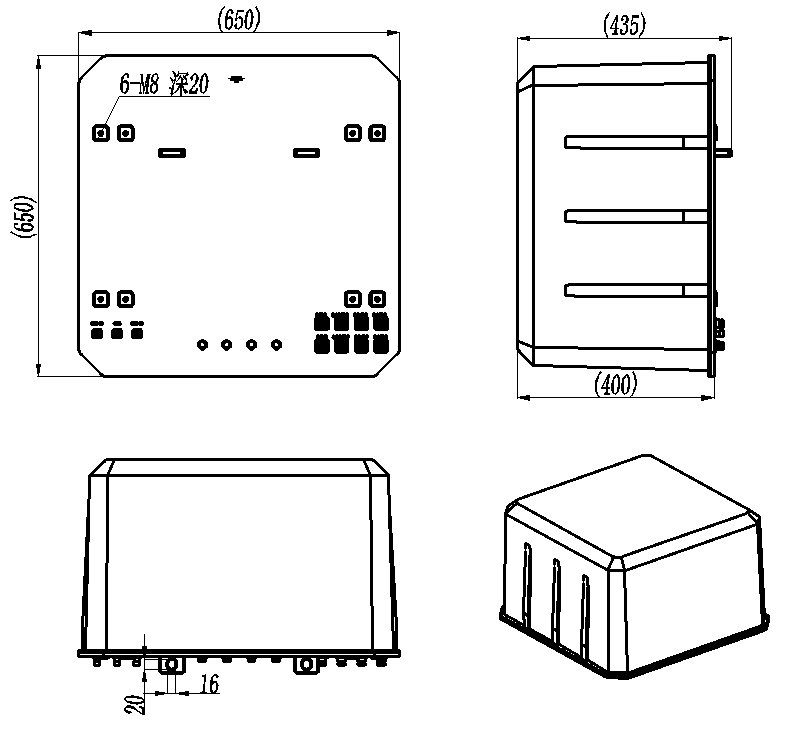

| Outline size | |
| Estimated weight | 18Kg |
| Surface | Dark gray |
| Operation Temp. | -40~+70℃ Design assurance |
Avoid collisions during installation.
It is strictly prohibited to disassemble antenna accessories, as it may cause poor antenna performance.
The installation position of the antenna should be free of any obstacles.
Outdoor use should be equipped with lightning protection facilities.
May contain electronic components, please do not dispose of them randomly.
