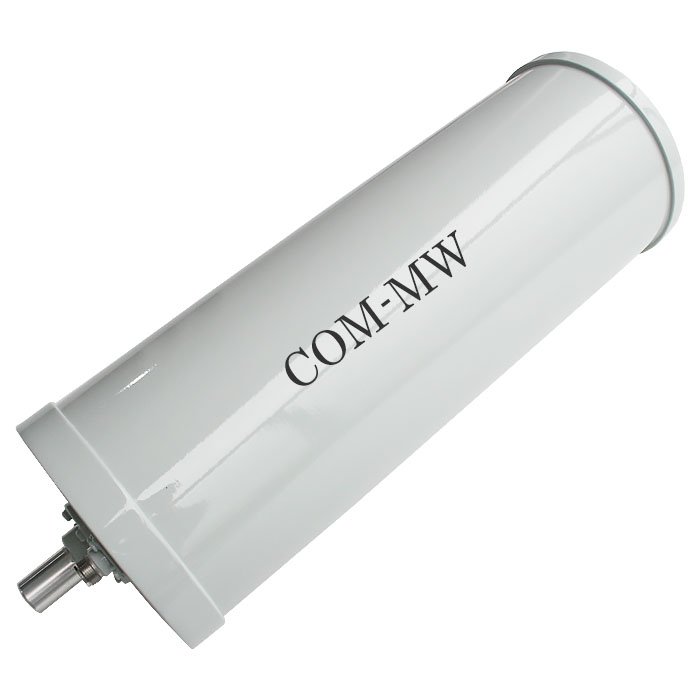

The biconical antenna is mainly used for receiving. Thanks to the good stability of directional map, it is widely used in kinds of omnidirectional radiation fields. It also has good structural characteristics and could work well on the ground, vehicle and high platform. Compared with the similar products, it is lighter and easier to installation.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 200 | ~ | 6000 | MHz |
| Gain | 0 | dBi | ||
| VSWR | 2.5 | |||
| power | 50 | W |
| Polarization | Vertical polarization |
|---|---|
| Connector | N -K |

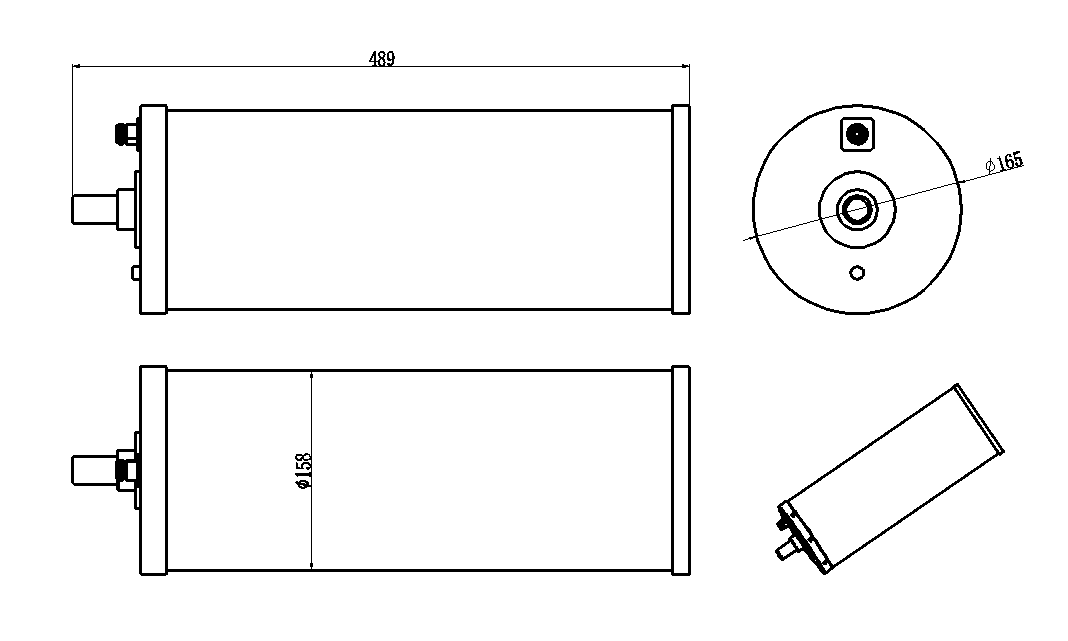

| Outline size | 180*180*500mm |
| Estimated weight | 2.5Kg |
| Surface | Green |
| Operation Temp. | -25~+55℃ Design assurance |
1、非专业维护人员私自拆卸，可能导致天线性能恶化或无
法工作；
