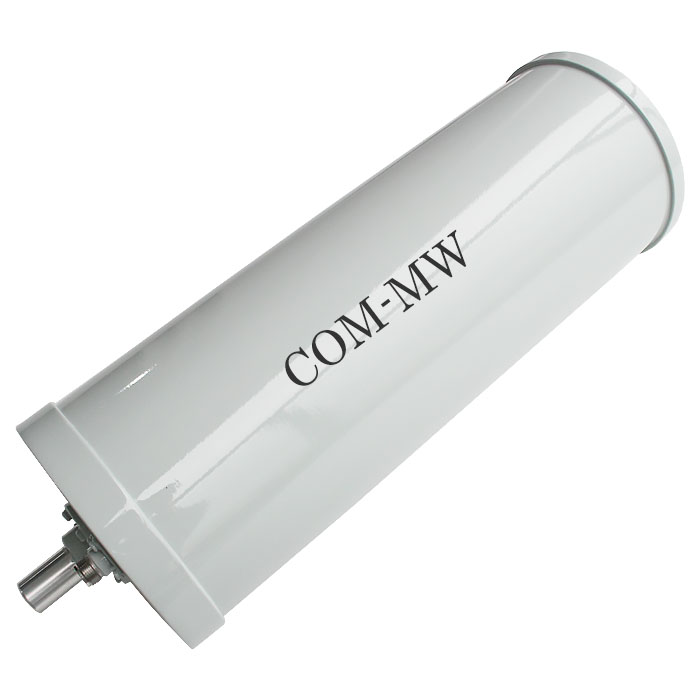

Frequency0.4~18GHz, Gain0dBi, Vertical polarization, N-K
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, high-power.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 0.4 | ~ | 18 | GHz |

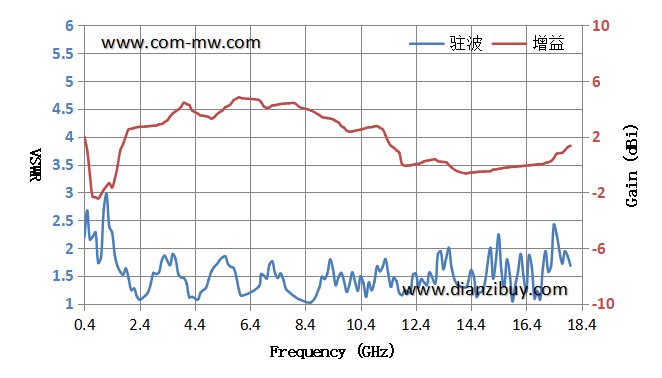

| Gain | 0 | dBi | ||
| VSWR | 2.5 | |||

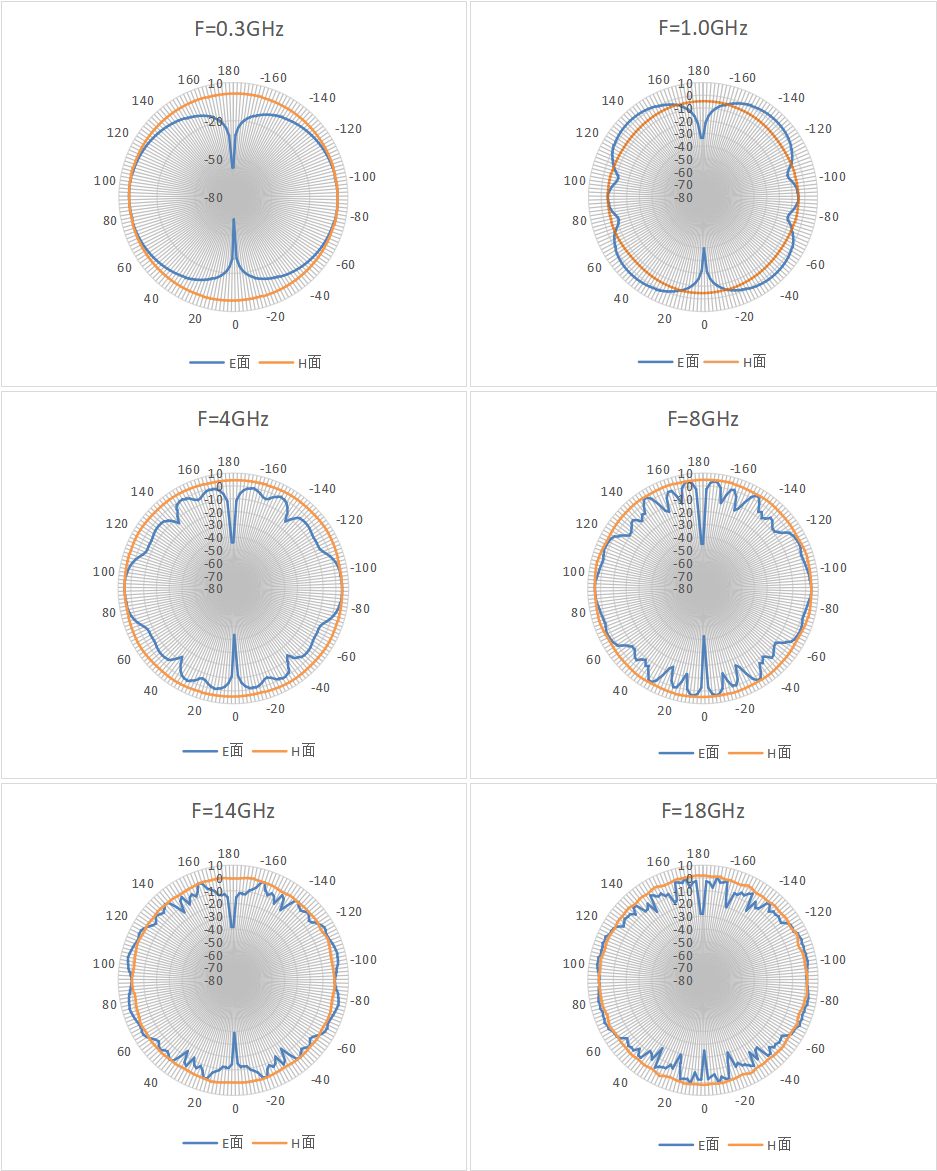

| Out-of-roundness | 3 | dB (Design assurance) | ||
| power | 100 | W (Design Assurance) |
| Polarization | Vertical polarization |
|---|---|
| Connector | N -K |
| Connector material | Housing 304 stainless steel |

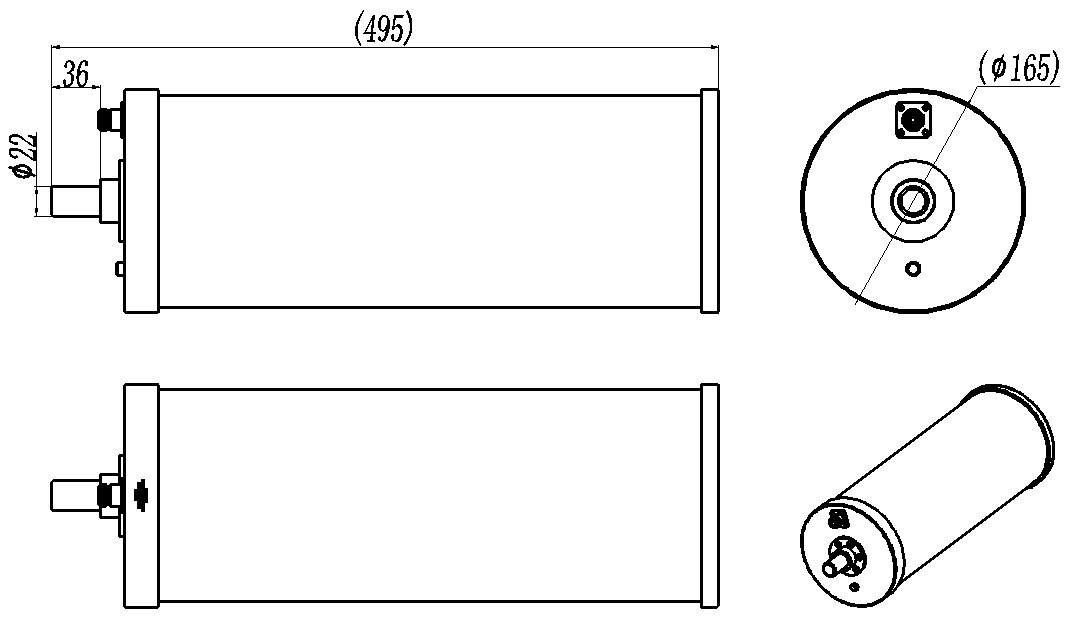

| Outline size | 165*165*495mm |
| Estimated weight | 2.2Kg |
| Surface | Grey |
| Operation Temp. | -25~+55℃ Design assurance |
1. Non professionals are not allowed to disassemble.
/
