7.12~7.275MHz, 700W, way, Phase0°, Pin
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

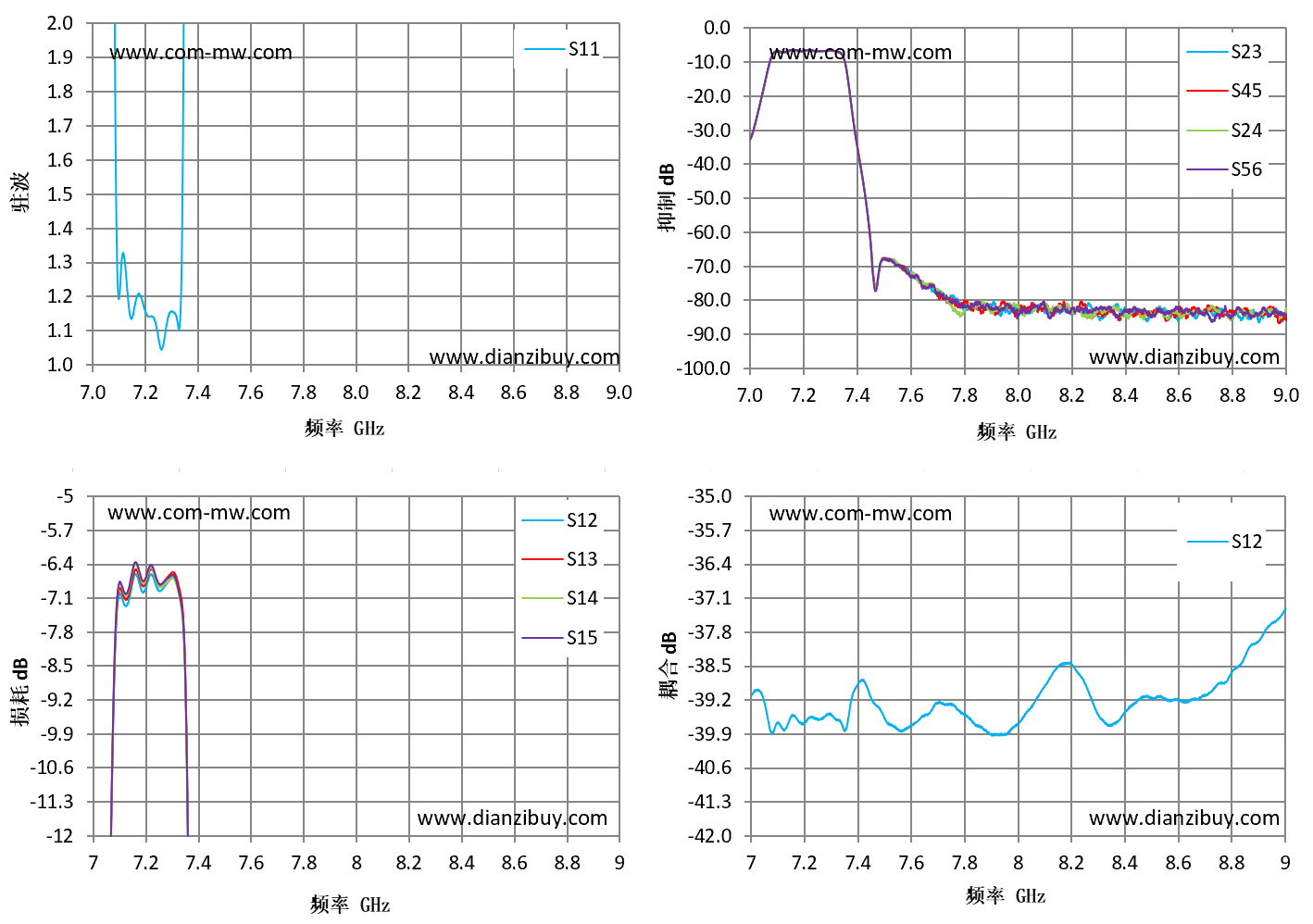

| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 7.12 | ~ | 7.275 | MHz |
| IL | 1.8 | dB | ||
| 合成端驻波比 | 1.4 | |||
| Rejection | ≥60dB@7.45G-9G | |||
| Rejection | ≥50dB@14G-15G | |||
| Coupling | 40dB±0.8dB | dB | ||
| Directivity | 15dB | dB | ||
| Amplitude balance | ±0.5 | dB | ||
| Phase balance | ±6 | ° |
| Power | 700W Design assurance |
|---|---|
| Phase | 0° |
| Connector | 微带圆针0.9mm |
| Waveguide port | BJ84 |
| Surface | White |
| Product shell material | Aluminium |
| Work Temp. | -40~+70℃ Design assurance |
| Other | 损耗不包括理论损耗6dB |
| Common port | 0 |
|---|---|
| Dispatch Port | 1，2，3，4 |
| 1 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
|---|---|
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
