2.4~2.6GHz, 1000W, 2way, 0°, L29
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 2.4 | ~ | 2.6 | GHz |
| IL | 0.45 | dB | ||
| Isolation | 5 | |||
| Combined port VSWR | 1.3 | |||
| Dispatch Ports VSWR | Not have | |||
| Phase balance | 4 | ° | ||
| Amplitude balance | 0.2 | dB | ||
| Coupling | 49 | 50 | 51 | dB |
| Coupling flatness | ±0.5 | dB | ||
| Directivity | 15 | dB | ||
| Coupling port VSWR | 1.4 |
| Power | 1000W Design assurance |
|---|---|
| way | 2-way |
| Phase | 0° |
| Impedance | 50Ω |
| Connector | L29-K |
| Surface | Conductive oxidation |
| Product shell material | Aluminium |
| Work Temp. | -40~+70℃ Design assurance |
| Quality Grade | Industrial grade |
| Common port | 0（L29-K） |
|---|---|
| Dispatch Port | 1,2（N-K） |
| Forward coupling port | 3（SMA-K） |
| Reverse coupling port | 4（SMA-K） |

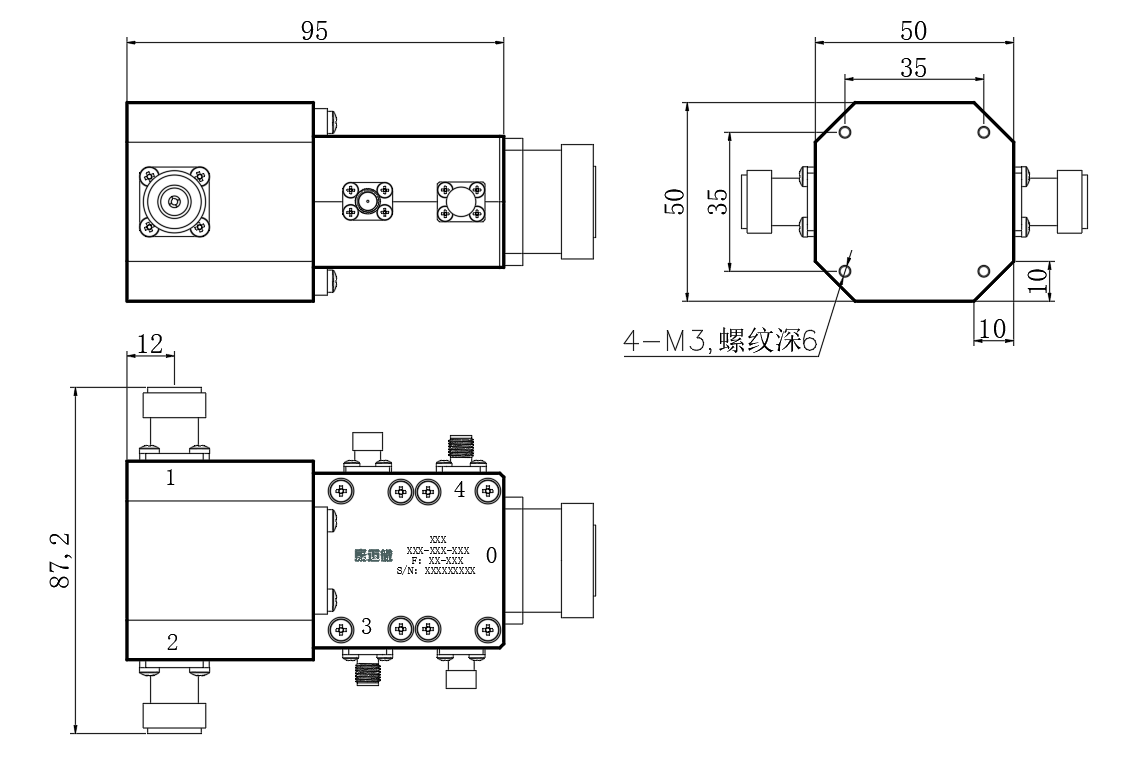

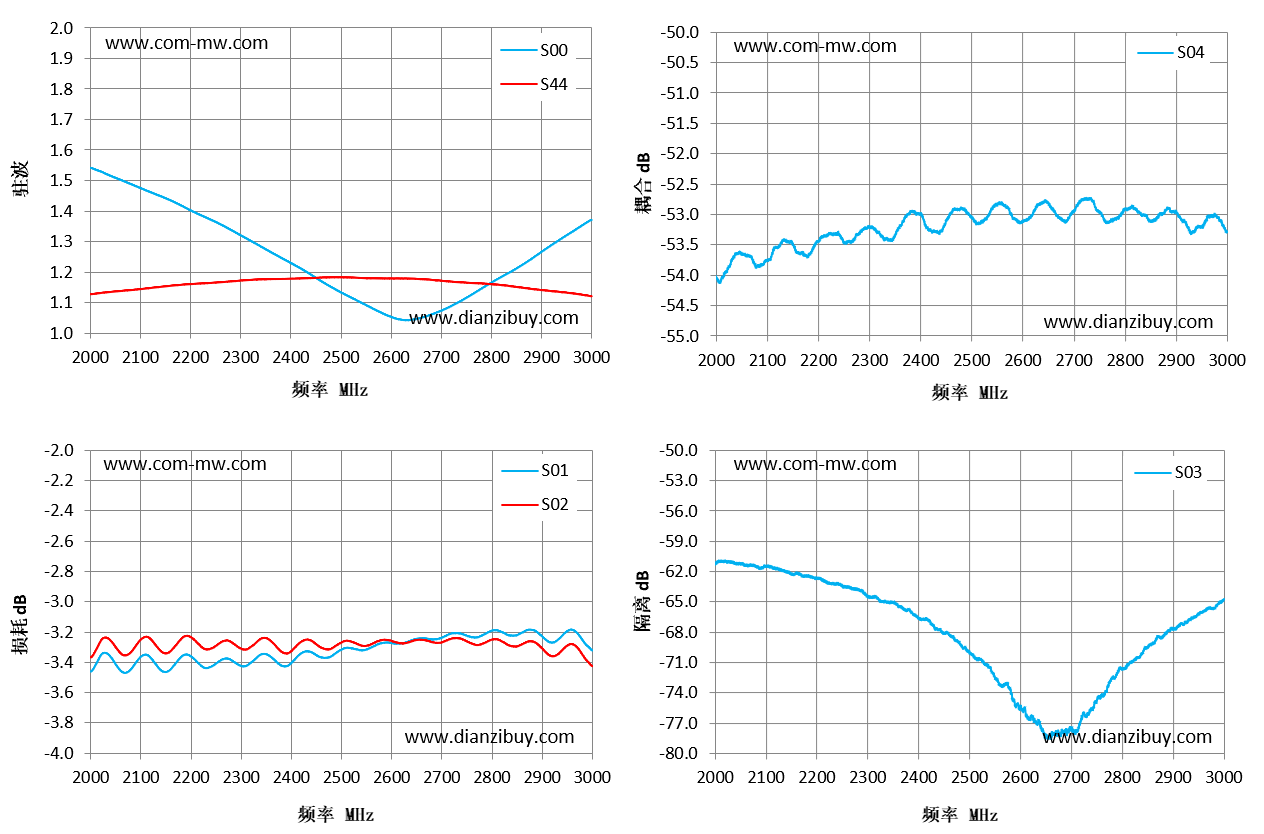

| Frequency(MHz) | S00 VSWR | S44 VSWR | S01 IL dB | S04 coupling | S03 ISO |
|---|---|---|---|---|---|
| 2000 | 1.54 | 1.13 | -3.46 | -54.01 | -61.31 |
| 2071 | 1.49 | 1.14 | -3.47 | -53.74 | -61.34 |
| 2143 | 1.45 | 1.15 | -3.46 | -53.45 | -62.03 |
| 2214 | 1.39 | 1.16 | -3.4 | -53.35 | -62.87 |
| 2286 | 1.33 | 1.17 | -3.4 | -53.26 | -63.87 |
| 2357 | 1.27 | 1.18 | -3.36 | -53.23 | -65.22 |
| 2429 | 1.2 | 1.18 | -3.33 | -53.29 | -67.35 |
| 2500 | 1.13 | 1.18 | -3.32 | -53.04 | -70.09 |
| 2571 | 1.07 | 1.18 | -3.28 | -52.88 | -73.09 |
| 2643 | 1.04 | 1.18 | -3.25 | -52.78 | -77.77 |
| 2714 | 1.08 | 1.17 | -3.22 | -52.78 | -77.56 |
| 2786 | 1.15 | 1.16 | -3.21 | -53.05 | -72.57 |
| 2857 | 1.22 | 1.15 | -3.21 | -53.09 | -69.21 |
| 2929 | 1.3 | 1.14 | -3.26 | -53.31 | -66.91 |
| 3000 | 1.37 | 1.12 | -3.32 | -53.29 | -64.7 |
