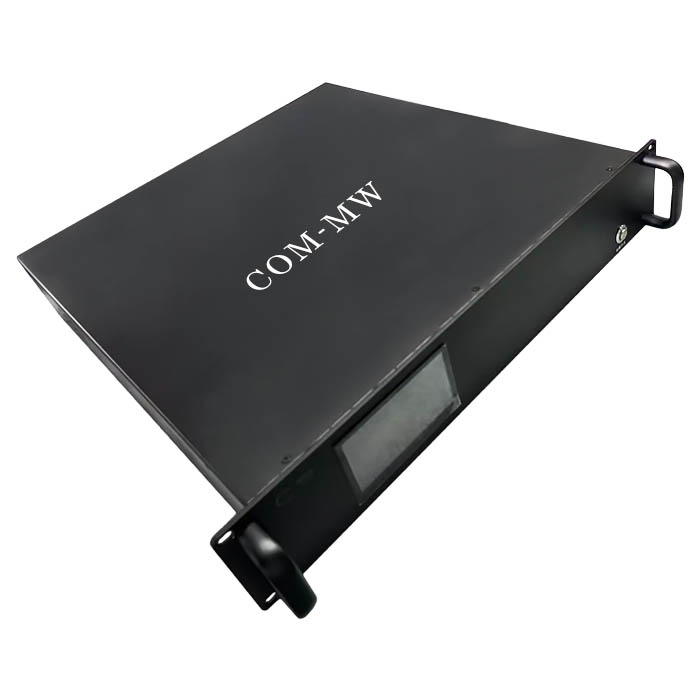

DC~18000MHz, 3组3选一, programmed switch, SMA-K, 支持GPIB和网口控制
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, high-power.
开关切换寿命大于200万次。
Touch screen display, supporting /uploads/kmw-media/zs8-c0-18g-3824/manual/ZS8-C0-18G-3824@2024-11-24-10-23-21.pdf channel switching.

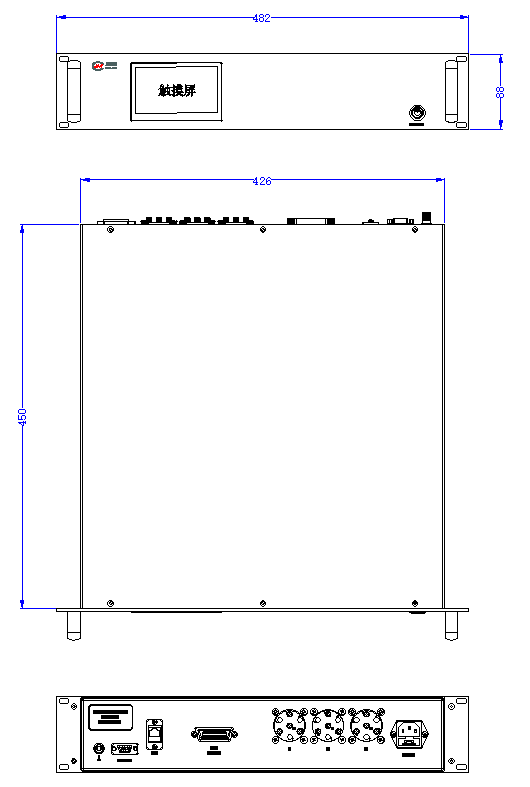

Standard 19 inch chassis.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | DC | ~ | 18000 | MHz |
| IL | 0.3 | 0.5 | dB | |
| Isolation | 60 | 70 | dB | |
| VSWR | 1.3 | 1.5 |
| Switch way | 3组3选一 |
|---|---|
| Switching characteristic | Mechanical reflective programmable switch |
| Switch time | 15ms |
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Black |
| Power Capacity | 100W@3GHz；80W@6GHz；40W@18GHzW设计保证 |
| Working voltage | +220V |
| Operation Temp. | -30~+70℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | 支持GPIB和网口控制 |
| passband | 控制命令 | |
|---|---|---|
| 面板K1-1 | $S:100:A | |
| 面板K1-3 | $S:200:A | |
| 面板K1-5 | $S:300:A | |
| 面板K2-1 | $S:010:A | |
| 面板K2-3 | $S:020:A | |
| 面板K2-5 | $S:030:A | |
| 面板K3-1 | $S:001:A | |
| 面板K3-3 | $S:002:A | |
| 面板K3-5 | $S:003:A |
1、将PC端IP地址设置为192.168.1.100，子网掩码设置为255.255.255.0，默认网关设置为192.168.1.1
2、协议类型选择TCP Server,本地主机地址选择192.168.1.100，本地主机端口设置为1000，远程主机选择192.168.1.30:1000
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
|---|---|
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
