12V DC power supply, supporting 110-220V power supply and battery power supply.
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 0.009 | ~ | 3000 | MHz |
| Gain | 30 | dB | ||
| Gain flatness | 3 | 5 | dB | |
| Noise figure | 4 | dB | ||
| VSWR | 2 | |||
| P-1dB | 15 | dBm | ||
| Max input power | 2 | W |
| Connector | N -K |
|---|---|
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Operation Temp. | -30~+60℃ Design assurance |

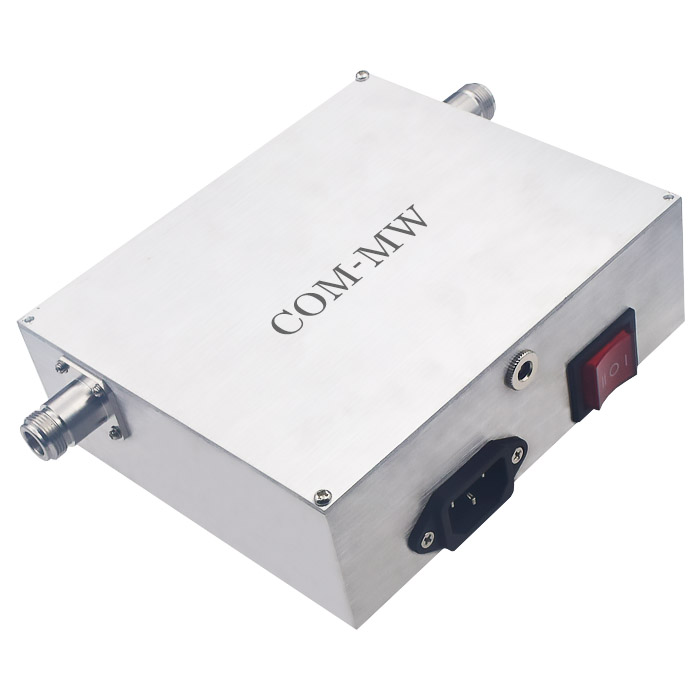

| Application | Used for indoor and outdoor RF testing platforms, it can power active devices such as RF amplifiers. Adapt to COM-MW low noise amplifier and power power amplifier. |
| Characteristic | 12V DC power supply, supporting 110-220V power supply and battery power supply. |

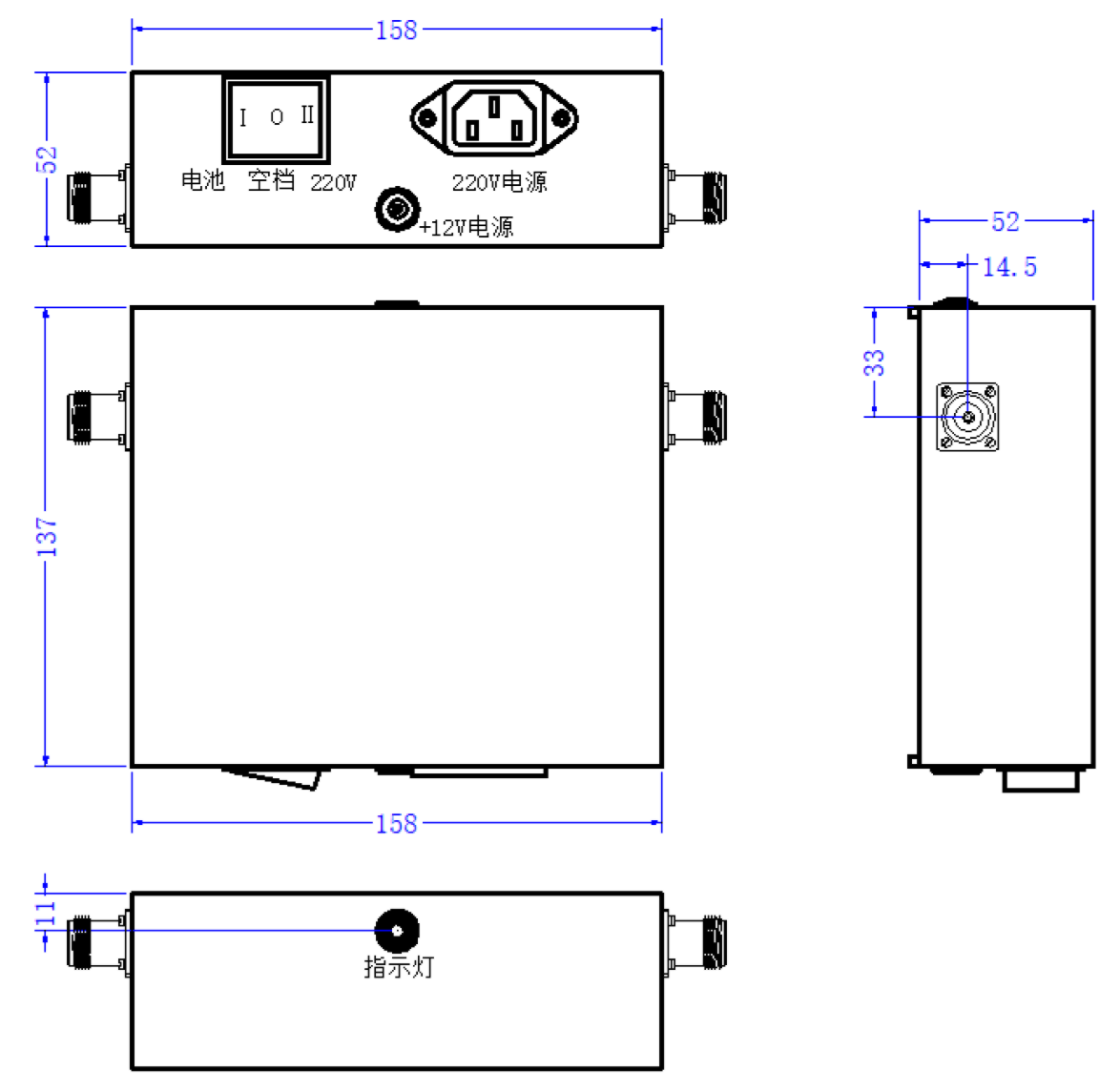

| 1 | RF Port | N-K |
|---|---|---|
| 2 | Power supply method 1 | 110-220V power input, standard AC interface, 12-15V/5W output. |
| 3 | Power supply method 2 | 10 units, powered by No. 5 battery, with a 12-15V output. |
| 4 | Power supply method 3 | DC power supply, powered by a 220V power adapter with interface DC5.5mm (outer diameter) * 2.5mm (inner diameter). |
| 5 | Operation Temp. | - 40 ~ + 70 ℃ Design assurance |
| 6 | Surface color | White |
| 7 | Shell Material | Shell aluminum material |
| 8 | Battery operating time | The battery powered working time is approximately 6-10 hours, depending on the battery capacity and internal module power consumption. |
| 9 | DC output | The DC power supply voltage is determined by the internal template input voltage. |
| 10 | Instructions for using the power switch | The power switch can only control 220V and the battery box, and there is no switch for DC power supply. |
| 11 | Replacing the battery | Replace the battery and remove the screws from the battery cover. |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
|---|---|
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
