30~80MHz, 110~170MHz, 200~500MHz, 600~1350MHz, ~MHz, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

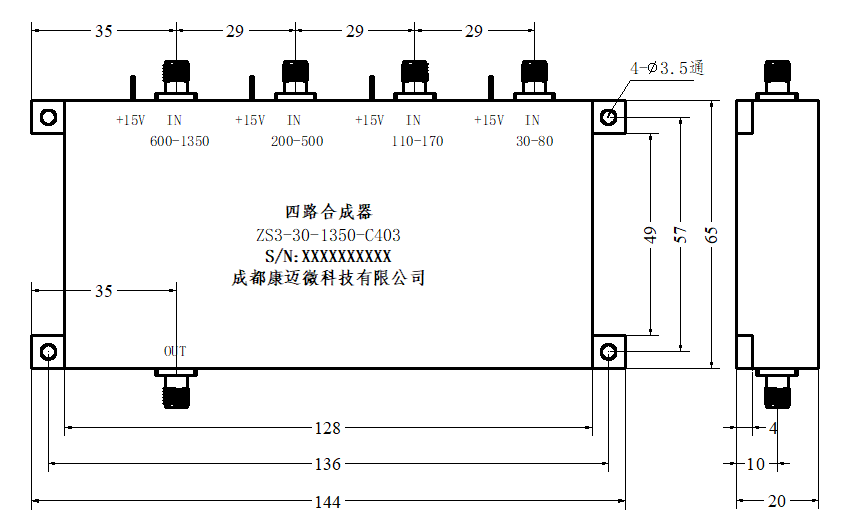

| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband F1 | / | / | 30 | ~ | 80 | MHz |
| Passband F2 | / | / | 110 | ~ | 170 | MHz |
| Passband F3 | / | / | 200 | ~ | 500 | MHz |
| Passband F4 | / | / | 600 | ~ | 1350 | MHz |
| Passband VSWR | 2.0 | |||||
| Passband IL | 1.7 | dB | ||||
| Band 1 Rejection | 110-1350 | MHz≥ | 15 | dB | ||
| band 2 Rejection | DC-80 | MHz≥ | 15 | dB | ||
| band 2 Rejection | 200-1350 | MHz≥ | 15 | dB | ||
| band 3 Rejection | DC-170 | MHz≥ | 15 | dB | ||
| band 3 Rejection | 600-1350 | MHz≥ | 15 | dB | ||
| band 4 Rejection | DC-500 | MHz≥ | 15 | dB |
| Connector | SMA-K |
|---|---|
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Power Capacity | 1W Design assurance |
| Shell Material | Aluminum 5A06 |
| Operation Temp. | -40~+70℃ |
| Storage Temp. | -55~+85℃ Design assurance |
| Other | Each input port is fed with+15V and can withstand a current of 500mA |
