Passband F CH169.5~70.5MHz, Passband F CH269~71MHz, Passband F CH367.5~72.5MHz, Passband F CH465~75MHz, Passband F CH560~80MHz, Passband F CH650~90MHz, DC-60MHz≥50dB, 80-200MHz≥50dB, Pin
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband F CH1 | / | / | 69.5 | ~ | 70.5 | MHz |
| Passband F CH2 | / | / | 69 | ~ | 71 | MHz |
| Passband F CH3 | / | / | 67.5 | ~ | 72.5 | MHz |
| Passband F CH4 | / | / | 65 | ~ | 75 | MHz |
| Passband F CH5 | / | / | 60 | ~ | 80 | MHz |
| Passband F CH6 | / | / | 50 | ~ | 90 | MHz |
| Passband IL CH1, CH2 | / | / | 5 | dB | ||
| Passband IL CH3 | / | / | 4 | dB | ||
| Passband IL CH4 | / | / | 3 | dB | ||
| Passband IL CH5 | / | / | 2.5 | dB | ||
| Passband IL CH6 | / | / | 2 | dB | ||
| Ripple | / | / | 1 | dB | ||
| Rejection CH1, CH2 | DC-60 | MHz≥ | 50 | dB | ||
| Rejection CH1, CH2 | 80-200 | MHz≥ | 50 | dB | ||
| Rejection CH3 | DC-58 | MHz≥ | 50 | dB | ||
| Rejection CH3 | 82-200 | MHz≥ | 50 | dB | ||
| Rejection CH4 | DC-52.5 | MHz≥ | 50 | dB | ||
| Rejection CH4 | 87.5-200 | MHz≥ | 50 | dB | ||
| Rejection CH5 | DC-48 | MHz≥ | 50 | dB | ||
| Rejection CH5 | 92-200 | MHz≥ | 50 | dB | ||
| Rejection CH6 | DC-32 | MHz≥ | 50 | dB | ||
| Rejection CH6 | 108-200 | MHz≥ | 50 | dB | ||
| Passband VSWR | / | / | 1.5 | |||
| Return loss | / | / | dB |

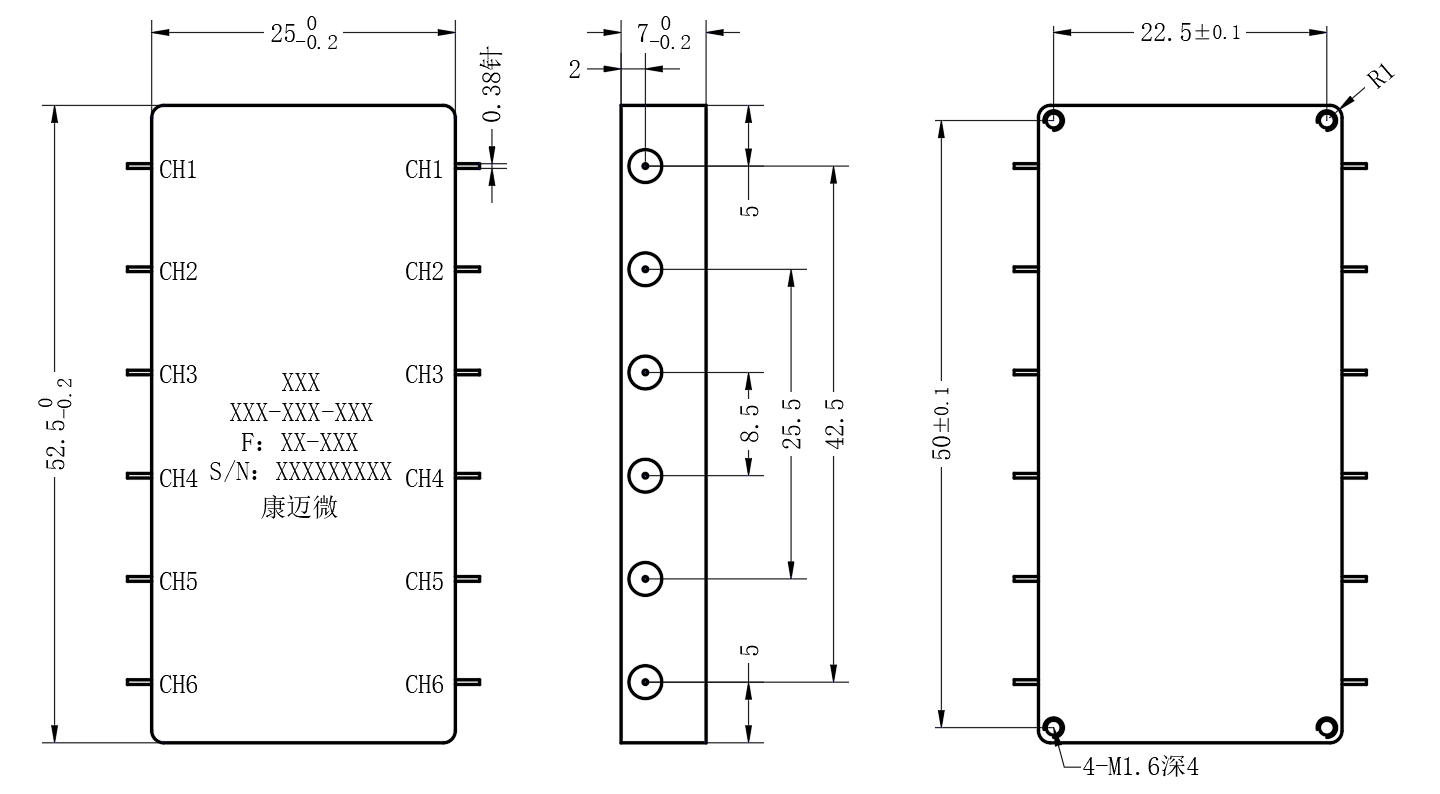

| Connector | Pin 0.38mm |
|---|---|
| Impedance | 50Ω |
| Surface | silver-plate |
| Power Capacity | 2W Design assurance |
| Product shell material | Aluminium |
| Operation Temp. | -45~+75℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
|---|---|
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
