30~80MHz, Gain dB, Noise figure 1.5dB, P-1dB 10dBm, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
| Frequency | 30 | ~ | 80 | MHz |
| Gain | 24 | dB | ||
| Gain flatness | ±0.5 | dB | ||
| Noise figure | 1.5 | dB | ||
| VSWR | 1.8 | |||
| P-1dB | 10 | dBm | ||
| Max input power | +20 | dBm | ||
| Rejection DC-15MHz&95-240MHz | 30 | dB |
| Connector | SMA-F |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 150mA |
| Reverse isolation | 25dB |
| Operation Temp. | -40~+70℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |

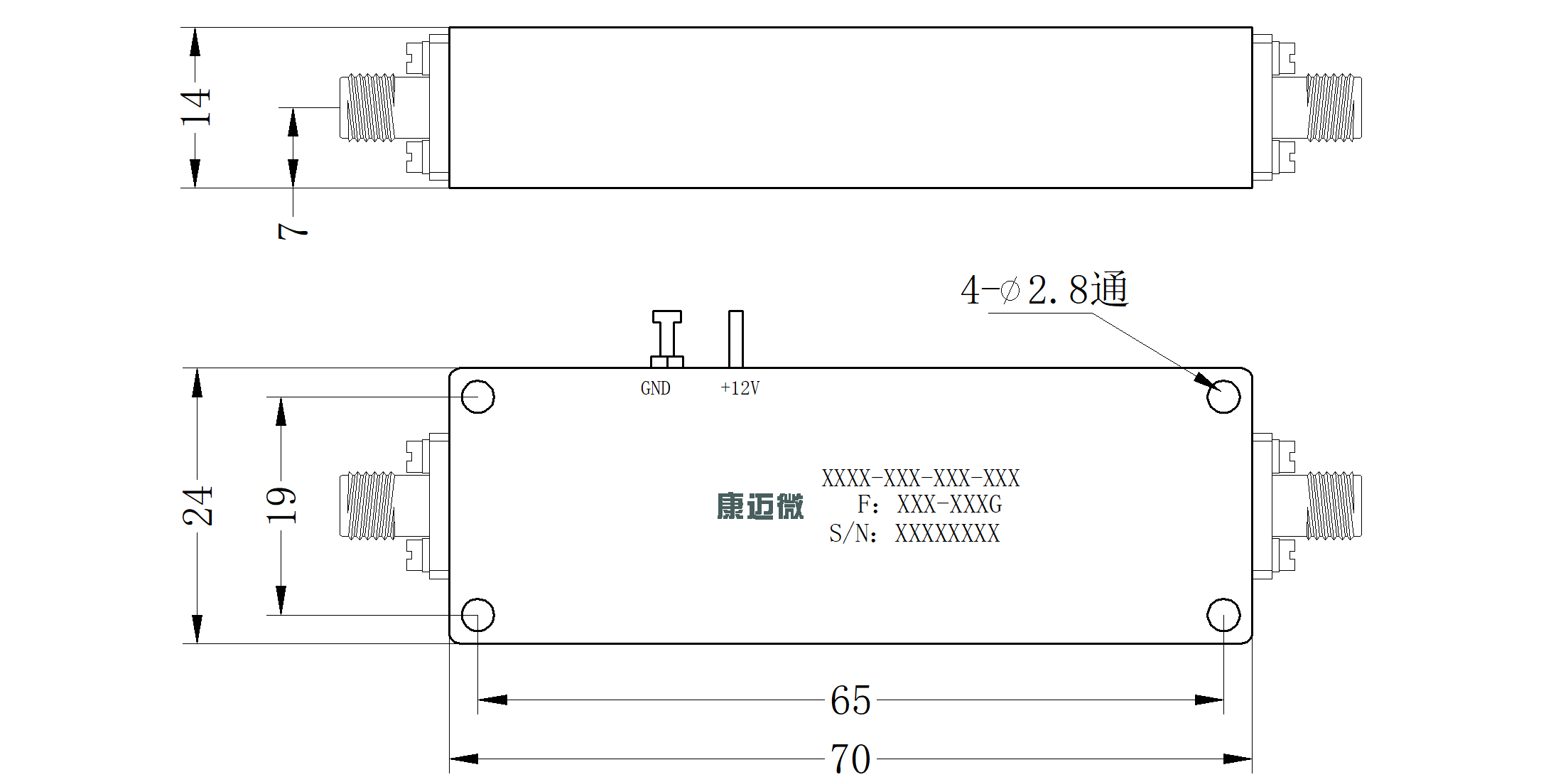

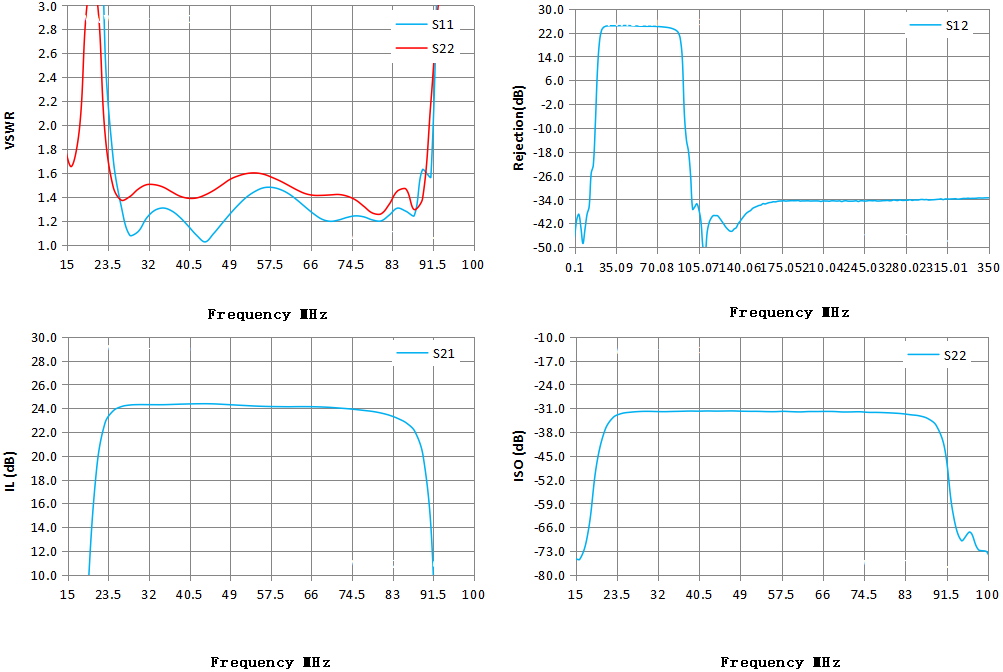

| Frequency MHz | S11 VSWR | S22 VSWR | S21 IL dB | S12 Rejection | |
| 15.00 | 114.35 | 1.90 | -25.18 | -25.18 | -74.96 |
| 21.00 | 20.94 | 3.08 | 9.11 | 9.11 | -47.56 |
| 27.00 | 1.31 | 1.37 | 24.15 | 24.15 | -32.16 |
| 33.00 | 1.22 | 1.50 | 24.30 | 24.30 | -31.96 |
| 39.00 | 1.23 | 1.41 | 24.34 | 24.34 | -31.82 |
| 45.00 | 1.02 | 1.42 | 24.38 | 24.38 | -31.83 |
| 51.00 | 1.34 | 1.58 | 24.25 | 24.25 | -31.90 |
| 58.00 | 1.48 | 1.56 | 24.14 | 24.14 | -31.91 |
| 64.00 | 1.37 | 1.46 | 24.13 | 24.13 | -31.96 |
| 70.00 | 1.21 | 1.41 | 24.10 | 24.10 | -31.96 |
| 76.00 | 1.24 | 1.38 | 23.89 | 23.89 | -32.20 |
| 82.00 | 1.20 | 1.26 | 23.59 | 23.59 | -32.41 |
| 88.00 | 1.24 | 1.29 | 22.07 | 22.07 | -33.99 |
| 94.00 | 4.39 | 3.08 | -5.36 | -5.36 | -61.86 |
| 100.00 | 20.98 | 3.61 | -37.32 | -37.32 | -73.28 |
, When designing, consider the issue of amplifier heat dissipation.
