950~1700MHz, 1450~2500MHz, 2250~3250MHz, 3000~4000MHz, 3750~4850MHz, Pin
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband F1 | / | / | 950 | ~ | 1700 | MHz |
| Passband F2 | / | / | 1450 | ~ | 2500 | MHz |
| Passband F3 | / | / | 2250 | ~ | 3250 | MHz |
| Passband F4 | / | / | 3000 | ~ | 4000 | MHz |
| Passband F5 | / | / | 3750 | ~ | 4850 | MHz |
| Passband VSWR | 1.6 | |||||
| Passband IL | 2.5 | dB | ||||
| Ripple | 通带1@0.5dB | 通带2@0.5dB | 通带3@0.5dB | 通带4@0.5dB | 通带5@0.65dB | |
| Delay ripple | 1.0 | ns | ||||
| Band 1 Rejection | DC-780 | MHz≥ | 35 | dBc | ||
| Band 1 Rejection | 1900-4000 | MHz≥ | 40 | dBc | ||
| band 2 Rejection | DC-1200 | MHz≥ | 40 | dBc | ||
| band 2 Rejection | 2800-5500 | MHz≥ | 40 | dBc | ||
| band 3 Rejection | DC-1850 | MHz≥ | 40 | dBc | ||
| band 3 Rejection | 3700-7000 | MHz≥ | 35 | dBc | ||
| band 4 Rejection | DC-2600 | MHz≥ | 35 | dBc | ||
| band 4 Rejection | 4400-8000 | MHz≥ | 35 | dBc | ||
| band 5 Rejection | DC-3300 | MHz≥ | 35 | dBc | ||
| band 5 Rejection | 5300-9000 | MHz≥ | 35 | dBc |

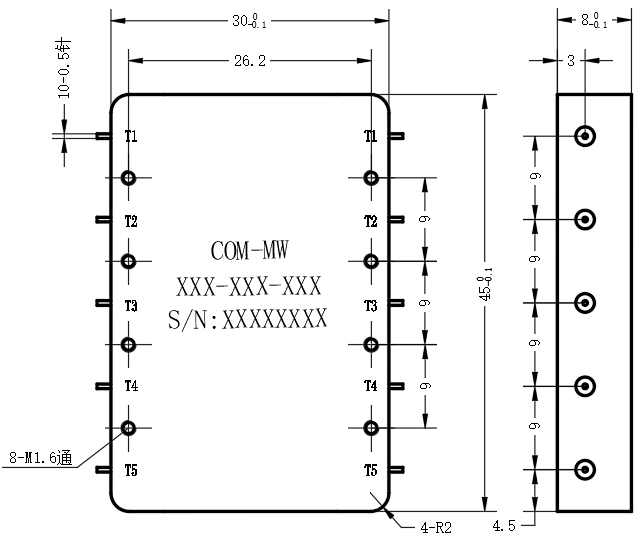

| Connector | Pin 0.5mm |
|---|---|
| Impedance | 50Ω |
| Surface | silver-plate |
| Power Capacity | 2W Design assurance |
| Operation Temp. | -55~+85℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
|---|
