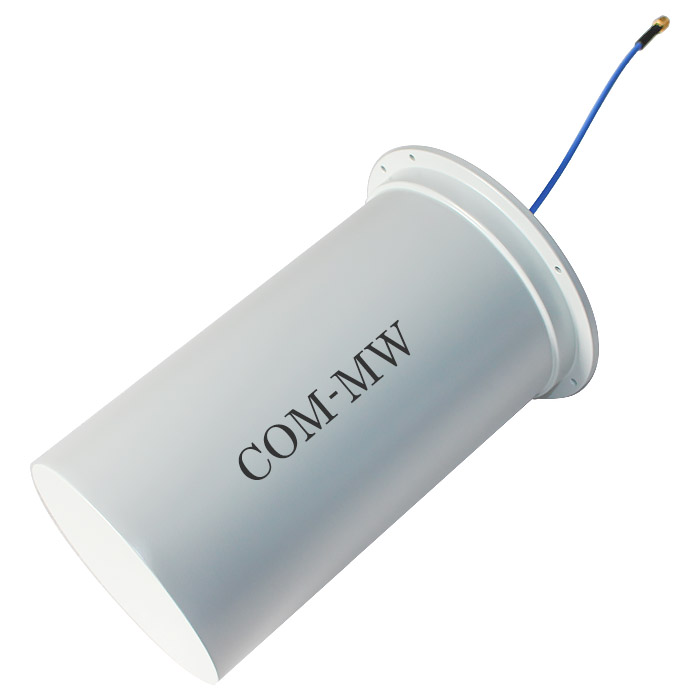

Frequency700~2700MHz, Gain1dBi, Vertical polarization, SMA-J
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
An omnidirectional antenna, that is, it shows uniform radiation in 360° on the horizontal pattern, which is commonly referred to as non-directional, and appears as a beam with a certain width on the vertical pattern. In general, the smaller the lobe width, The greater the gain. This type of antenna has simple structure, small size, light weight and wide coverage.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 700 | ~ | 2700 | MHz |
| Gain | 1 | dBi | ||
| VSWR | 2 |
| Polarization | Vertical polarization |
|---|---|
| Power Capacity | 100W Design assurance |
| Connector | SMA-J |

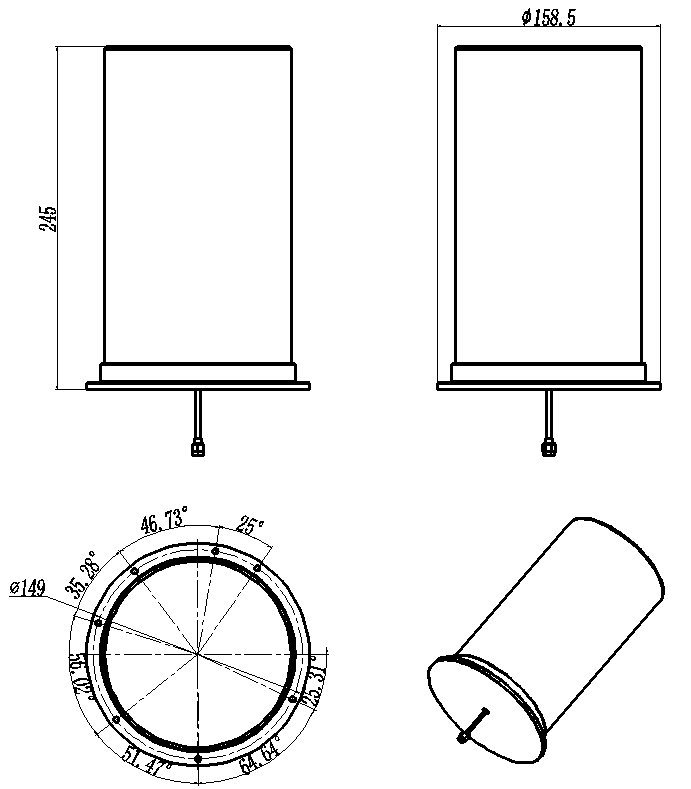

| Outline size | 158.5*158.5*245mm |
| Estimated weight | 0.9Kg |
| Surface | Grey |
| Operation Temp. | -25~+55℃ Design assurance |
| Storage Temp. | -45~+75℃ Design assurance |
Private disassembly by unprofessional personnel may worsen or even broken the antenna.
Make sure no obstacle or high electromagnetic radiation appears near the antenna.
It is strictly prohibited to install and use antenna in the thunderstorm outside, and the lightning protection facilities are necessary.
Please do not discard the antenna casually since it contains electronic components.
