Frequency20~6000MHz, Gain 1dBi@20-300MHZ, Gain 22dBi@300-1620MHZ, Gain 36dBi@1800-6000MHZ, Gain 40dBi@500-6000MHZ, Vertical polarization, N-K
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
An omnidirectional antenna, that is, it shows uniform radiation in 360° on the horizontal pattern, which is commonly referred to as non-directional, and appears as a beam with a certain width on the vertical pattern. In general, the smaller the lobe width, The greater the gain. This type of antenna has simple structure, small size, light weight and wide coverage.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 20 | ~ | 6000 | MHz |
| Gain 1 | -15 | dBi@20-300MHZ | ||
| Gain 2 | 2 | dBi@300-1620MHZ | ||
| Gain 3 | 6 | dBi@1800-6000MHZ | ||
| Gain 4 | 0 | dBi@500-6000MHZ | ||
| VSWR | 2.5 |
| Polarization | Vertical polarization |
|---|---|
| Power Capacity | 50W Design assurance |
| Connector | N -K |

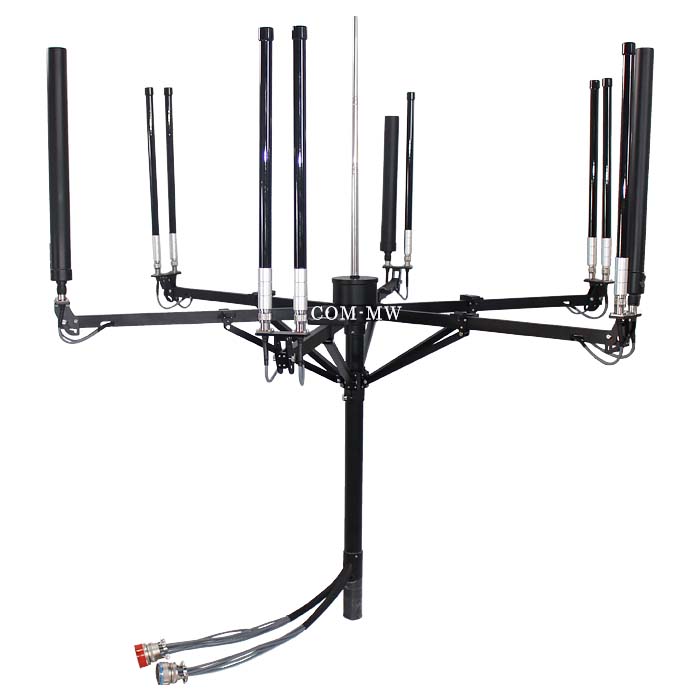

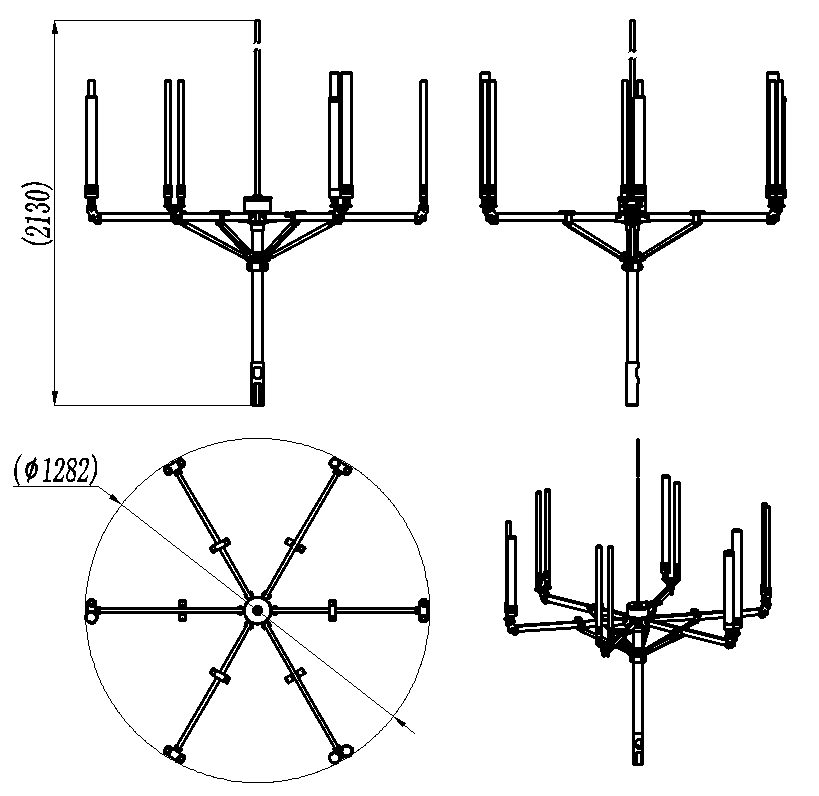

| Expand external dimensions | 2130*1282*1282mm |

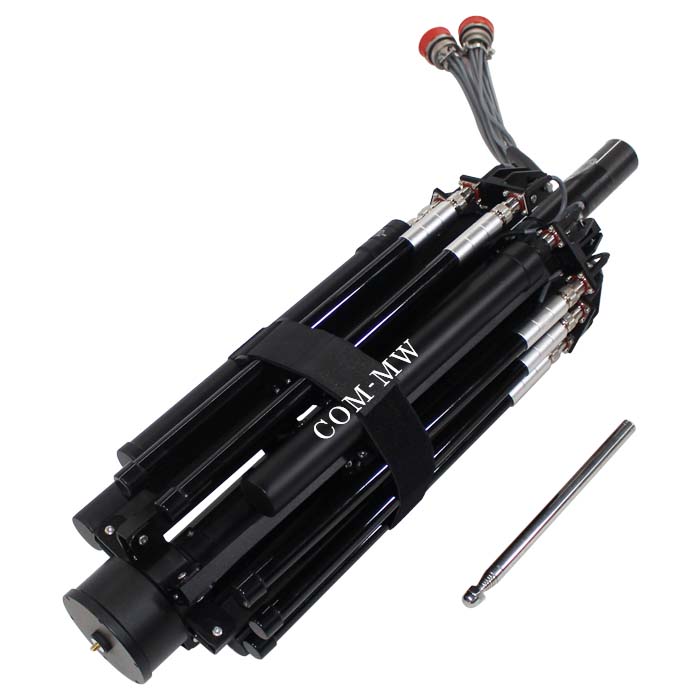

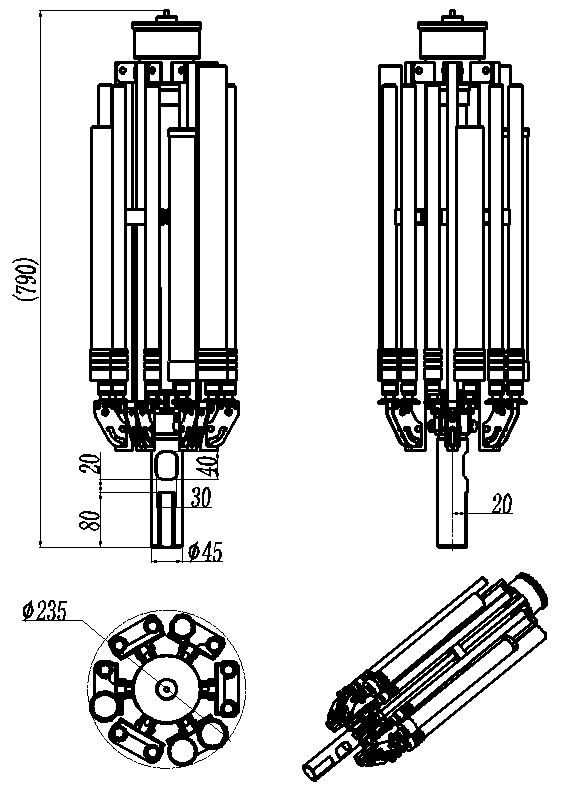

| Folding external dimensions | 790*235*235mm |
| Estimated weight | 8Kg |
| Surface | Black matte finish |
| Operation Temp. | -25~+55℃ Design assurance |
1. Non professionals are not allowed to disassemble.
/
