Frequency100~520MHz, Gain03dBi, 2.5, Vertical polarization, N-K
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

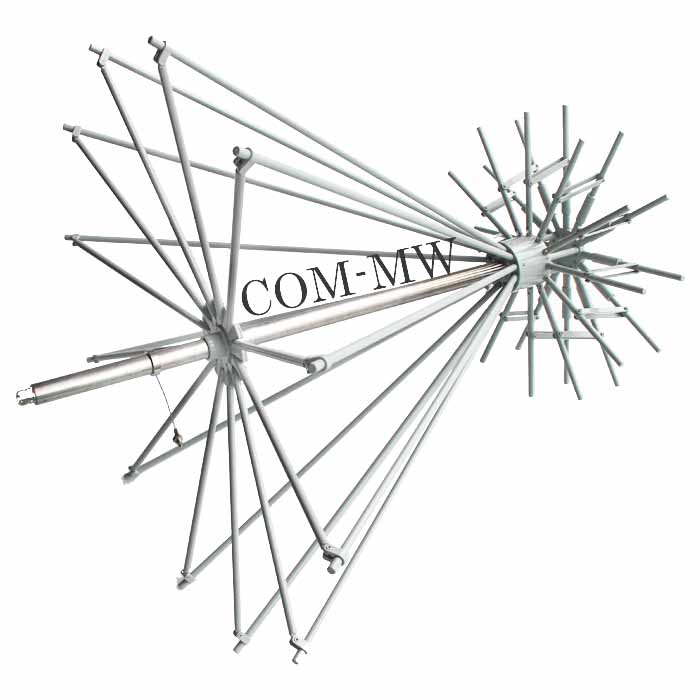

Disk cone antenna
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 100 | ~ | 520 | MHz |
| Gain | 0 | ~ | 3 | dBi |
| VSWR | 2.5 | |||
| Out-of-roundness | 3.0 | dB (Design assurance) | ||
| power | 500 | W (Design Assurance) |
| Polarization | Vertical polarization |
|---|---|
| Connector | N -K |

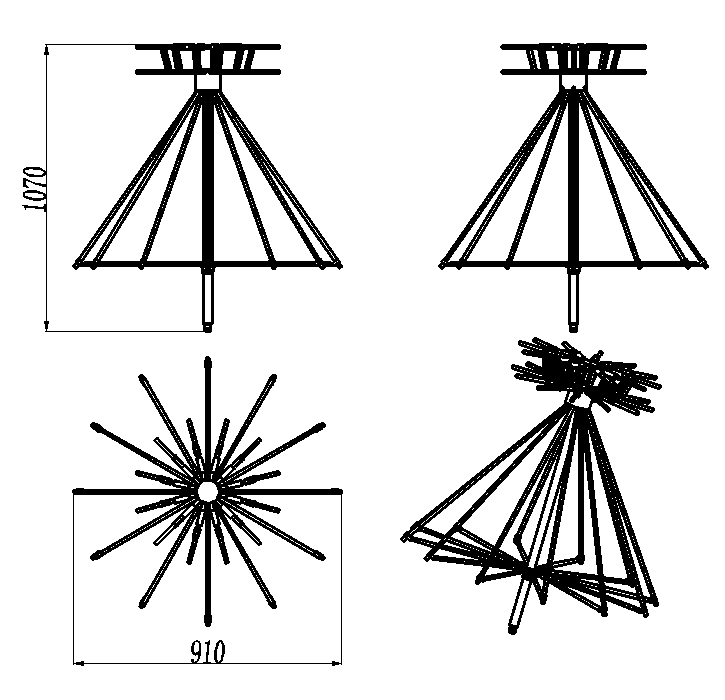

| Outline size | φ910*1070*mm |
| Estimated weight | 5Kg |
| Surface | Green |
| Operation Temp. | -25~+55℃ Design assurance |
| Storage Temp. | -45~+75℃ Design assurance |
| Other | Antenna can be folded |
1. Non professionals are not allowed to disassemble.
/
