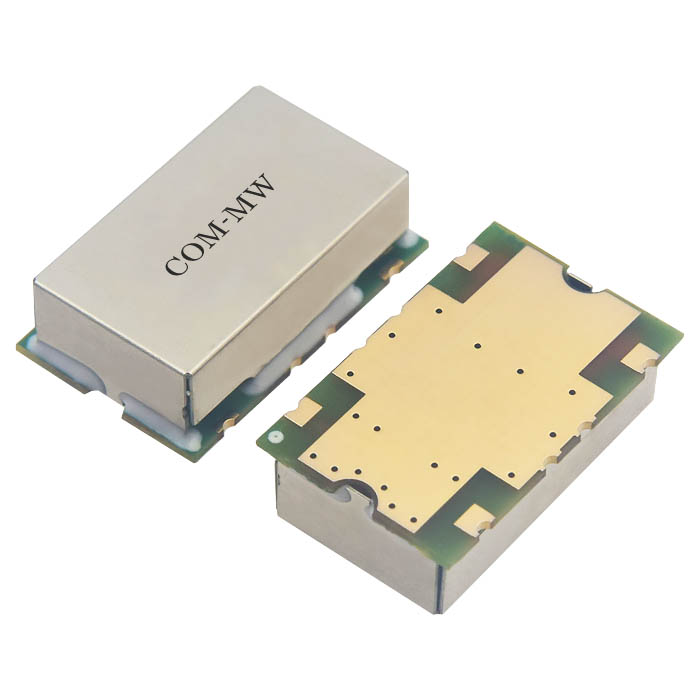

30~678MHz, 10W, 2way, 0°, SMD
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, high-power.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 30 | ~ | 678 | MHz |
| IL | 0.65 | dB | ||
| Isolation | 20 | dB | ||
| Input VSWR | 1.25 | |||
| Output VSWR | 1.25 | |||
| Amplitude balance | 0.2 | dB | ||
| Phase balance | ±4 | ° |
| Power | 10W Design assurance |
|---|---|
| way | 2-way |
| Phase | 0° |
| Impedance | 50Ω |
| Connector | SMD |
| Work Temp. | -40~+85℃ Design assurance |
| Storage Temp. | -55~+100℃ Design assurance |
| Quality Grade | Industrial grade |

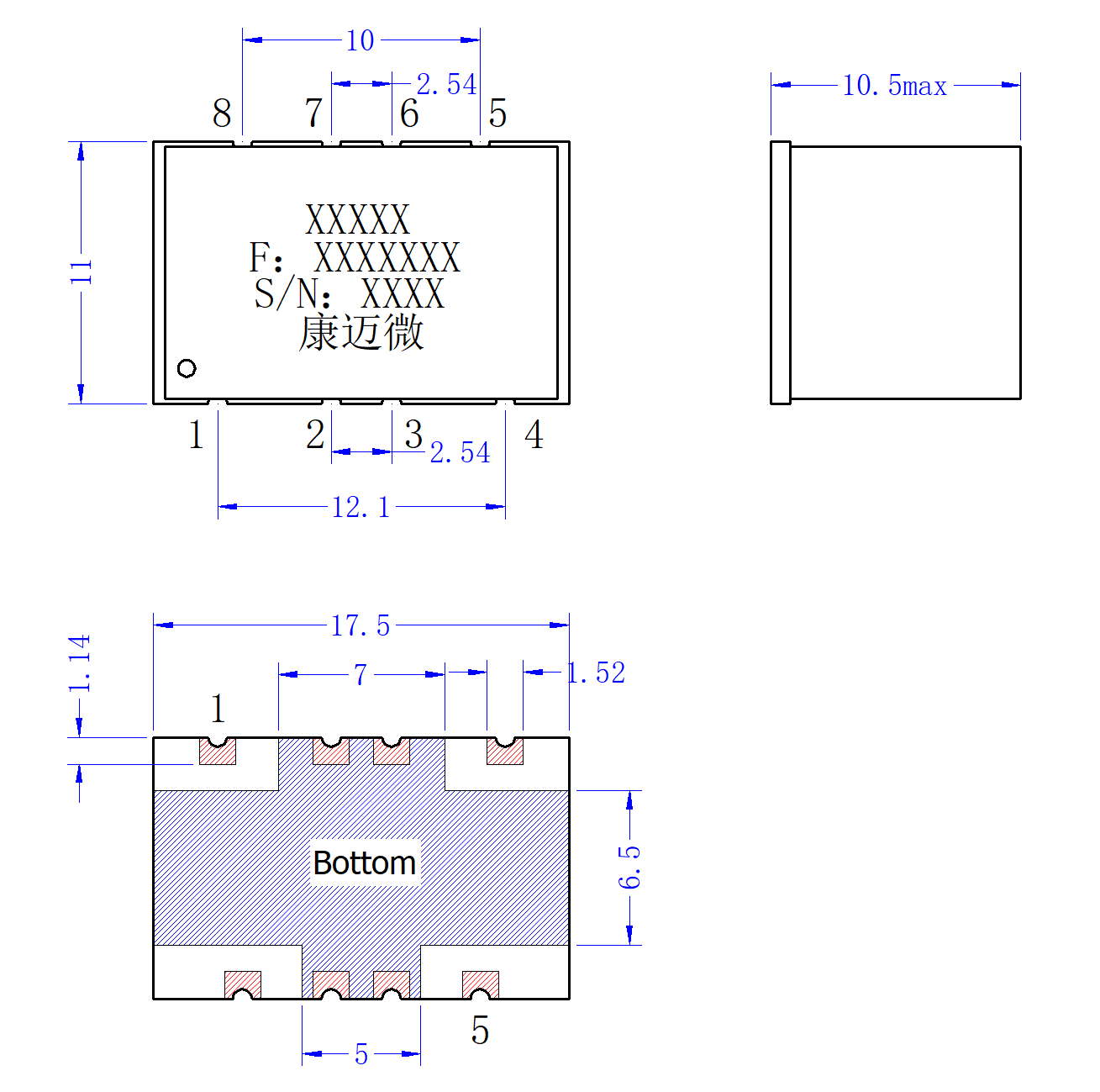

| Common port | 1 |
|---|---|
| Dispatch Port | 4，5 |
| GND | 2，3，6，7 |
| Not used | 8 |

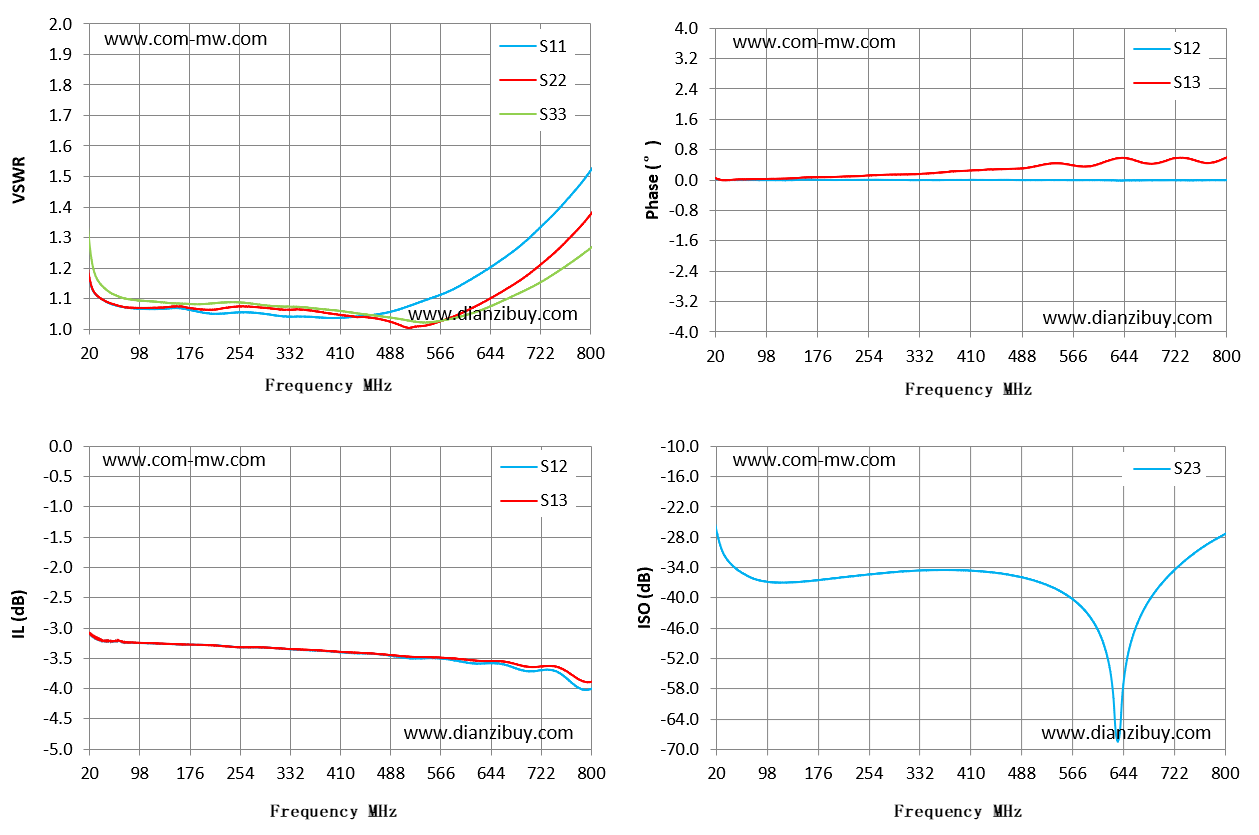

| Frequency MHz | S11 VSWR | S12 IL (dB) | S13 IL (dB) | S13 Phase (°) | S23 ISO dB |
|---|---|---|---|---|---|
| 20 | 1.17 | -3.1 | -3.09 | 0.05 | -27.1 |
| 76 | 1.07 | -3.24 | -3.24 | 0.02 | -36.23 |
| 131 | 1.07 | -3.26 | -3.26 | 0.04 | -37.01 |
| 187 | 1.06 | -3.28 | -3.28 | 0.08 | -36.37 |
| 243 | 1.05 | -3.31 | -3.31 | 0.11 | -35.55 |
| 299 | 1.05 | -3.33 | -3.33 | 0.14 | -34.87 |
| 354 | 1.04 | -3.36 | -3.36 | 0.19 | -34.54 |
| 410 | 1.04 | -3.4 | -3.39 | 0.25 | -34.67 |
| 466 | 1.05 | -3.43 | -3.43 | 0.29 | -35.43 |
| 521 | 1.08 | -3.5 | -3.48 | 0.41 | -37.24 |
| 577 | 1.12 | -3.52 | -3.5 | 0.36 | -41.56 |
| 633 | 1.19 | -3.59 | -3.55 | 0.57 | -67.86 |
| 689 | 1.27 | -3.69 | -3.62 | 0.43 | -39.38 |
| 744 | 1.38 | -3.71 | -3.64 | 0.56 | -32.02 |
| 800 | 1.52 | -4.01 | -3.89 | 0.59 | -27.38 |
| 1 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
|---|---|
| 2 | The product supports 220 ℃ reflow soldering. |
