30~406MHz, 400W, 2way, Phase0°, N, Industrial grade
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, high-power, with positive and negative coupling detection ports.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 30 | ~ | 406 | MHz |
| IL | 0.6 | dB | ||
| Isolation | 20 | dB | ||
| Input VSWR | 1.25 | |||
| Output VSWR | 1.25 | |||
| Amplitude balance | 0.3 | dB | ||
| Phase balance | 5 | ° |
| Power | 400W Design assurance |
|---|---|
| way | 2-way |
| Phase | 0° |
| Impedance | 50Ω |
| Connector | N-K |
| Surface | White |
| Product shell material | Aluminium |
| Work Temp. | -40~+70℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | Coupling: 50dB ± 1dB, Directionality: 18dB, Coupling port: SMA-K |
| Common port | Input |
|---|---|
| Dispatch Port | 输出1，输出2 |

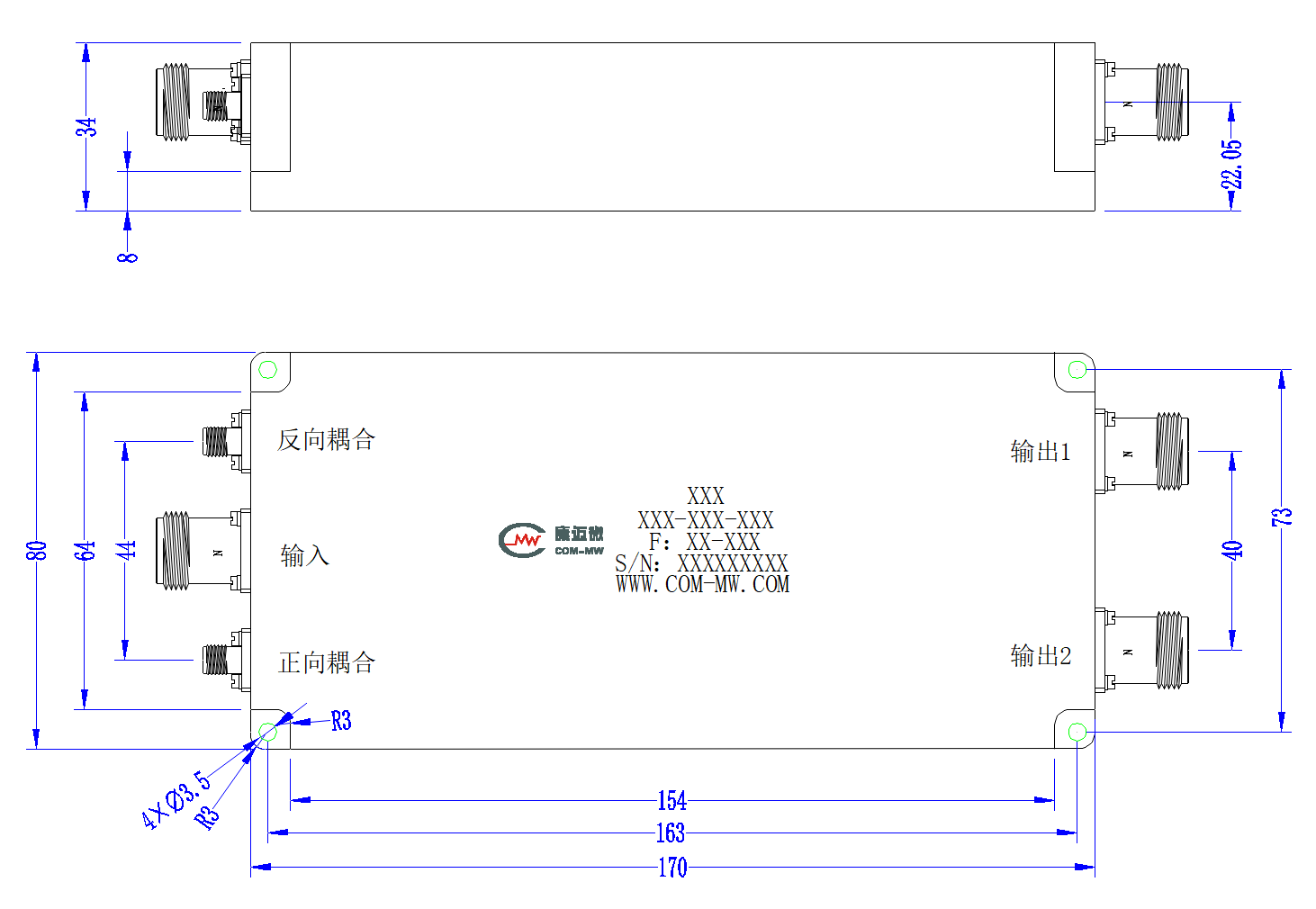

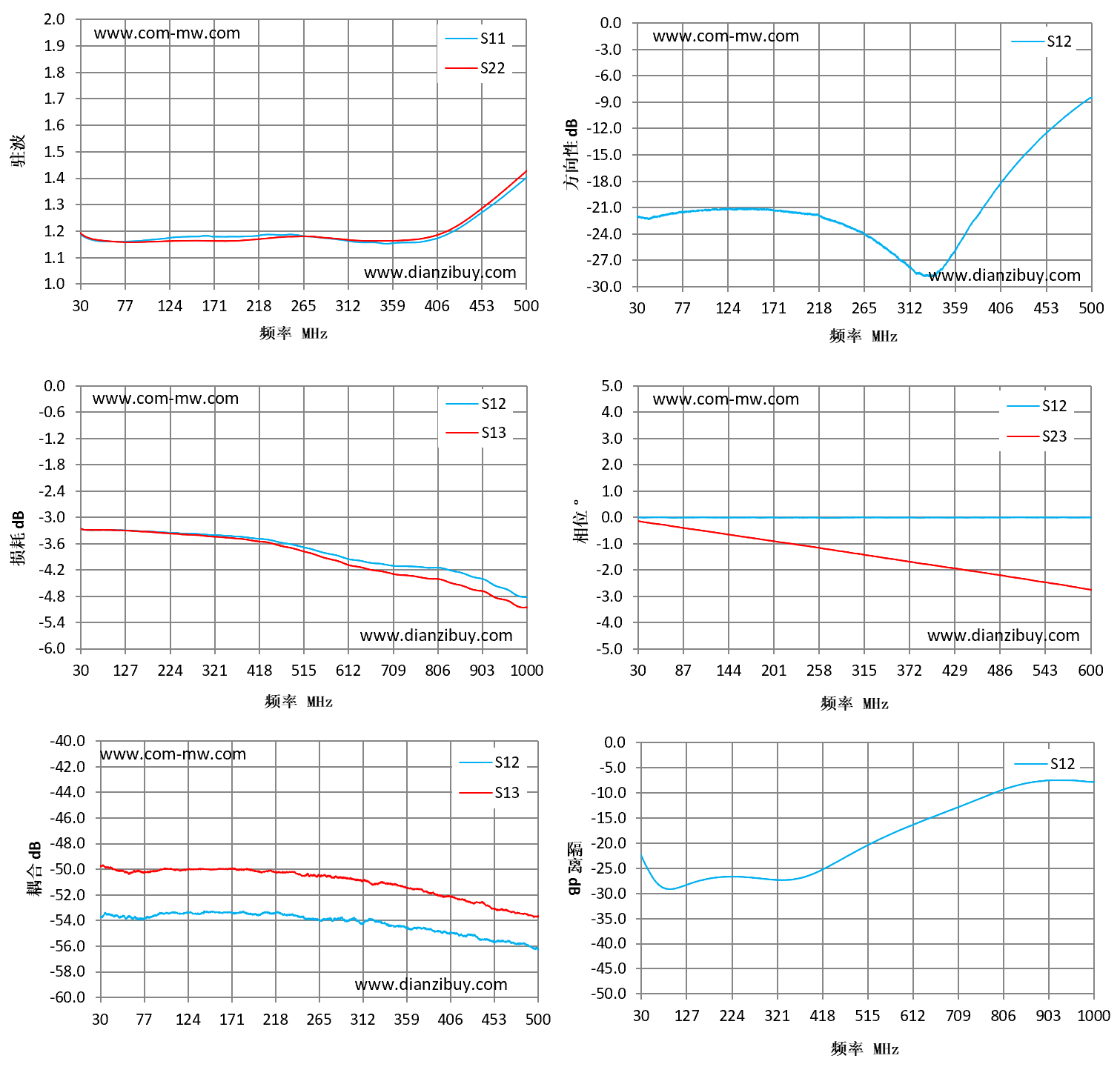

| Frequency(MHz) | S11 VSWR | S22 VSWR | S12 IL dB | S23 相位 ° |
|---|---|---|---|---|
| 30 | 1.19 | 1.19 | -3.26 | -0.13 |
| 64 | 1.16 | 1.16 | -3.29 | -0.28 |
| 97 | 1.17 | 1.16 | -3.29 | -0.44 |
| 131 | 1.18 | 1.16 | -3.3 | -0.59 |
| 164 | 1.18 | 1.16 | -3.32 | -0.74 |
| 198 | 1.18 | 1.16 | -3.33 | -0.88 |
| 231 | 1.19 | 1.17 | -3.35 | -1.04 |
| 265 | 1.18 | 1.18 | -3.37 | -1.19 |
| 299 | 1.17 | 1.17 | -3.39 | -1.35 |
| 332 | 1.16 | 1.16 | -3.41 | -1.49 |
| 366 | 1.16 | 1.16 | -3.44 | -1.65 |
| 399 | 1.17 | 1.18 | -3.47 | -1.8 |
| 433 | 1.22 | 1.23 | -3.5 | -1.95 |
| 466 | 1.3 | 1.32 | -3.58 | -2.11 |
| 500 | 1.4 | 1.43 | -3.65 | -2.27 |
| 1 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
|---|---|
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
