8~12GHz, 300W, 6way, Phase0°, N,
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 8 | ~ | 12 | GHz |
| IL | 0.9 | dB | ||
| Isolation | Not have | |||
| Combined port VSWR | 1.4 | |||
| Dispatch Ports VSWR | Not have | |||
| Phase balance | ±6 | ° | ||
| Amplitude balance | ±0.4 | dB | ||
| Coupling | 38.5 | 40 | 41.5 | dB |
| Directivity | 15 | dB | ||
| Coupling port VSWR | 1.5 |
| Power | 300W设计保证（平均功率） |
|---|---|
| way | 6-way |
| Phase | 0° |
| Impedance | 50Ω |
| Connector | N-K |
| Surface | White |
| Product shell material | Aluminium |
| Work Temp. | -40~+70℃ Design assurance |

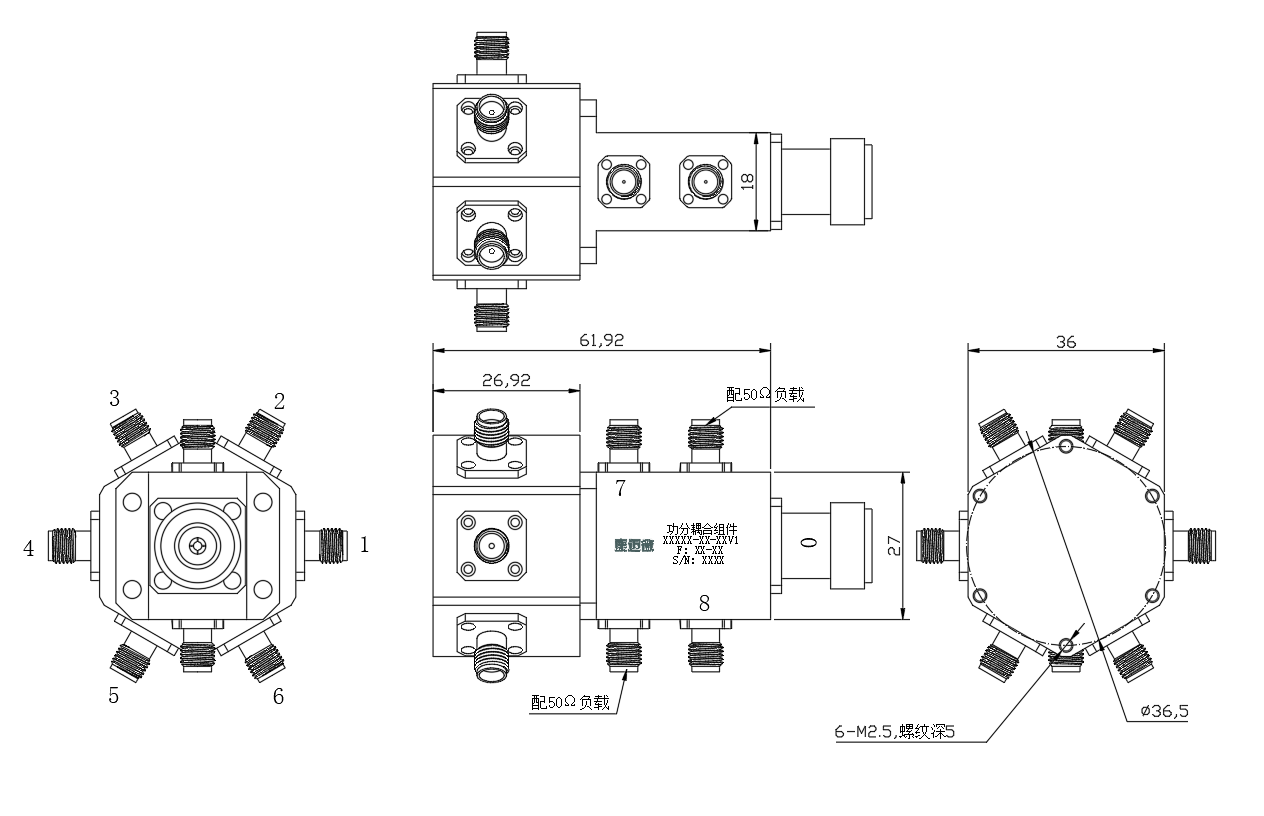

| Common port | 0（N-K） |
|---|---|
| Dispatch Port | 1,2,3,4,5,6（SMA-K） |
| Forward coupling port | 7（SMA-K） |
| Reverse coupling port | 8（SMA-K） |

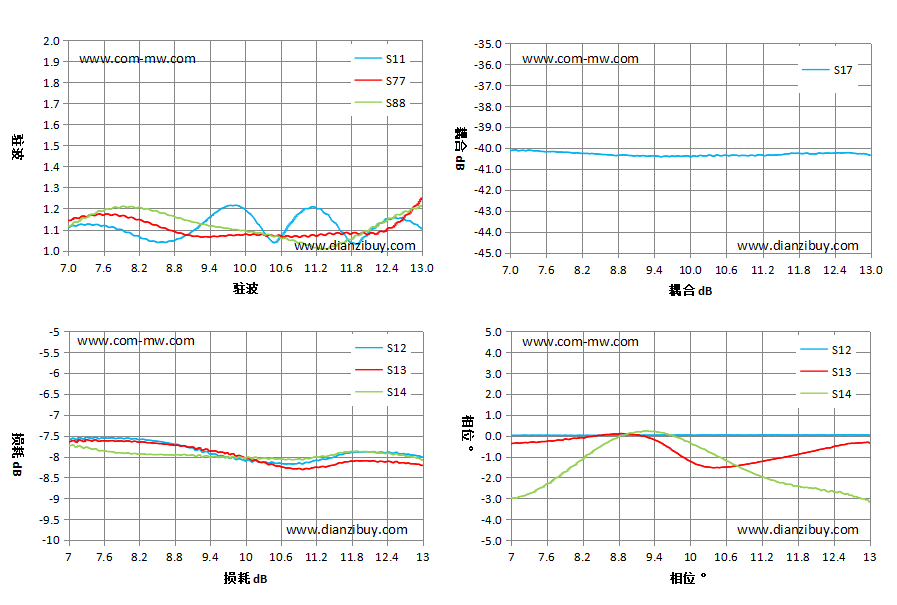

| Frequency(GHz) | S11 VSWR | S77 驻波 | S12 IL dB | S13 IL dB | S17 耦合 dB | S12 Phase (°) | S13 Phase (°) |
|---|---|---|---|---|---|---|---|
| 7 | 1.11 | 1.14 | -7.61 | -7.66 | -40.14 | 0.02 | -0.38 |
| 7.43 | 1.12 | 1.17 | -7.55 | -7.61 | -40.14 | 0.02 | -0.33 |
| 7.86 | 1.1 | 1.16 | -7.56 | -7.63 | -40.2 | 0.01 | -0.22 |
| 8.29 | 1.06 | 1.14 | -7.59 | -7.66 | -40.26 | 0.02 | -0.05 |
| 8.71 | 1.04 | 1.1 | -7.69 | -7.72 | -40.35 | 0.02 | 0.08 |
| 9.14 | 1.1 | 1.07 | -7.84 | -7.81 | -40.39 | 0.03 | 0.02 |
| 9.57 | 1.19 | 1.07 | -7.98 | -7.89 | -40.4 | 0.03 | -0.46 |
| 10 | 1.19 | 1.08 | -8.11 | -8.05 | -40.43 | 0.03 | -1.23 |
| 10.43 | 1.05 | 1.07 | -8.14 | -8.18 | -40.34 | 0.03 | -1.52 |
| 10.86 | 1.16 | 1.07 | -8.17 | -8.3 | -40.36 | 0.03 | -1.4 |
| 11.29 | 1.2 | 1.08 | -8.07 | -8.24 | -40.34 | 0.03 | -1.18 |
| 11.71 | 1.07 | 1.09 | -7.92 | -8.13 | -40.26 | 0.03 | -0.95 |
| 12.14 | 1.1 | 1.08 | -7.88 | -8.1 | -40.25 | 0.03 | -0.68 |
| 12.57 | 1.15 | 1.13 | -7.91 | -8.13 | -40.23 | 0.03 | -0.43 |
| 13 | 1.1 | 1.25 | -8.01 | -8.21 | -40.35 | 0.03 | -0.38 |
