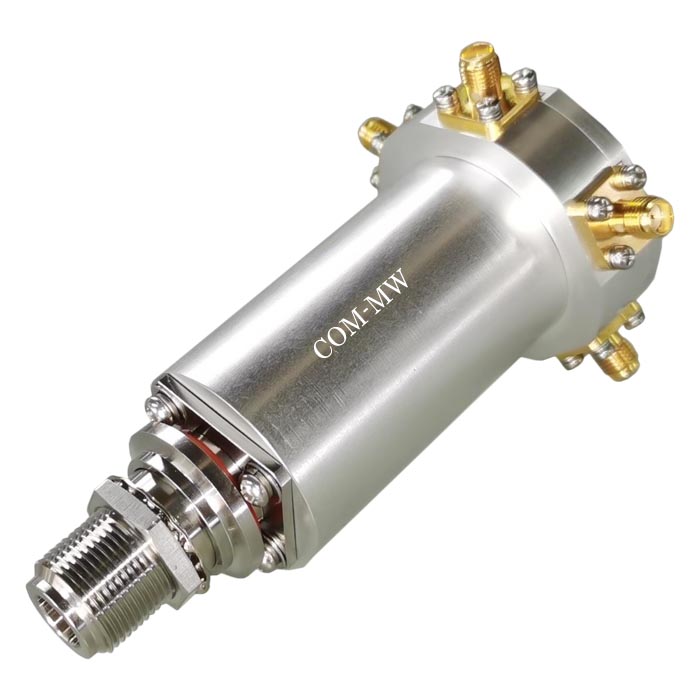

1400~1900MHz, 400W, 5wayRadial synthesizer, Phase0°, N
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Low loss, high power.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 1400 | ~ | 1900 | MHz |
| IL | 0.35 | dB | ||
| Isolation | 10 | dB | ||
| Input VSWR | 1.25 | |||
| Output VSWR | Not required | |||
| Amplitude balance | 0.3 | dB | ||
| Phase balance | 6 | ° |
| Power | 400W |
|---|---|
| way | 5 Way Radial synthesizer |
| Phase | 0° |
| Impedance | 50Ω |
| Connector | N-K, Dispatch Ports SMA-K |
| Surface | White |
| Product shell material | Aluminium |
| Work Temp. | -40~+85℃ Design assurance |
| Common port | N-K |
|---|---|
| Dispatch Port | SMA-K |

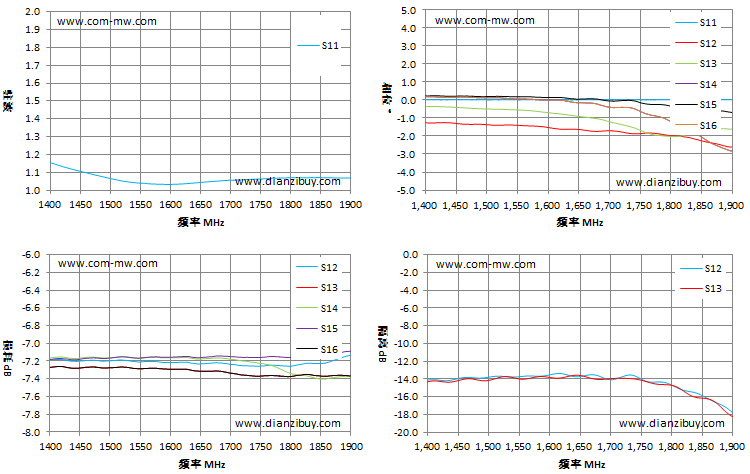

| Frequency(MHz) | S11 VSWR | S12 IL | S12 Phase (°) | S13 ISO dB |
|---|---|---|---|---|
| 1400 | 1.16 | -7.18 | -1.26 | -14.32 |
| 1436 | 1.12 | -7.18 | -1.26 | -14.37 |
| 1471 | 1.09 | -7.16 | -1.35 | -13.99 |
| 1507 | 1.06 | -7.16 | -1.39 | -14.06 |
| 1543 | 1.04 | -7.17 | -1.39 | -13.9 |
| 1579 | 1.03 | -7.15 | -1.45 | -13.78 |
| 1614 | 1.03 | -7.15 | -1.59 | -13.92 |
| 1650 | 1.04 | -7.16 | -1.63 | -13.61 |
| 1686 | 1.05 | -7.14 | -1.73 | -14.06 |
| 1721 | 1.06 | -7.16 | -1.78 | -13.94 |
| 1757 | 1.06 | -7.16 | -1.84 | -14.28 |
| 1793 | 1.07 | -7.16 | -1.95 | -14.66 |
| 1829 | 1.07 | -7.13 | -2.08 | -15.79 |
| 1864 | 1.07 | -7.13 | -2.36 | -16.34 |
| 1900 | 1.07 | -7.09 | -2.59 | -18.24 |
| 1 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
|---|---|
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
