Product features

Broadband, low loss.

Main specifications

Parameters	Min	Typical	Max	Units
Frequency	18	~	50	GHz
IL			2	dB
Isolation	13			dB
Input VSWR		1.7	2
Output VSWR		1.7	2
Amplitude balance			1	dB
Phase balance			12	°

Other parameters

Power Capacity	10W
way	4-way
Phase	0°
Impedance	50Ω
Connector	2.4-K
Connector material	Stainless steel
Surface	White
Product shell material	Aluminium
Operation Temp.	-40~+85℃ Design assurance
Quality Grade	Industrial grade

Port Definition

Common port	1
Dispatch Port	2，3，4，5

Typical test data

Frequency(GHz)	S11 VSWR	S22 VSWR	S12 IL dB	S14 Phase (°)	S34 ISO dB
18	1.18	1.1	-6.3	0.56	-27.97
20.29	1.18	1.21	-6.41	-0.53	-20.11
22.57	1.05	1.05	-6.24	-0.4	-21.67
24.86	1.17	1.21	-6.32	0.93	-24.25
27.14	1.07	1.27	-6.33	0.83	-21.11
29.43	1.24	1.27	-6.52	-0.42	-28.76
31.71	1.14	1.04	-6.32	0.39	-21.58
34	1.2	1.09	-6.38	2.51	-22.64
36.29	1.15	1.29	-6.52	3.03	-21.96
38.57	1.22	1.33	-6.6	-0.34	-17.4
40.86	1.17	1.22	-6.54	1.63	-21.99
43.14	1.19	1.15	-6.6	1.86	-22.28
45.43	1.28	1.15	-6.66	2.33	-18.91
47.71	1.04	1.55	-6.87	0.01	-22.19
50	1.11	1.19	-6.71	2.48	-14.16

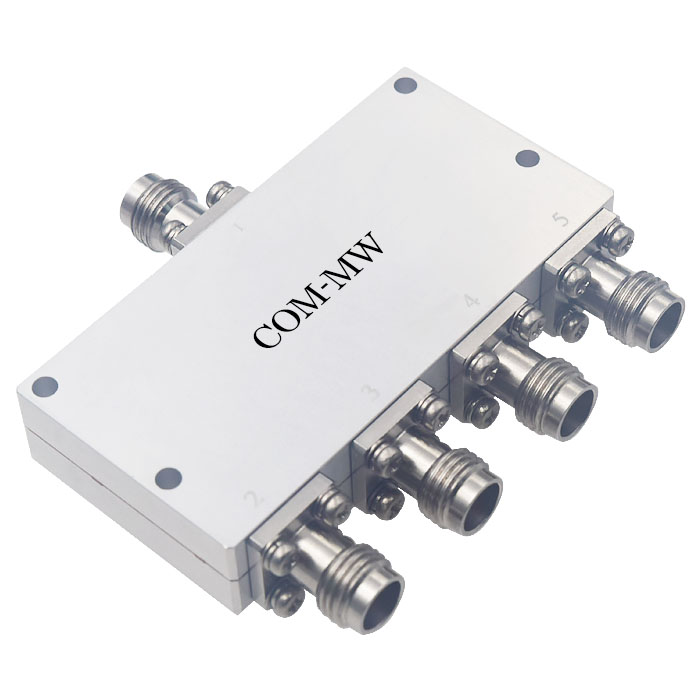

Reference picture

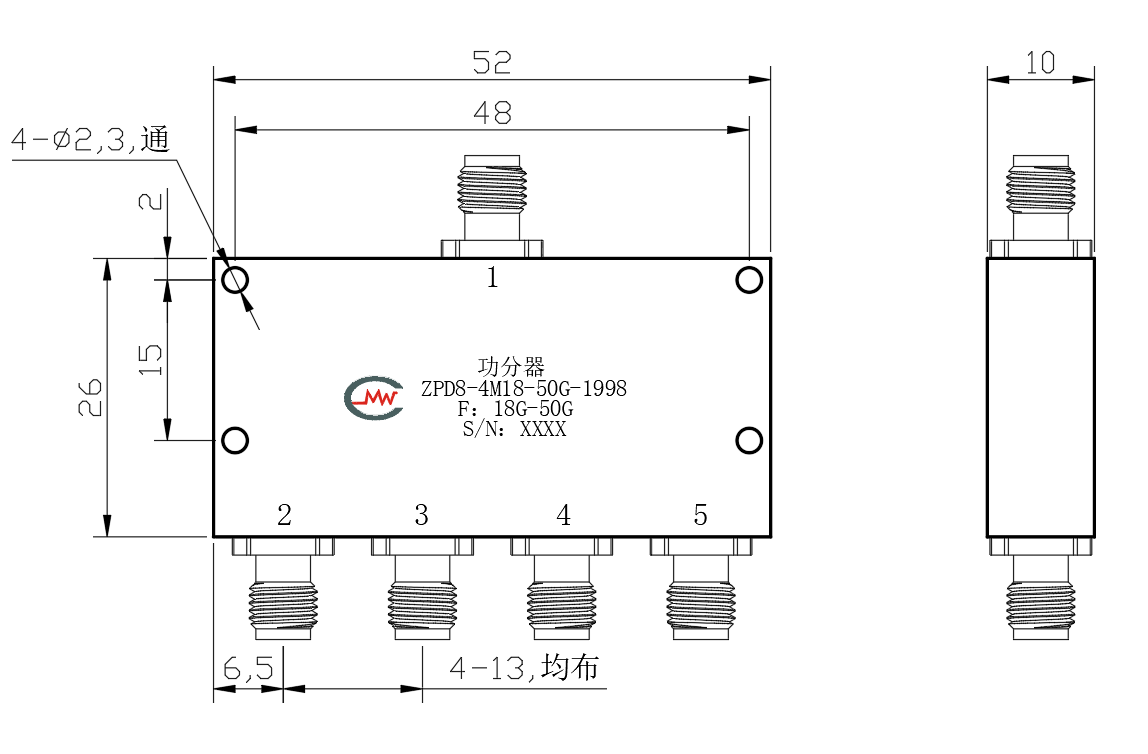

Configuration(mm)

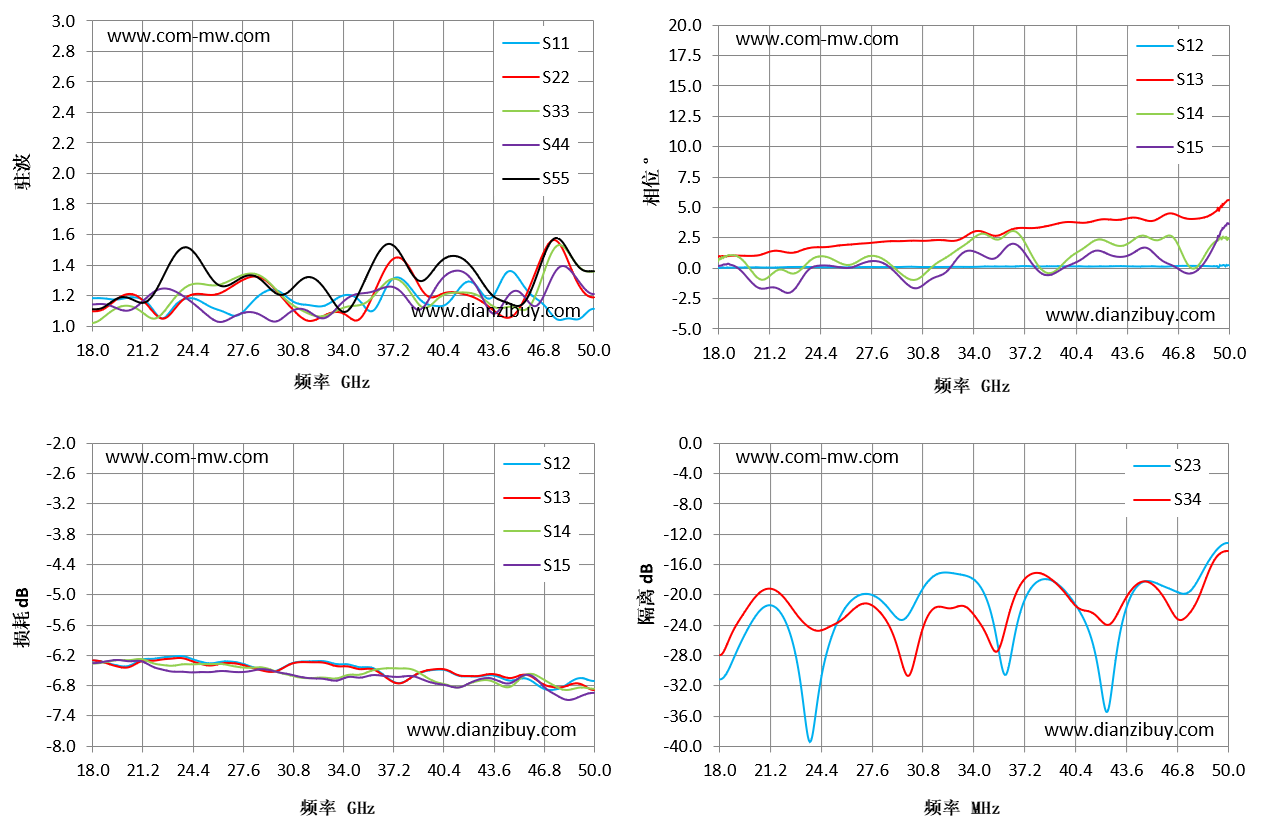

Typical test curve

Note

1	Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
2	If the temperature is higher than 125℃, consult with us before ordering.

Power divider ZPD8-4M18-50G-1998
