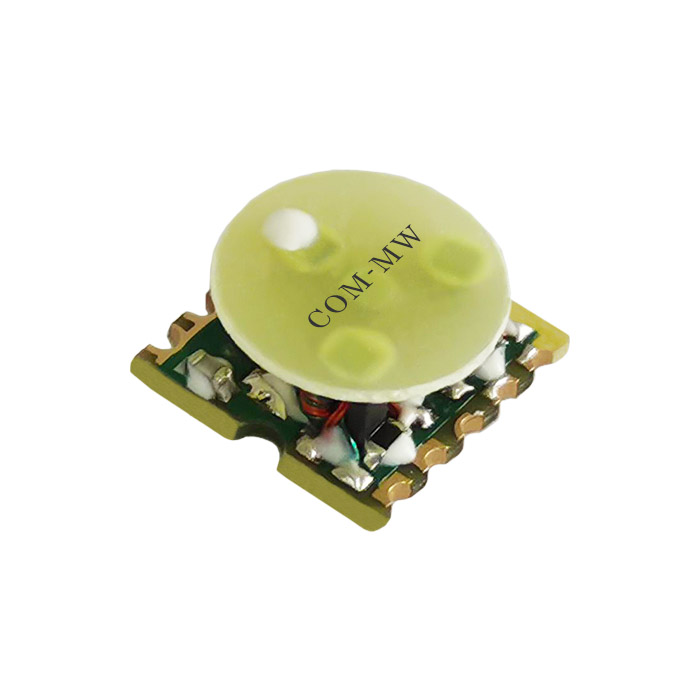

5~1000MHz, 1W, 4way, Phase0°, SMD, Industrial grade, Replace SCA-4-10+
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, high isolation, and good amplitude consistency.

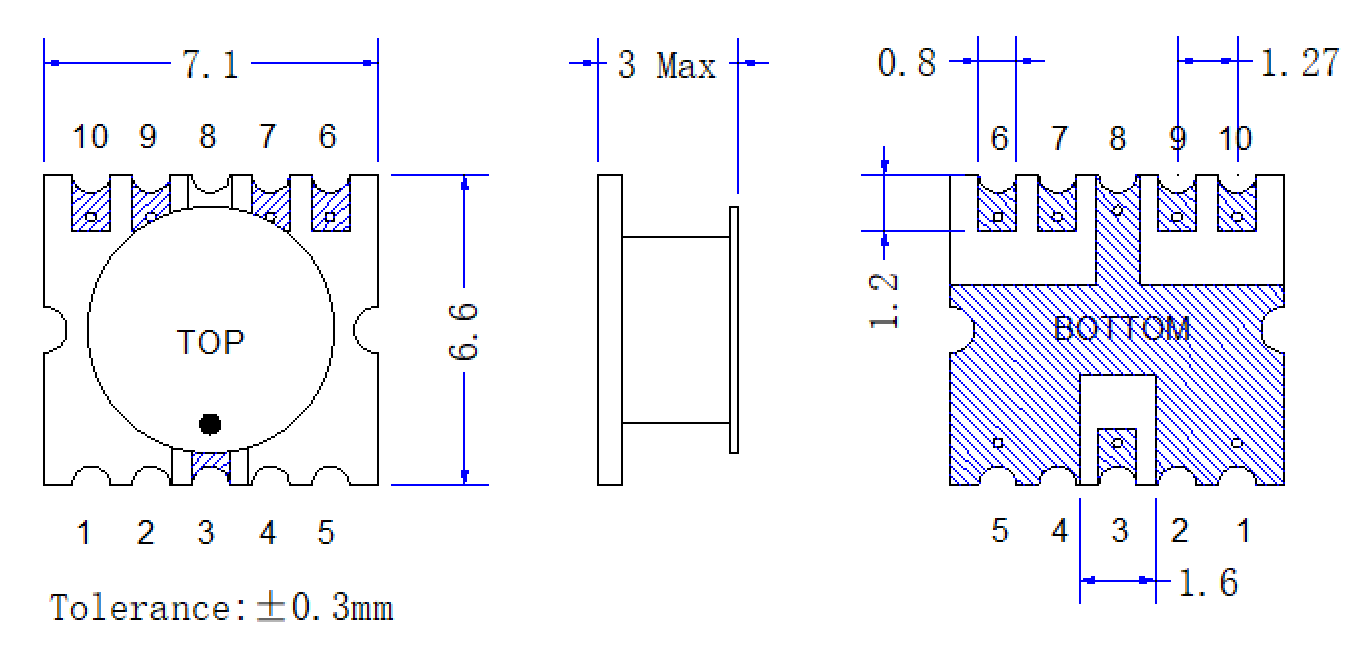

| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 5 | ~ | 1000 | MHz |
| IL | 1.2 | 2 | dB | |
| Isolation | 17 | 21 | dB | |
| Input VSWR | 1.5 | 1.6 | ||
| Output VSWR | 1.4 | 1.5 | ||
| Amplitude balance | 0.4 | 0.8 | dB | |
| Phase balance | 5 | 10 | ° |
| Power | 1W |
|---|---|
| way | 4-way |
| Phase | 0° |
| Impedance | 50Ω |
| Connector | SMD |
| Work Temp. | -40~+85℃ Design assurance |
| Storage Temp. | -55~+100℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | Replace SCA-4-10+ |
| Common port | 3 |
|---|---|
| Dispatch Port | 6，7，9，10 |
| GND | 1，2，4，5，8 |

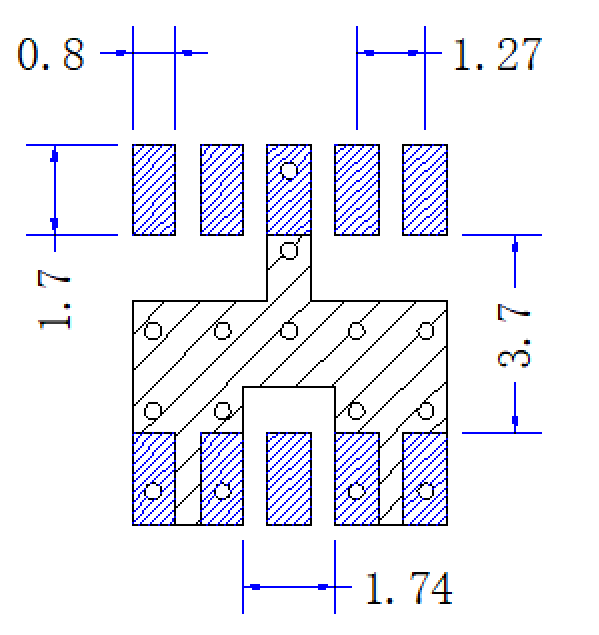

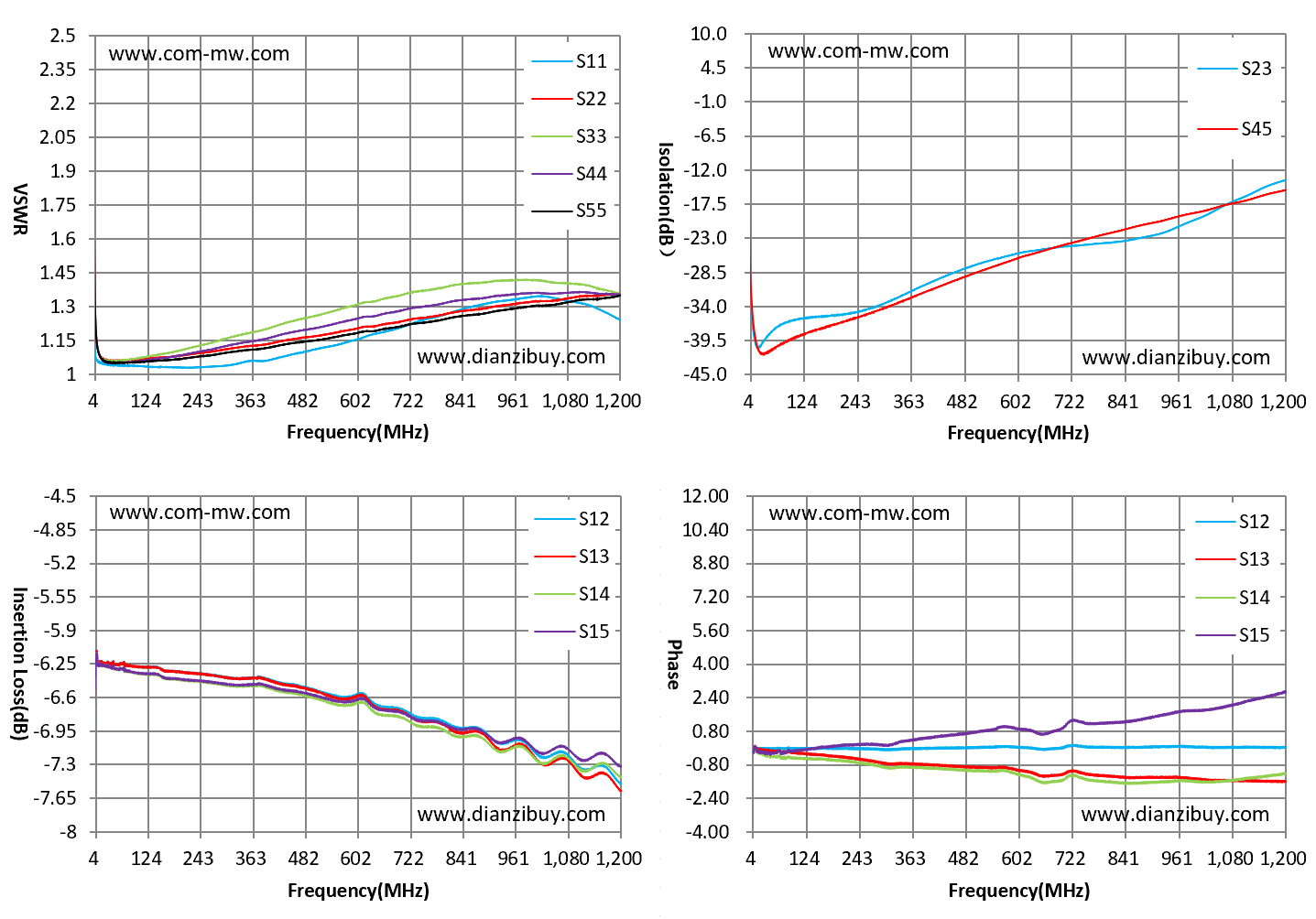

| F(MHz) | S12IL | S23ISO | S11VSWR | S22VSWR |
|---|---|---|---|---|
| 5 | -6.13 | -33.5 | 1.07 | 1.18 |
| 10 | -6.24 | -38.2 | 1.05 | 1.1 |
| 50 | -6.26 | -38.1 | 1.04 | 1.06 |
| 100 | -6.28 | -36.2 | 1.03 | 1.06 |
| 200 | -6.33 | -35.3 | 1.03 | 1.08 |
| 400 | -6.42 | -30.2 | 1.06 | 1.14 |
| 600 | -6.57 | -25.5 | 1.15 | 1.21 |
| 800 | -6.87 | -23.7 | 1.27 | 1.26 |
| 1000 | -7.22 | -19.4 | 1.34 | 1.32 |
| 1 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
|---|---|
| 2 | The product supports 220 ℃ reflow soldering. |
