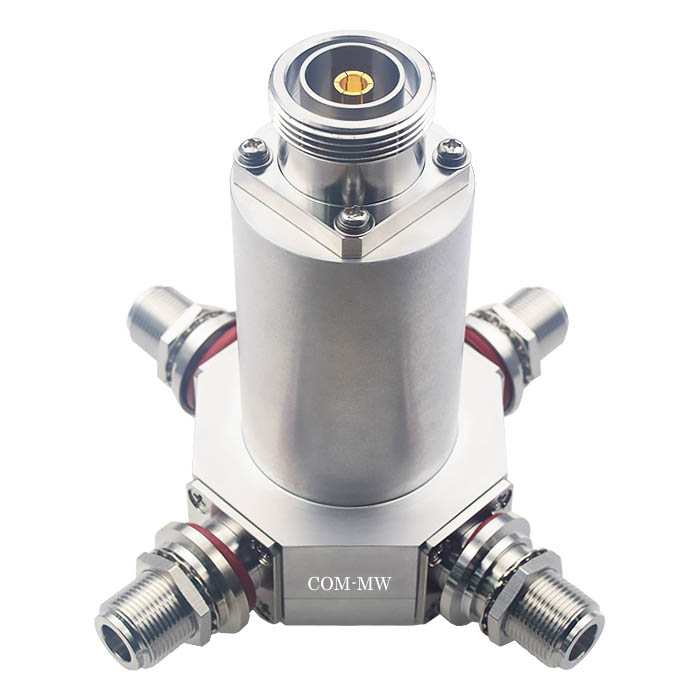

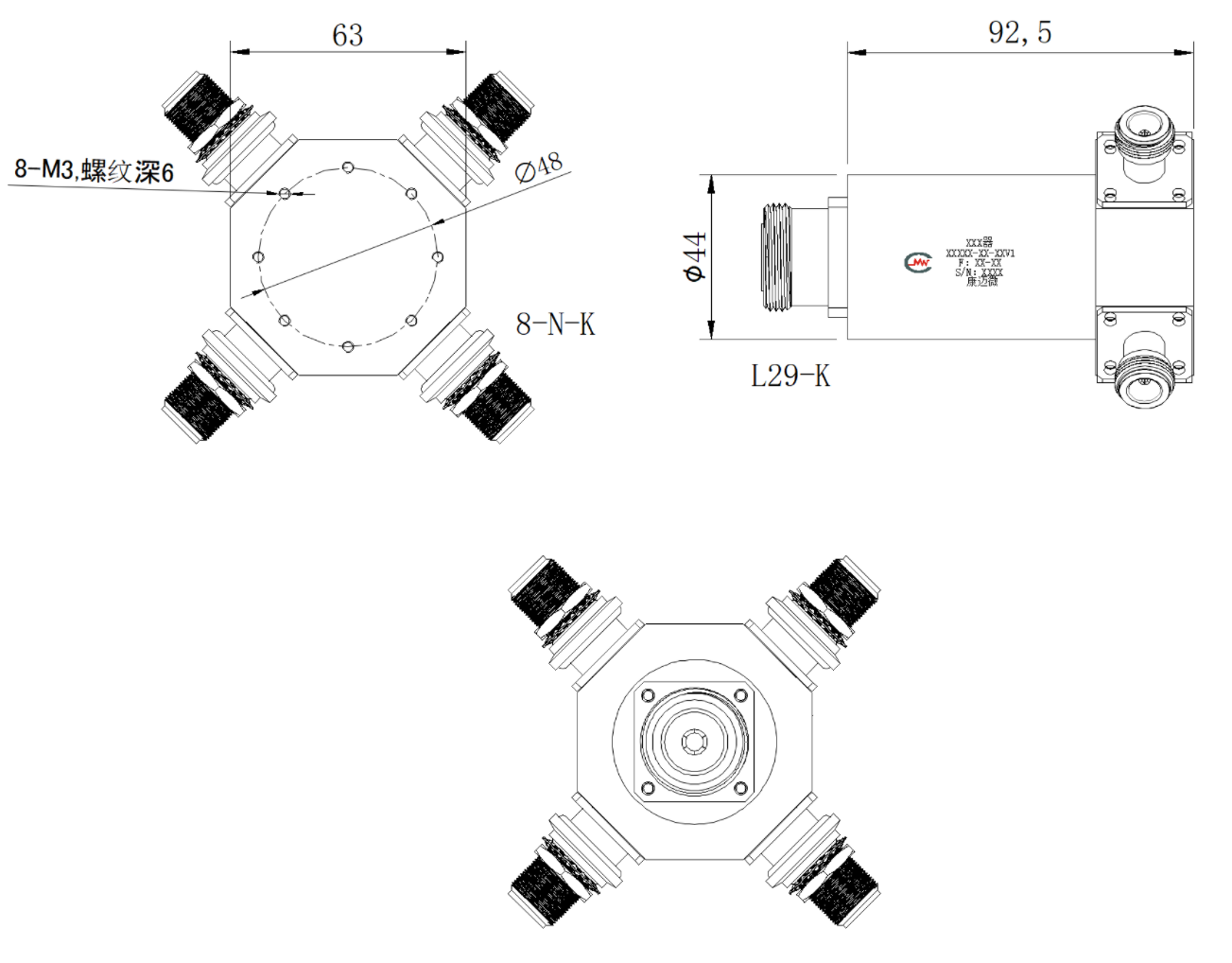

1.2~1.4GHz, 8000W, 4way, Phase0°, L29, Radial synthesizer
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Low loss, high power.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 1.2 | ~ | 1.4 | GHz |
| IL | 0.4 | dB | ||
| Isolation | 10 | dB | ||
| Combined port VSWR | 1.3 | |||
| Branching port VSWR | Not required | |||
| Amplitude balance | 0.2 | dB | ||
| Phase balance | 6 | ° |
| Power | 8000W peak power, duty cycle 10%. |
|---|---|
| way | 4-way |
| Phase | 0° |
| Connector | L29-K |
| Connector material | Shell copper |
| Surface | White |
| Product shell material | Aluminium |
| Work Temp. | -30~+70℃ Design assurance |
| Other | Radial synthesizer |
| Common port | L29-K |
|---|---|
| Dispatch Port | N-K |
| Frequency MHz | S11 VSWR | S23 ISO dB | S12 IL dB | S15 Phase | S22 VSWR |
|---|---|---|---|---|---|
| 1100 | 1.21 | -12.24 | -6.11 | 0.51 | - |
| 1129 | 1.17 | -12.19 | -6.1 | 0.53 | - |
| 1157 | 1.14 | -12.2 | -6.09 | 0.55 | - |
| 1186 | 1.11 | -12.28 | -6.06 | 0.56 | - |
| 1214 | 1.08 | -12.04 | -6.05 | 0.61 | - |
| 1243 | 1.05 | -12.05 | -6.04 | 0.62 | - |
| 1271 | 1.03 | -12.05 | -6.04 | 0.64 | - |
| 1300 | 1.01 | -11.96 | -6.04 | 0.68 | - |
| 1329 | 1.01 | -12.16 | -6.04 | 0.68 | - |
| 1357 | 1.02 | -12.03 | -6.04 | 0.7 | - |
| 1386 | 1.04 | -12 | -6.03 | 0.73 | - |
| 1414 | 1.05 | -12.15 | -6.05 | 0.74 | - |
| 1443 | 1.06 | -12.21 | -6.05 | 0.74 | - |
| 1471 | 1.08 | -12.25 | -6.05 | 0.76 | - |
| 1500 | 1.09 | -12.28 | -6.06 | 0.76 | - |
| 1 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
|---|---|
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
