Product features

Small size, low loss, supports SMT welding.

Main specifications

Parameters	Min	Typical	Max	Units
Frequency	4000	~	8000	MHz
IL		0.3		dB
Isolation	18	20		dB
Input VSWR		1.4
Output VSWR		1.4
Amplitude balance			0.5	dB
Phase balance			6	°

Other parameters

Power	5W Design assurance
way	2-way
Phase	0°
Impedance	50Ω
Connector	SMD
Work Temp.	-40~+85℃ Design assurance
Storage Temp.	-55~+125℃ Design assurance
Quality Grade	Industrial grade

Port Definition

Common port	2
Dispatch Port	5、8
GND	1、3、4、6、7、9

Typical test data

Frequency(MHz)	S11 VSWR	S22 VSWR	S13 IL dB	S13 Phase (°)	S23 ISO dB
3000	1.57	1.06	-3.35	1.4	-15.72
3429	1.5	1.15	-3.22	2.3	-18.02
3857	1.42	1.23	-3.15	2.31	-20.32
4286	1.35	1.27	-3.17	2.93	-21.93
4714	1.3	1.26	-3.17	3.19	-22.15
5143	1.26	1.22	-3.15	3.19	-21.5
5571	1.22	1.16	-3.16	3.26	-21.04
6000	1.17	1.14	-3.16	3.16	-21.39
6429	1.11	1.15	-3.17	2.99	-23.11
6857	1.04	1.15	-3.2	3.15	-27.18
7286	1.08	1.11	-3.25	3.34	-30.73
7714	1.22	1.08	-3.23	3.33	-23.69
8143	1.39	1.08	-3.39	3.76	-18.87
8571	1.6	1.1	-3.42	3.78	-16.07
9000	1.79	1.09	-3.59	3.47	-14.28

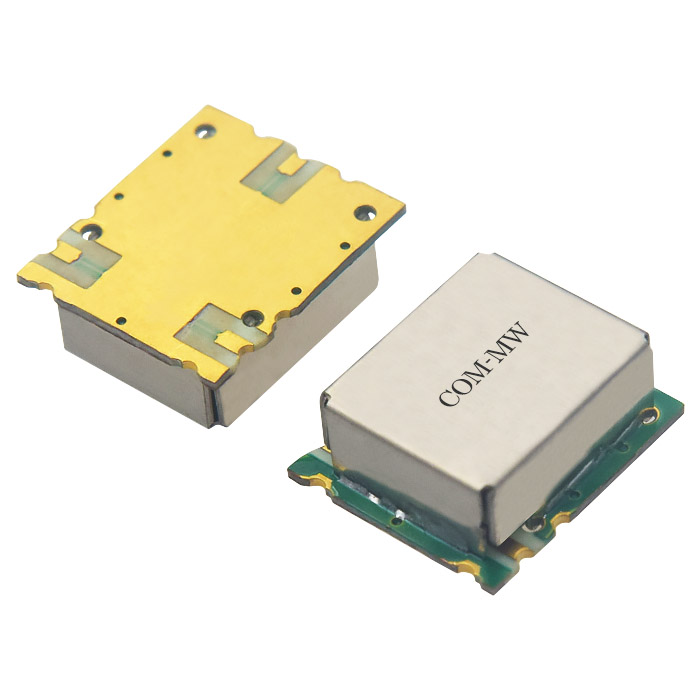

Reference picture

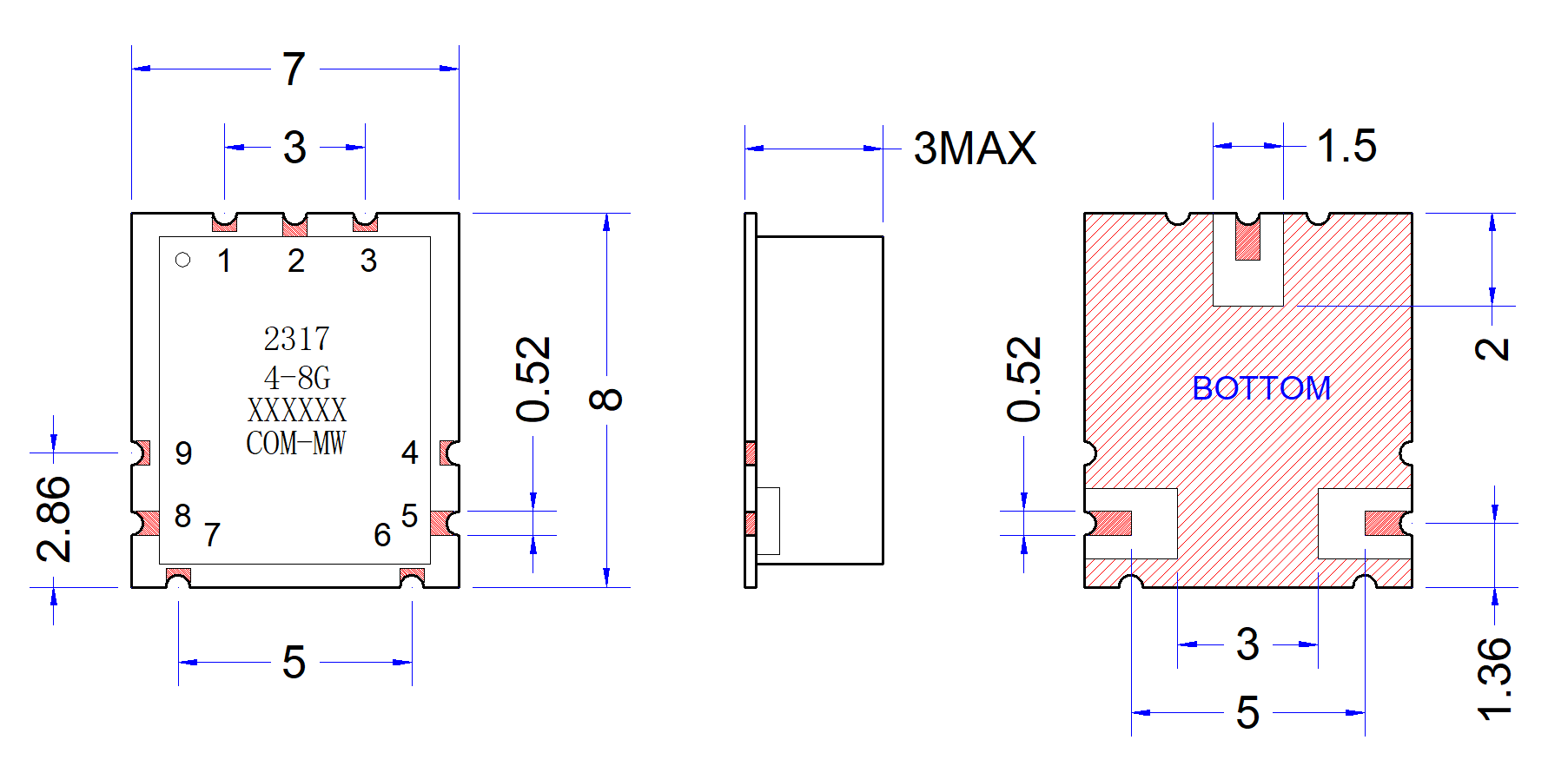

Configuration(mm)

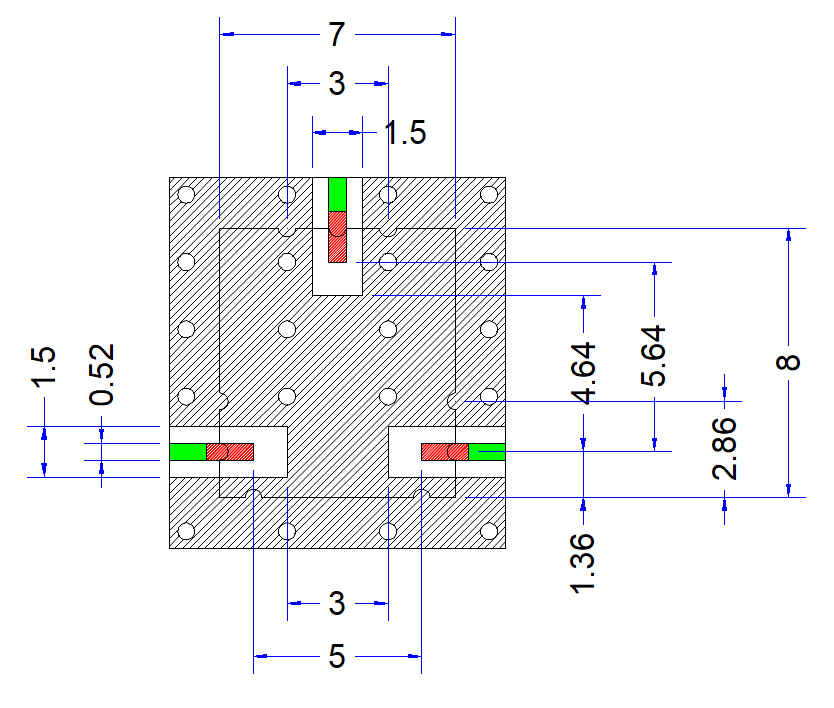

Suggested PCB Layout

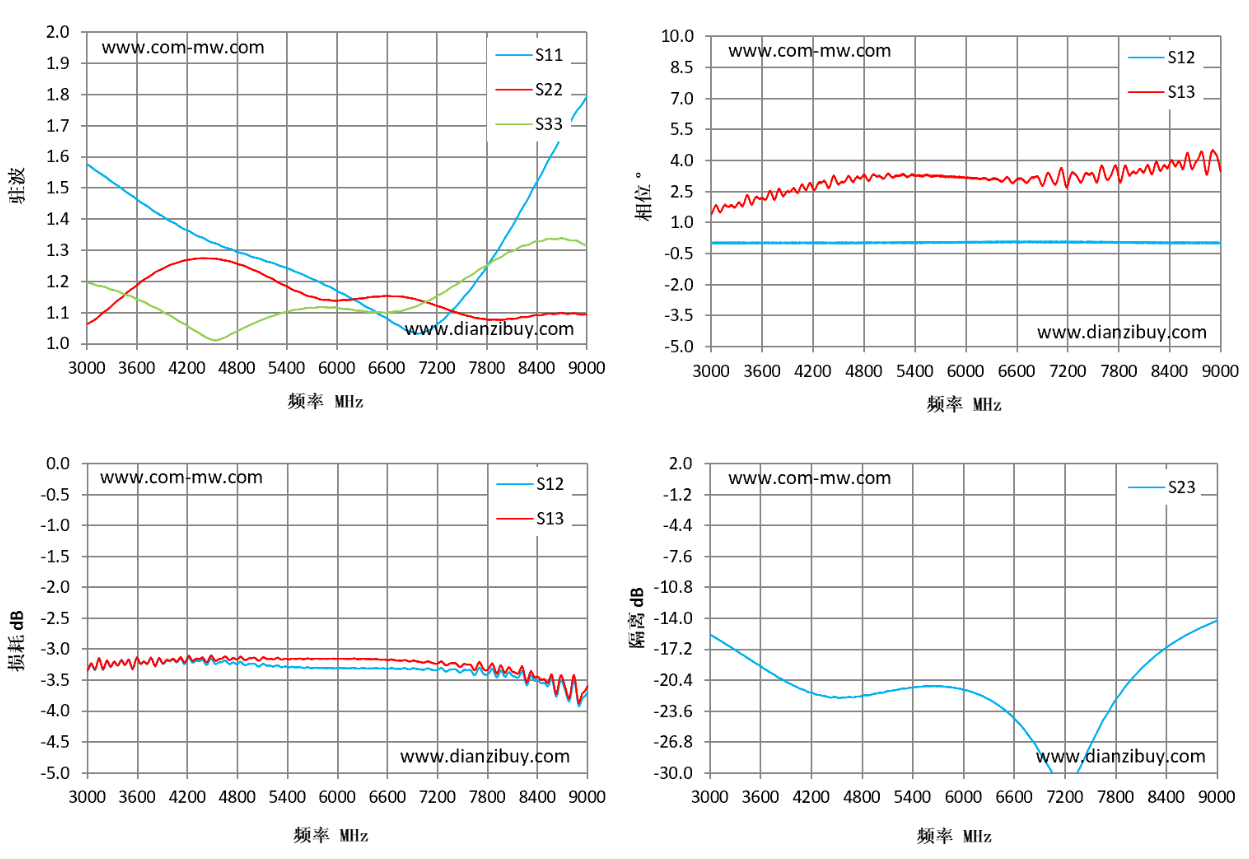

Typical test curve

Note

1	Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution.
2	The product supports 190 ℃ reflow soldering

Power divider ZPD8-2M4000-8000-2317
