Product features

Broadband, small volume.

Main specifications

Parameters	Min	Typical	Max	Units
Frequency	DC	~	6800	MHz
IL			11	dB
Isolation	17	19		dB
Input VSWR		1.3	1.6
Output VSWR			1.4
Amplitude balance			0.5	dB
Phase balance			5	°

Other parameters

Power	0.5W
way	2-way
Phase	0°
Impedance	50Ω
Connector	SMA-K
Connector material	Stainless steel
Surface	Black baking paint
Product shell material	Aluminium
Work Temp.	-40~+85℃ Design assurance
Storage Temp.	-55~+100℃ Design assurance
Quality Grade	Industrial grade

Port Definition

Common port	0
Dispatch Port	1,2

Typical test data

Frequency MHz	S11 VSWR	S12 IL (dB)	S13 IL (dB)	S13 Phase (°)	S23 ISO dB
0.01	1.03	-9.75	-9.76	0.01	-19.46
571	1.03	-9.73	-9.71	0.05	-19.33
1143	1.04	-9.74	-9.72	0.09	-19.23
1714	1.04	-9.76	-9.73	0.06	-19.18
2286	1.06	-9.78	-9.75	0.13	-19.22
2857	1.09	-9.83	-9.81	0.1	-19.42
3429	1.08	-9.88	-9.86	0.04	-19.71
4000	1.07	-9.9	-9.88	-0.03	-19.87
4571	1.05	-9.89	-9.88	-0.07	-19.8
5143	1.08	-9.86	-9.87	-0.12	-19.46
5714	1.1	-9.79	-9.82	-0.22	-19.02
6286	1.16	-9.86	-9.9	-0.43	-18.8
6857	1.32	-9.99	-10.04	-0.7	-18.82
7429	1.55	-10.13	-10.22	-0.94	-18.87
8000	1.68	-10.22	-10.33	-1.61	-18.86

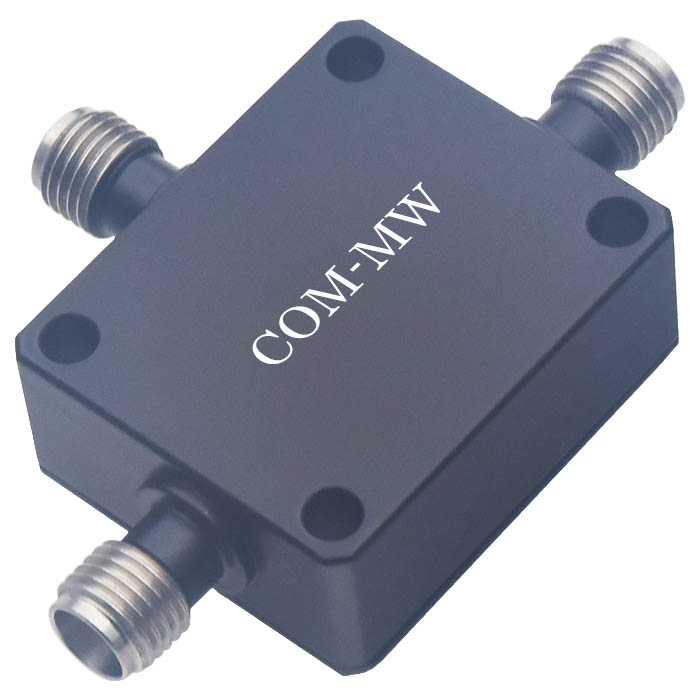

Reference picture

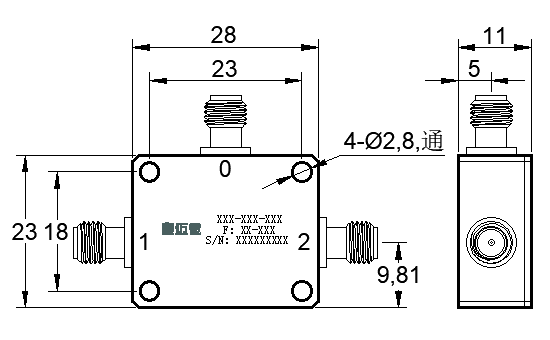

Configuration(mm)

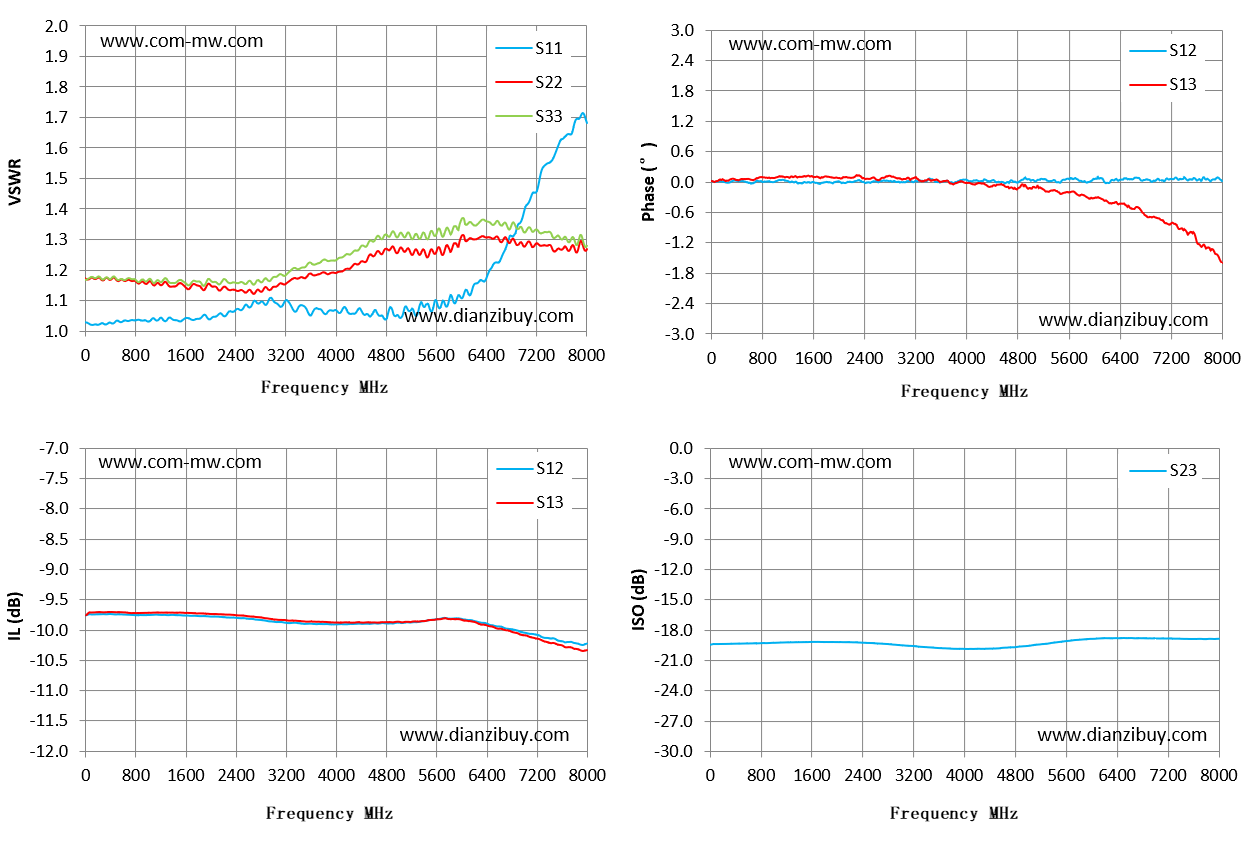

Typical test curve

Note

1	Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution.
2	If the temperature is higher than 125℃, consult with us before ordering.

Power divider ZPD8-2L0-6800-3358
