600~8000MHz, 分路20W，合路1W, 4way, , SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 600 | ~ | 8000 | MHz |
| IL | 2.0 (Excluding theoretical losses 6dB) | dB | ||
| Isolation | 20 | 24 | dB | |
| Input VSWR | 1.3 | |||
| Output VSWR | 1.25 | |||
| Amplitude balance | ±0.3 | dB | ||
| Phase balance | ±4 | ° |
| Power Capacity | 分路20W，合路1W设计保证 |
| X-Way | 4-way |
| Impedance | 50Ω |
| Connector | SMA-F |

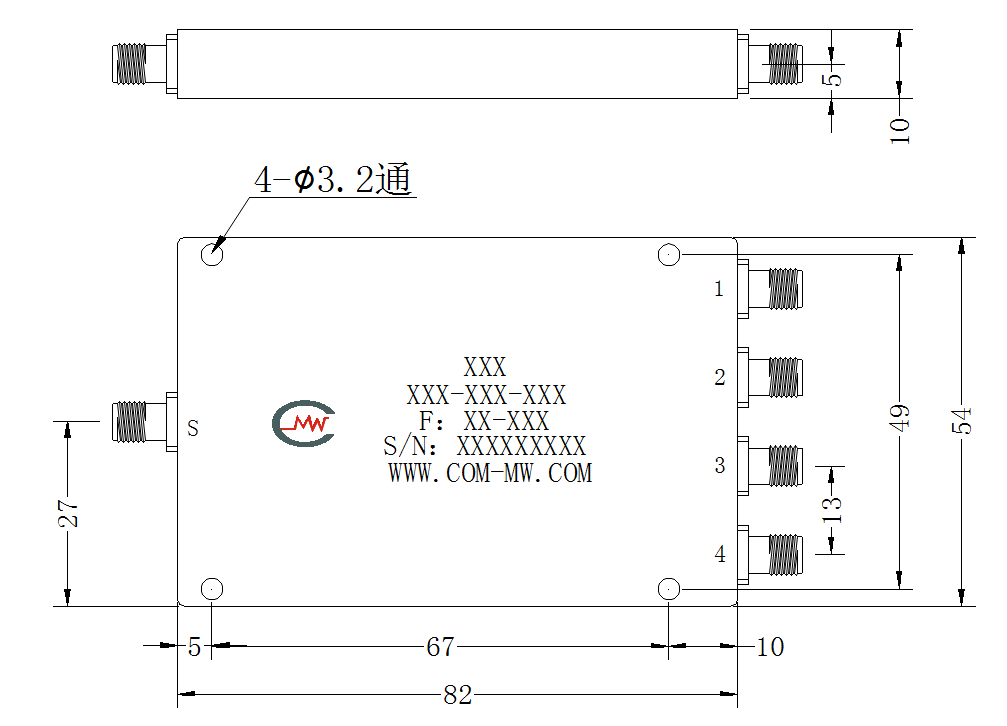

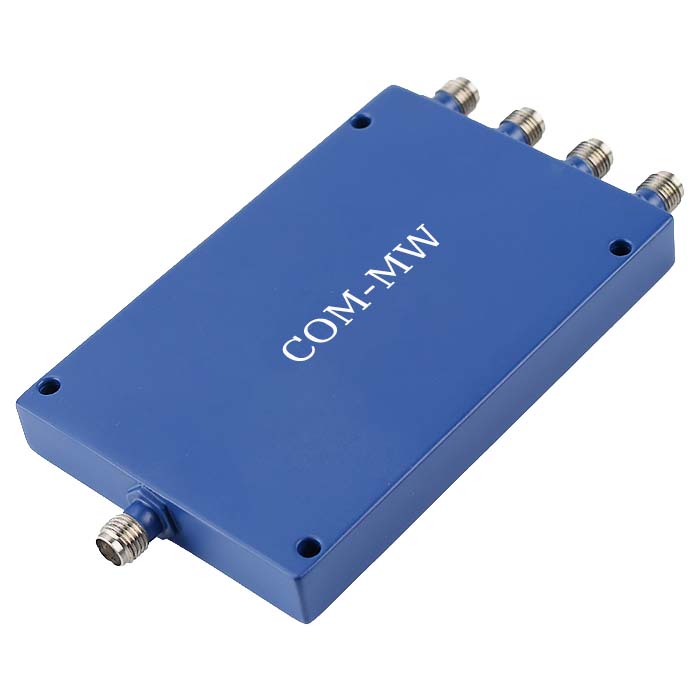

| Surface | Blue |
| Operation Temp. | -45~+85℃ Design assurance |

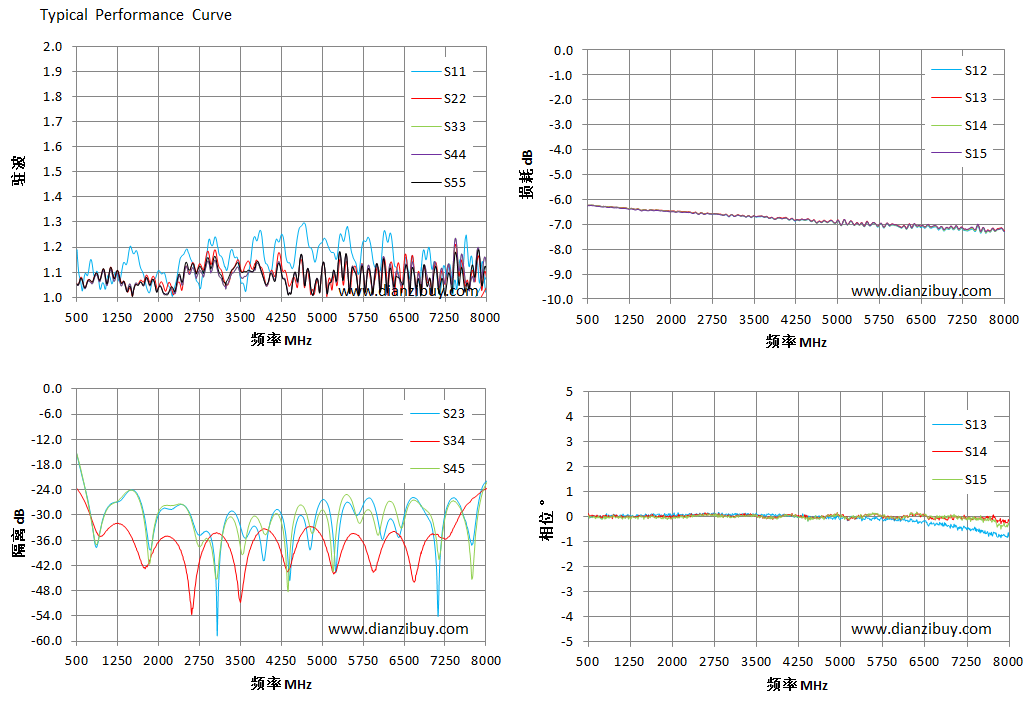

| Frequency(MHz) | S11 VSWR | S22 VSWR | S12 IL dB | S23 ISO dB | S13 Phase (°) |
|---|---|---|---|---|---|
| 600.00 | 1.02 | 1.07 | -6.24 | -20.52 | 0.06 |
| 1129.00 | 1.06 | 1.12 | -6.35 | -27.29 | 0.06 |
| 1657.00 | 1.13 | 1.06 | -6.42 | -25.93 | 0.03 |
| 2186.00 | 1.04 | 1.06 | -6.50 | -28.54 | 0.10 |
| 2714.00 | 1.06 | 1.12 | -6.59 | -34.46 | 0.05 |
| 3243.00 | 1.11 | 1.05 | -6.66 | -30.91 | 0.08 |
| 3771.00 | 1.24 | 1.13 | -6.76 | -32.71 | 0.06 |
| 4300.00 | 1.21 | 1.11 | -6.85 | -32.03 | -0.04 |
| 4829.00 | 1.18 | 1.03 | -6.93 | -34.88 | -0.06 |
| 5357.00 | 1.24 | 1.11 | -6.96 | -30.07 | -0.02 |
| 5886.00 | 1.22 | 1.07 | -7.00 | -25.95 | -0.05 |
| 6414.00 | 1.08 | 1.12 | -7.09 | -35.27 | -0.18 |
| 6943.00 | 1.20 | 1.06 | -7.22 | -30.66 | -0.39 |
| 7471.00 | 1.03 | 1.17 | -7.29 | -26.37 | -0.47 |
| 8000.00 | 1.02 | 1.09 | -7.30 | -22.11 | -0.79 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
