3.2~4GHz, 100W, 4way, SMA, 串馈合成器,与ZPD25-4M3.2-4-383配对使用,做功分
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
High power, low loss, and high synthesis efficiency.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 3.2 | ~ | 4 | GHz |
| IL | 0.7 | dB | ||
| Isolation | 20 | dB | ||
| Input VSWR | 1.35 | |||
| Output VSWR | 1.35 | |||
| Amplitude balance | 0.5 | dB | ||
| Coupling | 32 | 34 | dB | |
| Directivity | 12 | dB |
| Power Capacity | 100W |
| X-Way | 4-way (distribution loss 6dB) |
| Phase | Paired use of two |
| Impedance | 50Ω |
| Connector | SMA-K |
| Surface | Conductive oxidation |
| Product shell material | Aluminium |
| Operation Temp. | -30~+85℃ Design assurance |
| Other | 串馈合成器,与ZPD25-4M3.2-4-383配对使用,做功分 |

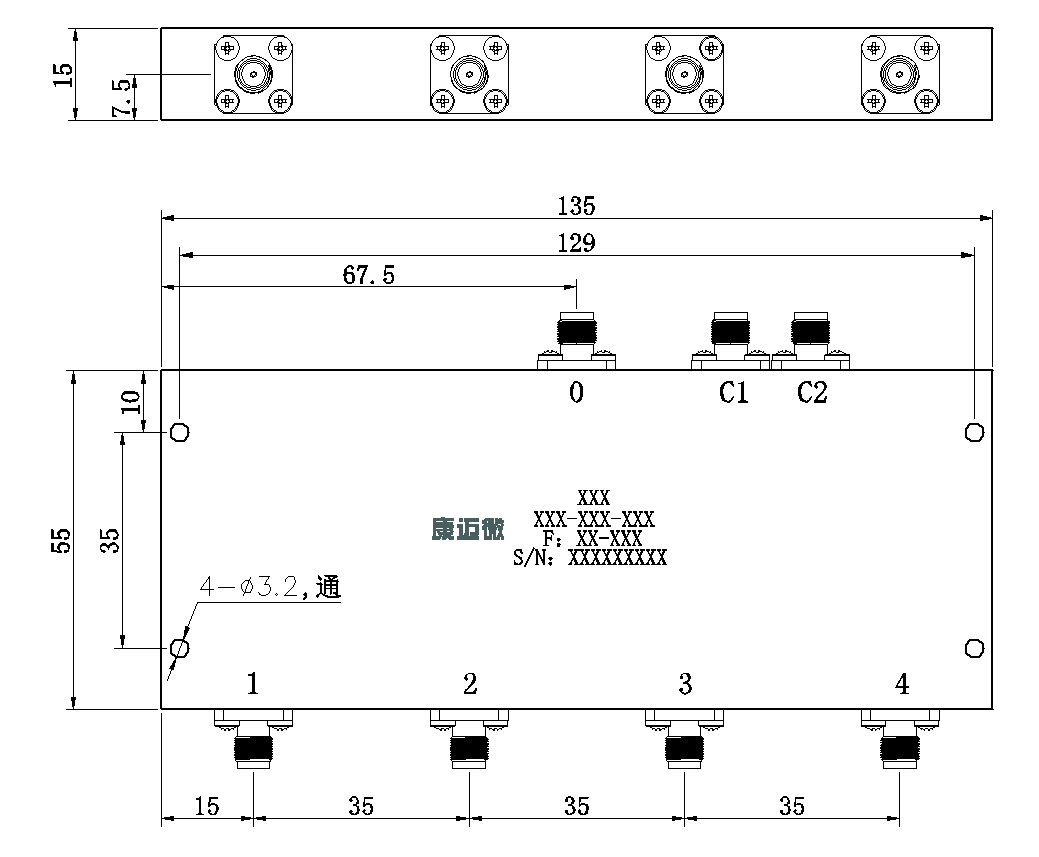

| Common port | 0 |
| Dispatch Port | 1、2、3、4 |
| Coupling port | C1、C2 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
