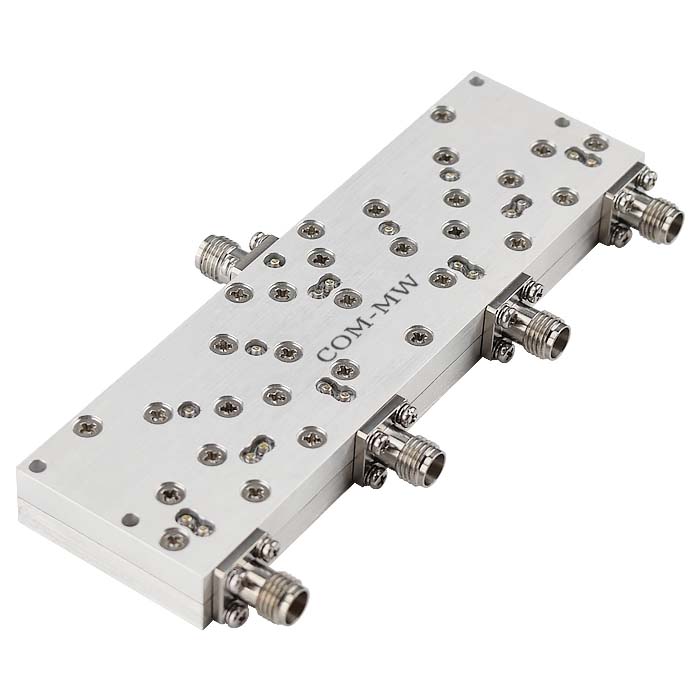

18~40GHz, 15W, 4way, 0°, 2.92, 2.92
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

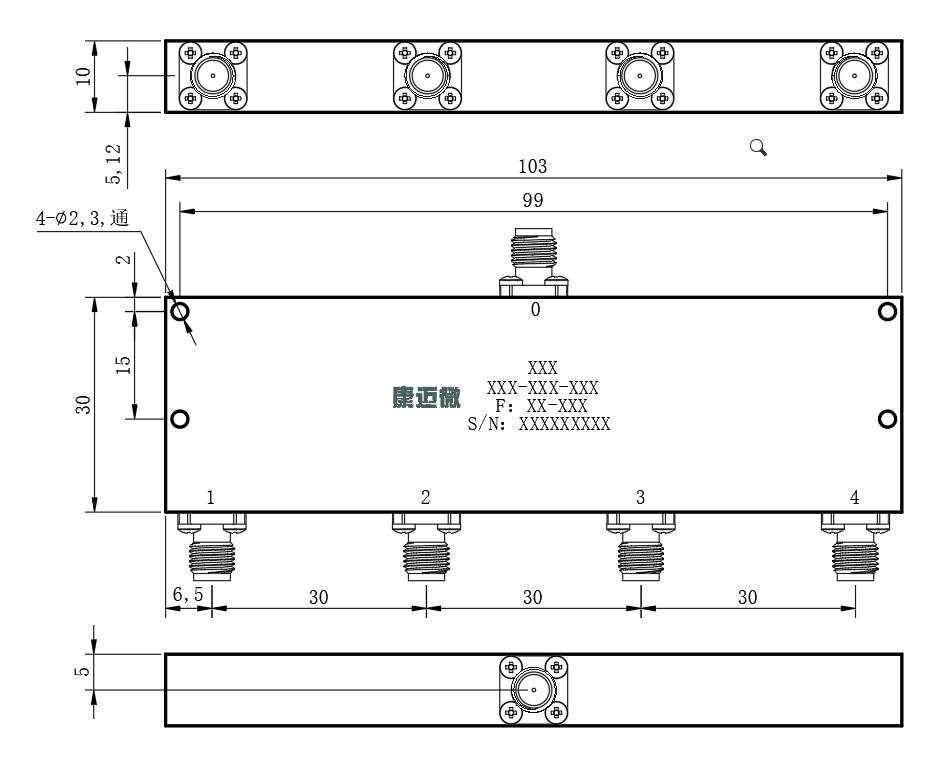

| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 18 | ~ | 40 | GHz |
| IL | 2.3 | dB | ||
| Isolation | 15 | 17 | dB | |
| Input VSWR | 1.7 | |||
| Output VSWR | 1.6 | |||
| Amplitude balance | ±0.4 | dB | ||
| Phase balance | ±5 | ° |
| Power Capacity | 15W Design assurance |
| X-Way | 4-way |
| Phase | 0° |
| Impedance | 50Ω |
| Public interface form | 2.92-F or K |
| Allocation end interface form | 2.92-F or K detachable Pin 0.38mm |
| Connector material | Stainless steel |
| Surface | Conductive oxidation |
| Product shell material | Aluminium |
| Operation Temp. | -40~+70℃ Design assurance |
| Quality Grade | Industrial grade |
| ROHS | Compliant Available |
| Common port | 0 |
| Dispatch Port | 1，2，3，4 |

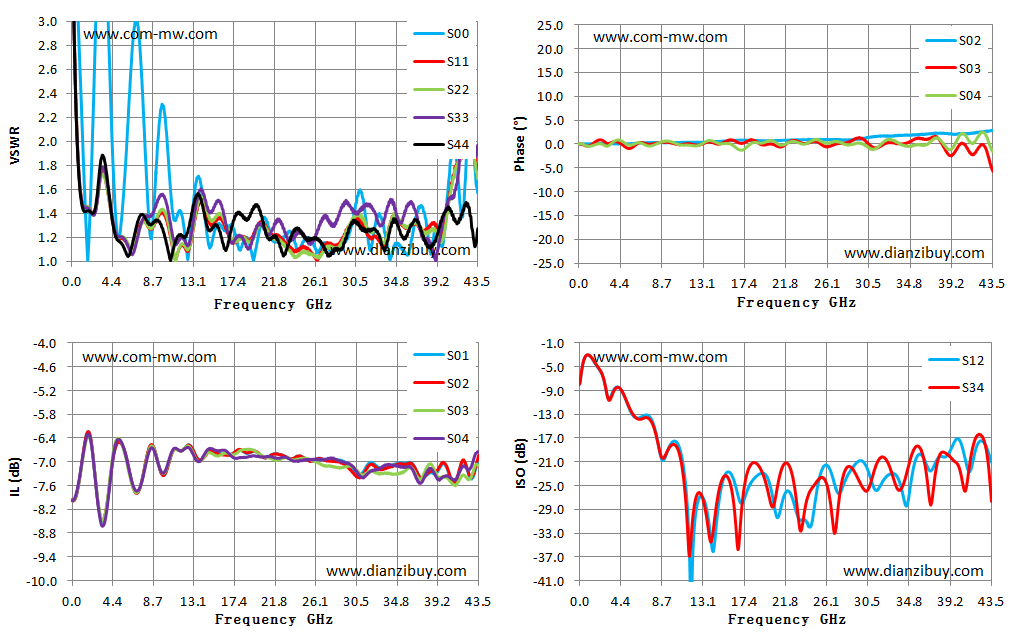

| Frequency GHz | S00 VSWR | S11 VSWR | S01 IL dB | S02 Phase | S12 ISO |
|---|---|---|---|---|---|
| 0.01 | 3.98 | 3.92 | -7.96 | -0.03 | -7.96 |
| 3.12 | 3.96 | 1.70 | -8.46 | 0.08 | -10.40 |
| 6.22 | 2.39 | 1.12 | -7.31 | 0.22 | -13.62 |
| 9.33 | 2.07 | 1.38 | -7.13 | 0.30 | -19.12 |
| 12.44 | 1.02 | 1.08 | -6.57 | 0.40 | -28.27 |
| 15.54 | 1.30 | 1.34 | -6.76 | 0.69 | -22.85 |
| 18.65 | 1.20 | 1.20 | -6.79 | 0.76 | -23.51 |
| 21.76 | 1.17 | 1.22 | -6.80 | 0.82 | -26.21 |
| 24.86 | 1.17 | 1.12 | -6.89 | 0.92 | -28.16 |
| 27.97 | 1.08 | 1.12 | -6.95 | 0.92 | -24.51 |
| 31.07 | 1.58 | 1.33 | -7.28 | 1.58 | -25.25 |
| 34.18 | 1.03 | 1.34 | -7.09 | 1.84 | -26.70 |
| 37.29 | 1.45 | 1.27 | -7.40 | 2.24 | -22.15 |
| 40.39 | 1.67 | 1.52 | -7.34 | 2.15 | -18.36 |
| 43.50 | 1.57 | 1.76 | -6.92 | 2.85 | -21.08 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
