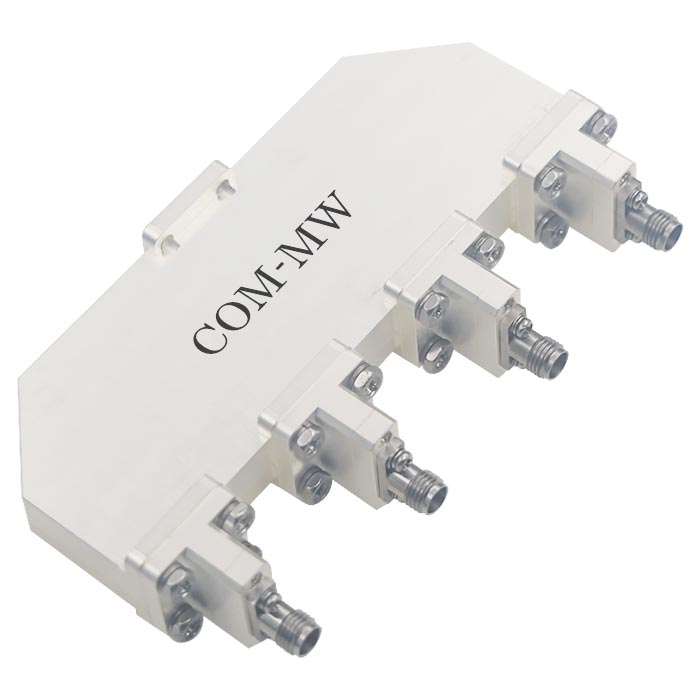

26~40GHz, 40W, 4way, 0°, 2.92-F
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 26 | ~ | 40 | GHz |
| IL | 0.7 | dB | ||
| Isolation | 12 | dB | ||
| Input VSWR | 1.5 | |||
| Output VSWR | 1.7 | |||
| Amplitude balance | ±0.5 | dB | ||
| Phase balance | ±5 | ° |
| Power Capacity | 40W Design assurance |
|---|---|
| way | 4-way |
| Phase | 0° |
| Impedance | 50Ω |
| Connector | 2.92-F |
| Connector material | Stainless steel |
| Waveguide port | BJ320 |
| Product shell material | Aluminium |
| Operation Temp. | -40~+70℃ Design assurance |
| Common port | 0(FBP320) |
|---|---|
| Dispatch Port | 1，2，3，4(2.92mm-F) |

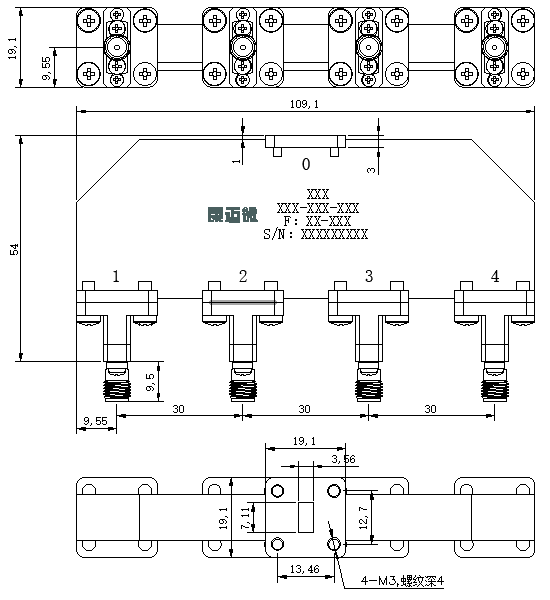

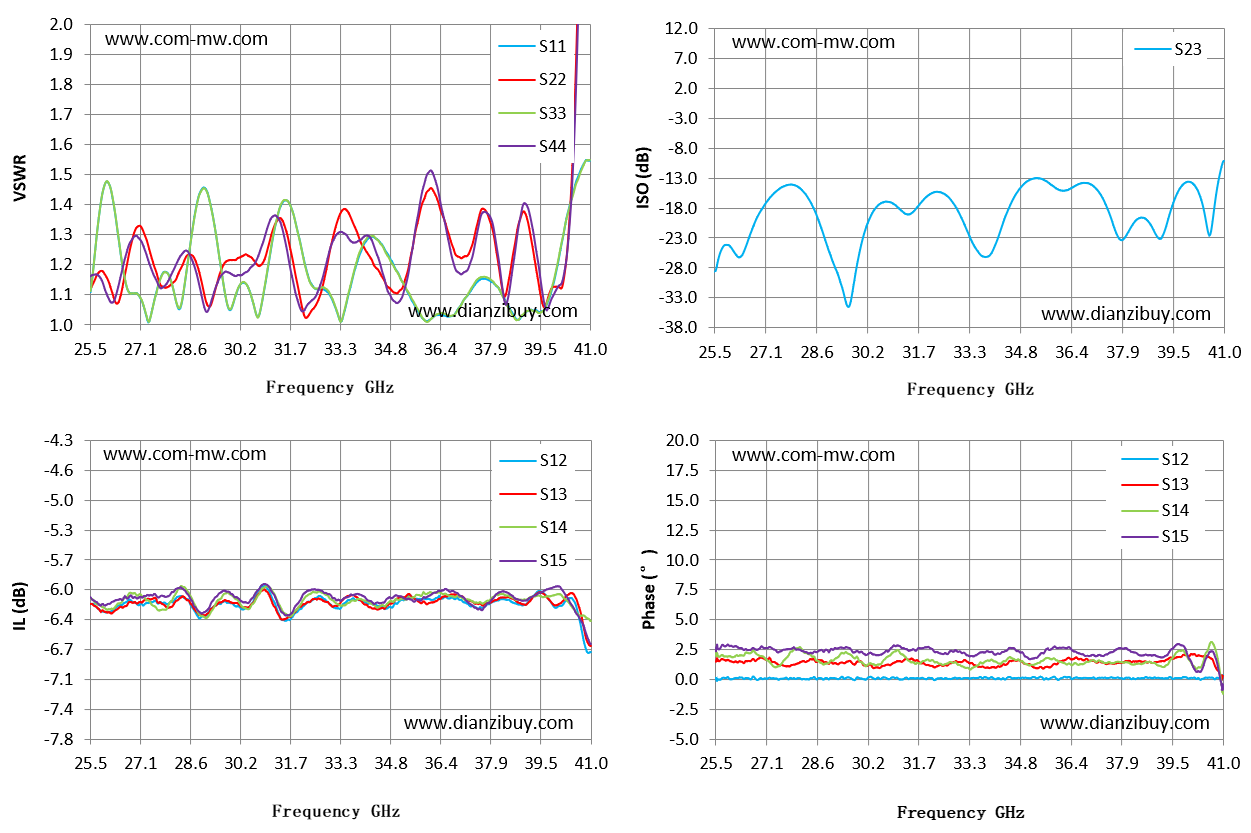

| Frequency GHz | S11 VSWR | S12 IL (dB) | S23 ISO dB | S13 Phase (°) |
|---|---|---|---|---|
| 25.5 | 1.11 | -6.17 | -28.68 | 1.51 |
| 26.61 | 1.14 | -6.15 | -21.97 | 1.68 |
| 27.71 | 1.16 | -6.15 | -14.17 | 1.14 |
| 28.82 | 1.4 | -6.3 | -22.63 | 1.43 |
| 29.93 | 1.07 | -6.17 | -24.71 | 1.53 |
| 31.04 | 1.2 | -6.01 | -17.73 | 1.56 |
| 32.14 | 1.21 | -6.18 | -15.45 | 1.11 |
| 33.25 | 1.02 | -6.22 | -22.67 | 1.38 |
| 34.36 | 1.29 | -6.18 | -19.2 | 1.25 |
| 35.46 | 1.09 | -6.08 | -13.16 | 1.04 |
| 36.57 | 1.03 | -6.1 | -14.03 | 1.73 |
| 37.68 | 1.15 | -6.21 | -21.56 | 1.35 |
| 38.79 | 1.02 | -6.17 | -21.03 | 1.47 |
| 39.89 | 1.14 | -6.21 | -13.64 | 2.04 |
| 41 | 1.54 | -6.74 | -10.15 | 0.36 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
|---|---|
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
