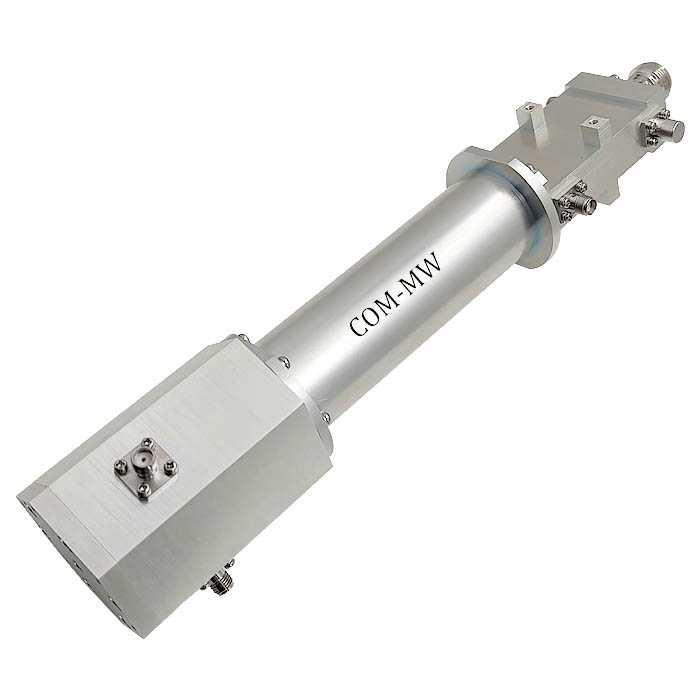

0.7~6GHz, 400W, 3way, 0°, N
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| 1 | Low loss, high power. |
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 0.7 | ~ | 6 | GHz |
| IL | 0.7 | dB | ||
| Theoretical loss | 4.77 | dB | ||
| Isolation | 8 | dB | ||
| Common port VSWR | 1.5 | |||
| Branching port VSWR | No | |||
| Amplitude balance | ±0.4 | dB | ||
| Phase balance | ±5 | ° | ||
| Coupling | 42.5 | 45 | 47.5 | dB |
| Coupling flatness | ±2 | dB | ||
| Directivity | 12 | dB | ||
| Coupled line VSWR | 1.4 |
| Power Capacity | 400W Design assurance |
| X-Way | 3-way |
| Phase | 0° |
| Impedance | 50Ω |
| Connector | N |
| Surface | Conductive oxidation |
| Product shell material | Aluminium |
| Operation Temp. | -40~+70℃ Design assurance |
| Quality Grade | Industrial grade |
| Common port | 0（N-F） |
| Dispatch Port | 1，2，3（SMA-F） |
| Forward and reverse coupling ports | 4，5（SMA-F） |

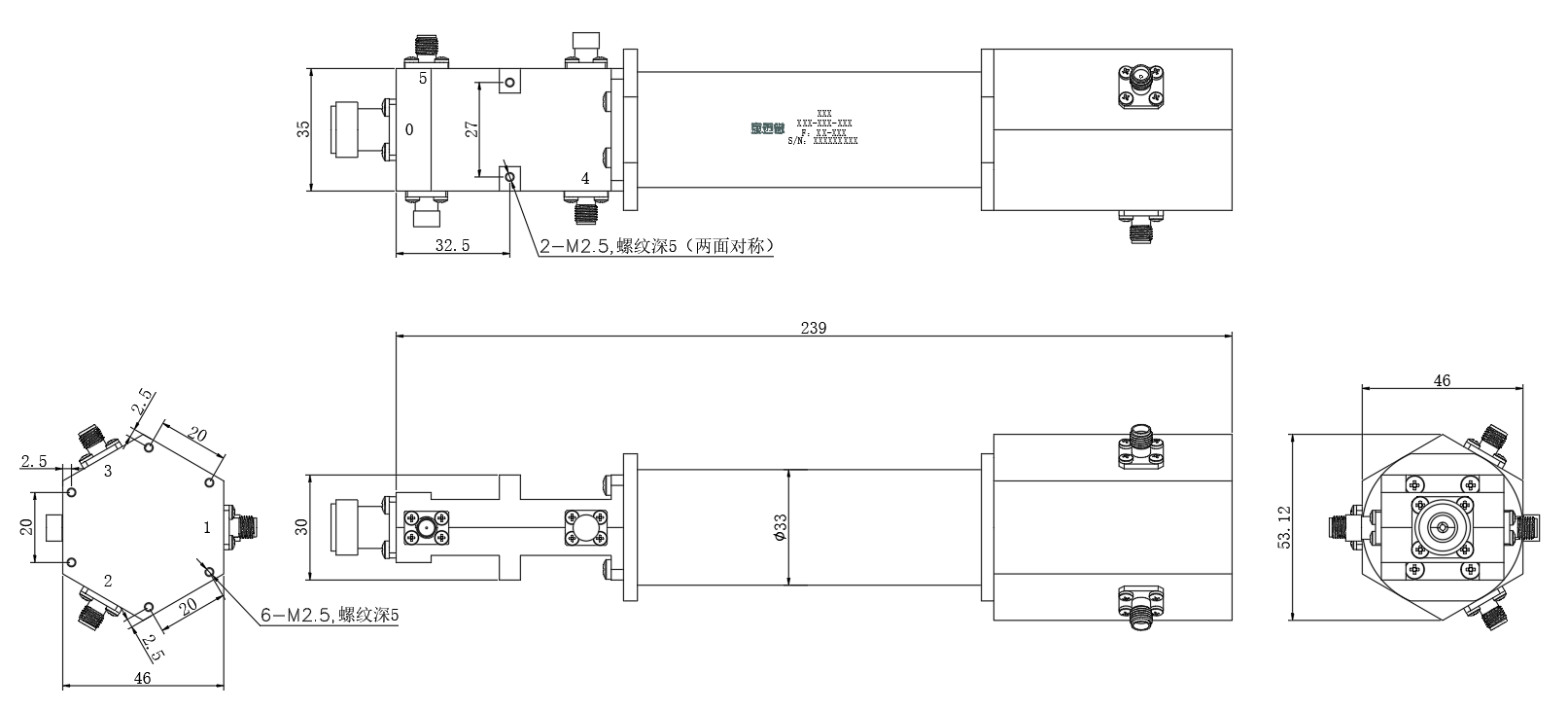

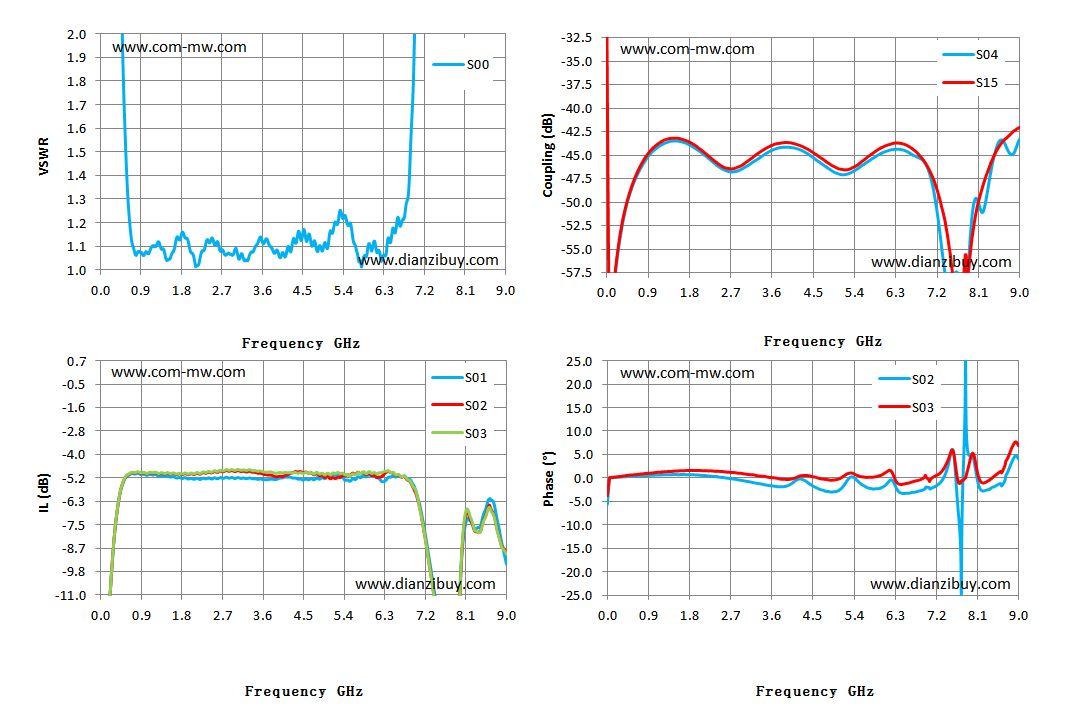

| Frequency GHz | S00 VSWR | S01 IL dB | S02 IL dB | S04 Coupling | S02 Phase |
|---|---|---|---|---|---|
| 0.01 | 3407.27 | -41.11 | -41.02 | -63.75 | -5.65 |
| 0.64 | 1.23 | -4.98 | -4.94 | -47.35 | 0.40 |
| 1.29 | 1.12 | -5.06 | -4.95 | -43.68 | 0.68 |
| 1.93 | 1.13 | -5.21 | -4.99 | -44.29 | 0.64 |
| 2.57 | 1.11 | -5.19 | -4.87 | -46.58 | 0.04 |
| 3.21 | 1.04 | -5.19 | -4.84 | -45.66 | -1.02 |
| 3.86 | 1.07 | -5.23 | -5.08 | -44.15 | -1.86 |
| 4.50 | 1.16 | -5.25 | -4.89 | -45.25 | -1.71 |
| 5.14 | 1.16 | -5.01 | -5.14 | -47.08 | -2.07 |
| 5.79 | 1.02 | -5.10 | -4.92 | -45.35 | -2.30 |
| 6.43 | 1.12 | -5.11 | -4.89 | -44.42 | -3.22 |
| 7.07 | 2.88 | -6.46 | -6.59 | -47.58 | -2.33 |
| 7.71 | 29.28 | -21.84 | -19.91 | -59.19 | -10.82 |
| 8.36 | 5.11 | -7.64 | -7.84 | -46.97 | -2.42 |
| 9.00 | 6.41 | -9.46 | -8.90 | -43.28 | 4.02 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
