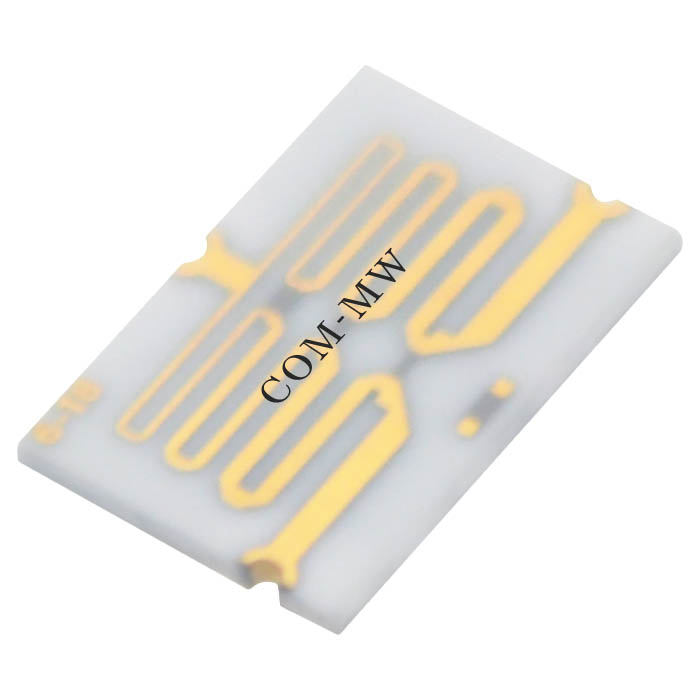

6~18GHz, 5W, 2way, Phase0°, SMD
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 6 | ~ | 18 | GHz |
| IL | 0.6 | dB | ||
| Isolation | 18 | dB | ||
| Input VSWR | 1.5 | |||
| Output VSWR | 1.5 | |||
| Amplitude balance | 0.4 | dB | ||
| Phase balance | ±6 | ° |
| Power Capacity | 5W Design assurance |
|---|---|
| X-Way | 2-way |
| Phase | 0° |
| Impedance | 50Ω |
| Connector | SMD |
| Operation Temp. | -40~+85℃ Design assurance |
| Common port | 0 |
|---|---|
| Dispatch Port | 1，2 |

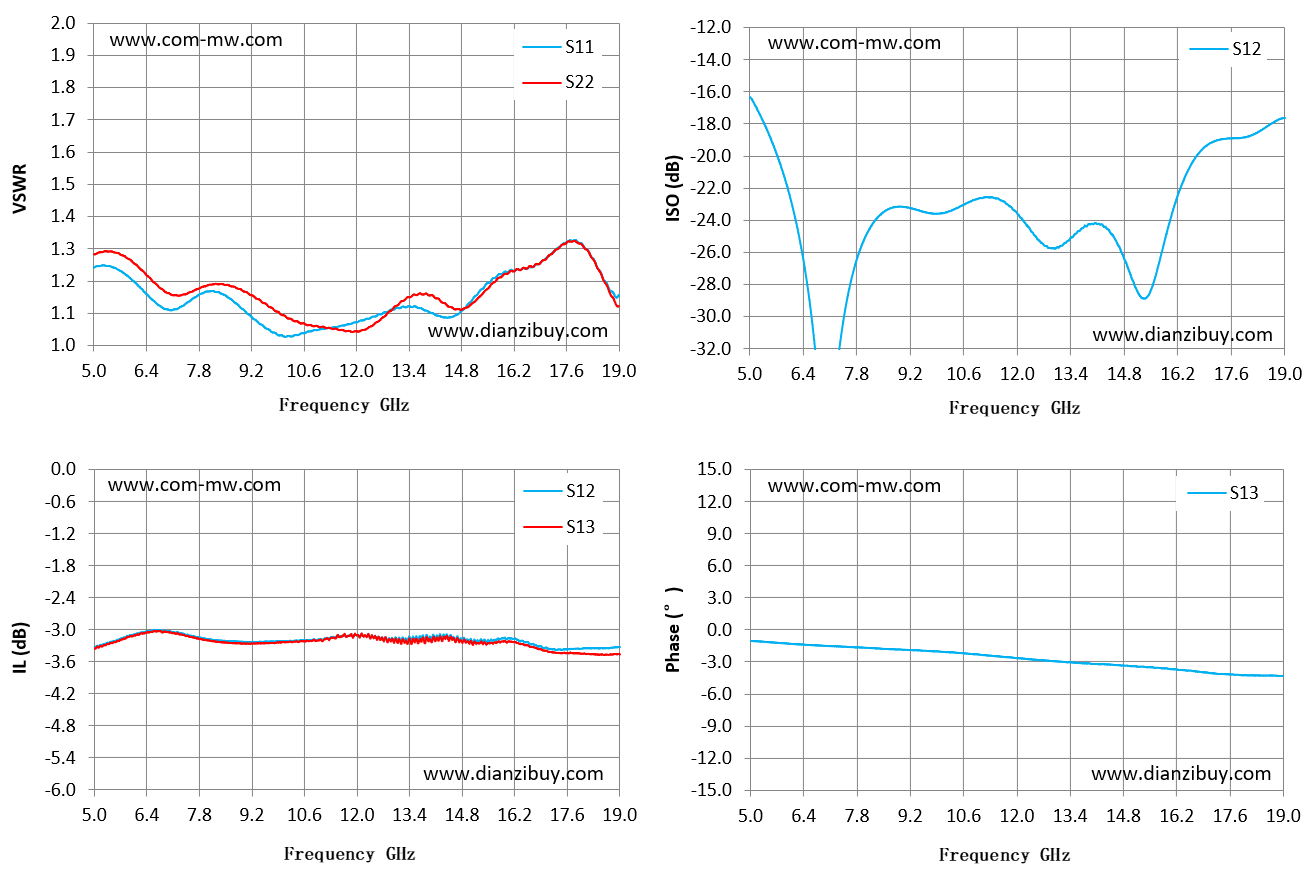

| Frequency GHz | S11 VSWR | S12 IL dB | S13 IL dB | S12 ISO dB | S13 Phase (°) |
|---|---|---|---|---|---|
| 5 | 1.24 | -3.32 | -3.34 | -16.35 | -1.04 |
| 6 | 1.2 | -3.1 | -3.12 | -22.12 | -1.29 |
| 7 | 1.11 | -3.03 | -3.05 | -38.45 | -1.5 |
| 8 | 1.17 | -3.18 | -3.19 | -25.17 | -1.67 |
| 9 | 1.11 | -3.23 | -3.26 | -23.19 | -1.85 |
| 10 | 1.03 | -3.22 | -3.23 | -23.61 | -2.04 |
| 11 | 1.05 | -3.18 | -3.19 | -22.67 | -2.3 |
| 12 | 1.07 | -3.11 | -3.1 | -23.62 | -2.63 |
| 13 | 1.11 | -3.19 | -3.22 | -25.79 | -2.92 |
| 14 | 1.1 | -3.15 | -3.21 | -24.26 | -3.16 |
| 15 | 1.13 | -3.21 | -3.24 | -27.68 | -3.38 |
| 16 | 1.23 | -3.18 | -3.23 | -24.02 | -3.62 |
| 17 | 1.26 | -3.34 | -3.39 | -19.3 | -3.96 |
| 18 | 1.32 | -3.36 | -3.44 | -18.84 | -4.21 |
| 19 | 1.16 | -3.33 | -3.45 | -17.66 | -4.26 |

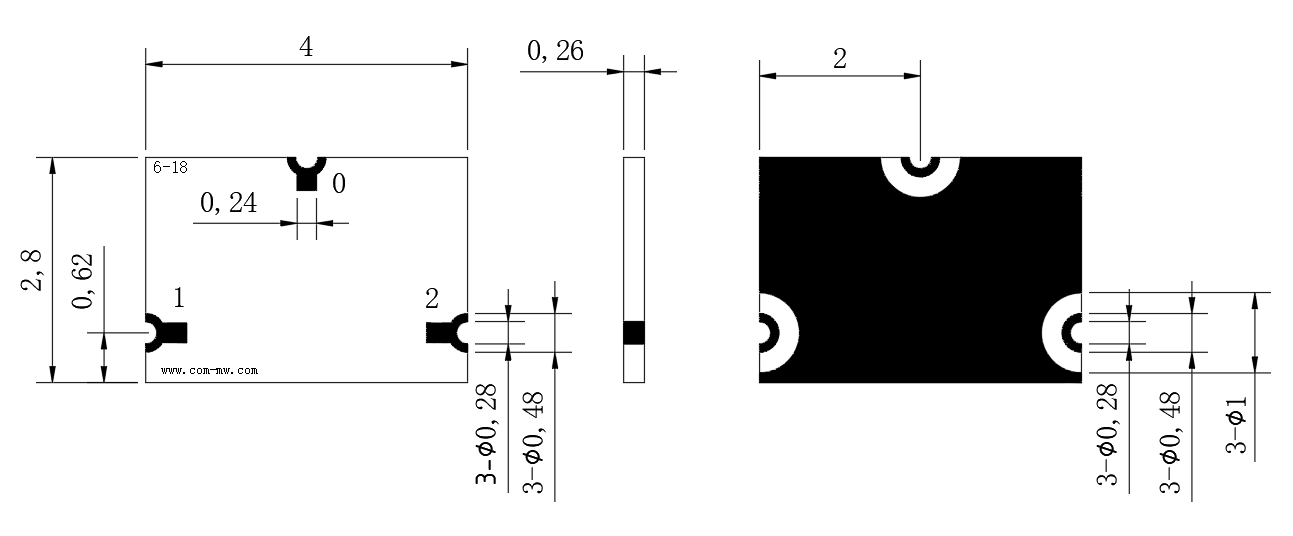

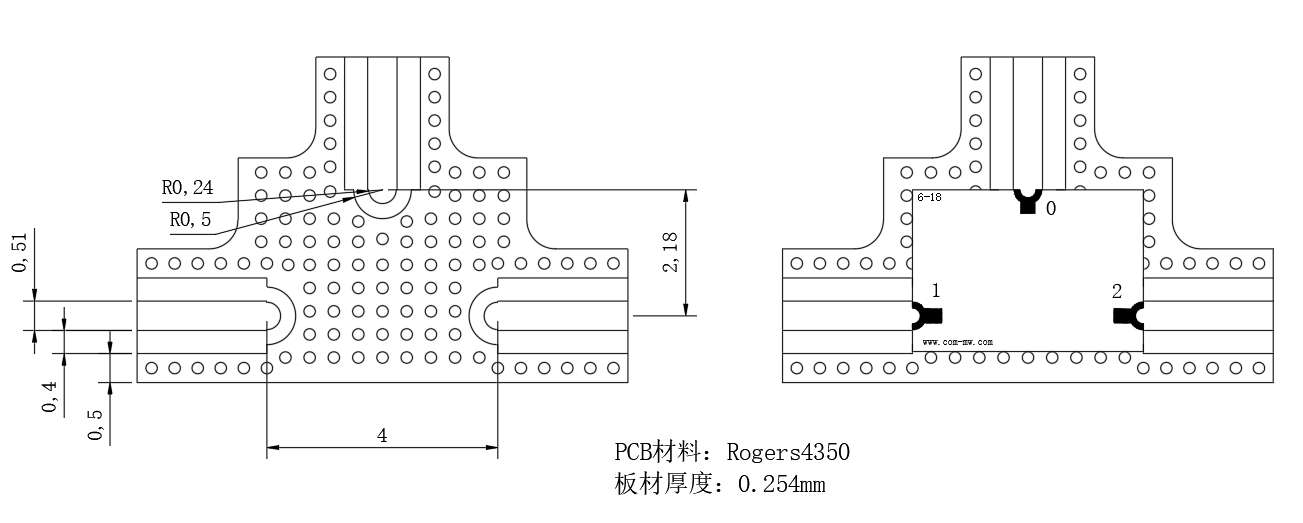

| 1 | The chip is recommended to be used in separate chambers, with one side less than 0.6mm from the side wall and a surface distance of 1.5-3mm from the top cover. |
|---|---|
| 2 | Support 190 ° reflow soldering |
