DC~2GHz, 20W @ split port, 10W @ composite port, 2way, 0°, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | DC | ~ | 2 | GHz |
| IL | 0.4 | dB@DC-1G | ||
| IL | 0.6 | dB@1G-2G | ||
| Isolation | 5.5 | dB | ||
| VSWR | 1.3 | |||
| Amplitude balance | 0.4 | dB | ||
| Phase balance | 5 | ° |
| Power Capacity | 20W @ Dispatch Port , 10W @ Combination port, design guarantee |
| X-Way | 2-way |
| Phase | 0° |
| Impedance | 50Ω |
| Connector | SMA-F |
| Product shell material | Aluminium |
| Operation Temp. | -40~+85℃ Design assurance |

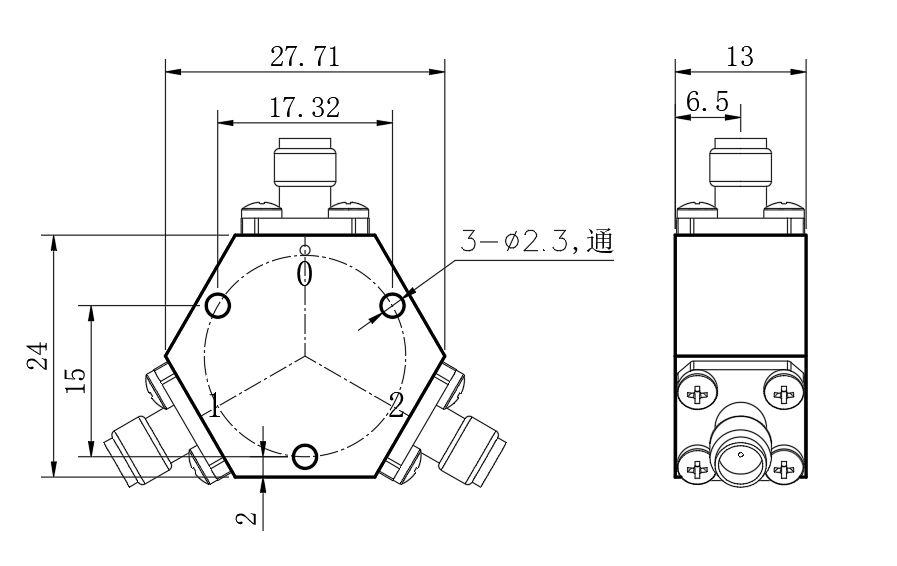

| Common port | 0 |
| Dispatch Port | 1，2 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
| 3 | Good heat dissipation must be ensured during work, and the temperature of the casing should not exceed 85 ° C. |
