1~2GHz, 15W, 16way, 0°, SMA, Industrial grade
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 1 | ~ | 2 | GHz |
| IL | 1.8 | dB (Excluding theoretical losses 12dB) | ||
| Isolation | 20 | dB | ||
| Common port VSWR | 1.35 | |||
| Branching port VSWR | 1.35 | |||
| Amplitude balance | ±0.4 | dB | ||
| Phase balance | ±8 | ° |
| Power Capacity | 15W |
| X-Way | 16-way |
| Phase | 0° |
| Impedance | 50Ω |
| Connector | SMA-K |
| Connector material | Stainless steel |
| Surface | Conductive oxidation |
| Product shell material | Aluminium |
| Operation Temp. | -40~+70℃ Design assurance |
| Quality Grade | Industrial grade |

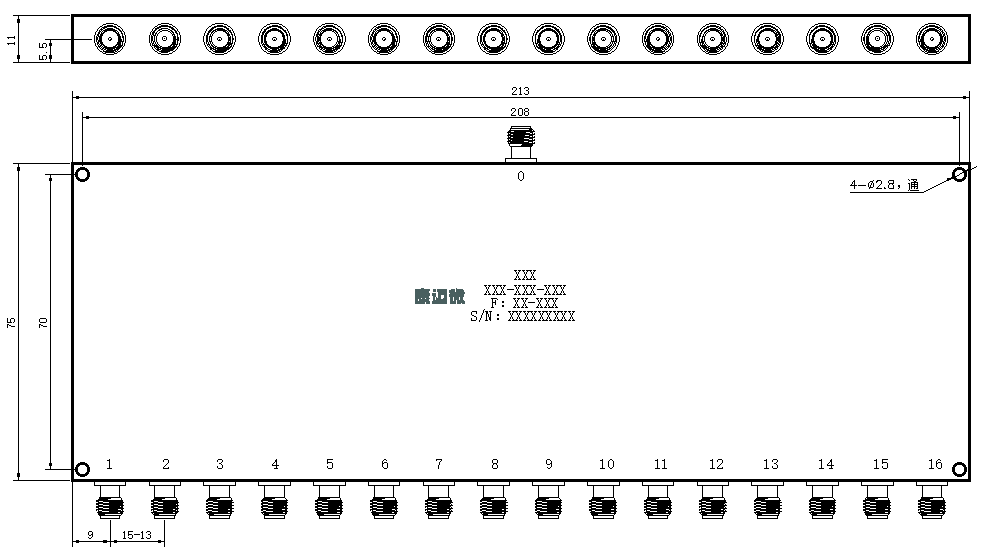

| Common port | 0 |
| Dispatch Port | 1 (without a straight partition) |
| Dispatch Port | 2-16 (with straight spacing) |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
| --- | 15个端口隔直，配16条电缆，每个功分器配10根SMA/BNC，6根SMA/TNC，半柔线3米长度。必要时改变电缆长度，尽量让相位一致，如果只有小于20ns的偏差，可以不管 |
